Input Voltage: DC 11-18V

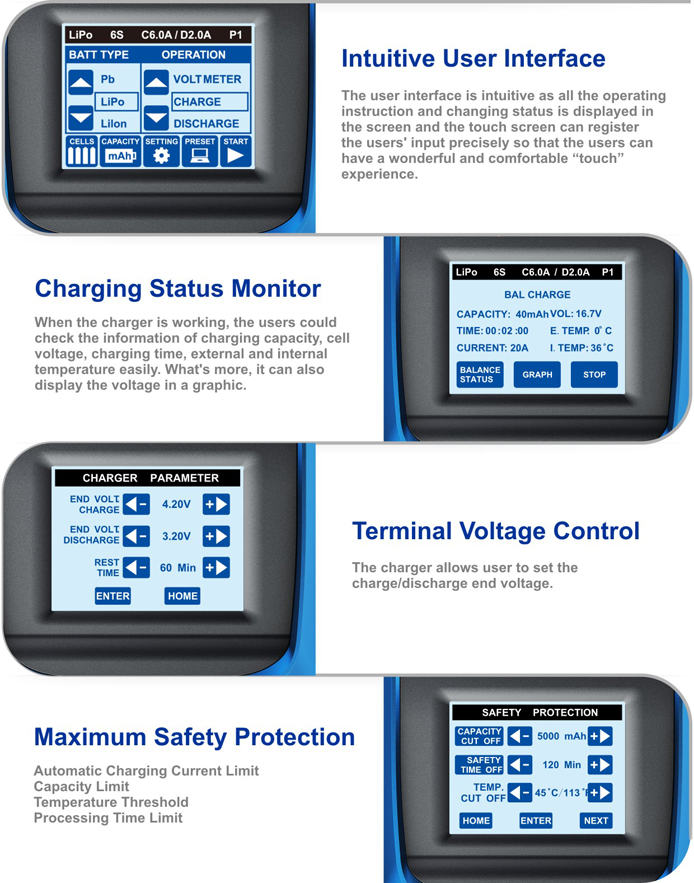

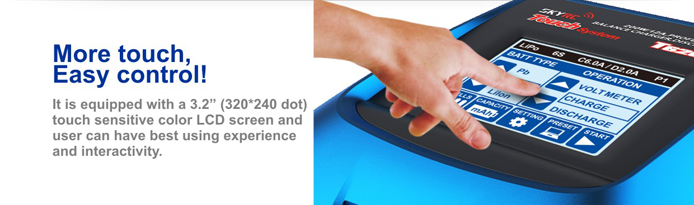

Controls: Color LCD Touch Screen

Display Type:65.85*49.63mm graphic touch sensitive LCD 3.2"(320*240 dot) screen and four color theme

Display Backlight:White

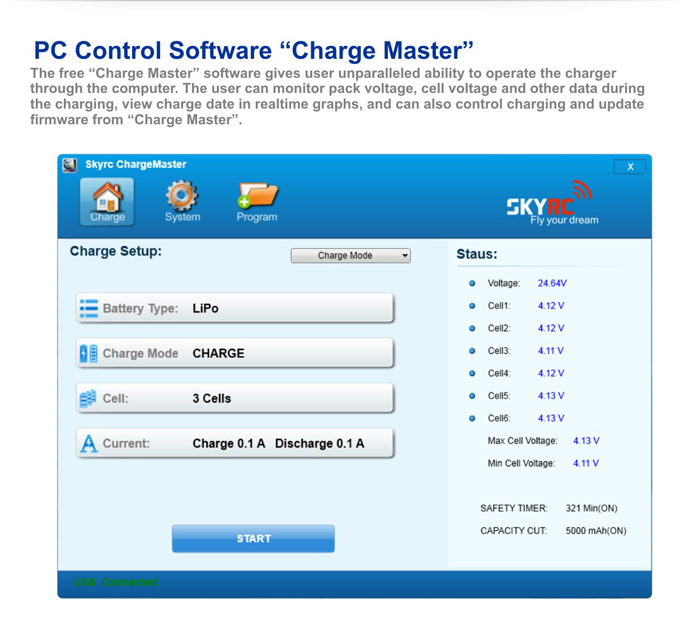

PC Communications: USB port for PC Control & Firmware Upgrade

Case Material: Plastic

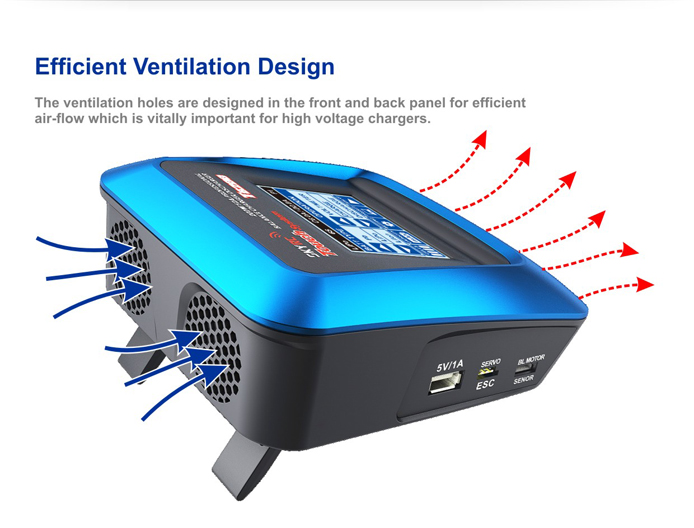

Cooling System: Built in, two 40*40*10mm fans

Case Size: 140*165*60mm

Weight: 560g

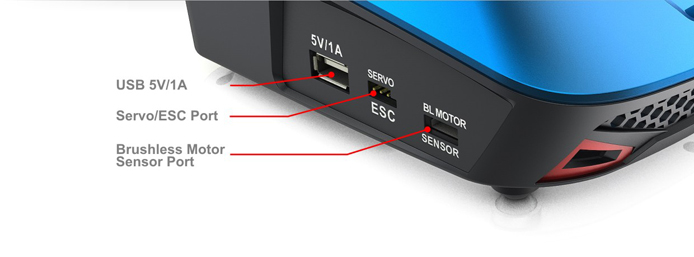

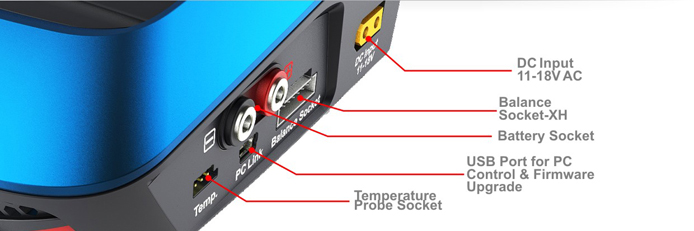

External Port: Temperature Probe Socket, DC Input, Balance Socket-XH, USB port for PC, Brushless Motor Sensor

                       Port, Servo/ESC Port, USB 5V/1A

Delta Peak Detection: NiCd: 3-15mV/cell

                                   NiMH: 3-15mV/cell

Charge Cutoff Temperature: 20-80°C (adjustable)

Charge Voltage: NiCd/NiMH: Delta peak detection

                          LiPo: 4.18-4.3V/cell

                          LiIon: 4.08-4.2V/cell

Balance Current: 200mA/cell

Reading Voltage Range: 0.3-5.0V/cell

Battery Types/Cells: NiCd/NiMH: 1-15cells

                                LiPo/LiIon/LiFe: 1-6cells

                                Pb: 2-20V

Battery Capacity Range: NiCd/NiMH: 100-20,000mAh

                                       LiPo/LiIon/LiFe: 100-20,000mAh

                                       Pb: 100-20,000mAh

Charge Current: 0.1-12.0A

Safety Timer: 1-720 minutes, Off

Charge Wattage: 200W

Discharge Current: 0.1-5.0A(±10%)

Discharge Cut-off Voltage: NiCd/NiMH: 0.1-1.1V/cell

                                          LiPo: 3.0-3.3V/cell

                                          LiIon: 2.9-3.2V/cell

Discharge Wattage: 40W

Balance Cells: 6 cells

Memory: 5 different charge/discharge profiles

Charge Method: CC/CV for lithium types and lead (pb) batteries, Delta-peak Sensitivity for NiMH/NiCd.

*
