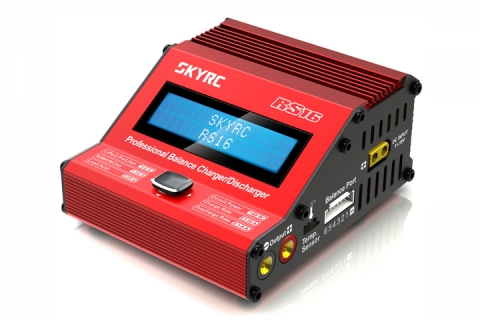

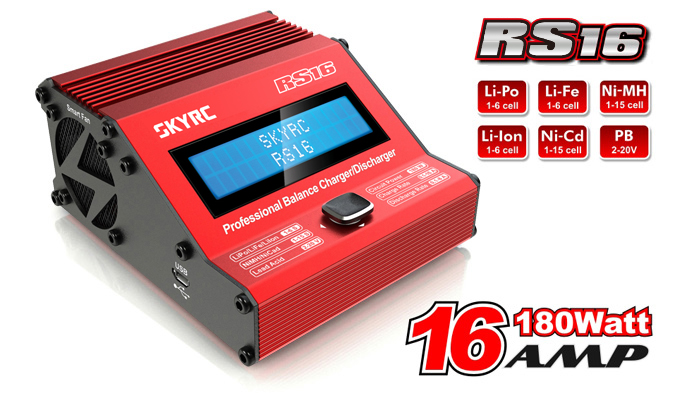

SKYRC RS16 is a high-performance, micro processor control
charge/discharge station with battery management suitable for all current battery types. There is an integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium-Ferrum (LiFe) and Lithium-Ion (LiIon) batteries; the maximum charge current/power can reach 16A/180W.

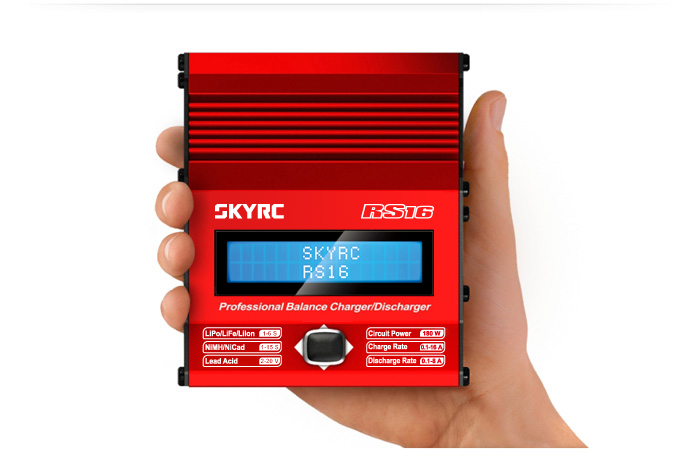

SKYRC RS16 represents the newest technology of chargers with its handheld super-compact portable charging system. The joystick gives the user best operational experience and also makes the charger smart and unique.

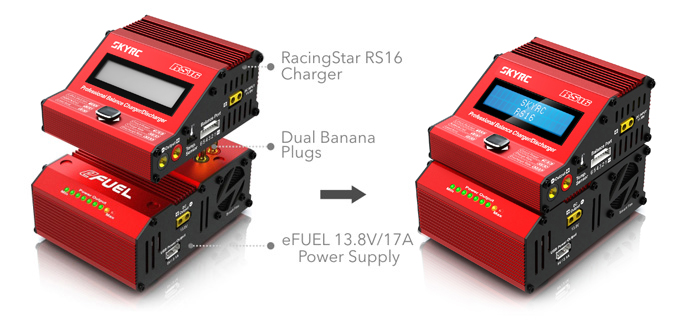

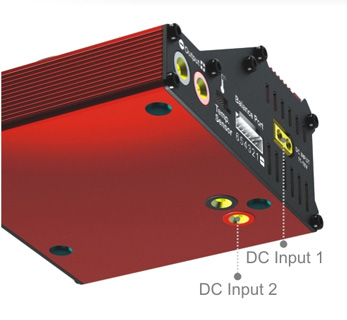

There are two DC inputs, one is banana plug type and the other is XT60 type. The banana plug type in the bottom is designed for Direct Plug Docking System.

Specifications:

DC Input Voltage: 11-18V

Controls: Joystick

Display Type: 2x16 LCD

Display Backlight: Blue

Case Material: Metal

Cooling System: Built-in fan x1pc

Case Size: 92x111.4x50mm

Weight: 405g

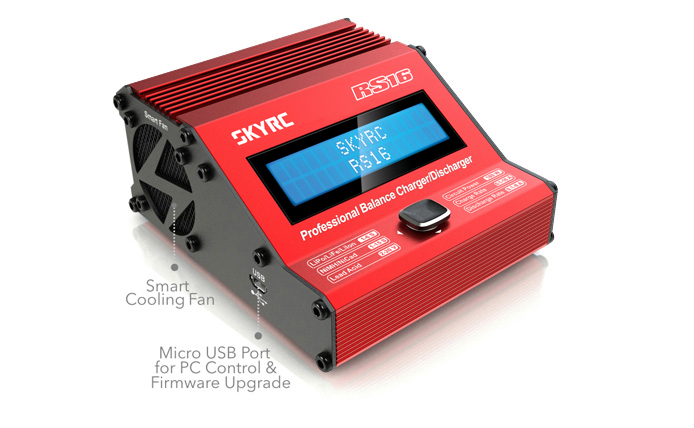

PC Communications: USB Port for PC Control & Firmware Upgrade

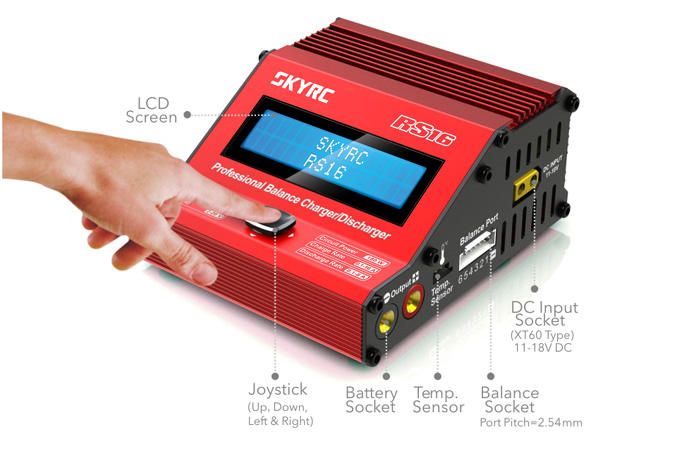

External Port: Balance Socket-XH, Temperature Probe Socket, Battery Socket, DC Input, Micro USB Port for PC.

Delta Peak Detection: NiMH/NiCad: 3-15mV/cell

Charge Cutoff Temperature: 20-80ºC(adjustable)

Charge Voltage: NiMH/NiCad: Delta peak detection

LiPo: 4.18-4.3V/cell

LiIon: 4.08-4.2V/cell

LiFe: 3.58-3.7V/cell

Balance Current: 200mA/cell

Reading Voltage Range: 0.1-25.8V/cell

Battery Types/Cells: LiPo/LiIon/LiFe: 1-6cells

NiMH/NiCad: 1-15cells

Pb: 2-20V

Battery Capacity Range: NiMH/NiCad: 100-50000mAh

LiPo/LiIon/LiFe: 100-50000mAh

Pb: 100-50000mAh

Charge Current: 0.1A-1A (±0.3A) 1A-16A (±10%)

Safety Timer: 1-720minutes off

Charge Wattage: 180W

Discharge Current: 0.1A-8A (±10%)

Discharge Cut-off Voltage: NiMH/NiCad: 0.1-1.1V/cell

LiPo: 3.0-3.3V/cell

LiIon: 2.9—3.2V/cell

LiFe: 2.6-2.9V/cell

Pb: 1.8V

Discharge Wattage: 30W

Balance Cells: 6 cells

Memory: 10 different charge/discharge profiles

Charge Method: CC/CV for lithium types and lead (Pb) batteries, Delta-peak Sensitivity for NiMH/NiCad.
