FEATURES: Composite body rotary valve carburetor with 5.5mm bore           Silver colored cooling head           SG (pilot) type crankshaft

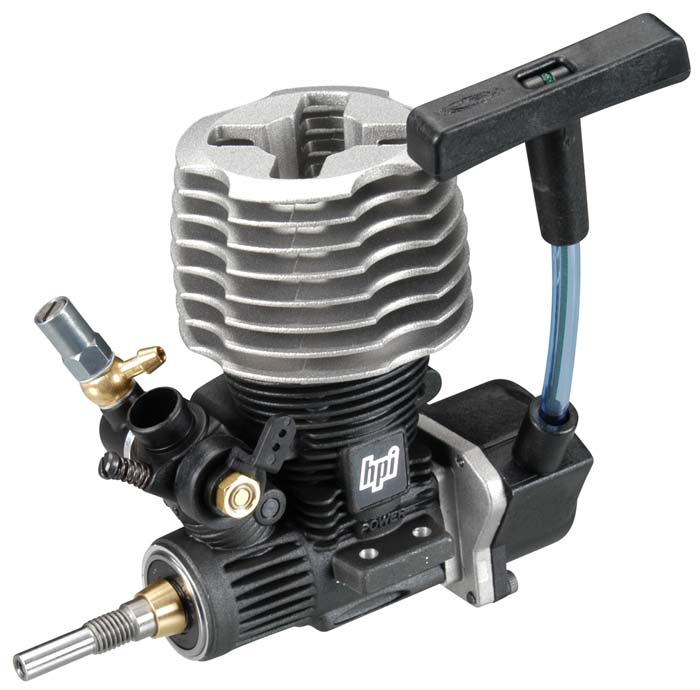

INCLUDES: HPI Nitro Star G3.0 Engine with Pull Start, instruction manual,             R5 cold glow plug (HPIG1504), foam air cleaner assembly with four             zip ties, brass collet
REQUIRES: Fuel: Car blend with 20-25% nitro content           Misc Items: Fuel tubing and track equipment
SPECS:    Specs such as horsepower, bore, stroke and RPM were not provided-             contact HPI for further infomation           High Speed Needle Setting: Turn clockwise in 1/8 turn increments             to lean fuel mixture. Do not exceed 2-1/2 turns from flush           Idle Adjustment: Adjust for about 0.04" (1mm) gap between slide valve             and carb body at bore opening           Low Speed Needle: No adjustment recommended           Displacement: .18 cu in (3.0cc)
Distance Between Mounting Holes Same Side: 0.43" (11mm)           Distance Between Mounting Holes Opposite Side: 1.22" (31mm)           Height/Bottom Mounting Flanges to Top of Cylinder Head: 2.99" (76mm)           Height/Bottom of Crankcase to Top of Cylinder Head: 3.5" (89mm)           Length from Pull Starter to End of Crankshaft: 4.13" (105mm)           Length from Pull Starter to Front Bearing: 3.3" (75.3mm)           Length from Center of Crankcase to End of Crankshaft: 2.96" (75mm)           Diameter of Carburetor Bore: 0.21" (5.5mm)
