* RTR
* TITAN 12T 550 MOTOR
* WATERPROOF ELECTRONICS
* AM RADIO
* GRAVE DIGGER BACKPACK

Features

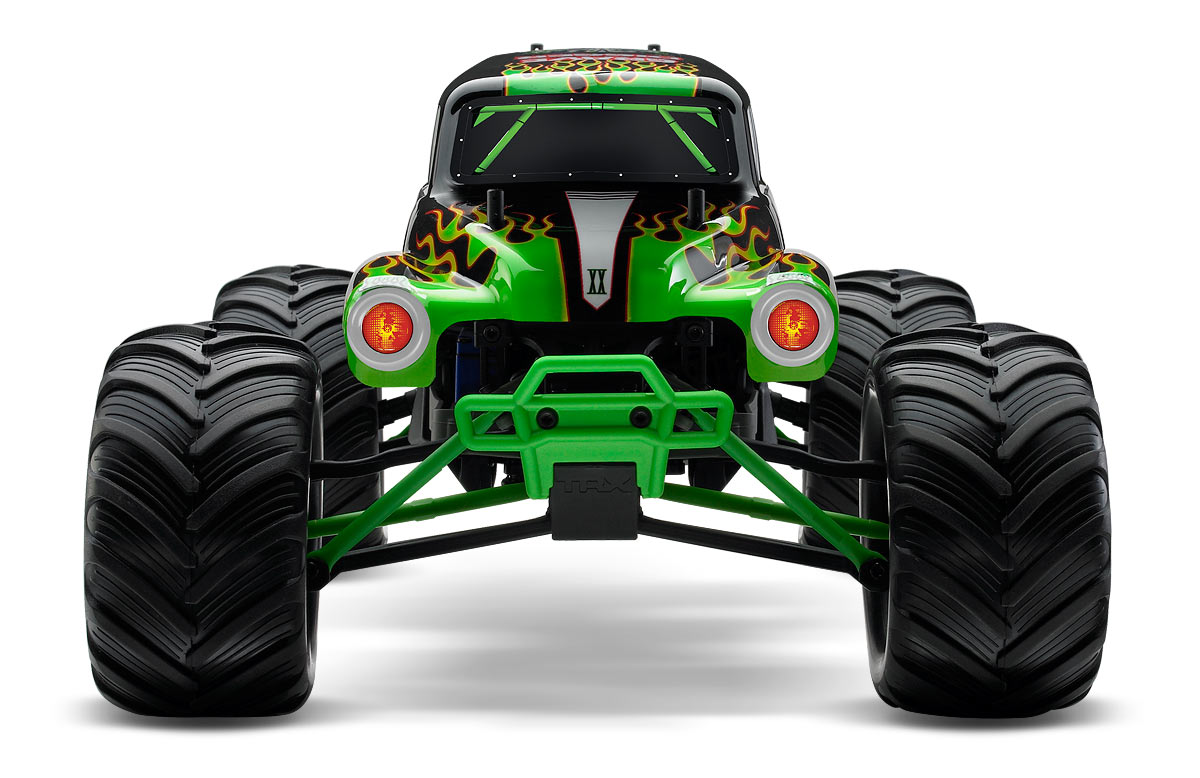

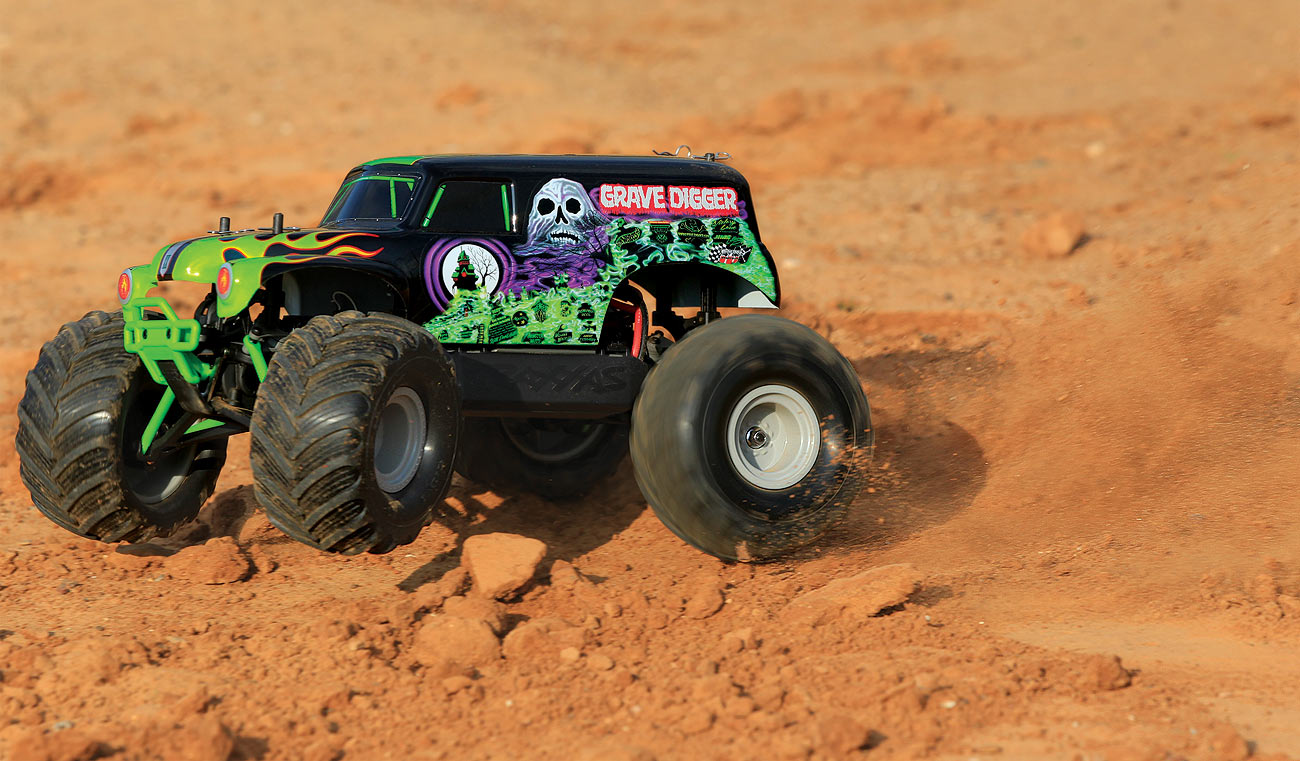

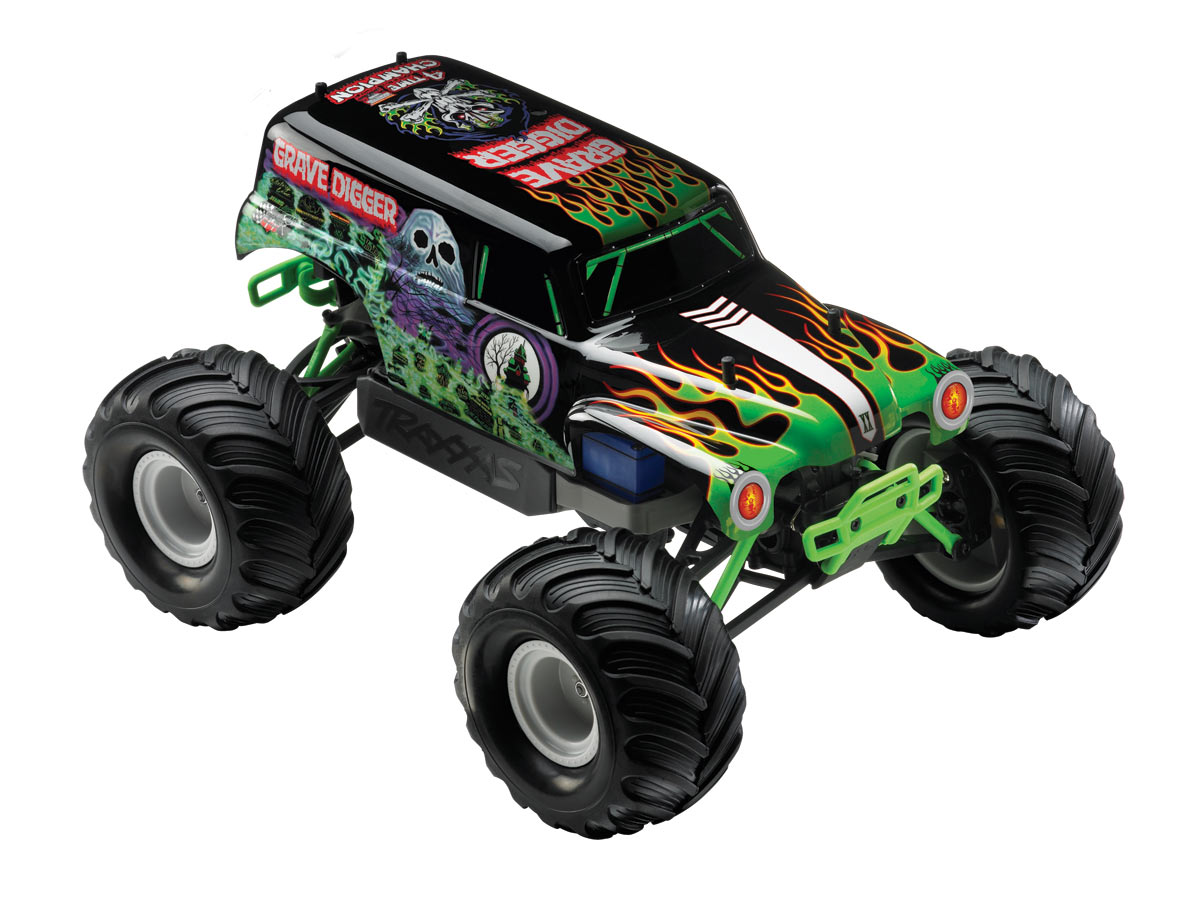

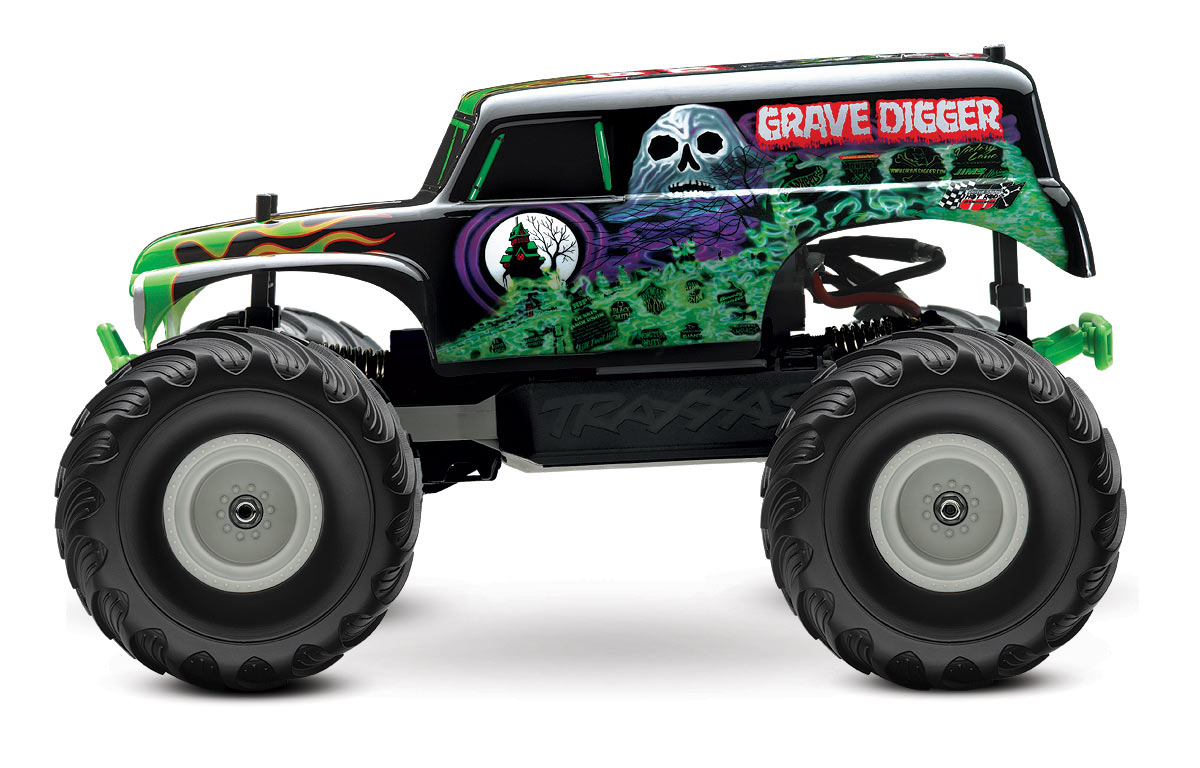

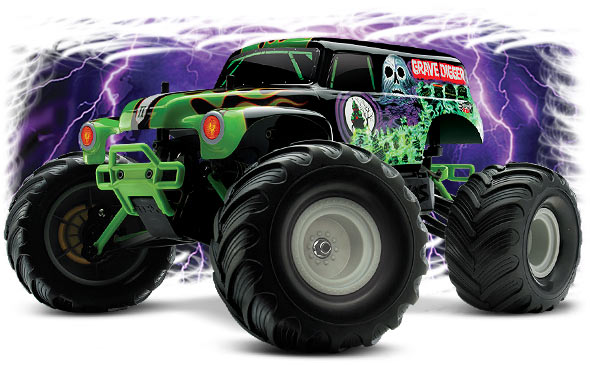

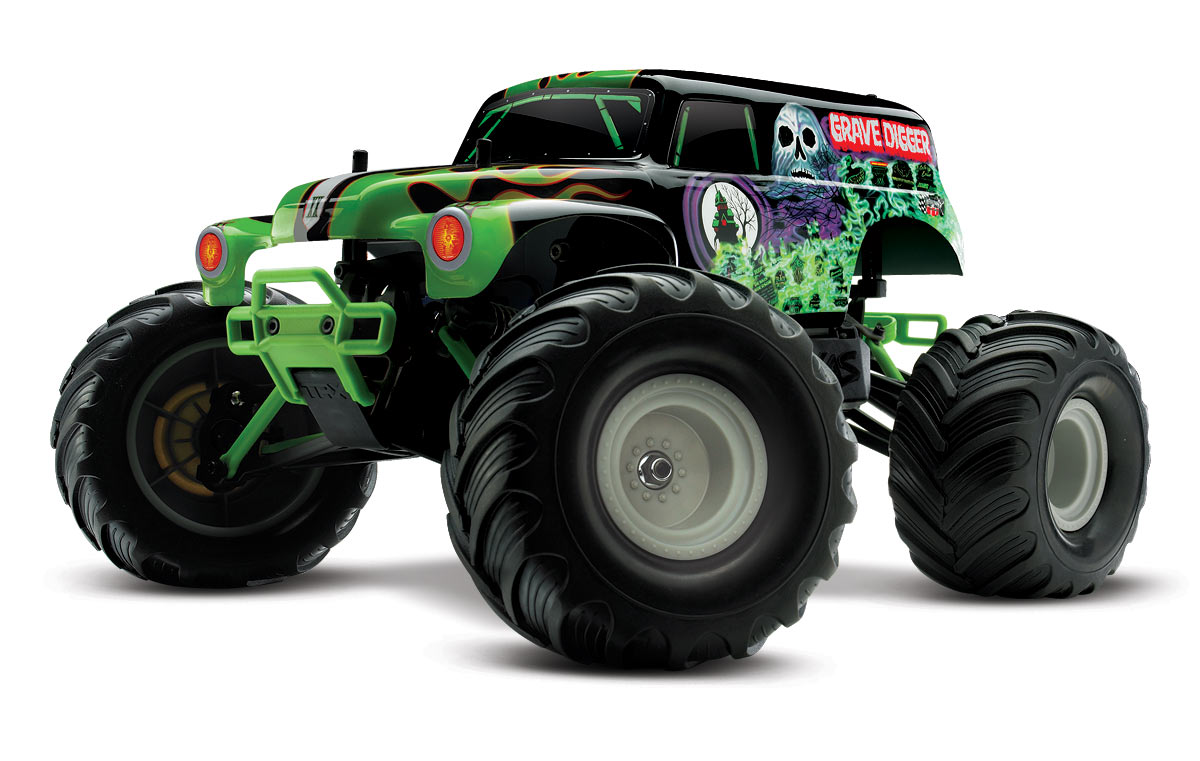

Officially Licensed Monster Jam® replica painted body

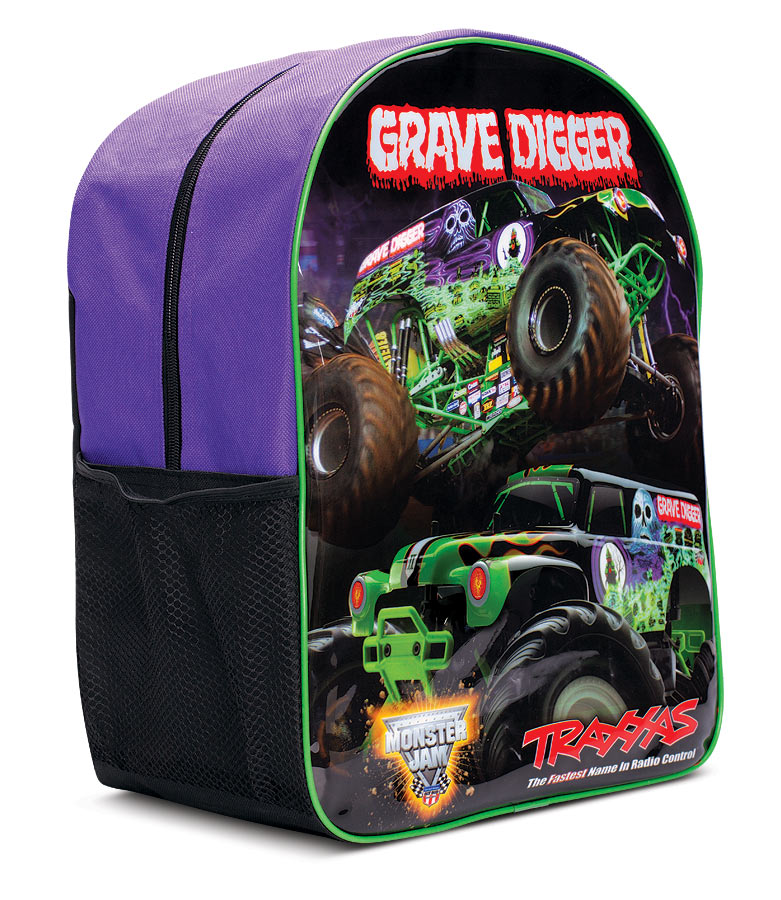

Includes Grave Digger Backpack
Monster Jam replica wheels and "carved" tires
Unique green pushrods, toe links, and bumpers, exclusive to the 1/16 Grave Digger
Efficient 2WD drivetrain, fully upgradeable to 4WD
Race-winning, F1-inspired Revo® suspension technology and E-Revo integrated chassis design, perfectly optimized for 1/16 scale
Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage
XL-2.5 Waterproof Electronic Speed Control
Innovative waterproof design
Fully-proportional forward, reverse, and braking control
Programmable with three drive profiles:
Sport Mode – Fwd / Brake / Rev
Race Mode – Fwd / Brake
Training Mode – 50% Fwd / Brake / 50% Rev
EZ-Set® push-button setup
Multi-color LED
Thermal shutdown protection
Efficient, low-loss MOSFET design
High-capacity heat sink
Smooth, high-frequency operation
Easy installation in Traxxas models
Titan® 12-Turn 550 Modified Motor
Digital High-Torque Waterproof Micro Steering Servo
Waterproof, o-ring sealed receiver box
Sealed, silicone-filled rear differential—an industry first in 1/16 scale
Torque-Control™ slipper clutch system
Telescoping universal-joint driveshafts
Rubber-sealed ball bearings
External gear cover with easy slipper access

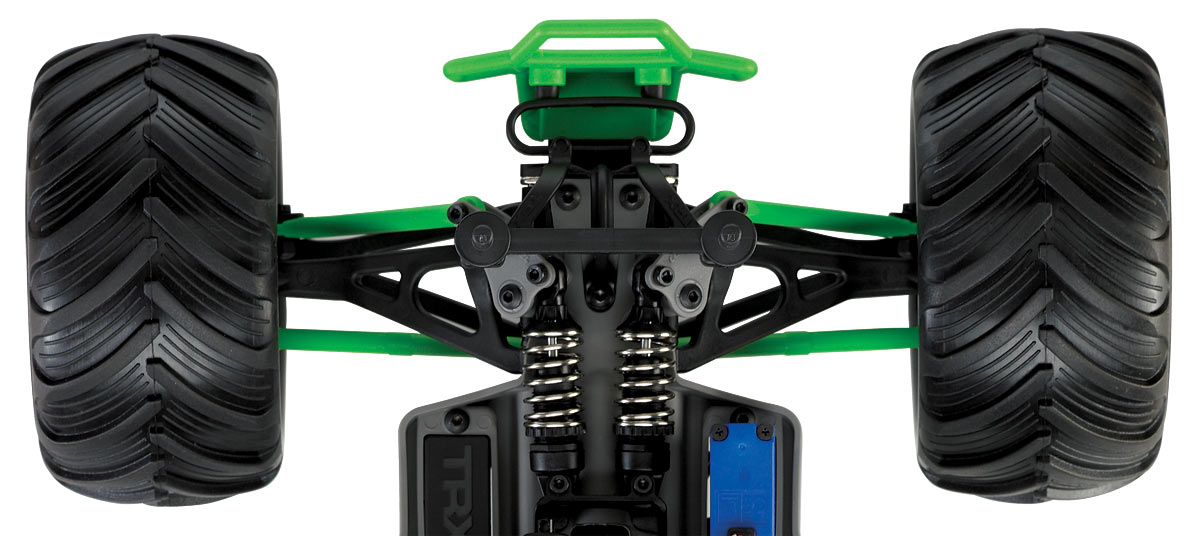

Rocker-actuated shocks provide true progressive damping and spring rates
Threaded-body, oil-filled shocks permit fast, precise preload adjustments and deliver smooth, consistent damping

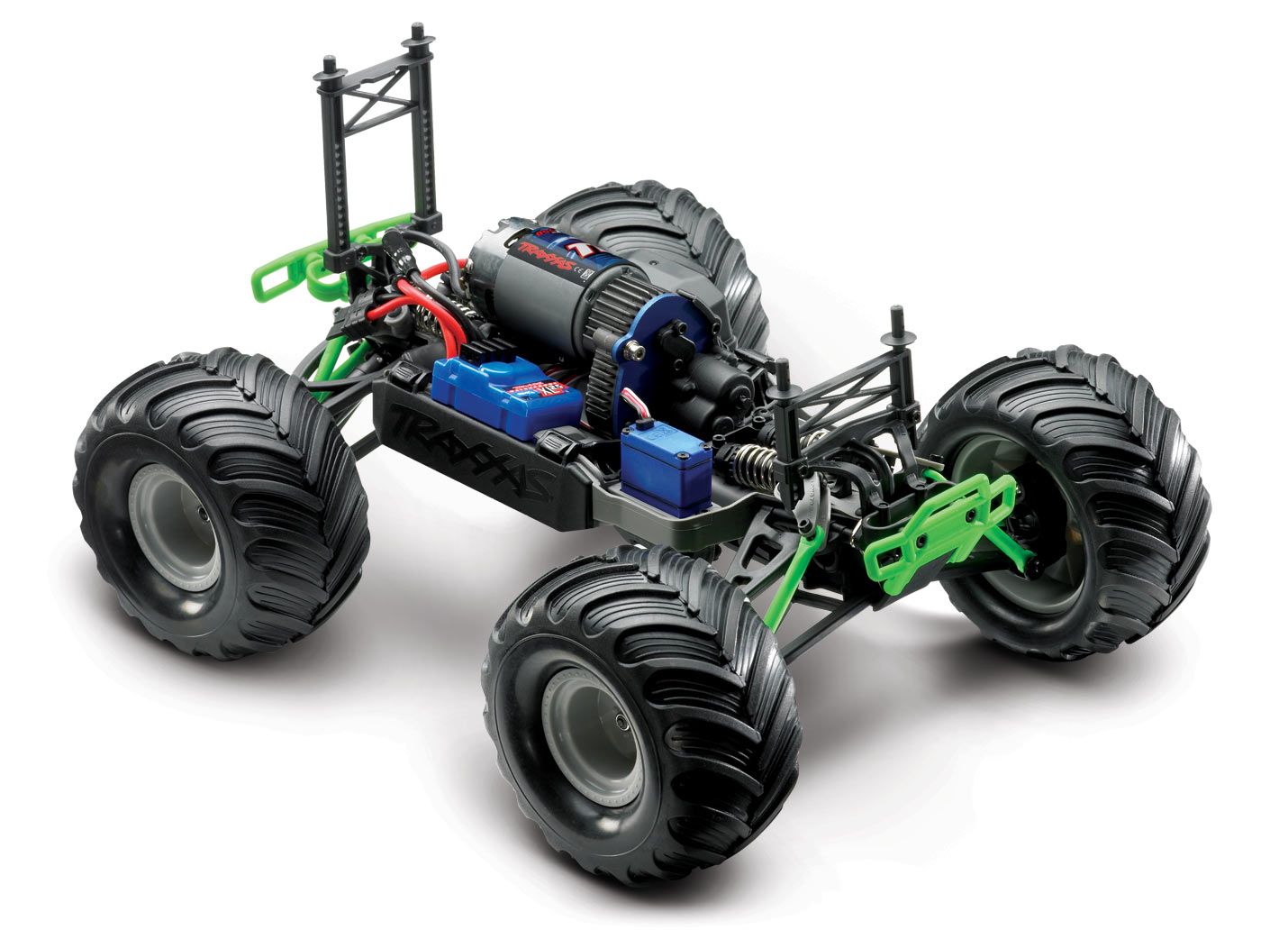

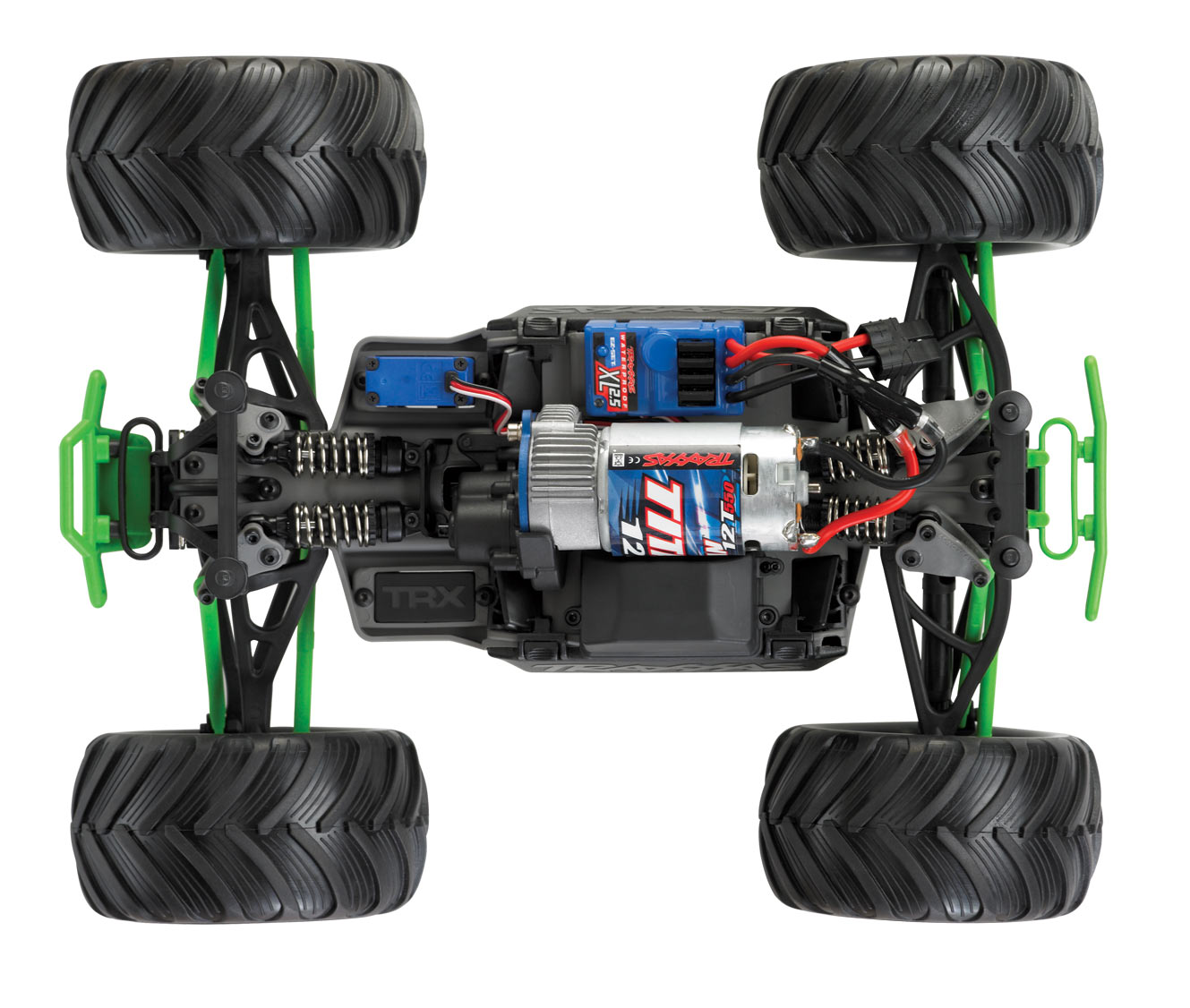

Fiber-composite monocoque chassis
Speed control and receiver are securely fastened to chassis

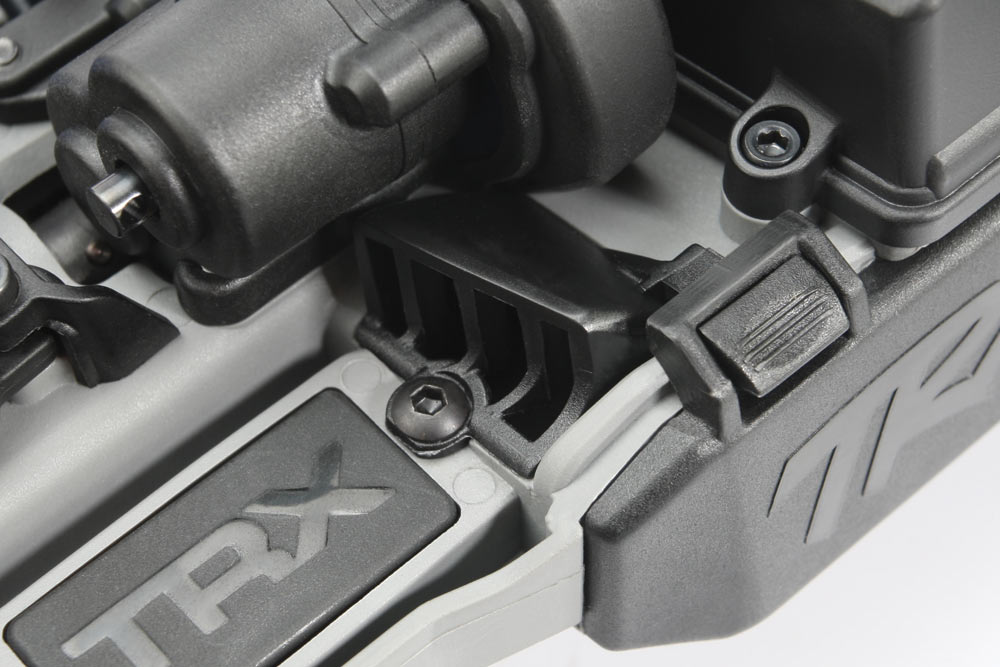

Integrated battery compartments with intake and exit cooling vents
Quick-release battery doors for fast pack changes
Scale Monster Jam front and rear tires offer superior on- and off-road traction
Top Qualifier (TQ) Transmitter
2-channel transmitter
High power output
Servo reversing
Electronic trim controls
Low battery indicator
Retractable antenna
50/50 or 70/30 trigger neutral adjustment
Distinctive, ergonomic, contour grip
Full line of genuine Traxxas accessories available
1/16 Grave Digger is backed by unparalleled Traxxas support and parts availability

Specs

Length: 13.4" (340mm)
Front Track: 10.04" (255mm)
Rear Track: 10.04" (255mm)
Weight: 48oz (1.36kg)
Height (overall): 6.58" (167mm)
Wheelbase: 8.425" (214mm)
Wheel Diameter 2.2" (56mm)
Shock Length (front/rear): 48mm / 48mm
Front/Rear Tires: 4" Monster Jam Tires
Front/Rear Wheels: 1.7" Monster Jam Wheels
Electronic Speed Control: Waterproof XL-2.5 ESC
Motor (electric): Titan® 12T 550
Transmission: Heavy-Duty Single Speed
Gear Ratio (internal): 5.04:1, (reversed input: 9.72:1)
Overall Drive Ratio: 12.05:1 (stock, out-of-box)
Differential Type: Hardened Steel Bevel, Sealed
Gear Pitch: 48-Pitch
Chassis Structure/Material: Molded Composite Nylon Monocoque
Brake Type: Electronic
Drive System: Shaft-Driven 2WD
Steering: Bellcrank
Radio System: TQ™ AM Radio
Top Speed: 20+mph
Skill Level: 1
*Battery Tray Dimensions: 89mm x 35.5mm x 20mm
Included Batteries: 6-cell NiMH** with Charger
Required Batteries: 8 "AA" (transmitter)
