* RTR
* BRUSHLESS ESC
* WATERPROOF ELECTRONICS
* 2.4G RADIO

Features

NEW TQi 2.4GHz transmitter
Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required.
Multi-Function knob
Adjustable steering and throttle percentage (dual rates)
Adjustable steering and throttle sensitivity (exponential)
Adjustable steering and throttle end points
High 13ms frame rate and near-zero latency for responsive control
TQi 2.4GHz 5-channel micro receiver (#6518) with fail-safe security and integrated telemetry ports
Compatible with optional TQi Docking Base (#6510) for full Traxxas Link App capability with Apple iPhone or iPod touch (sold separately)

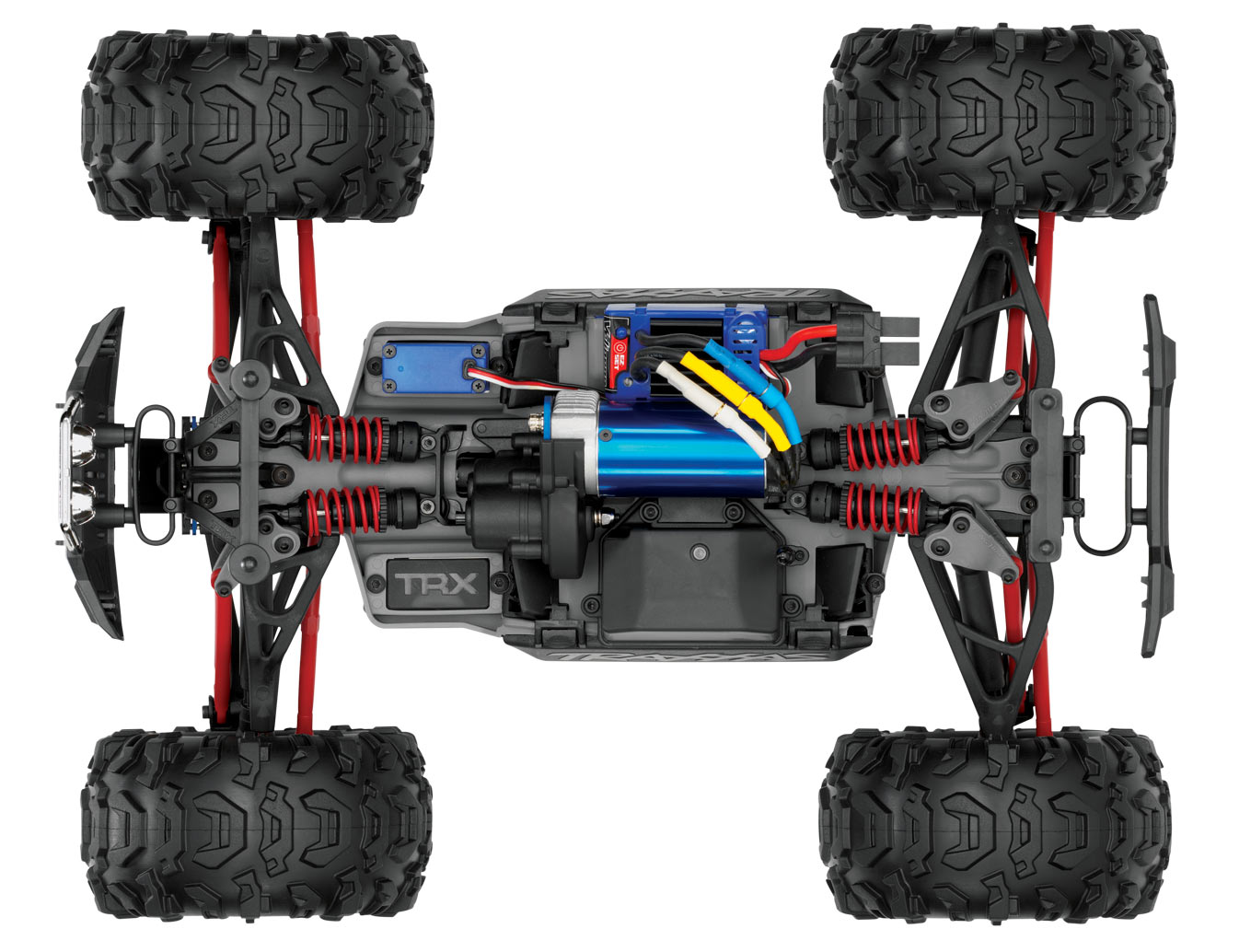

Race-winning, F1-inspired Revo® suspension technology and E-Revo integrated chassis design, perfectly optimized for 1/16 scale
Powered by the Velineon® Brushless Power System
Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
Velineon VXL-3m Electronic Speed Control
LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
Sport Mode – Forward / Brake / Reverse
Race Mode – Forward / Brake
Training Mode™ - 50% Forward / Brake / 50% Reverse (patent pending)
Velineon 380 Brushless Motor
High-performance sensorless design
High-strength Neodymium magnets
Efficient, high-speed ball bearings
Precision-balanced rotor
Gold-plated 3.5mm bullet connectors
Digital High-Torque Waterproof Micro Steering Servo
Waterproof, o-ring sealed receiver box
Sealed, silicone-filled differentials—an industry first in 1/16 scale
Torque-Control™ slipper clutch system
Heavy-duty CV-style driveshafts
Rubber-sealed ball bearings
External gear cover with easy slipper access

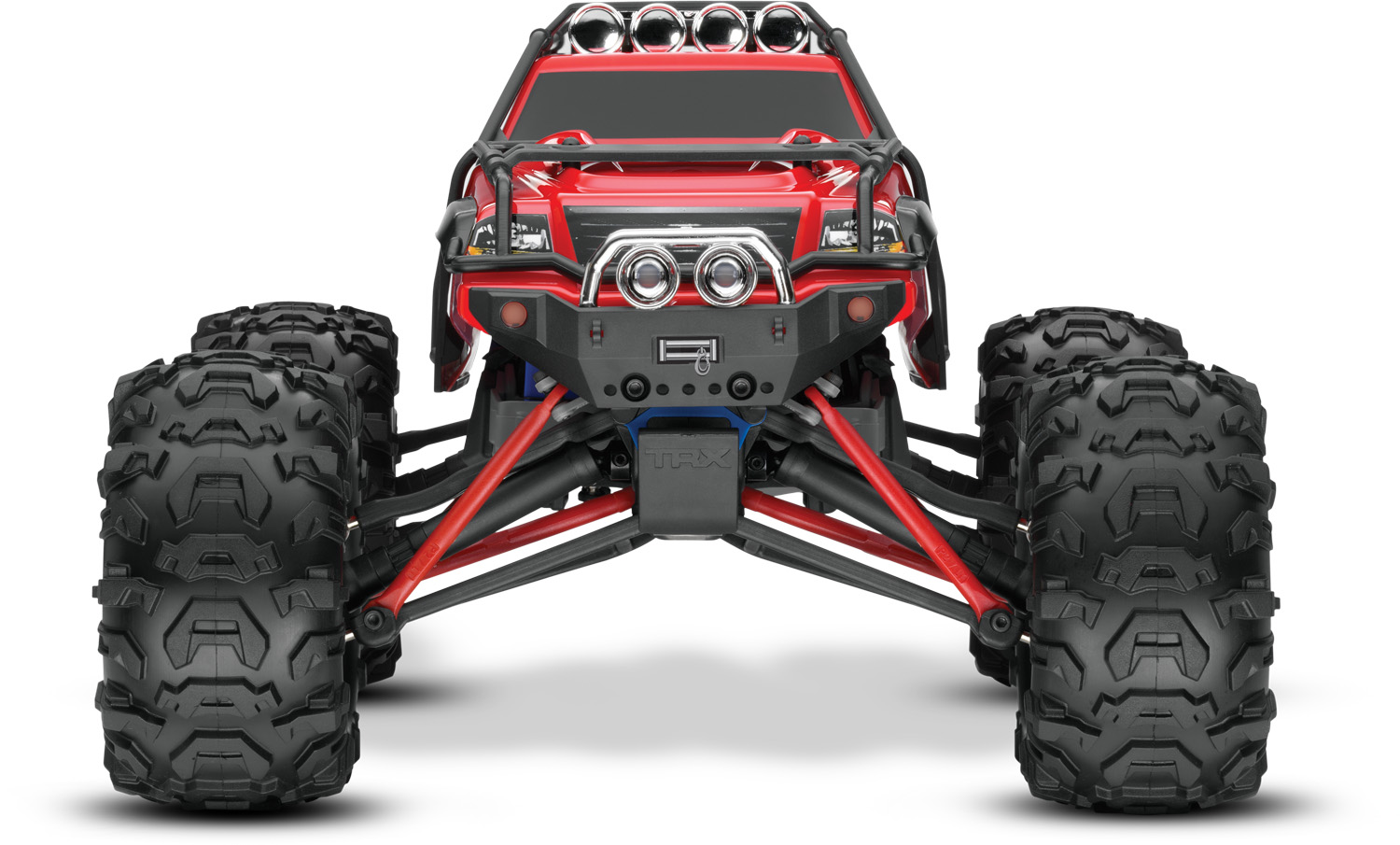

Installed Long Travel Rockers for maximum suspension articulation
Extended-wheelbase rear suspension arms (+10mm)
Rocker-actuated shocks provide true progressive damping and spring rates
Threaded-body, oil-filled shocks permit fast, precise preload adjustments and deliver smooth, consistent damping

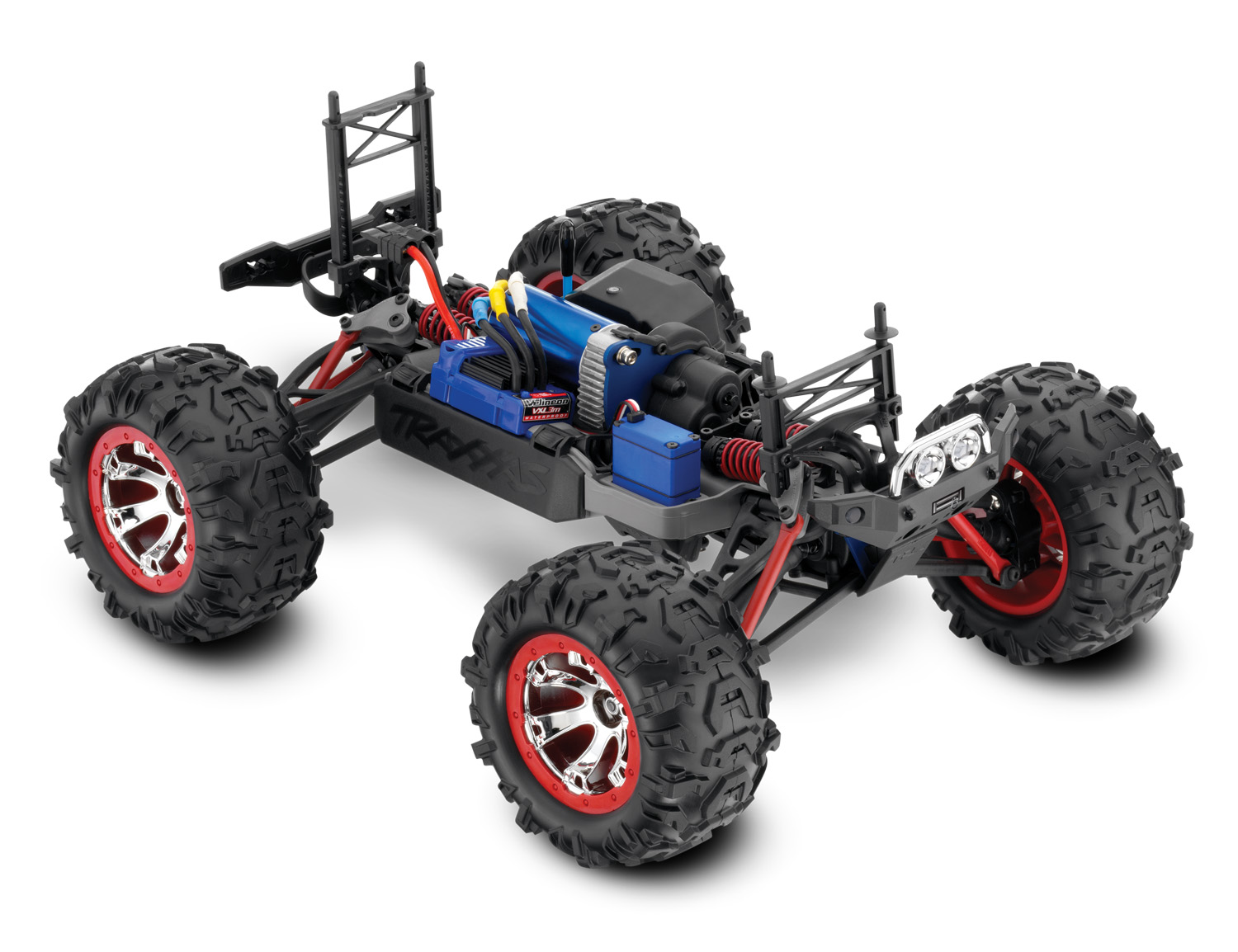

Fiber-composite monocoque chassis
Speed control and receiver are securely fastened to chassis
Integrated battery compartments with intake and exit cooling vents
Quick-release battery doors for fast pack changes
Scale all-terrain front and rear tires offer superior on- and off-road traction
Pre-glued Canyon AT™ Tires with foam inserts
Chrome Geode 2.2" wheels with beadlock trim
ExoCage body with protective outer cage
"LED ready" bumpers
Full line of genuine Traxxas accessories available
1/16 Summit VXL is backed by unparalleled Traxxas support and parts availability

Specs

Length: 12.6" (320mm)
Front Track: 10.43" (265mm)
Rear Track: 10.63" (270mm)
Weight: 44oz (1.24kg)
Height (overall): 7.48" (190mm)
Wheelbase: 8.425" (214mm)
Wheel Diameter 2.2" (56mm)
Shock Length (front/rear): 48mm / 48mm
Front/Rear Tires (glued): Canyon AT
Front/Rear Wheels: Geode™
Electronic Speed Control: Waterproof Velineon® VXL-3m ESC
Motor (electric): Velineon® 380 Brushless
Transmission: Heavy-Duty Single Speed
Gear Ratio (internal): 5.04:1, (reversed input: 9.72:1)
Overall Drive Ratio: 15.75:1 (stock, out-of-box)
Differential Type: Hardened Steel Bevel, Sealed
Gear Pitch: 48-Pitch
Chassis Structure/Material: Molded Composite Nylon Monocoque
Brake Type: Electronic
Drive System: Shaft-Driven 4WD
Steering: Bellcrank
Radio System: TQi™ 2.4GHz
Top Speed: 25+mph (40+mph with dual batteries)*
Skill Level: 2
Included Batteries: 6-cell NiMh with Charger
Required Batteries: 4 "AA" (transmitter)
(vehicle includes 6-cell NiMh & charger)
