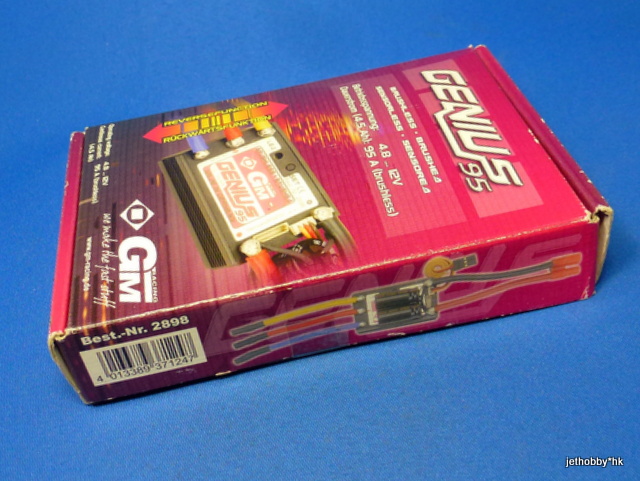

GM 2898 - Genius 95 Brushed/Brushless Sensored/Sensorless ESC (95A)

Find Products

Information

Brand

Product Show

Name: GM 2898 - Genius 95 Brushed/Brushless Sensored/Sensorless ESC (95A)

Price: HK$ 980.00

Buy Item

4 programmable modes: Cars, Boats, Helicopters, Power aircrafts & Electric powered gliders

Programmable functions:

- Rotational speed limit (brushless motor only)

- Timing: 0 7.5 15 or 30 (brushless motors only)

- Soft-start

- Current limiting. Start-up current limiting, Turbo

- Brake minimum, Brake maximum, Full brake

- Automatic brake

- Frequency mode

- Power curve (soft, linear, hard)

- Automatic throttle

- Maximum reverse speed

- Switch functions

- ABS-brake function

Specification

Type GM-GENIUS 95

Order No. 2898

Operating voltage range 4,8 ... 12V

Cell count, NiCd, NiMH 4 – 10

Cell count, LiPo, LiIo 2 – 3 (mode 3)

Cont. current (brushless motors) 95 A

Max. motor current (10 s) 190 A

Temperature cut-off approx. 120 °C

EMF brake programmable

Reverse mode programmable

Soft-start programmable

Low-voltage throttle-back yes

Power-on signal suppression yes

Pulse frequency 8 kHz

BEC receiver power supply approx. 5,5 V/4 A kurzz.

Max. BEC dissipated power at 20° C 2,5 W

OPTO optional

Dimensions excl. capacitors approx. mm 48 x 31 x 15 mm

Dimensions incl. capacitors approx. 65 x 33 x 20 mm

Weight excl. leads approx. 55 g

Weight incl. leads approx. 95 g

Connector type G3,

*****
+
