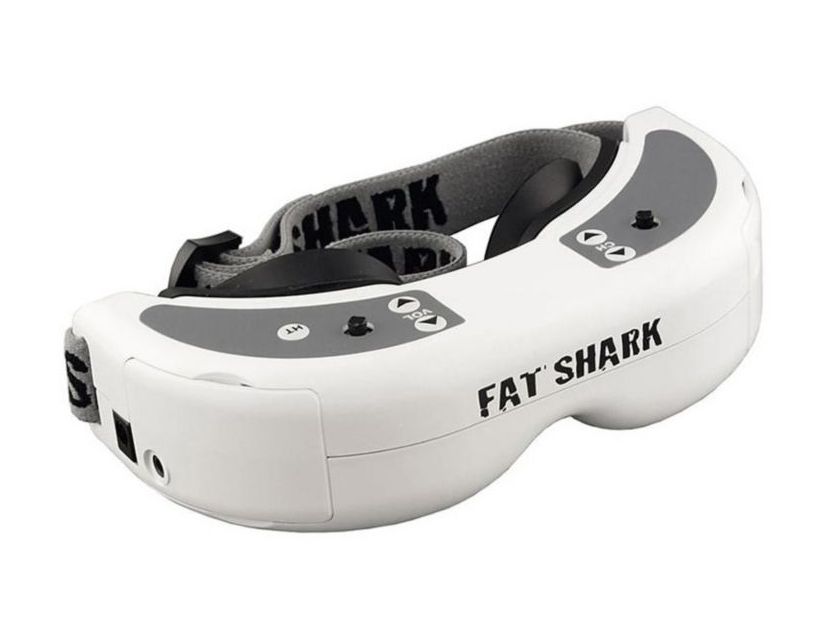

Name: Fat Shark FSV1105 - Dominator HD SVGA Headset

Price: HK$ 4480.00

Buy Item

Temporary out of stock

Overview

With its large FOV SVGA resolution image, modular design, integrated DVR, HDMI port and side/side 3D support, the DominatorHD once again assures Fat Sharks’ dominance as the premier FPV goggle manufacturer. The DominatorHD does not sacrifice image quality for image size as the SVGA display up-scales the analog source to a large 45 degree image with minimal screen door effect and crisp OSD text in the corners. Components and features were chosen as only an FPV purest would; glass optics were chosen over plastic because image quality and large FOV could not be compromised on. A DVR was built in not for the enjoyment of watching movies but for the purpose of recording the video down link and telemetry data to help with lost model recovery. HDMI input was implemented to ensure forward compatibility with the digital HD links. The DominatorHD maintains the modular docking ports for back compatibility with existing RF modules.

When not flying FPV, connect the HDMI port of the goggles to your computer or Apple device to view immersive side/side 3D movies or play 3D games.

This headset accepts a diopter insert to accommodate those who wear glasses. The Headset Diopter Insert Kit includes one pair each of Diopter inserts rated -2, -4, and -6 dpt.

DominatorHD Specifications

Optics:

FOV (field of view): 45 degrees diagonal
Glass optics (binocular 8p direct view optical engine)
Interpupillary (IPD) distance: 57 to 73 mm (adjustable)
Optional diopter lens inserts: -2, -4, -6 dpt

Audio:

Stereo

User Controls:

Channel selection
Volume control
Mode selection (wired/wireless)
Display control
DVR control
HT control

Electrical:

Power supply: 7 - 13 V (2S/3S supply)
Power consumption (@7.4V nominal):
390mA wireless mode
230mA direct mode (no RX)

RF Modules (optional):

43 channel support on 6 bands (1G3, 2G4, 4 x 5G8)

Mechanical:

Ergonomic molded headset w/ adjustable headband
Secured rubber eye cups for ambient light reduction
Weight: 200g

Display:

800 X 600 (SVGA) LCD
Polarized LED backlight
NTCS/PAL auto selecting
side/side 3D

Head Tracker:

Modular (sold separately)

DVR:

MicroSD support to 32Gb
Record rate: 6Mbps
MJPG compression, 30 fps, AVI
File playback (no codec support other than native recording)
Upgradeable via SD card

Battery:

Not included, sold separately

Interface:

3.5mm AV in/out port
Power in port
3.5mm 3p earphone port
MiniDIN4 data port (head tracking)
MicroSD
MiniHDMI (720p 50/60 Hz)
RF module port
