Below is the quick online reference manual or additional information about the product. Please download the above pdf for a complete, detailed user manual.

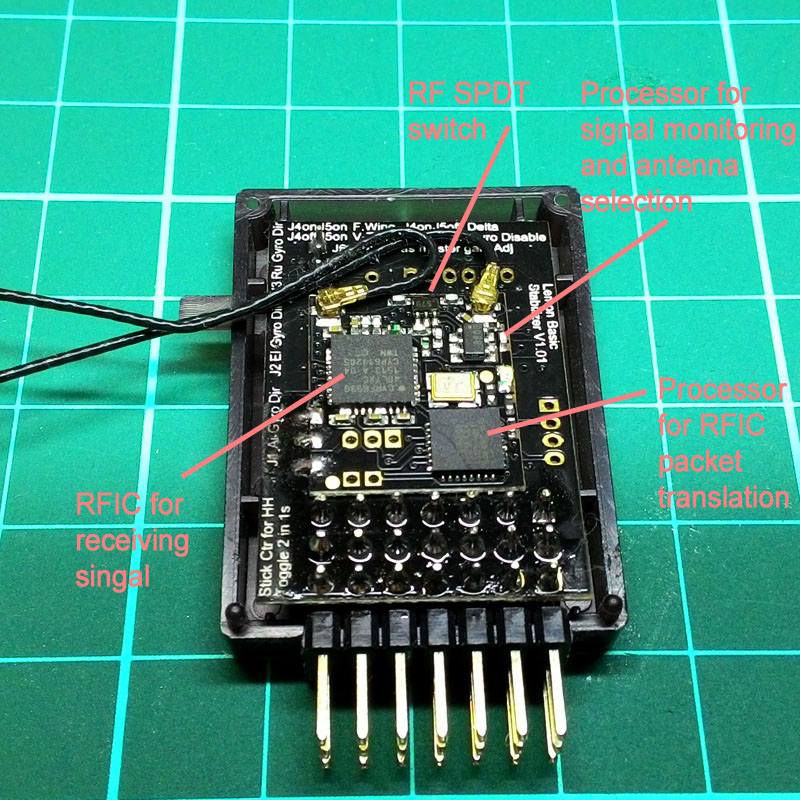

How dual antennas work

An independent processor monitors an incoming signal and choose the appropriate antenna for reception. This allows 2 different location for installing the antennas along with different orientation. Satellite is no longer needed for receiver diversity. This greatly reduces weight with increased overall reliability in comparison to the use of a primary receiver with satellite receiver.

Highlight
- True diversity dual antennas with independent processor for monitoring singal on both antennas
- Antennas extended for carbon fuselage / metalic structure installation
- FailSafe for all channels via press of a button
- DSMX Satellite port

Setup Instruction

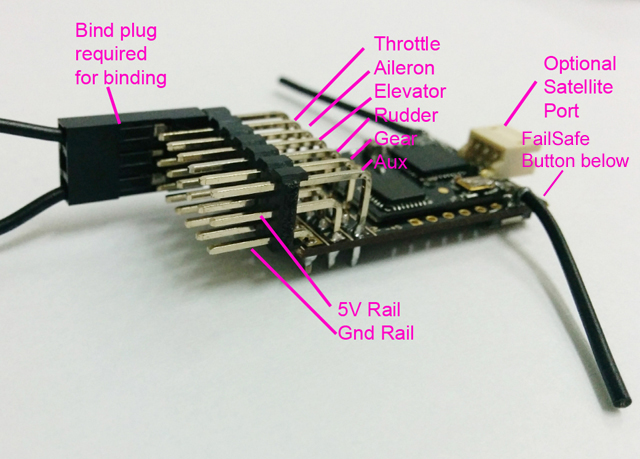

Binding
1) Plug bind plug to the receiver.
2) Provide power to the unit. LED flashes quickly.
3) Enable bind mode in transmitter and ensure distance separation of 2 meters from receiver. Solid LED light means binding is completed.
4) Remove bind plug.

Failsafe Enable (Video showing 10-Channel receiver)
Video:https://www.youtube.com/watch?v=FyW1v12dv_k
1) Plug bind plug to the receiver.
2) Provide power to the unit.
3) Plug the side pushbutton for memorize current position in Failsafe mode.
4) Green light will turn on at the bottom of the receiver to indicate Failsafe is successfully enabled.
5) Remove bind plug.
