• Compact, rugged design
• All four ports can be used simultaneously or one at a time
• Works with Blade®, E-flite® and ParkZone® 1S as well as 2S ultra micro Li-Po batteries
• Four independently functioning charge circuits each with a simple LED status display
• 9 Watts of dedicated power per port
• Five selectable charge rates from 0.1–1.0A
• Each port is suitable for charging one 30–150mAh, 1S UM cell, a 1S MCPX cell, or one 120–300mAh 2S pack equipped with a JST-PH, 3-wire connector
• Operates on 100–240V AC (50/60Hz) or 11–18V DC input voltage
• Built-in protection features guard against short circuit, over current and reverse polarity
• Detachable AC and DC power cords and 1S battery extension leads included

Ideal for charging any combination, of up-to four 30–500mAh, 1S UM and MCPX batteries as well as 2S battery packs equipped with the 3-wire JST-PH plug featured on UMX-class airplanes and helicopters. Its AC/DC capability means that you have the option to use a separate DC power supply or simply connect the charger to a household wall outlet. Built-in sockets make it easy to connect single-cell batteries. In addition, UM battery leads are provided when preferred by the user. The rugged case features four independently functioning charge circuits, each with a simple LED status display. All four ports have 9 watts of dedicated power and five selectable charge rates from 0.1–1.0A. Built-in protection features guard against short circuit, over current and reverse polarity.

CHARGES

• 2S, 120–300mAh Li-Po packs with the JST-PH plug
• 1S, 200mAh ultra micro MCPX Li-Po
• 1S, 500mAh ultra micro Li-Po (adapter required)
• 1S, 30–150mAh ultra micro Li-Po

INCLUDES

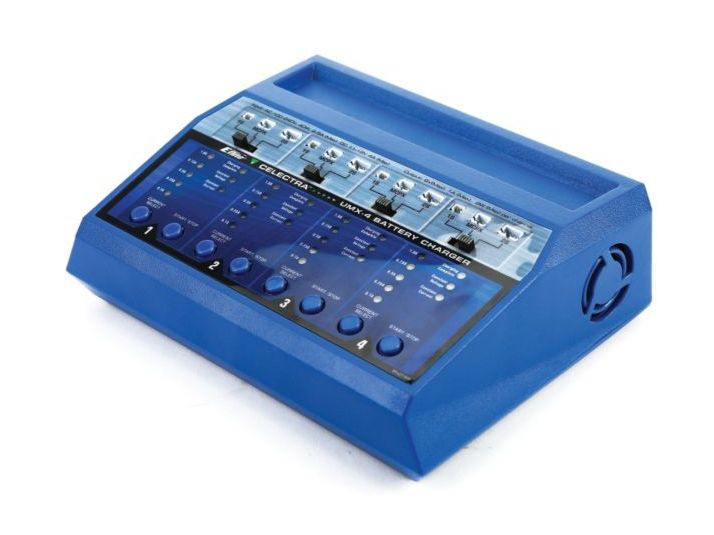

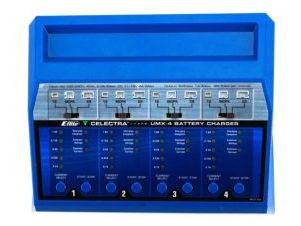

• UMX-4 charge unit
• AC power cord
• DC power cord
• 1S UM battery extension lead
• 1S MCPX battery extension lead
