Select 1A, 2A, 4A, or 5A charge rate

Charges 2S-6S LiPo and LiFe Cells

100-240VAC (50/60Hz) input voltage

Easy to use interface with status LEDs

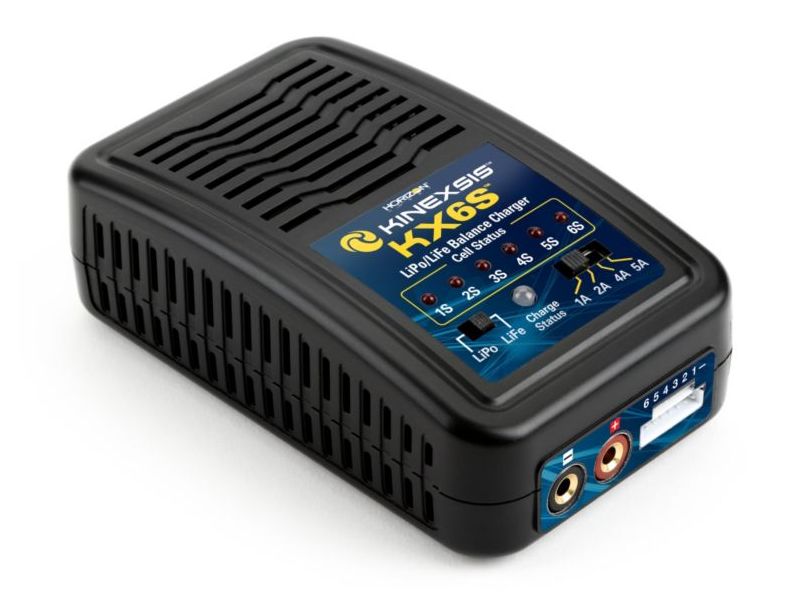

The KX6 Charger is an economic, high quality 100-240V AC balance charger, designed for charging LiPo and LiFe batteries from 2-6 cells in balance mode. The circuit power is 50W and max charge current can reach to 5A. There are four kinds of charge current 1A/2A/4A/5A that can be selected. You could select the proper charge current according to the battery capacity.



There is one LED indicating the charge status (ready to charge/charge in CC mode/charge in CV mode/charge finish) and six LEDs indicating each battery cell status (charge/discharge). In this case, you know the charge process at any time easily through the LEDs status.

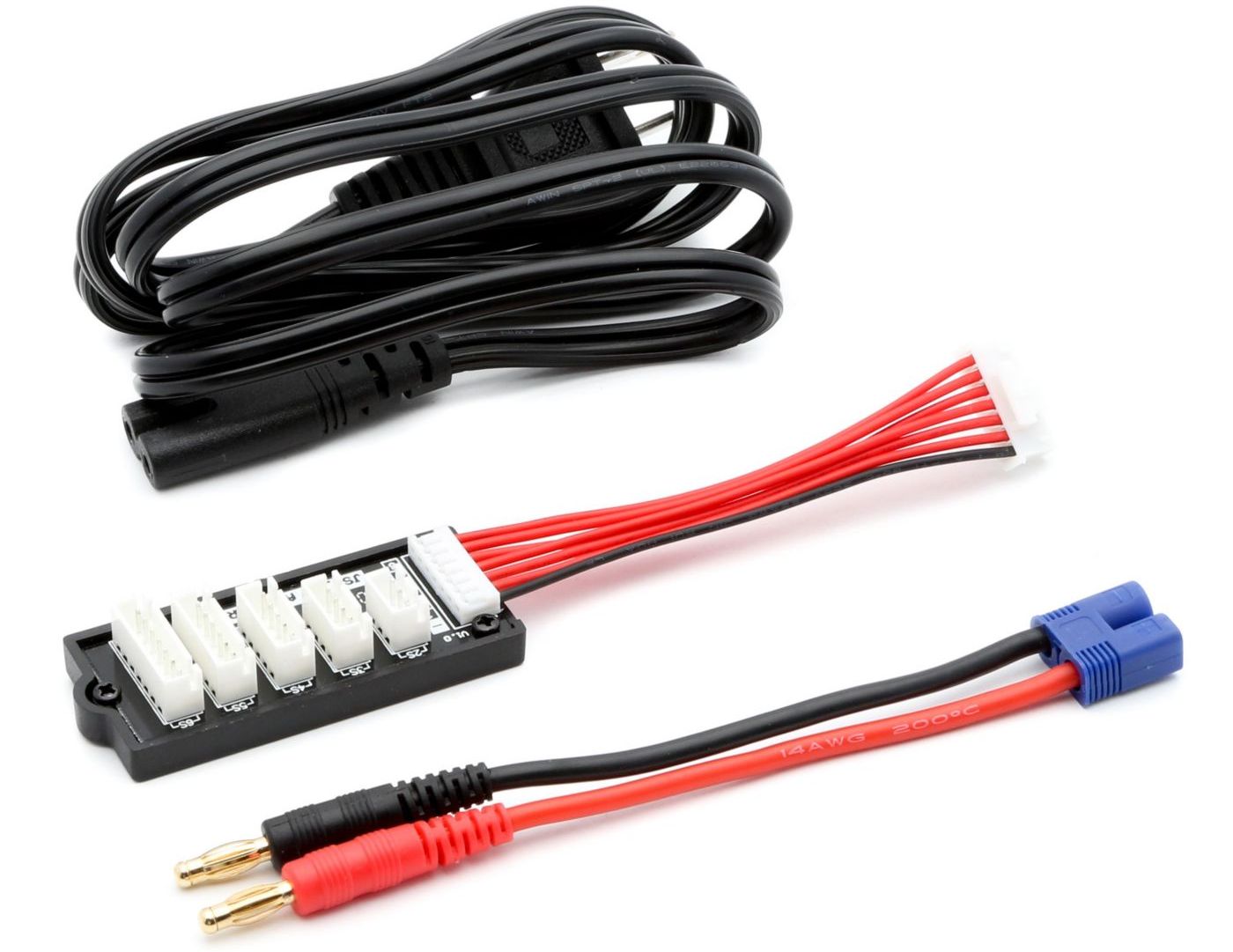

The operation of the KX6 is also very simple. There are two toggle switches in the charger which can be used to selected battery type and charge current. After you power on the charger, select the battery type and charge current, connect the battery and charger with the balance board, the charger will start working.
