• Larger motor for extreme 1/8th-scale applications
• 8mm taller case than standard size servos
• 0.07 sec/60° speed
• Heavy duty steel gears
• Dual ball bearing support
• Coreless motor
• Digital precision
• Water and dust resistant case

OVERVIEW

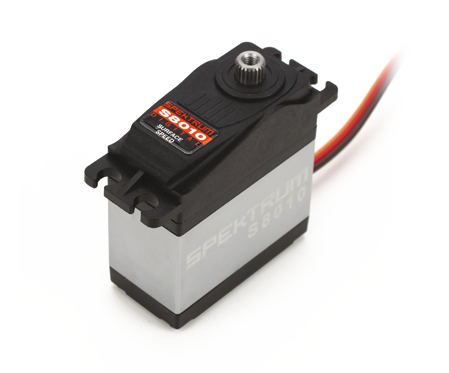

 The S8010 super strong steel gear train, digital precision and class leading .07 sec/60° transit time is ideal for the scale racer that demands a rugged servo that can handle the abuse of today’s racing environment, but wants instantaneous control.

Built specifically for the 1/8th scale racing market the S8010 is appealing to off-road racers focused on high speed. The motors are larger than those of standard size servos, and paired with their steel gears, mean the S8010 is built to last.

An aluminum spacer and instructions are included to help with the installation of this larger servo in a standard mount location. A coreless motor, 22 AWG lead wire and dual ball bearings insure less overall operational resistance and higher reliability.

PRODUCT SPECIFICATIONS

Size Category:

Specialty

Type:

Digital

Application:

1/8 Scale Surface

Torque:

139 oz-in (10 kg-cm) @ 4.8V; 181 oz-in (13 kg-cm) @ 6.0V

Speed:

0.08 sec/60° @ 4.8V; 0.07 sec/60° @ 6.0V

Length:

1.57 in (40mm)

Width:

0.79 in (20mm)

Height:

1.77 in (45mm)

Weight:

2.8 oz (80g)

Bushing Or Bearing:

Bearing

Bearing:

Dual

Motor Type:

Coreless

Connector Type:

Z-connector

Gear Type:

Metal

Gear Material:

Steel

Voltage:

4.8V-6.0V
