Name: RC4WD Z-RTR0026 - 1/18 GELANDE II RTR WITH D90 BODY SET

Price: HK$ 1680.00

Buy Item

Temporary out of stock

Experience the versatility and advanced design of the 1/18 Gelande 2 for yourself. Packed full of capability, the Gelande 2 is ready for any challenging condition. Put your off-road driving to test and see why the G2 is unmatched in its class!

G2 is built with quality materials and craftsmanship. It can maneuver extreme descents and climbs with ease. The new R5 1/24 Mini Cast Transmission provides power out to the all - new 1/24 Yota II axles.
The core of the G2 is built for the true off-road enthusiast. From customized options to tried and true performance. From emergency and expedition vehicles, to daily drivers and down and dirty off-road rigs. It can pull off many looks, you will be able to customize your G2 and have it fit with any identity.
The G2 comes with double triangulated 4 link front and rear The servo is mounted on the chassis out of view for a more scale appearance.
Are you ready for your off-road experience?

Custom Designed for True to Scale Looks
Realistic Aluminum Ladder Frame Chassis
R5 1/24 Mini Cast Transmission
1/24 Cast Front and Rear Axle Set
4 Links Front and 4 Links Rear Suspension
Stamped Steel 1.0" Stock Beadlock Wheel
Dirt Grabber 1.0" All Terrain Tire
9G Analog Metal Gear Micro Servo
Dual Spring Oil Filled Shock Absorbers

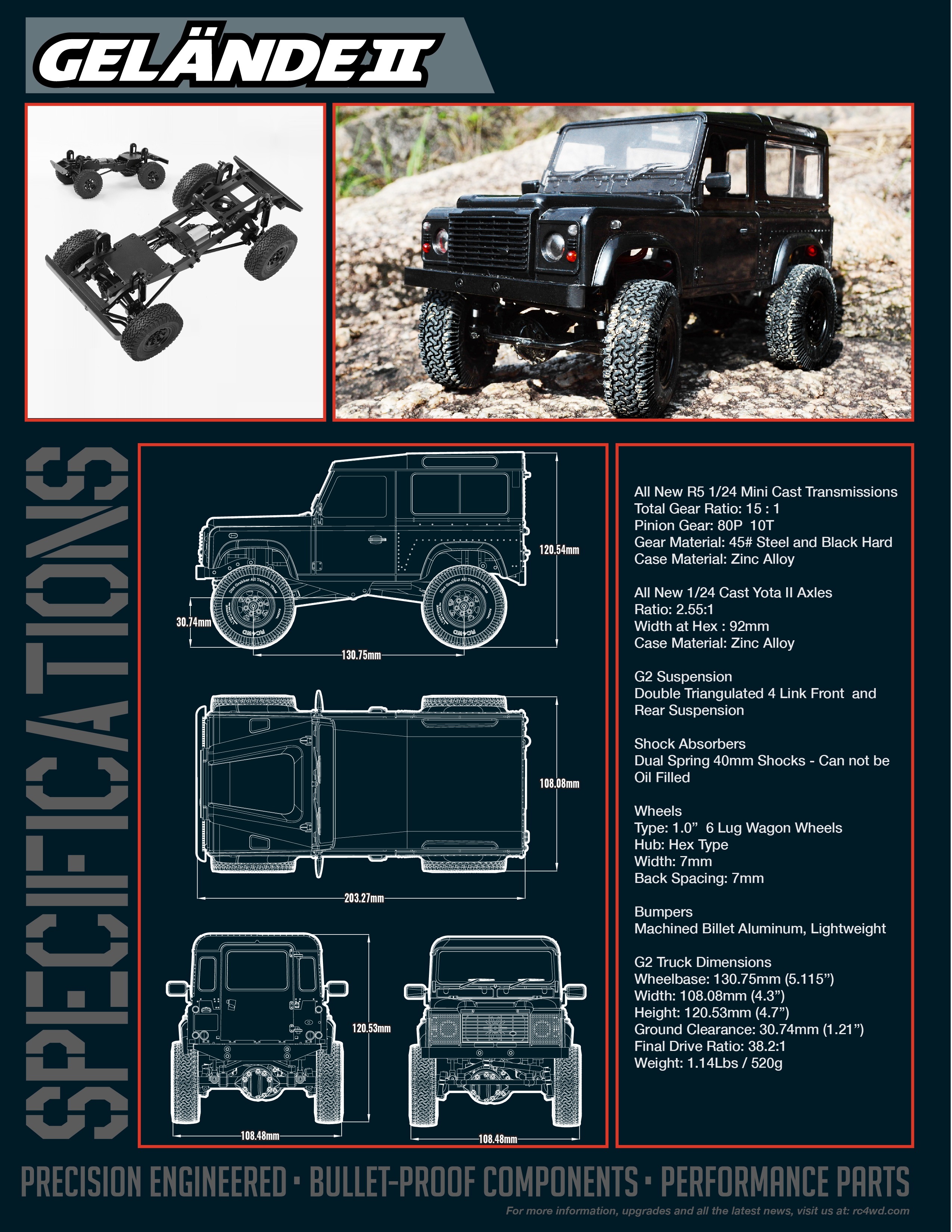

All New R5 1/24 Mini Cast Transmissions
Total Gear Ratio: 15 : 1
Pinion Gear: 80P 10T
Gear Material: 45# Steel and black hard
Case Material: Zinc alloy

All New 1/24 Cast Yota II Axles
Ratio: 2.55:1
Width at hex : 92mm
Case Material: zinc alloy

G2 Suspension
Double triangulated 4 link front and rear Suspension.

Shock Absorbers
Dual Spring 40mm Shocks - Can not be oil filled

Wheels
Type: 1.0"ï¾ 6 lug Wagon Wheels
Hub: hex type
Width: 7mm
Back spacing: 7mm

Bumpers
Machined billet aluminum, light weight

G2 Truck Dimensions
Wheelbase: 130.75mm (5.115")
Width: 108.08mm (4.3")
Height: 120.53mm (4.7")
Ground clearance: 30.74mm (1.21")
Final Drive Ratio: 38.2:1
Weight: 1.14Lbs / 520g

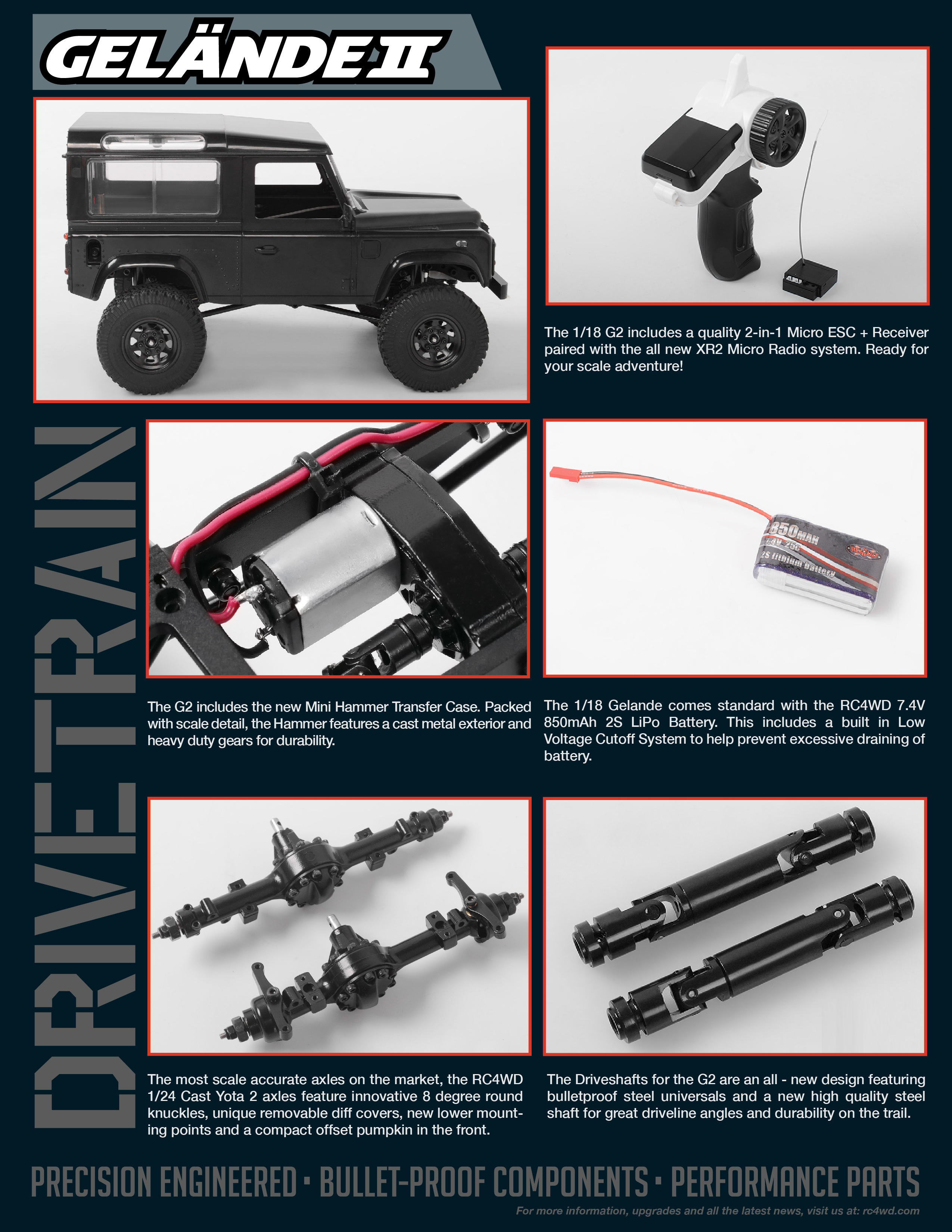

DRIVETRAIN

The 1/18 G2 includes a quality 2-in-1 Micro ESC + Receiver paired with the all new XR2 Micro Radio system. Ready for your scale adventure!

The G2 includes the new Mini Hammer Transfer Case. Packed with scale detail, the Hammer features a cast metal exterior and heavy duty gears for durability.

The 1/18 Gelande comes standard with the RC4WD 7.4V 850mAh 2S LiPo Battery. This includes a built in Low Voltage Cutoff System to help prevent excessive draining of battery.

The most scale accurate axles on the market, the RC4WD 1/24 Cast Yota 2 axles feature innovative 8 degree round knuckles, unique removable diff covers, new lower mounting points and a compact offset pumpkin in the front.

The Driveshafts for the G2 are an all - new design featuring bulletproof steel universals and a new high quality steel shaft for great driveline angles and durability on the trail.

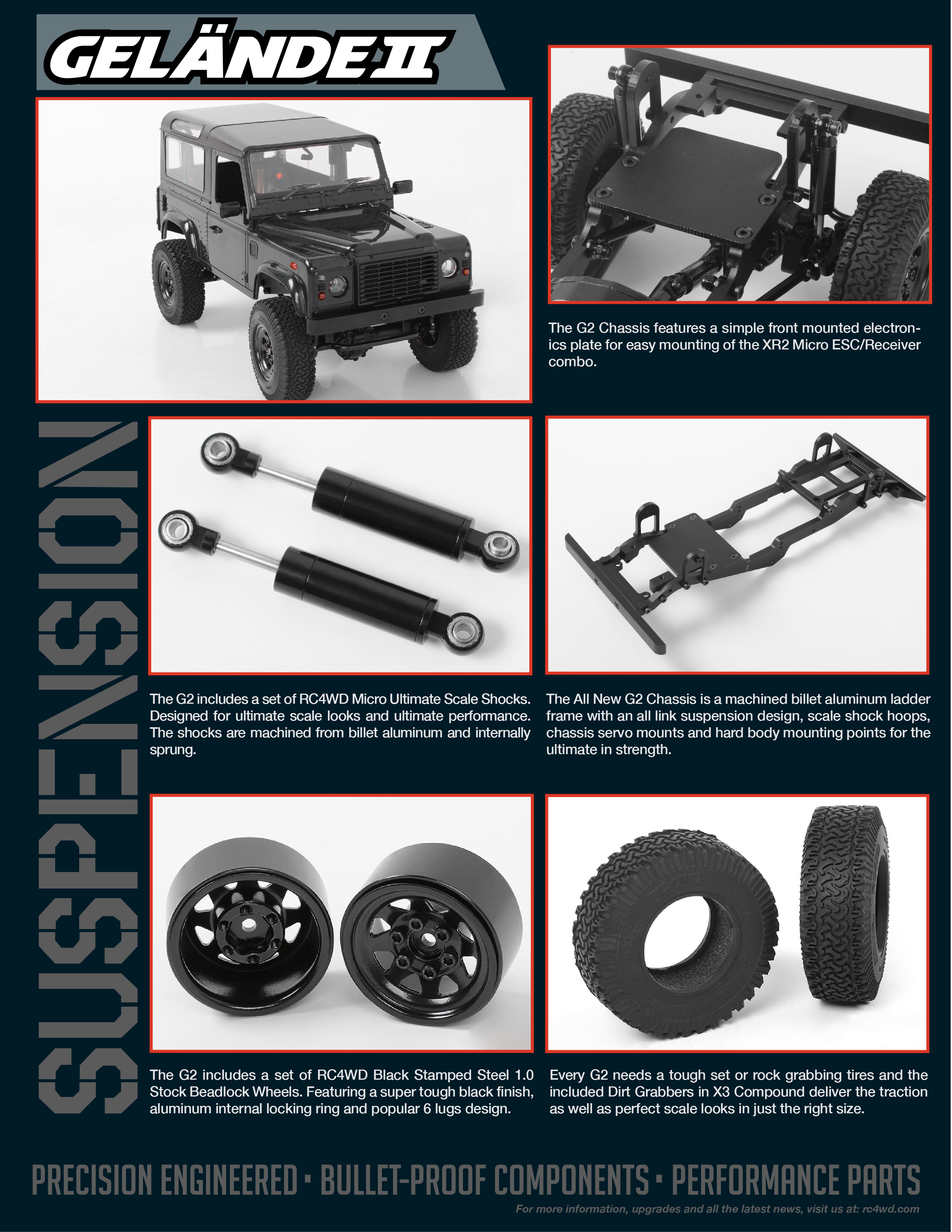

SUSPENSION

The G2 Chassis features a simple front mounted electronics plate for easy mounting of the XR2 Micro ESC/Receiver combo.

The G2 includes a set of RC4WD Micro Ultimate Scale Shocks. Designed for ultimate scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.

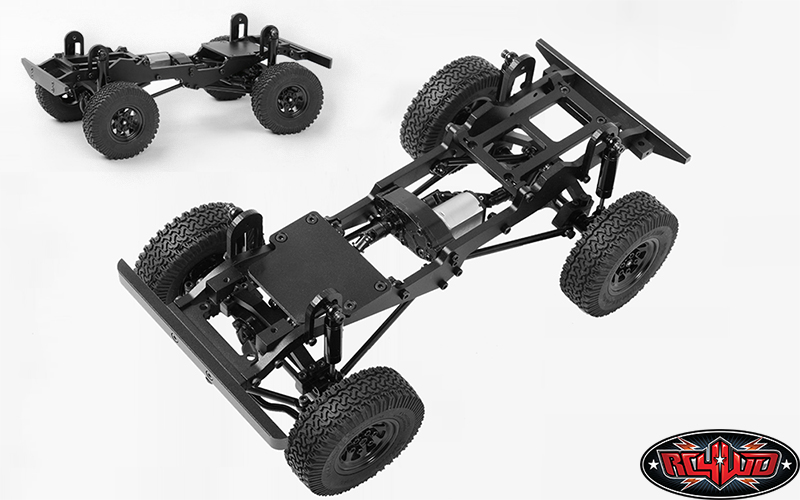

The All New G2 Chassis is a machined billet aluminum ladder frame with an all link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for the ultimate in strength.

The G2 includes a set of RC4WD Black Stamped Steel 1.0 Stock Beadlock Wheels. Featuring a super tough black finish, aluminum internal locking ring and popular 6 lugs design.

Every G2 needs a tough set or rock grabbing tires and the included Dirt Grabbers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

DETAILS

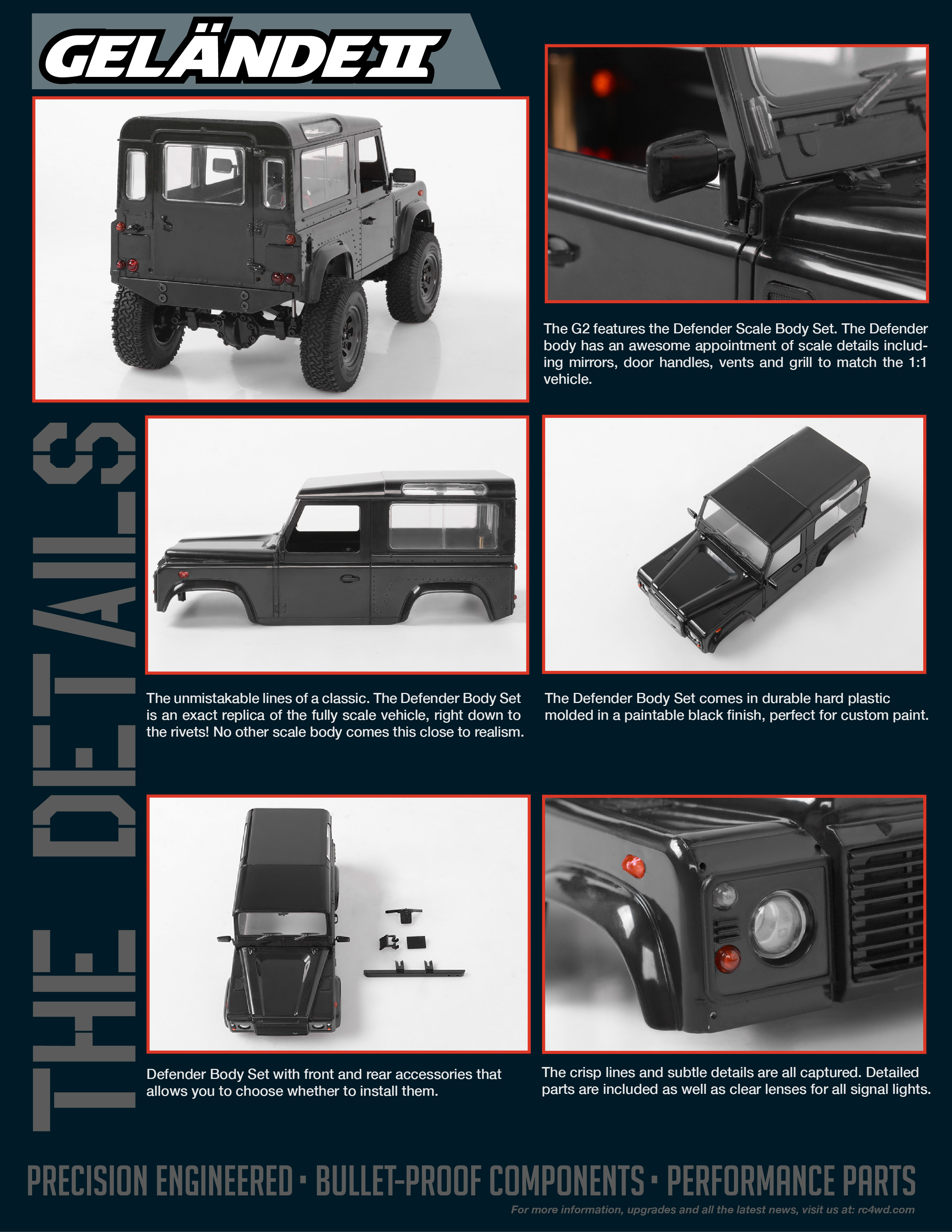

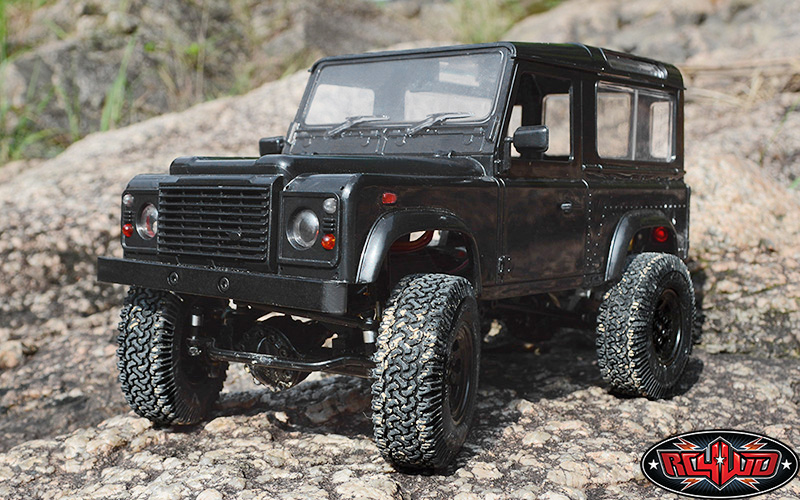

The G2 features the Defender Scale Body Set. The Defender body has an awesome appointment of scale details including mirrors, door handles, vents and grill to match the 1:1 vehicle.

The unmistakable lines of a classic. The Defender Body Set is an exact replica of the fully scale vehicle, right down to the rivets! No other scale body comes this close to realism.

The Defender Body Set comes in durable hard plastic molded in a paintable black finish, perfect for custom paint.

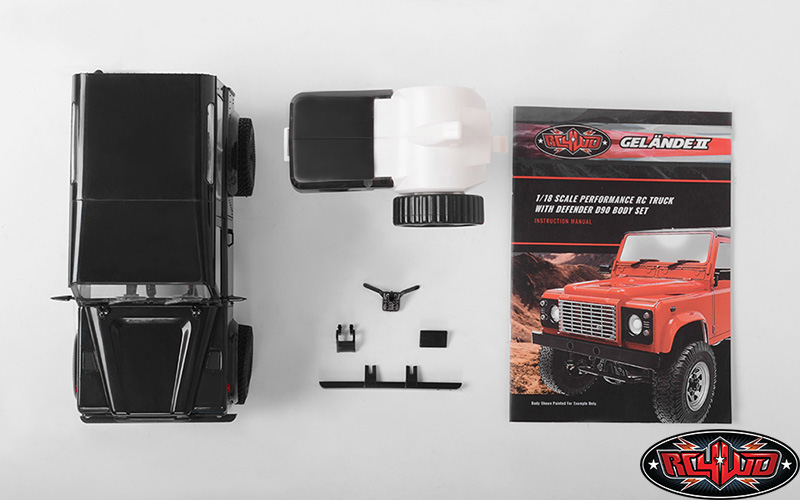

Defender Body Set with front and rear accessories that allows you to choose whether to install them.

The crisp lines and subtle details are all captured. Detailed parts are included as well as clear lenses for all signal lights.

What's Included:

1x RC4WD 1/18 Gelande II RTR with D90 Body Set

Replacement Parts:

RC4WD 7.4V 850mAh 2S LiPo Battery (Z-E0080)
Dirt Grabber 1.0" All Terrain Tire (Z-T0142)
2-in-1 Micro ESC + Receiver for XR2 Micro Radio (Z-E0078)
9G Analog Metal Gear Micro Servo (Z-E0077)
RC4WD Land Rover Defender D90 Body Set for 1/18 Gelande II (Z-B0113)
Stamped Steel 1.0" Stock Beadlock Wheels (Black) (Z-W0229)
Punisher Shafts 1/18 (42mm - 50mm / 1.57" - 1.96") 3mm Hole (Z-S1684)
Yota II 1/18 Cast Front and Rear Axle Set (Z-A0117)
The Ultimate Mini Scale Shocks (40mm) (Z-S1686)
FF-030 Micro Electric Motor (Z-E0079)
R5 1/24 Mini Cast Transmission (Z-U0035)

Hopups:

Rock Crusher 1.0" Micro Crawler Tires (Z-T0027)
Rok Lox 1.0" Micro Comp Tires (Z-T0028)
Rage 1.0" Beadlock Wheels (Z-W0061)
RC4WD Mickey Thompson Baja Claw TTC 1.0" Micro Crawler Tires (Z-T0067)
RC4WD Interco Super Swamper TSL/Bogger 1.0" Micro Crawler Tires (Z-T0069)
Chubby Mini 3 TON Scale Jack Stands (Z-S0731)
Metal Front Lamp Guards for 1/18 Gelande D90 (VVV-C0268)
Metal Side Window Guards for 1/18 Gelande D90 (VVV-C0270)
Rear Ladder for 1/18 Gelande D90 (Black) (VVV-C0281)
Rear Ladder for 1/18 Gelande D90 (Red) (VVV-C0282)
Front Window Roll Cage for 1/18 Gelande D90 (Black) (VVV-C0273)
Front Window Roll Cage for 1/18 Gelande D90 (Red) (VVV-C0274)
Metal Front Side Hood Diamond Plates for 1/18 Gelande D90 (VVV-C0269)
Side Body Guards for 1/18 Gelande D90 (Black) (VVV-C0275)
Side Body Guards for 1/18 Gelande D90 (Red) (VVV-C0276)
Expanded Side Body Panels for 1/18 Gelande D90 (VVV-C0272)
Roof Rack for 1/18 Gelande D90 (Black) (VVV-C0277)
Roof Rack with Light Pods for 1/18 Gelande D90 (Red) (VVV-C0280)
Roof Rack for 1/18 Gelande D90 (Red) (VVV-C0278)
Roof Rack with Light Pods for 1/18 Gelande D90 (Black) (VVV-C0279)
Spare Tire Holder for 1/18 Gelande D90 (VVV-C0271)

Items of Interest: (not required for completion)

Hex Drivers (1.5mm, 2mm)
Long Nose Pliers
Associated Thread Locking Adhesive
4mm Nut Driver (OD less than 5.5mm)
Instant glue / Plastic Cement (prefer non whitening)
Cross Phillips Screwdrivers (small)
Grease and Lubrication (Z-S1199) (Z-S1197)
Double Sided Tape for ESC (Z-S0935) (Z-S0934)

Instruction Manuals:

Click here to download.

Press Information:

Click here to download.

Notes:

While some components may come assembled, it may be in your best interest to check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
