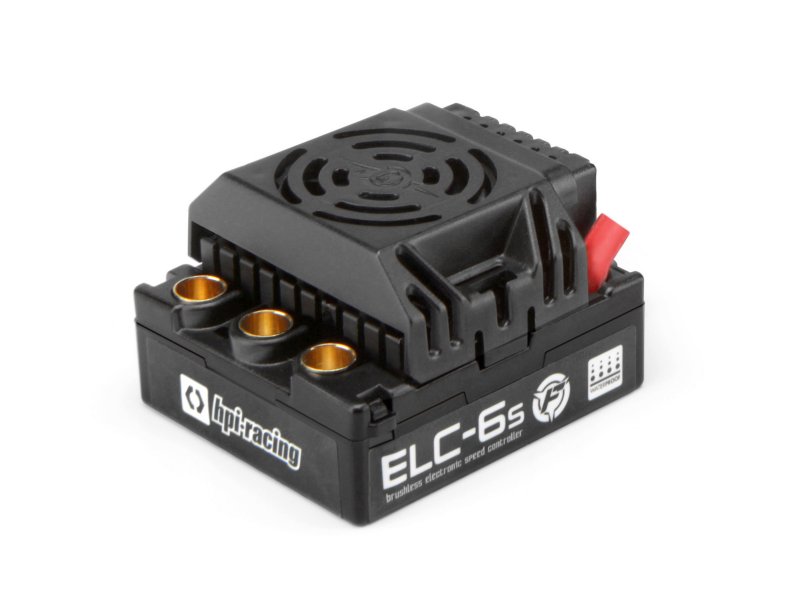

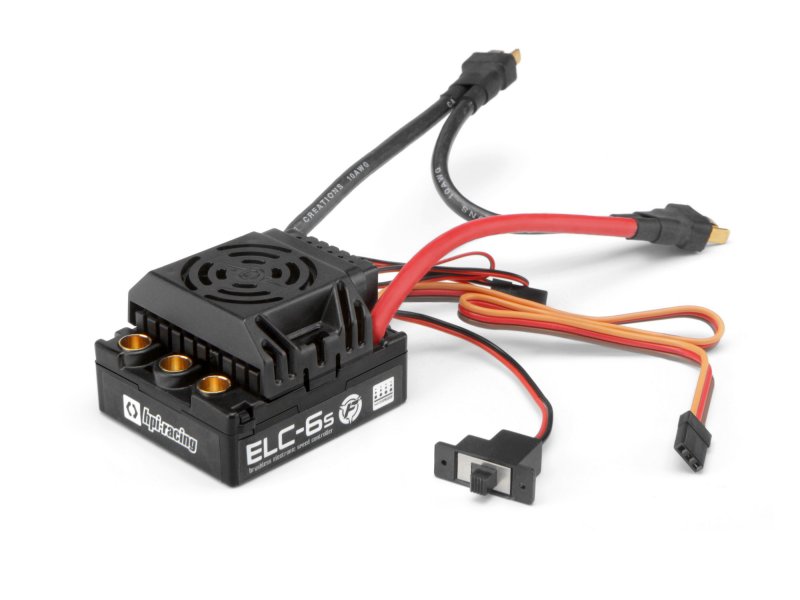

#113126 - ELC-6S WATERPROOF ESC

When you need to strap in more power for your 1/8th scale vehicle, the HPI ELC-6S should be at the top of your list! It's the ideal speed controller to rely on for any on- or off-road vehicle that's going to be driven hard in all conditions.

The ELC-6S is perfect for monster trucks, buggies and any other RC vehicle that you may want to drive in the rain, through puddles and anywhere you like. It's fitted with 2 official Deans connectors so you can fit two batteries (1S, 2S or 3S) batteries for massive acceleration, maximum fun and awesome speed!

Input voltage: MIN 2s LiPo, MAX 6s LiPo
Max continuous amperage: 120A (full throttle continuous operation with cooling airflow)
BEC specifications: User selectable output between 5 and 7 volts
Operating environment: Waterproof* design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes - with lockout
Size: L 47mm (1.86"), W 56mm (2.19"), H 34mm (1.33")
Weight (without battery connector soldered to ESC): 111.5 g (3.93 oz)
Connector: 6.5mm Bullet

NOTE: Before driving in wet conditions, make sure that other electronics fitted to the vehicle are safe to use (marked as water-resistant or waterproof), or that they are fully enclosed and protected from water and moisture (such as in a sealed receiver/battery case). Fans mounted on speed controllers are not water resistant - we recommend to disconnect the fan from the ESC before driving in wet conditions and allow it to dry fully before reconnecting the fan power. Lubricate exposed metal drivetrain parts such as bearings, outdrives and diff shafts before driving in wet conditions. Motors are not intended for submerged use and may be damaged if used when under water. After driving in wet conditions, make sure to rinse off dirt and any corrosive liquids like saltwater with plain water and re-lubricate metal drivetrain parts.

Download PDF instructions for #113126 (7.1 MB)
