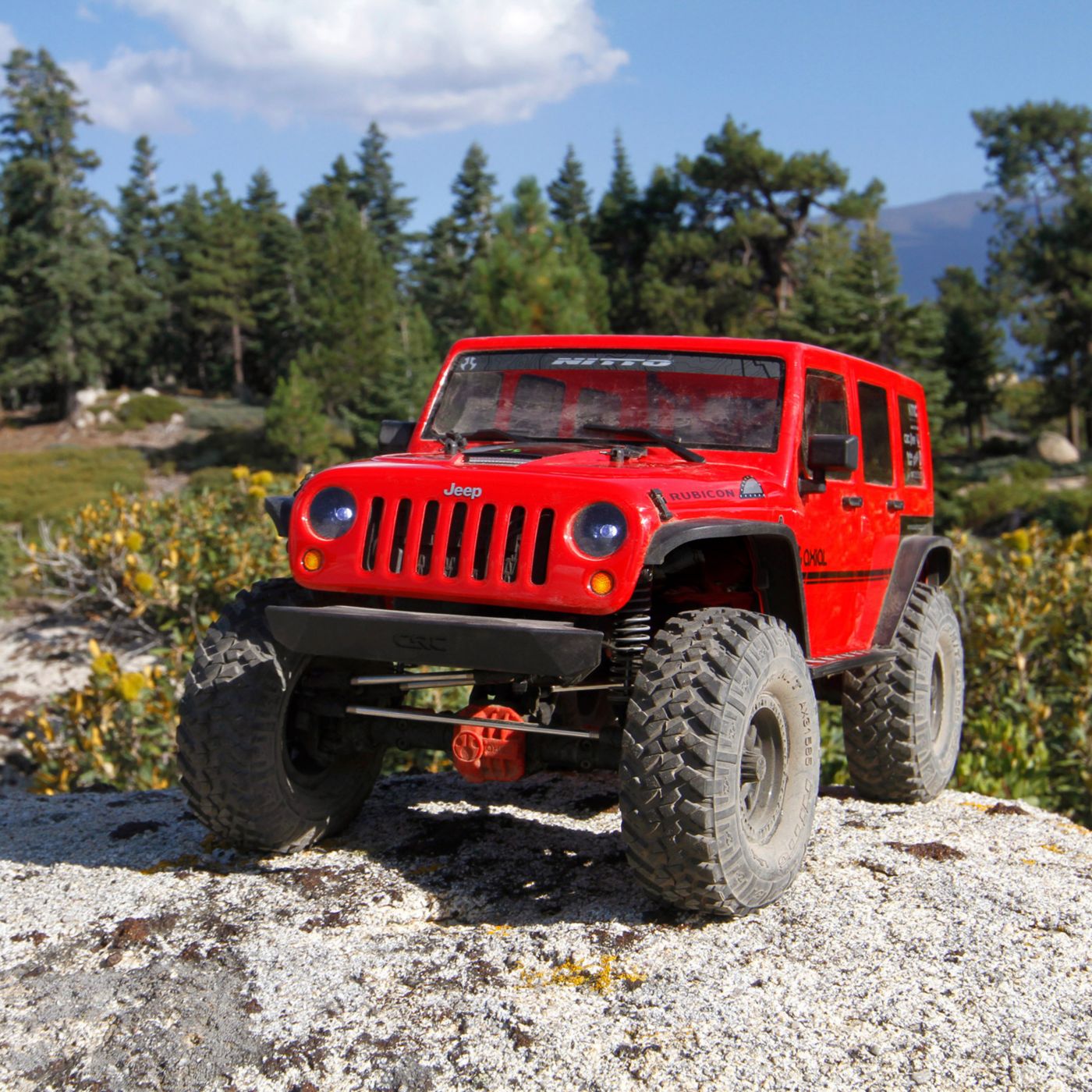

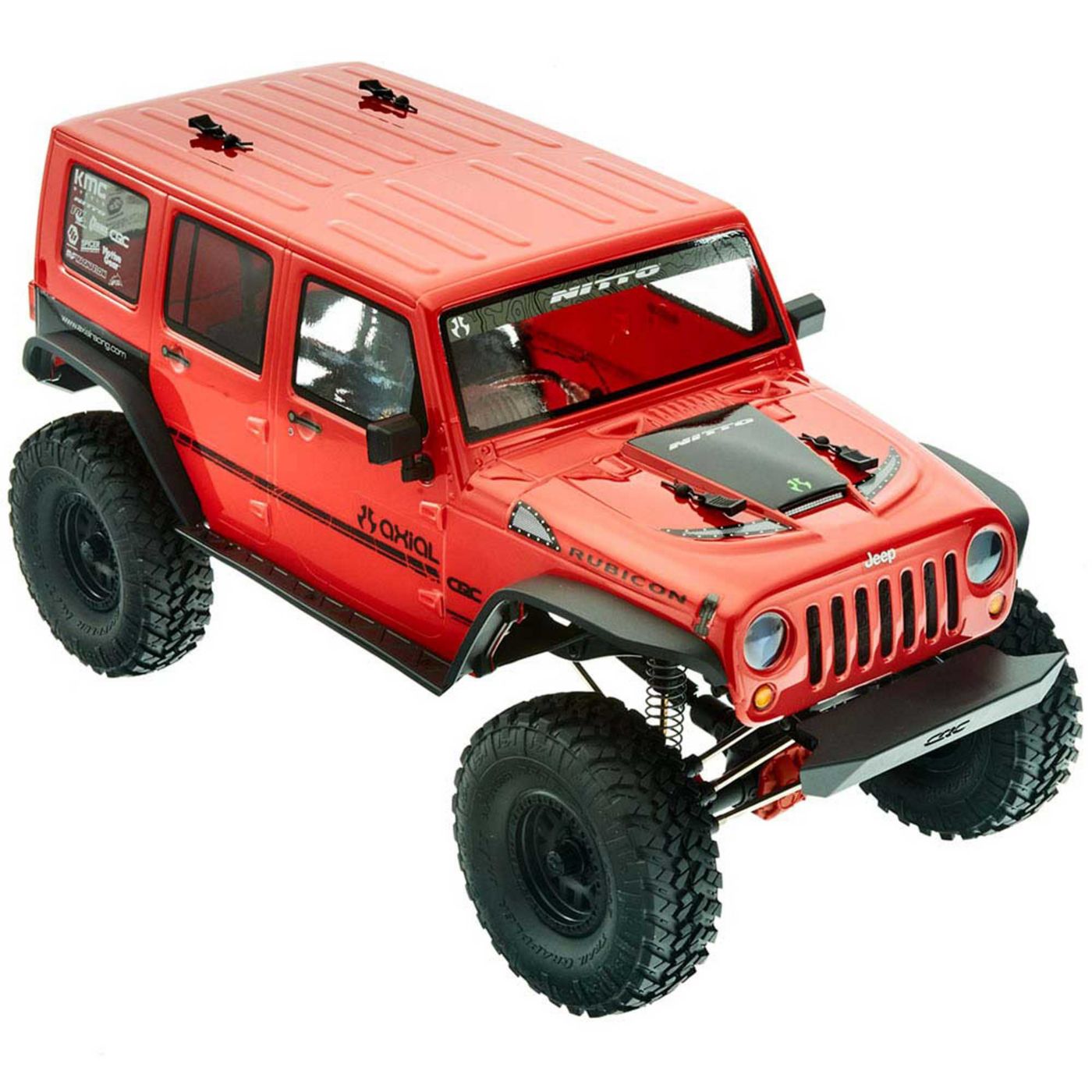

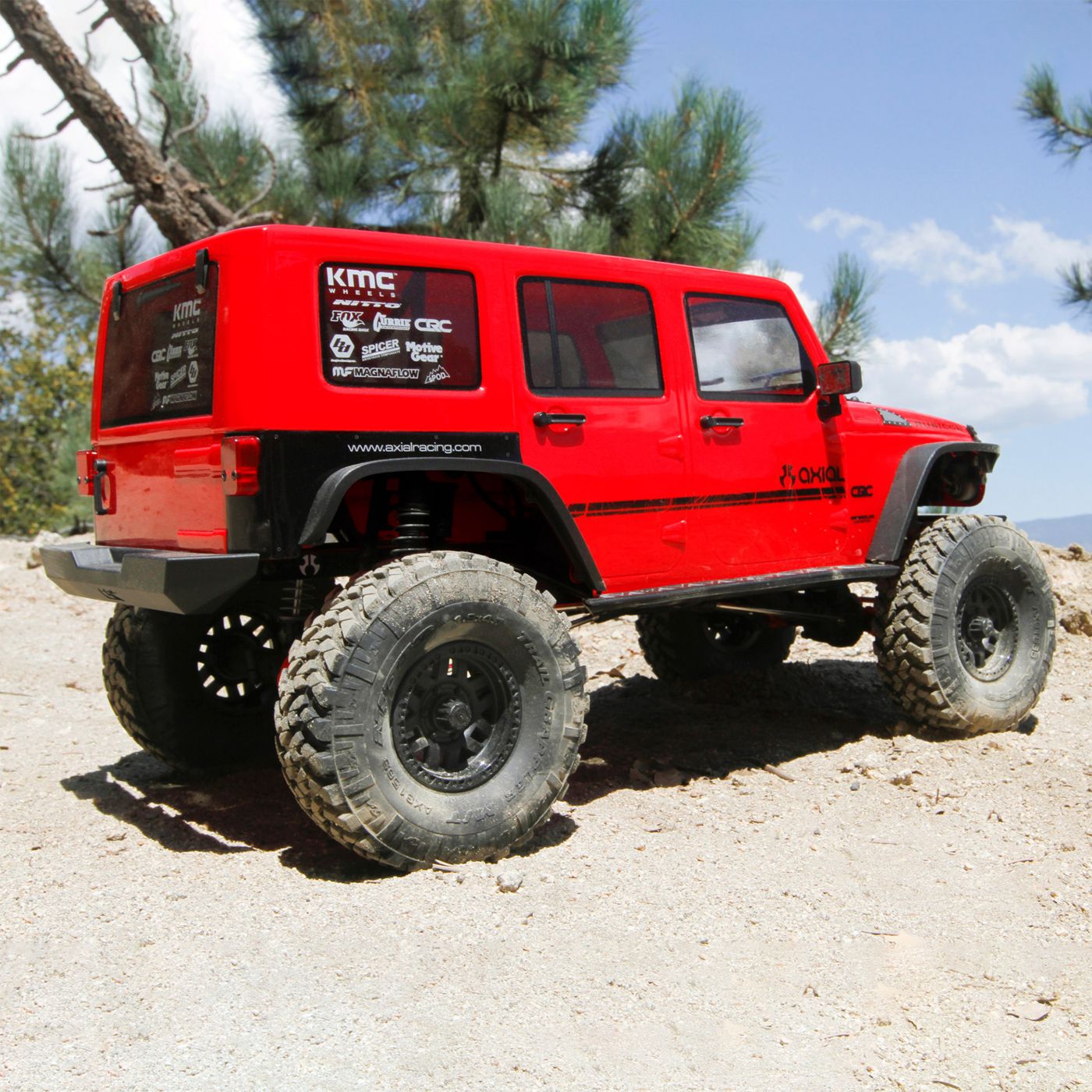

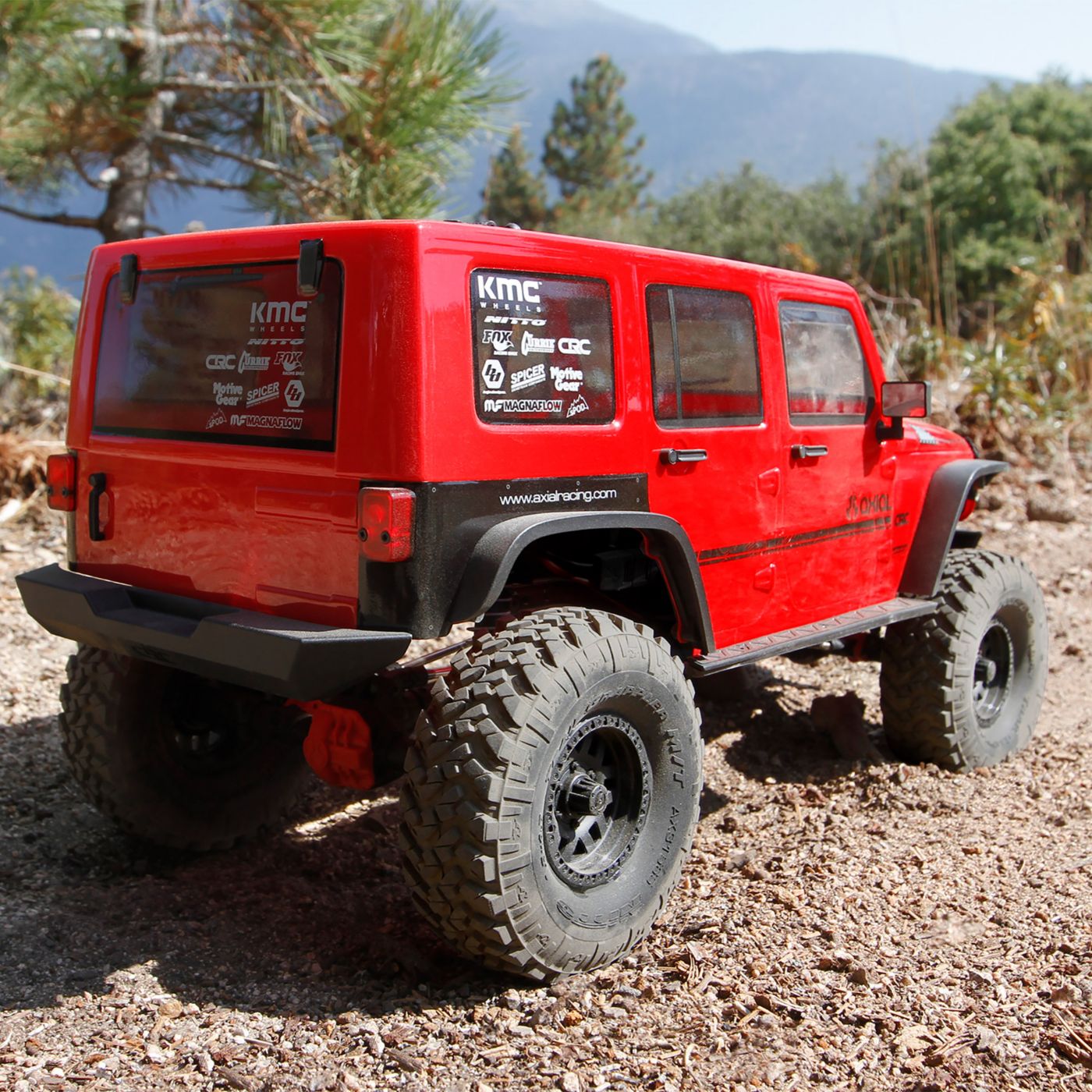

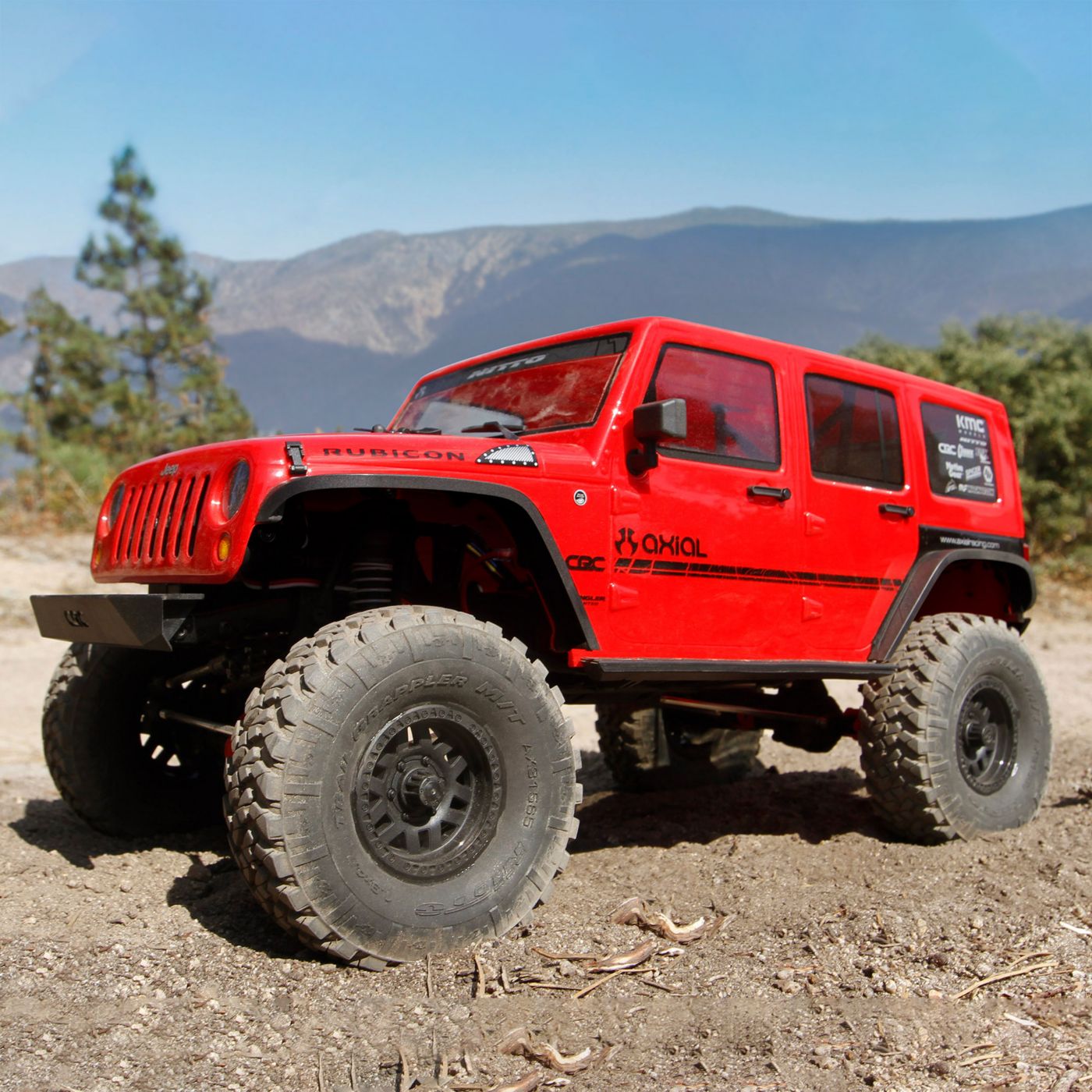

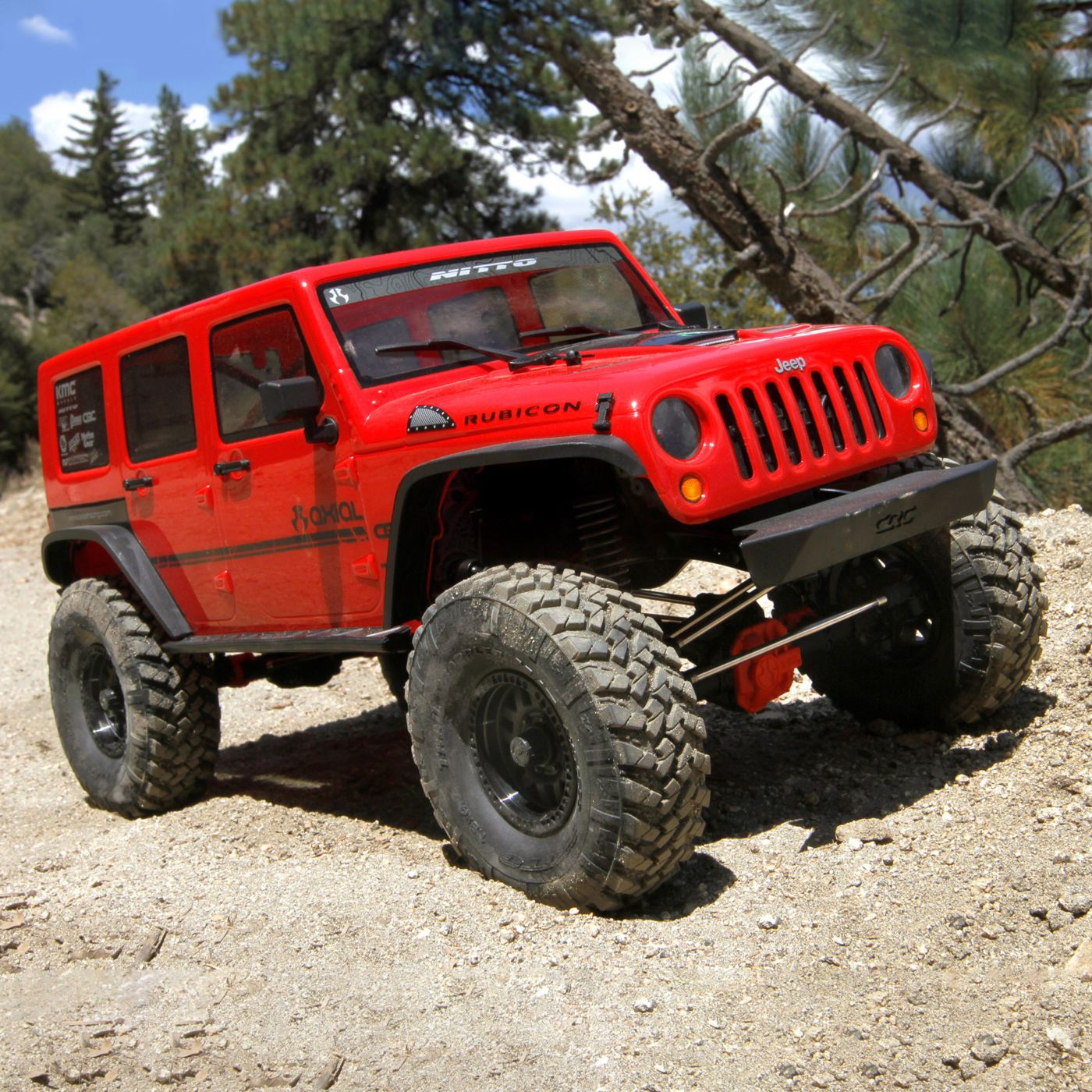

Name: Axial D9060 - 1/10 SCX10 II 2017 Jeep Wrangler Unlimited CRC Brushed Rock Crawler 4WD RTR
Price: HK$ 3280.00
Buy Item



Key Features

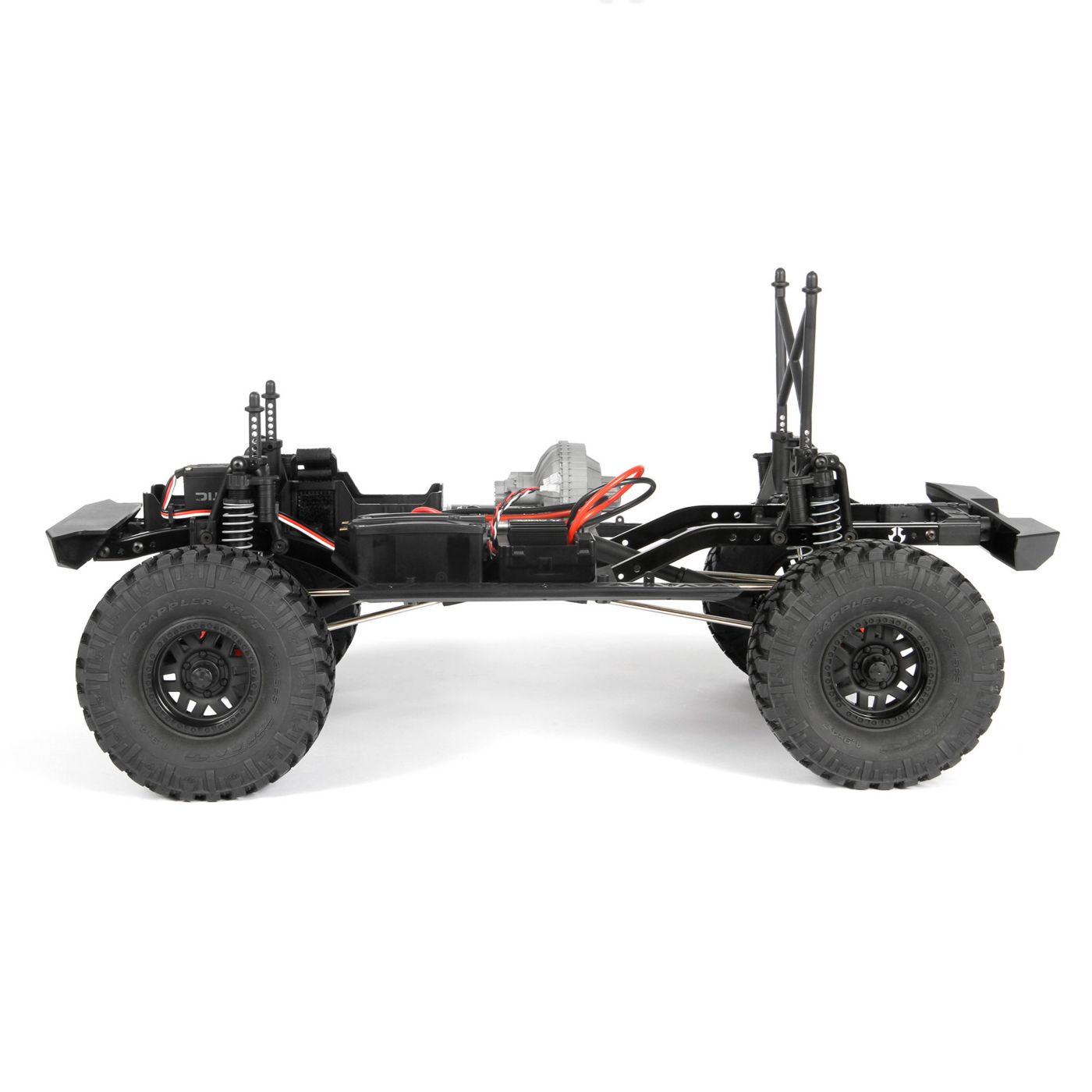

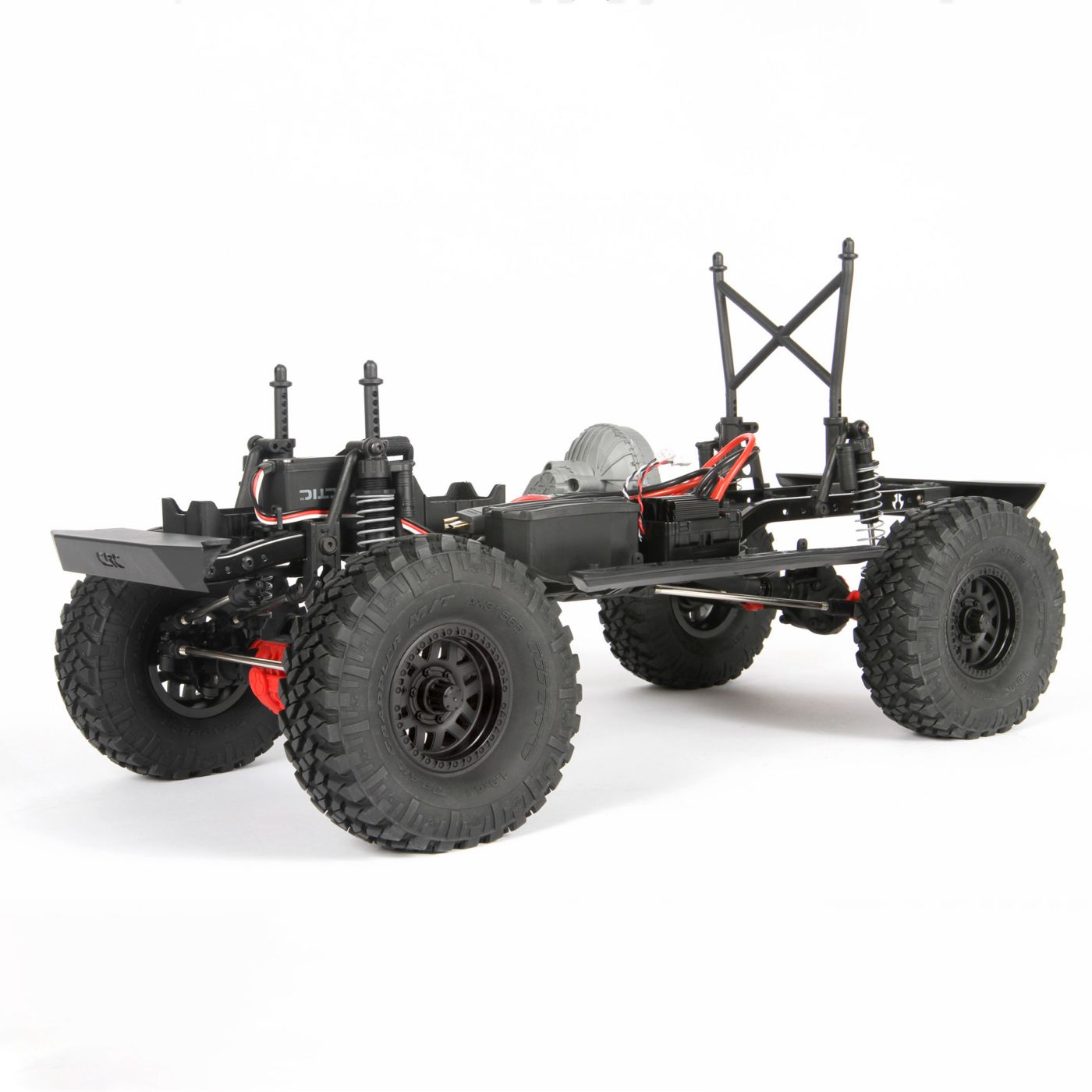

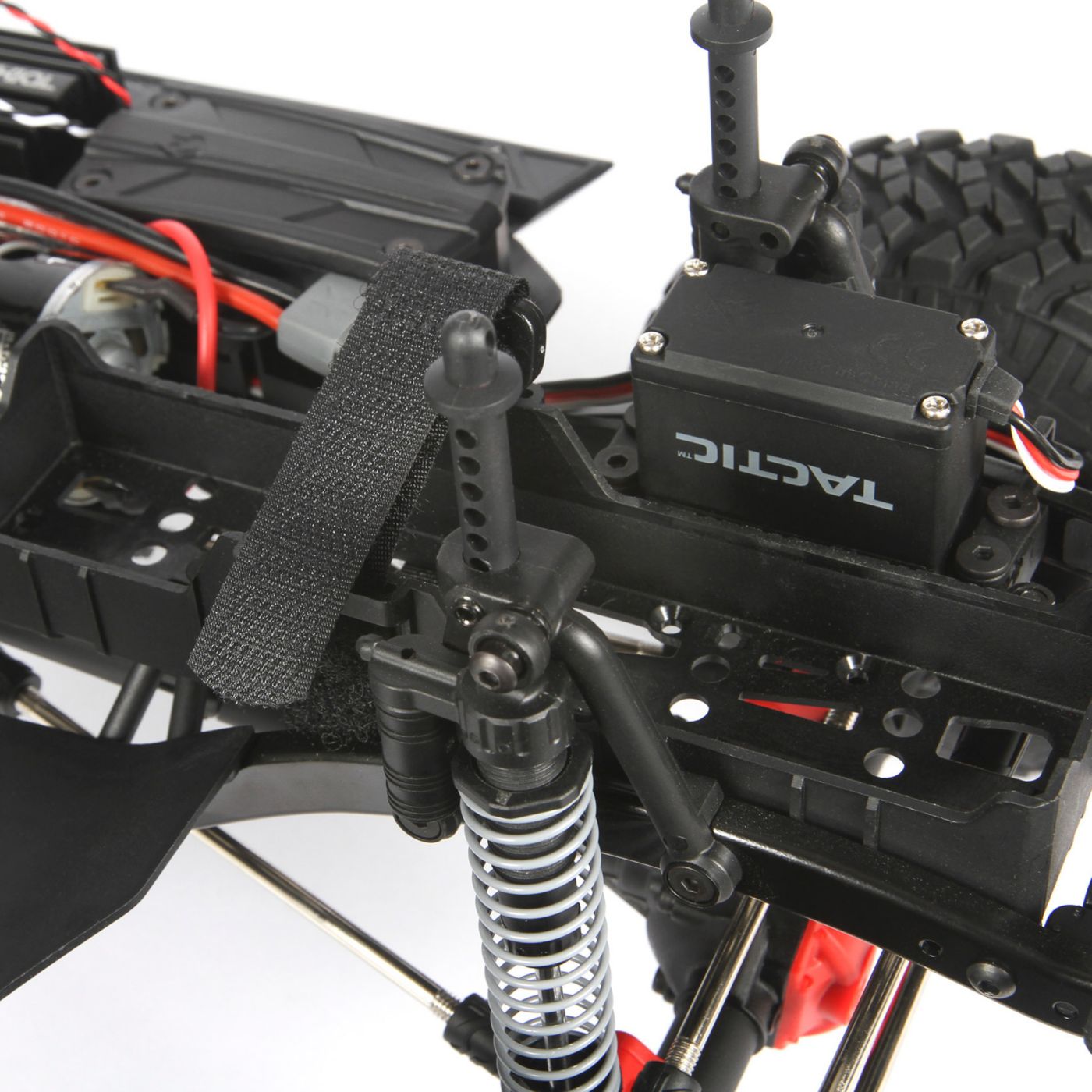

  • Chassis: Scale steel C-channel side rails with adjustable body mount, adjustable bumper mounts with swaybar mounting points, mounting points for optional 2-speed and servo winch, adjustable chassis mounted servo system

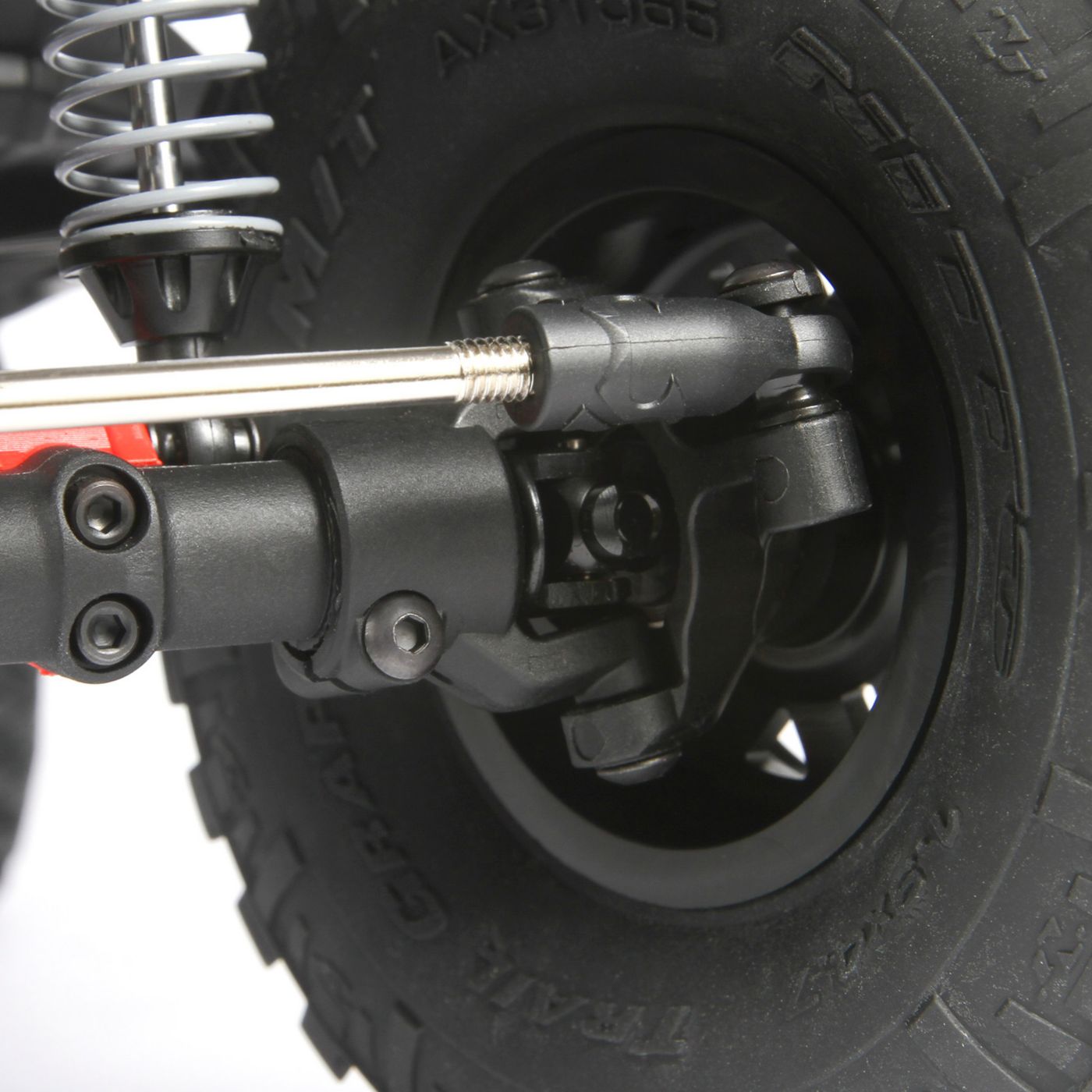

  • Drive: Full time 4WD locked drivetrain with WB8 HD Wild Boar driveshafts, UVJ style front driveshafts for up to 45° of steering angle, full ball bearing drivetrain

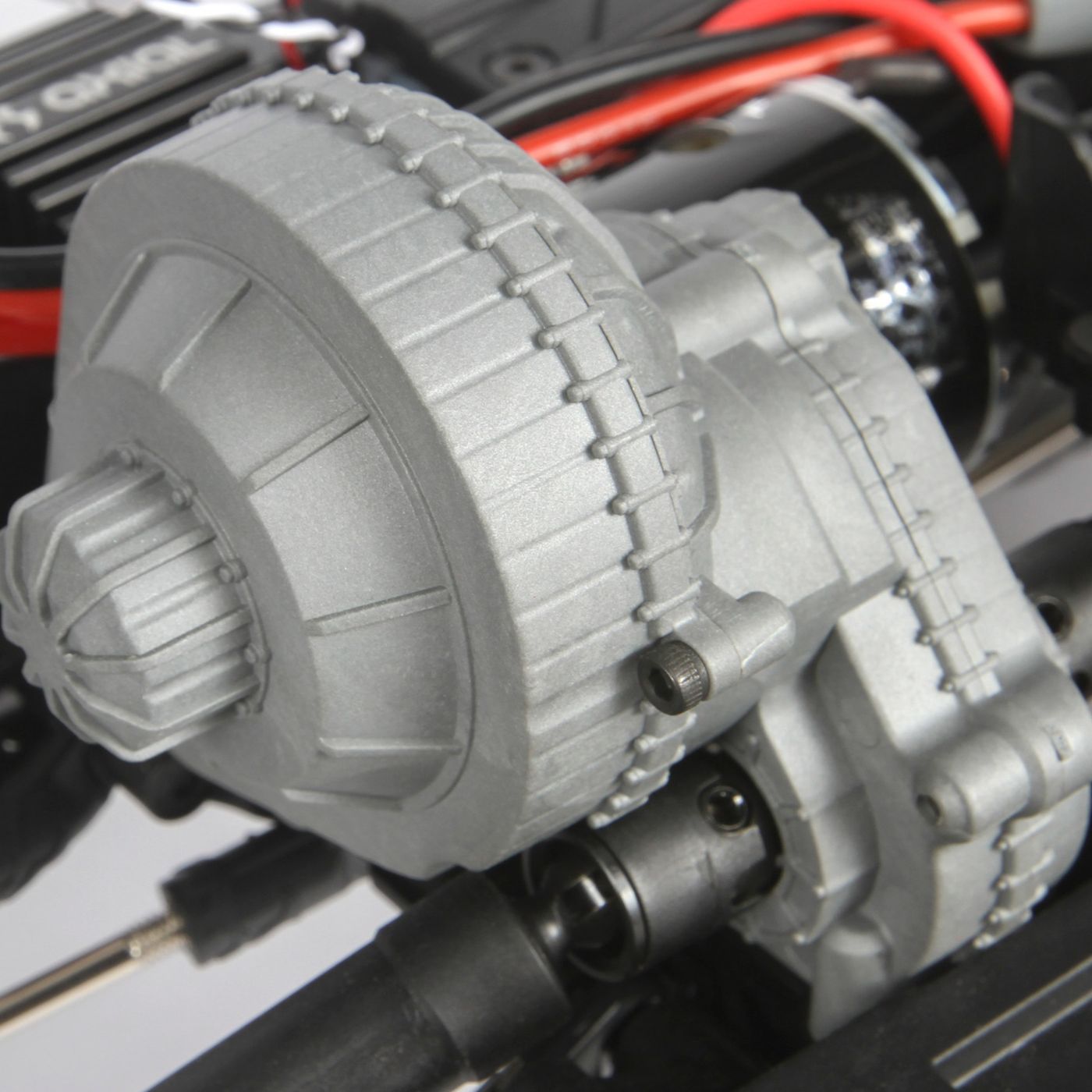

  • Transmission: AX10 three gear layout, metal motor plate, adjustable ratio for high speed or competition level crawling speed
  • Slipper Clutch: Dual pad design for added surface area, 32P gear pitch for high-torque applications
  • Motor: 35 turn, brush equipped, water resistant, integrated cooling fan
  • Radio: Tactic TTX300 3-channel SLT radio with TR325 Receiver, programmable 3rd channel for operating two speed transmission winches or lights
  • Steering Servo: Tactic TSX45 metal gear, water resistant, 151oz/in torque rating, dual ball bearings
  • ESC: AE-5L waterproof, switchable between LiPo or NiMH operation with a simple jumper, Star plug battery connector, built-in LED light controller (NOTE LED leads are not compatible with old Axial LED light strings, or third party LED light strings
  • Spur Gear: 56T 32-pitch, plastic construction Pinion Gear 15T 32-pitch, steel construction
  • LED Lights: Four white for head lights and turn signal markers, and two red lights for tail lights
  • Battery Tray: Easy access front mount, accomodates batteries up to 1.2 x 1.7 x 5.8" (32x44x147mm) 3S, 5000mAh
  • Front and Rear Axles: Hardened steel
  • AR44 Hi-Pinion Axle: Hypoid cut CNC metal gears, optimized gear ratio for reduced torque twist, optional gearing choices, one- piece axle housing, increased clearance, larger load rated bearings for durability, 8° kingpin axle eliminates tire scrub, single piece axle housing, one-piece all metal locker, 10° increment adjustments for knuckle carriers and straight axle adapters, optimized gear ratio; 3.75 compared to 2.92 previously, for less torque twist

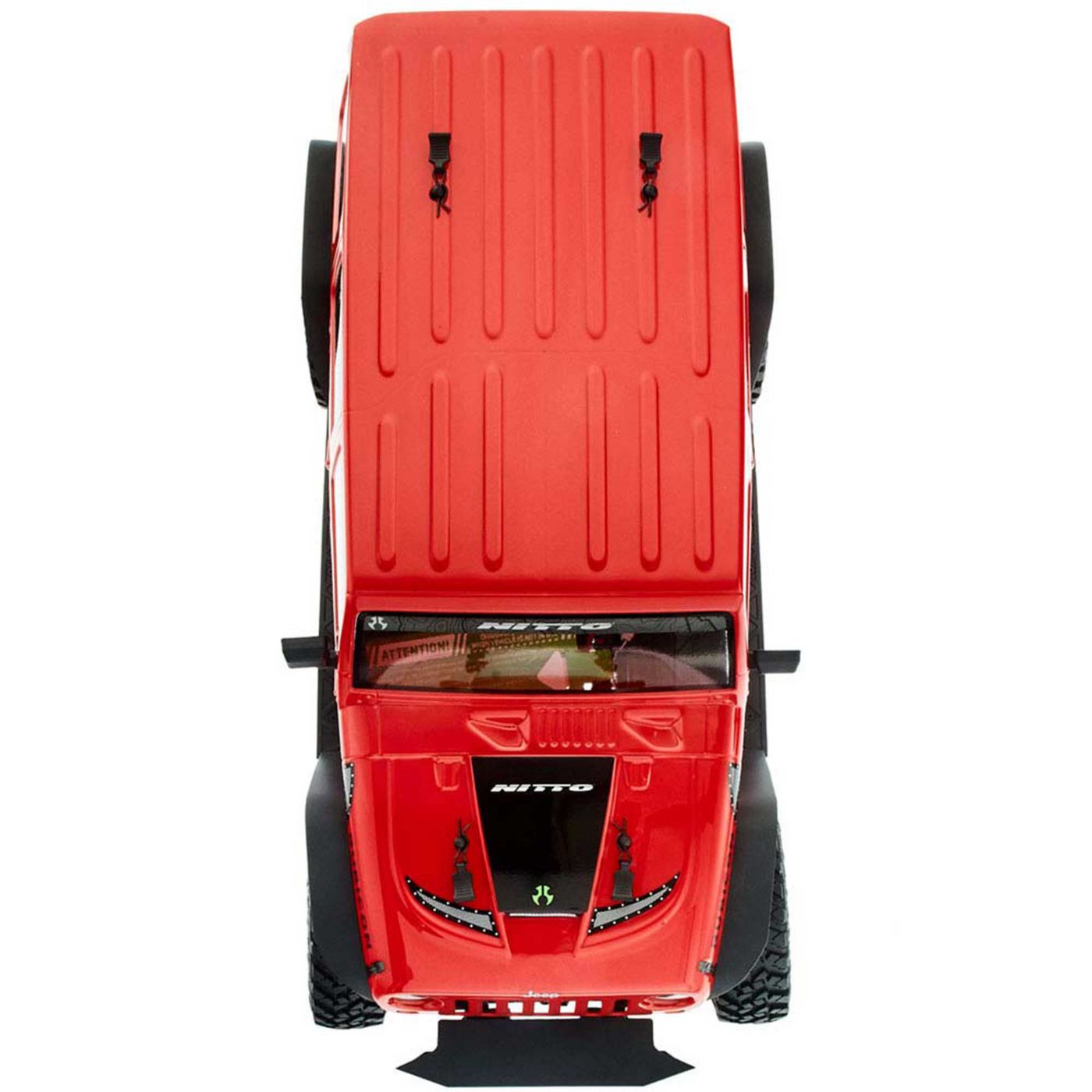

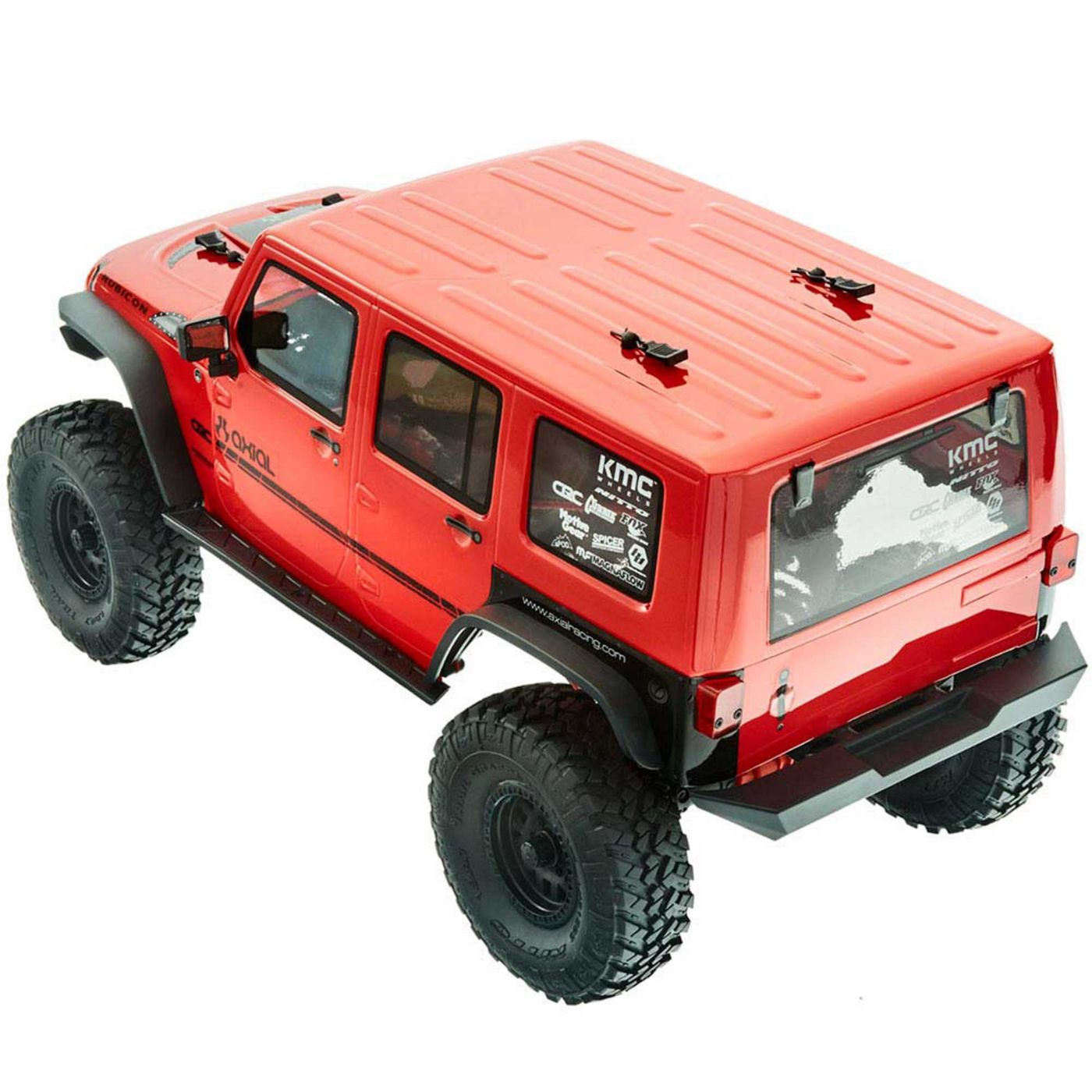

  • Body: Painted 2017 Jeep Wrangler Unlimited CRC
  • Wheels: 1.9" KMC XD 229 Machete Crawl wheels, molded composite construction, black in color, 1.02" (26mm) wide, 2.12" (53.9mm) diameter, 12mm hex

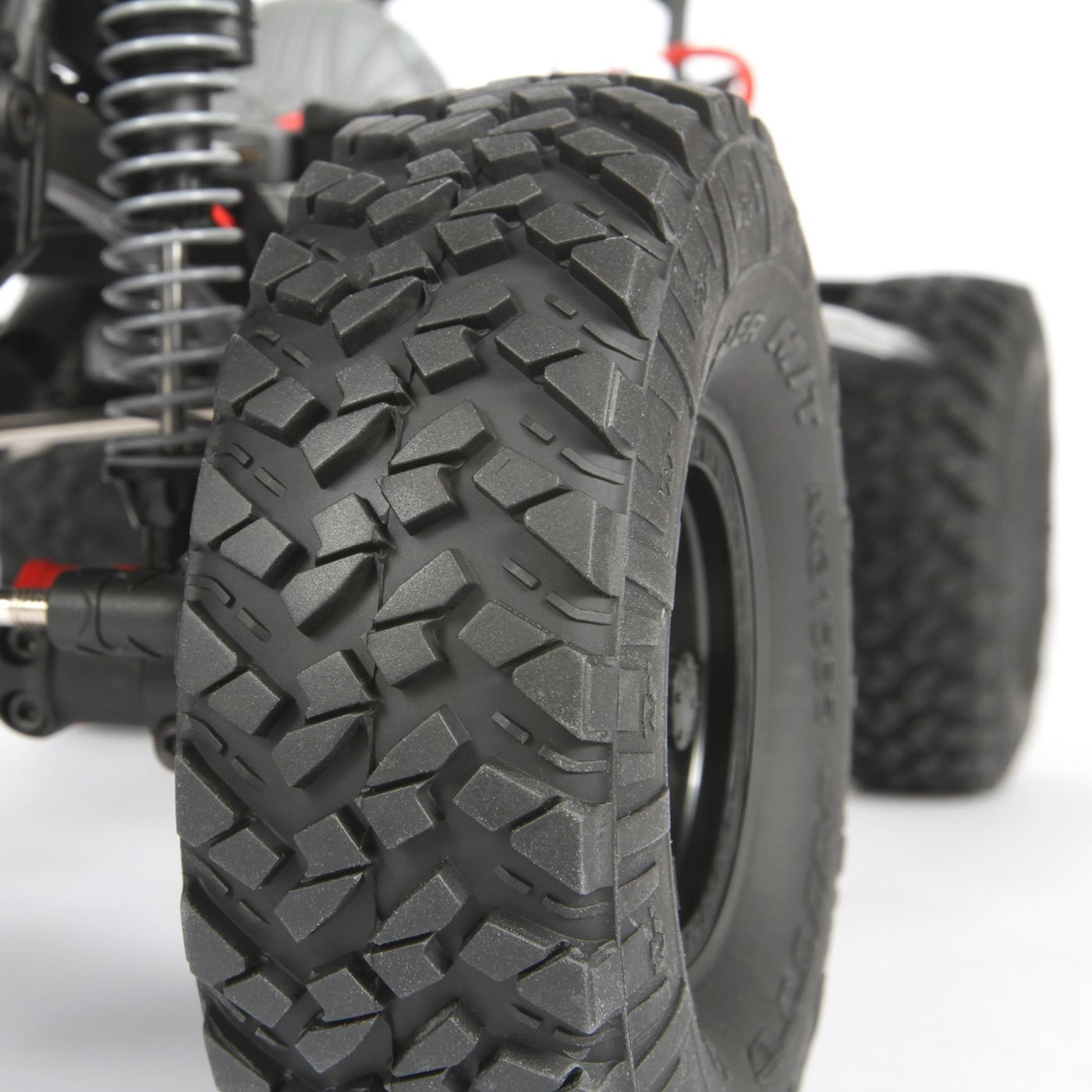

  • Tires: 1.9" Nitto Trail Grappler M/T, S30 compound with large blocks for excellent bite in all terrain 4.7" (119.4mm) 1.9" (48.2mm) wide

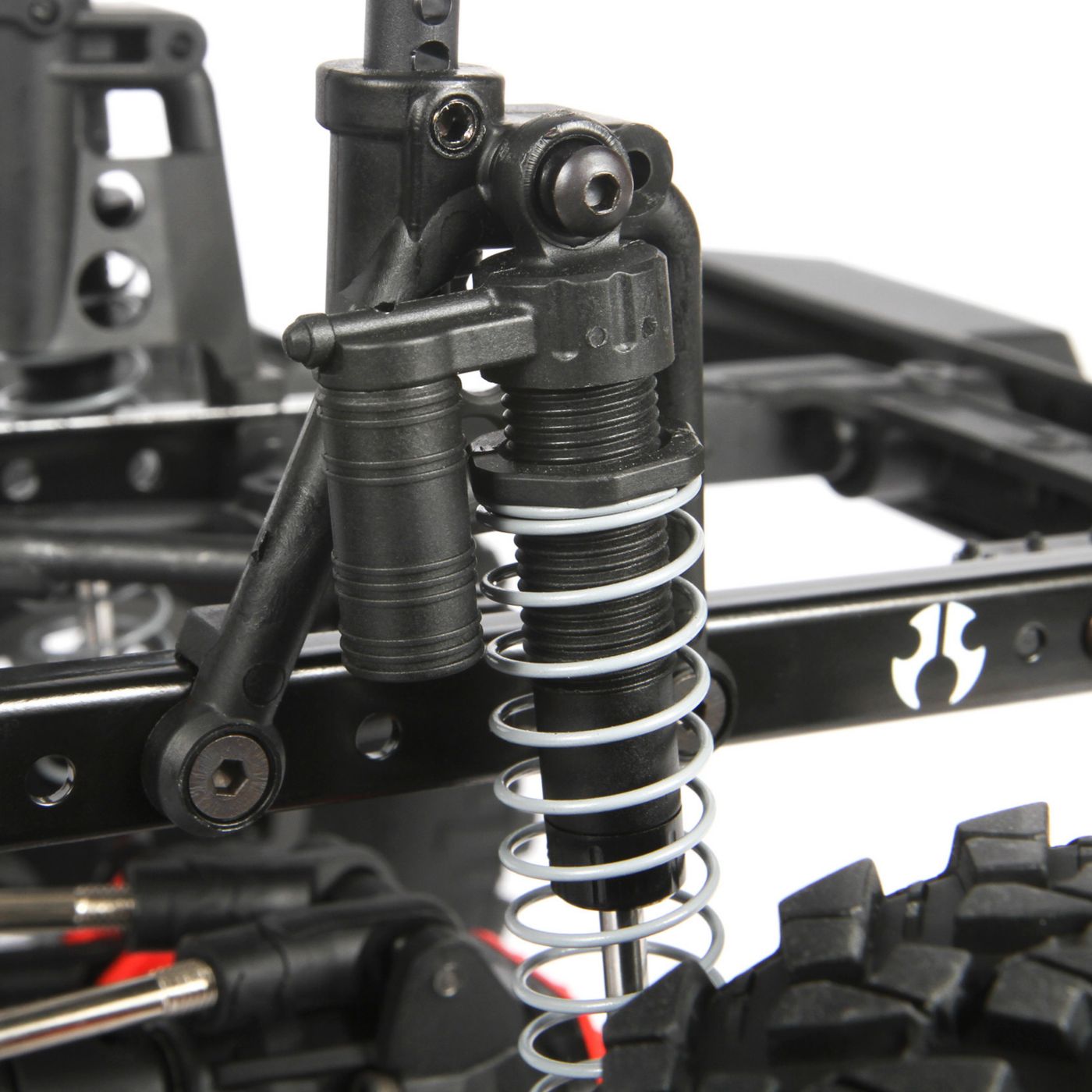

  • Shocks: Coil over, oil filled, steel springs, white in color

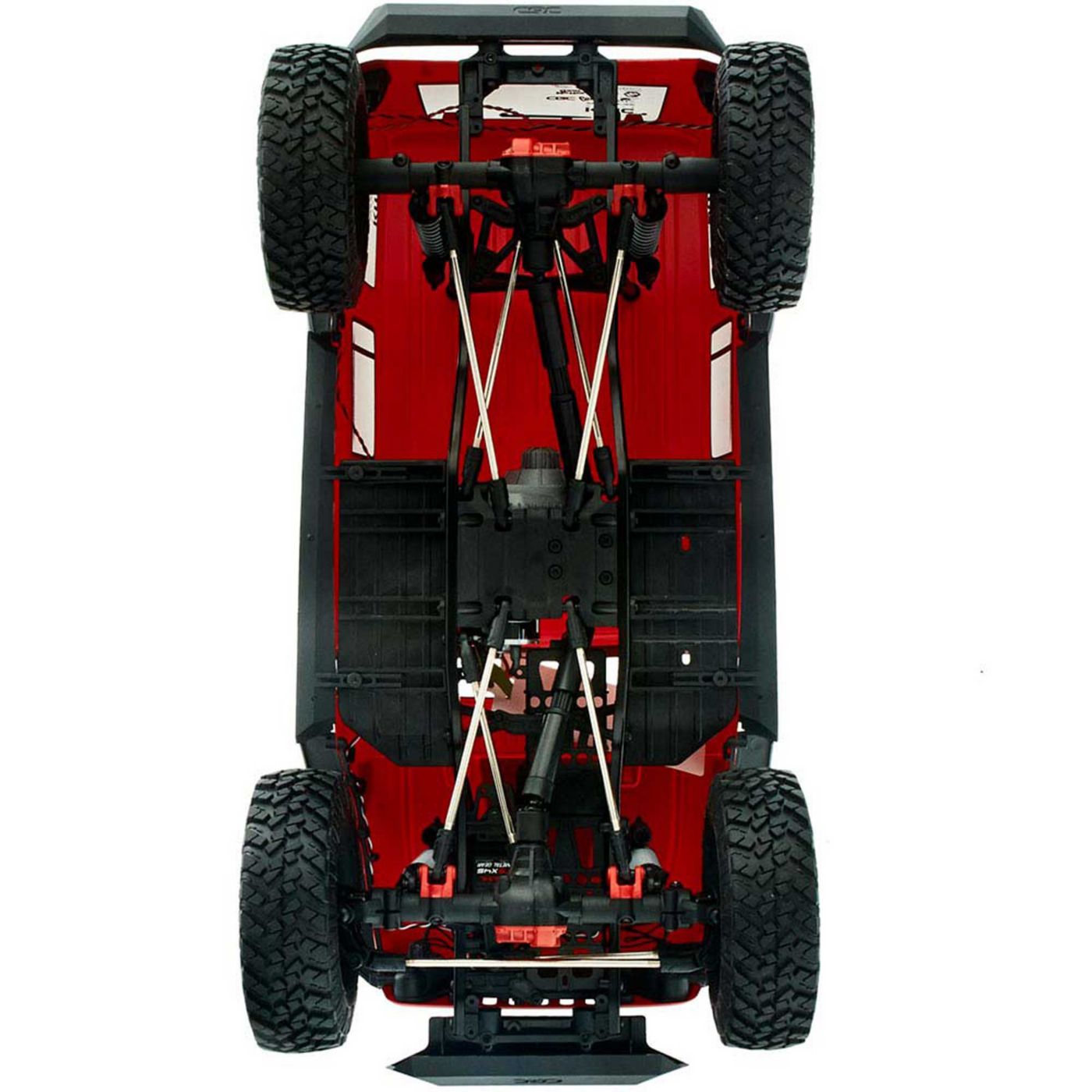

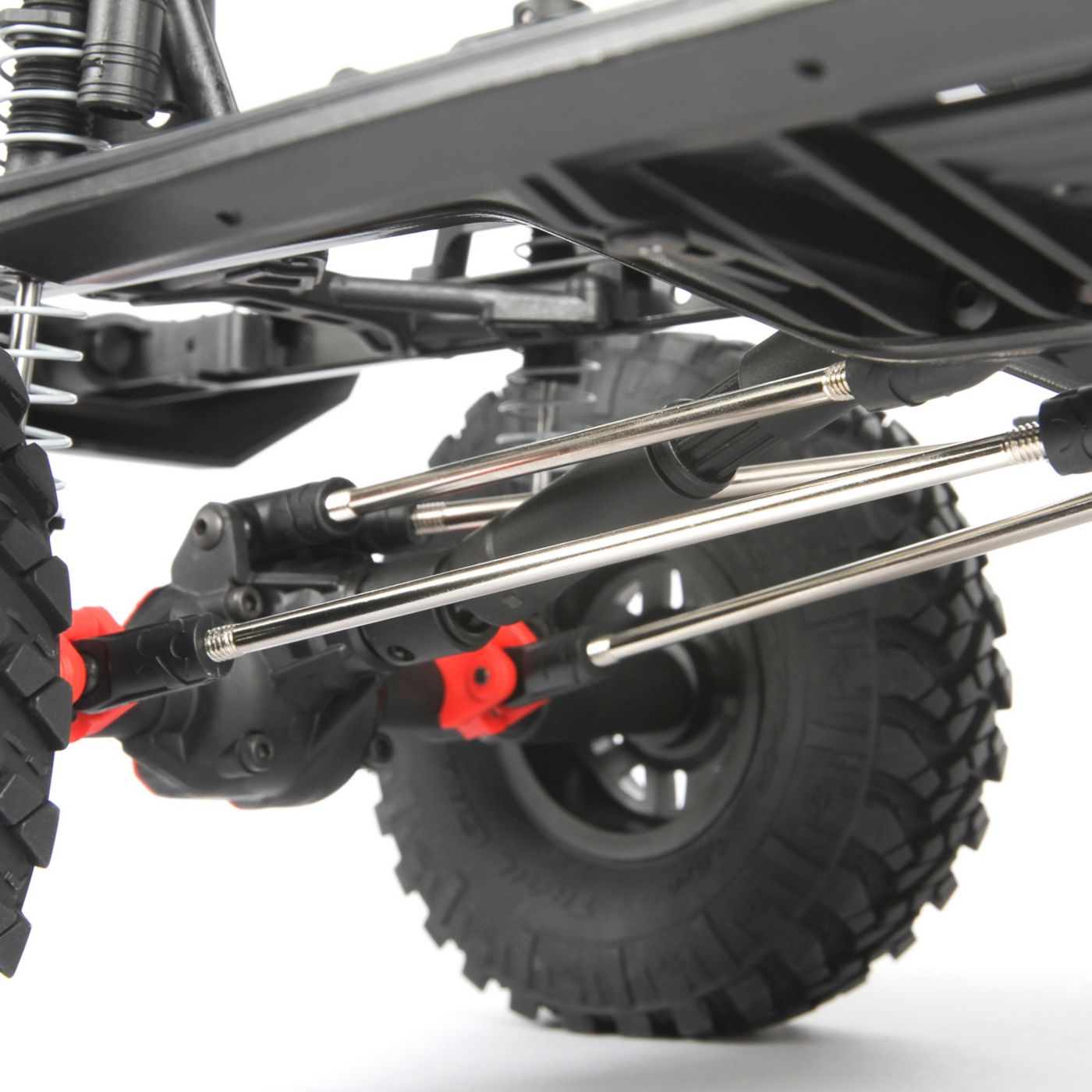

  • Suspension: Optimized suspension geometry with integrated mounts upper and lower aluminum links, 4-link design reduces axle steer and torque twist, and guards against suspension wrap-up in high- power applications, all steel links
  • Steering: Proper CMS geometry using 3-link setup with panhard bar, 45° steering angle
  • Bumpers: Scale front and rear bumpers and rock sliders licensed by JCR Offroad, lenses in bumpers for light kit (light kit not included)

Video Overview Axial AX90060 SCX10™ II 2017 Jeep® Wrangler Unlimited CRC

Needed to Complete

  • 6-cell NiMH or 2-3S LiPo
  • Suitable Charger
  • Building and track equipment

What's in the box?

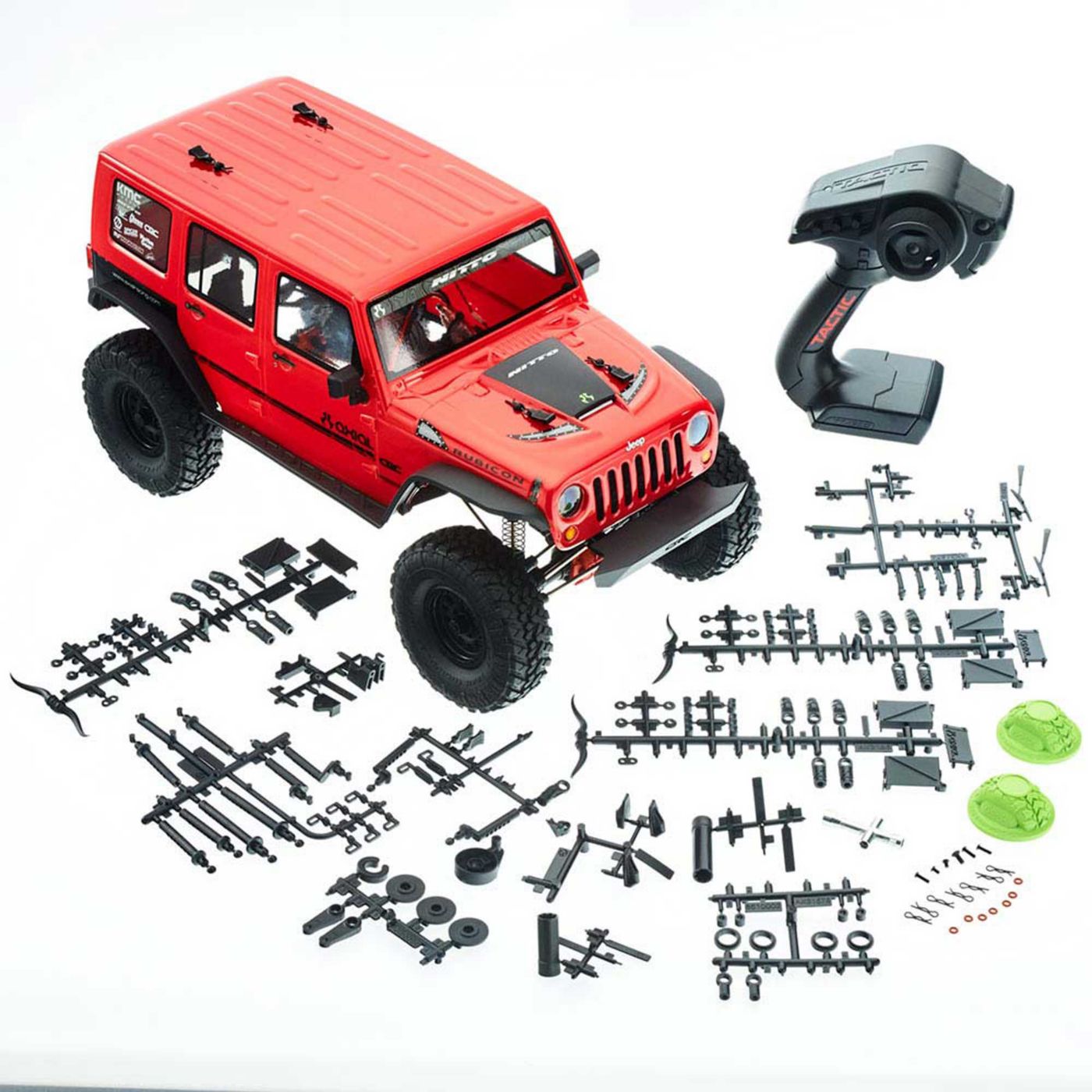

  • (1) RTR SCX10 II Jeep Wrangler Unlimited CRC with Oil-Filled Shocks, Wheels, Tires, Painted Body, Rock Sliders, Radio, ESC, Motor, Decals. Waterproof Receiver Box, LED Lights
  • (1) User Manual

Specifications

    Vehicle
  • Length: 19.25" (489mm)
  • Width: 8.9" (226mm)
  • Height: 9.4" (223.4mm)
  • Wheelbase: 12.3" (312.4mm) adjustable with optional link kits sold separately
  • Ground Clearance: 3.0" (77mm)
  • Weight: 4.5lbs (2.04kg) approximately, with electronics
  • Optimized Gear Ratio: 3.75:1
  • Final Drive Ratio (FDR): 40.44, stock (33.69-54.15 with different spur/pinion gear combinations, extra spur and pinion gears must be purchased separately)
    Body
  • Length: 17.2" (438mm)
  • Width: 8" (203mm)
  • Height: 5.5" (140mm)
