• Chassis: Scale steel C-channel side rails with adjustable body mount, adjustable bumper mounts with swaybar mounting points, mounting points for optional 2-speed and servo winch, adjustable chassis mounted servo system
• Drive: Full time 4WD locked drivetrain with WB8 HD Wild Boar driveshafts, UVJ style front driveshafts for increased steering angle, full ball bearing drivetrain
• Transmission: Two-speed capable, all metal gear with transfer case design that allows optimal position for drive shafts
• Slipper Clutch: Dual pad design for added surface area
• Spur Gear: 56T 32-pitch Pinion Gear 15T 32-pitch
• Battery Tray: Easy access front mount, accomodates batteries up to 1.2 x 1.7 x 5.8" (32x44x147mm) 3S, 5000mAh
• Front and Rear Axles: Hardened steel
• AR44 Hi-Pinion Axle: Hypoid cut CNC metal gears, optimized gear ratio for reduced torque twist, optional gearing choices, one- piece axle housing, increased clearance, larger load rated bearings for durability, 8° kingpin axle eliminates tire scrub, single piece axle housing, one-piece all metal locker, 10° increment adjustments for knuckle carriers and straight axle adapters, optimized gear ratio; 3.75 compared to 2.92 previously, for less torque twist

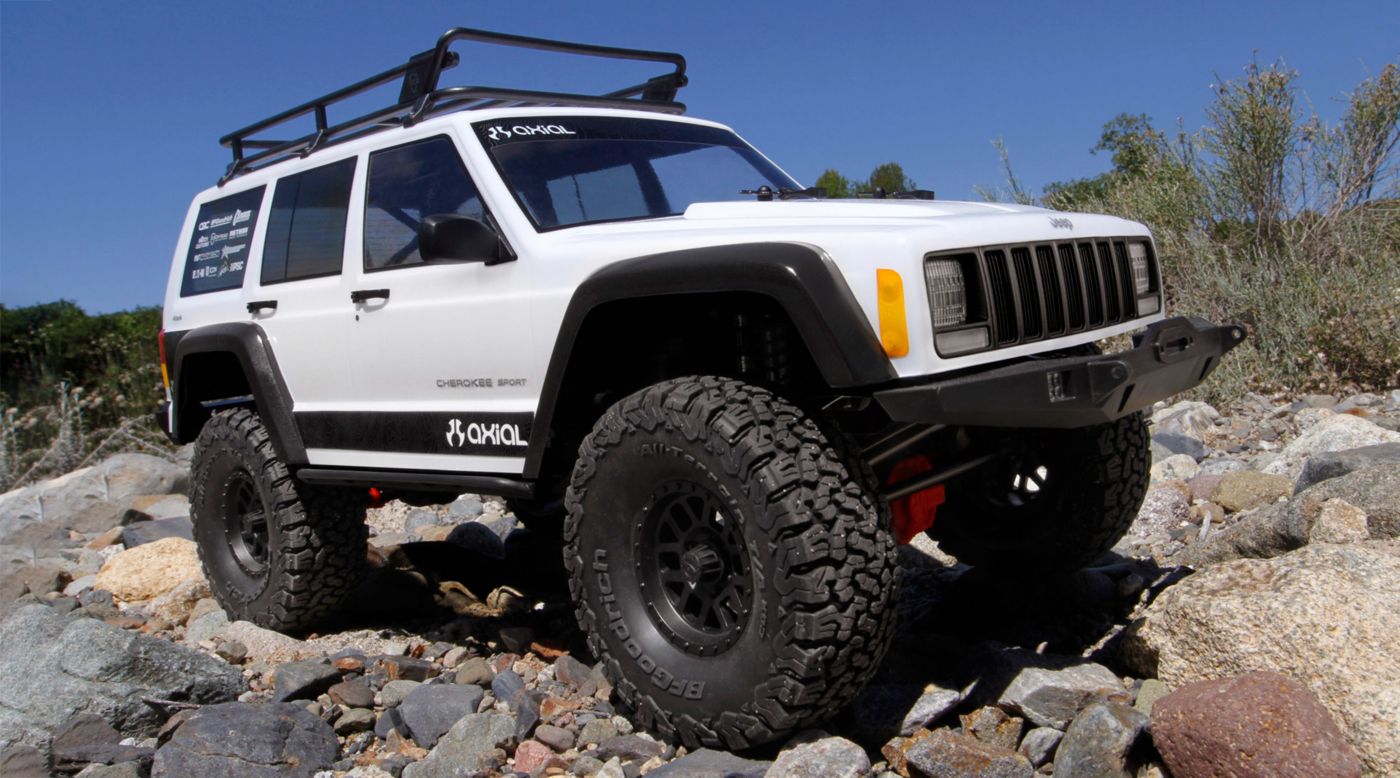

• Body: Clear Jeep Cherokee with JCR Classic Rock Sliders, Pre-runner Roof Rack, and Vanguard Bumpers
• Wheels: 1.9" Method, composite plastic construction, black in color
• Tires: BF Goodrich A/T KO2, sticky R35 compound, 4.65" (118mm) outer diameter, 1.7" (42.5mm) wide
• Shocks: Icon polished, 7mm diameter shafts, aluminum body, rebuildable
• Suspension: Optimized suspension geometry with integrated mounts upper and lower aluminum links, 4-link design reduces axle steer and torque twist, and guards against suspension wrap-up in high- power applications
• Steering: Proper CMS geometry using 3-link setup with panhard bar, 45° steering angle

Vehicle
• Length: 22.1" (561.9mm)
• Width: 8.9" (228mm)
• Height: 10.5" (268mm)
• Wheelbase: 12.3" (312.4mm) adjustable with optional link kits sold separately
• Ground Clearance: 3.0" (77mm)
• Weight: 4.5lbs (2.04kg) approximately, with electronics
• Final Drive Ratio (FDR): 40.44, stock (33.69-54.15 with different spur/pinion gear combinations, extra spur and pinion gears must be purchased separately)

Body
• Length: 20.1" (511mm)
• Width: 8.3" (211mm) behind front wheels, narrowest point 9.0" (230mm) at rear wheels, widest point
• Height: 5.4" (137mm)
