Features

Overview

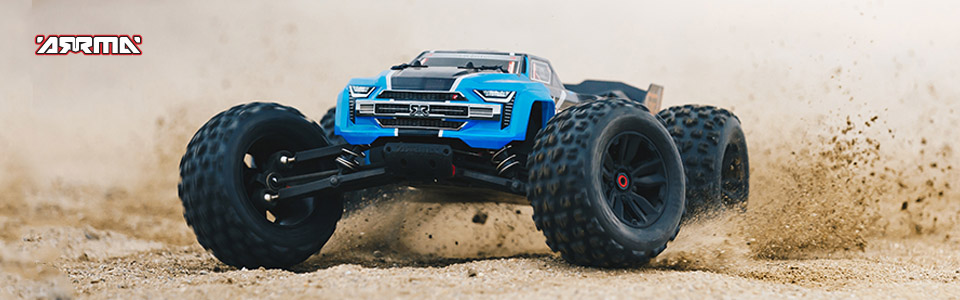

To put so much incredible speed into the hands of intermediate-level bashers, ARRMA® has outfitted the new KRATON™ Speed Monster Truck with a potent 2050Kv brushless motor. It's paired with the BLX185 ESC, featuring 1C5™ connectors and compatible with standard EC5™ connectors. Bashing is a "go" even through mud and snow, thanks to waterproof electronics. Add your favorite 4S or 6S LiPo battery and watch this monster truck smash your speed expectations, especially when running with the optional recommended pinion gear.

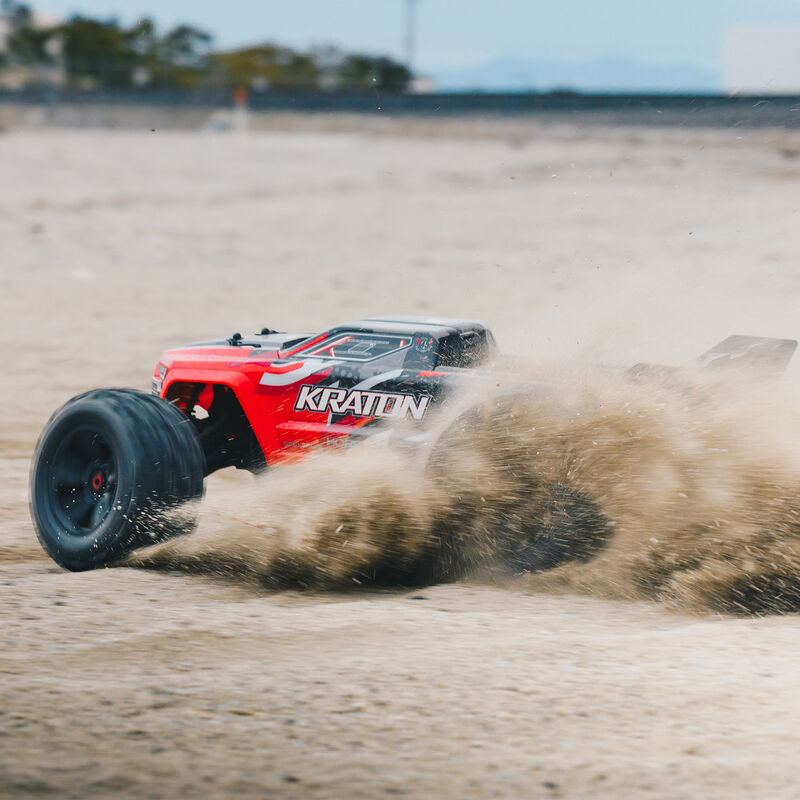

With adjustable oil-filled shocks soaking up the bumps, the KRATON™ 6S BLX 4WD Speed Monster Truck blasts over dirt, asphalt, grass - all terrain and all conditions. The shocks are mounted on black-anodized aluminum towers. New, multi-split spoke wheels come outfitted with super-aggressive, multi-surface DBoots® COPPERHEAD 2 tires. A high downforce wing helps keep the vehicle grounded. Everything contributes to confident control and responsive handling at thrilling high speeds.

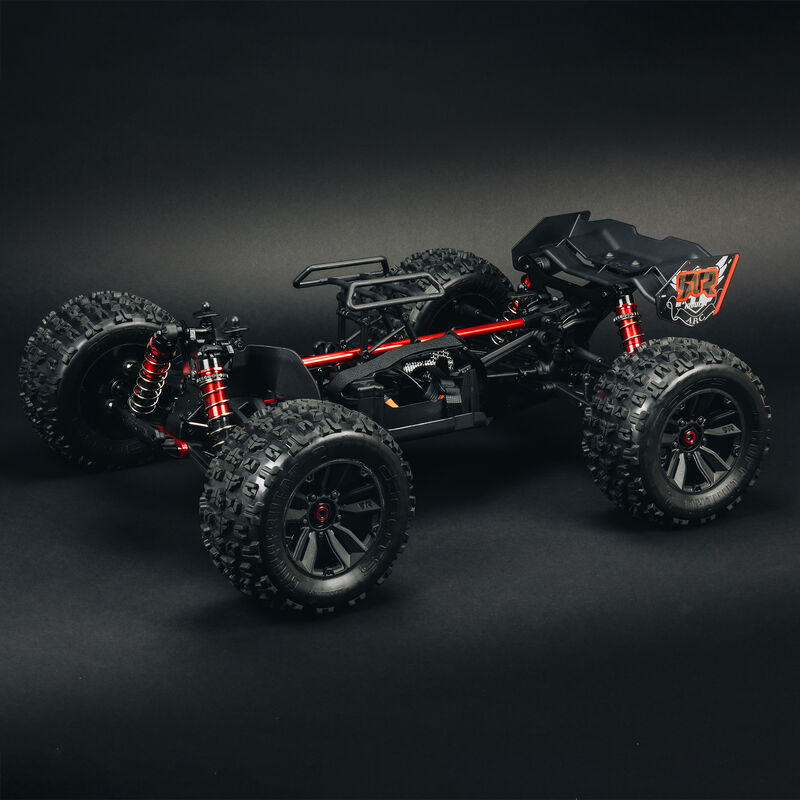

For the durability needed to support intense brushless performance, ARRMA® uses a strong anodized aluminum chassis as the foundation. A center body support and new aluminum center brace plus composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals plus durable steel driveshafts provide a reliable, heavy-duty drivetrain that holds up to extreme, high-speed bashing. A new "never loose" aluminum steering servo saver and "never pop" ball ends supply more precision, reliability and confidence.

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. A sliding mount allows quick, hassle-free motor access. The center diff is easy to reach and can be removed by taking out just seven bolts. Topping it all off is a monster truck body with streamlined good looks, featuring a red/black or blue/black trim and ultra-detailed decals.

The ready-to-run KRATON™ 6S BLX 4WD Speed Monster Truck includes the new Spektrum™ 2.4GHz STX2® transmitter and comes with its SRX200 receiver and ADS-15M metal-geared servo already factory-installed. The only required items are a 4S or 6S LiPo battery, compatible charger, safe charging bag, and 4 x AA transmitter batteries. ARRMA® recommends the Dynamite® Powerstage™ Stage 6 bundle (DYN1540), which includes a Passport™ Ultra P2 100W AC/DC Multi-Charger and two Reaction HD 5000mAh 3S hardcase LiPo batteries with EC5™ connectors.

KRATON Video Introduction

Introducing The ARRMA KRATON 6S BLX 2019



ARRMA KRATON 6S BLX - Under The Hood

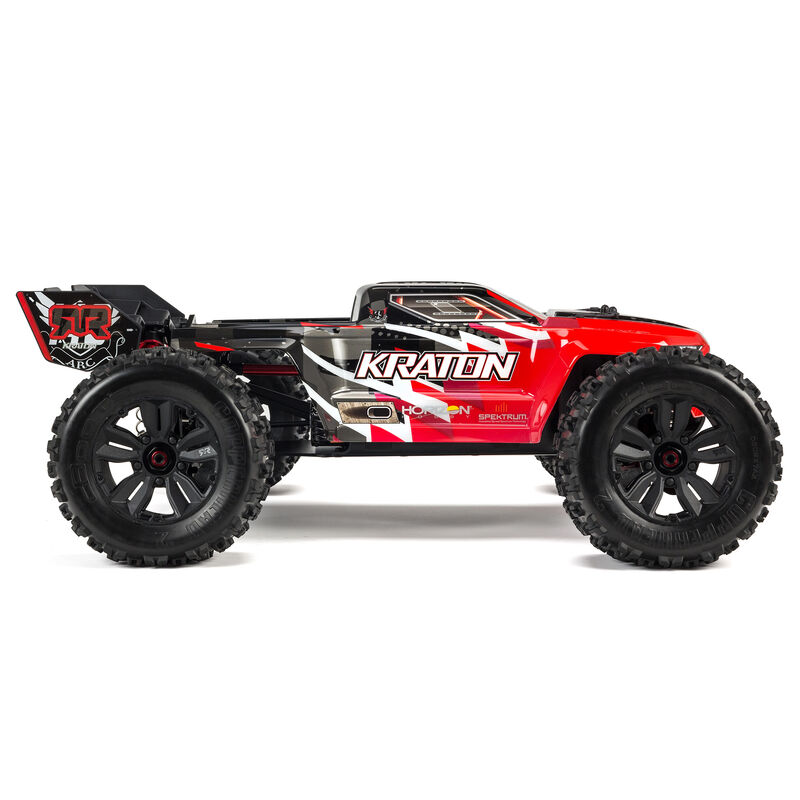

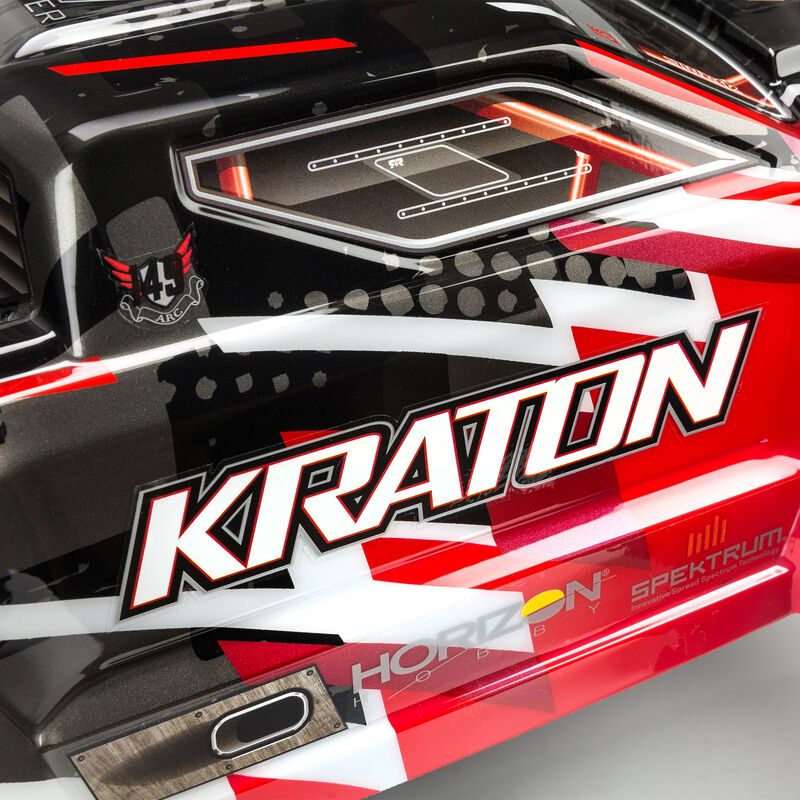

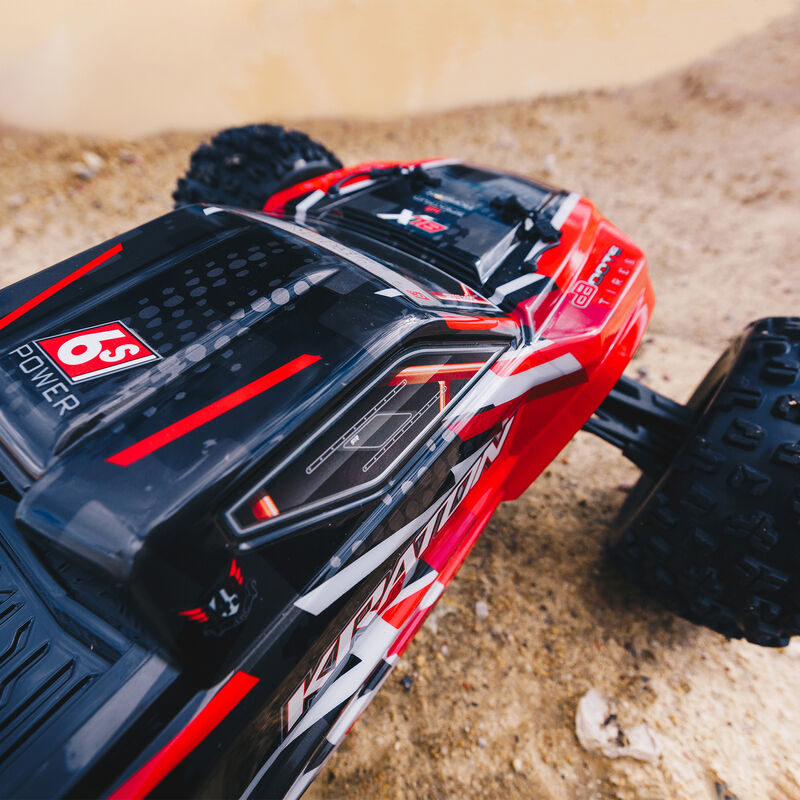

AGGRESSIVELY STYLED



New body, styling, and print scheme in red/black or blue/black with ultra-detailed decals and a high downforce wing with strengthened wing mounts

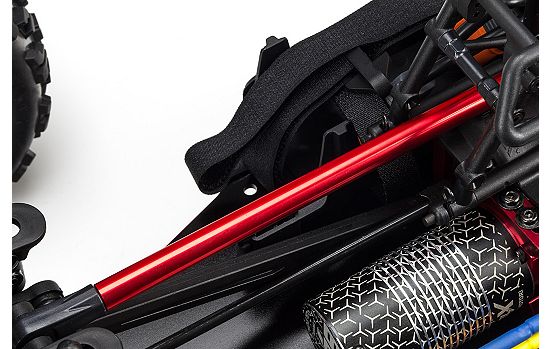

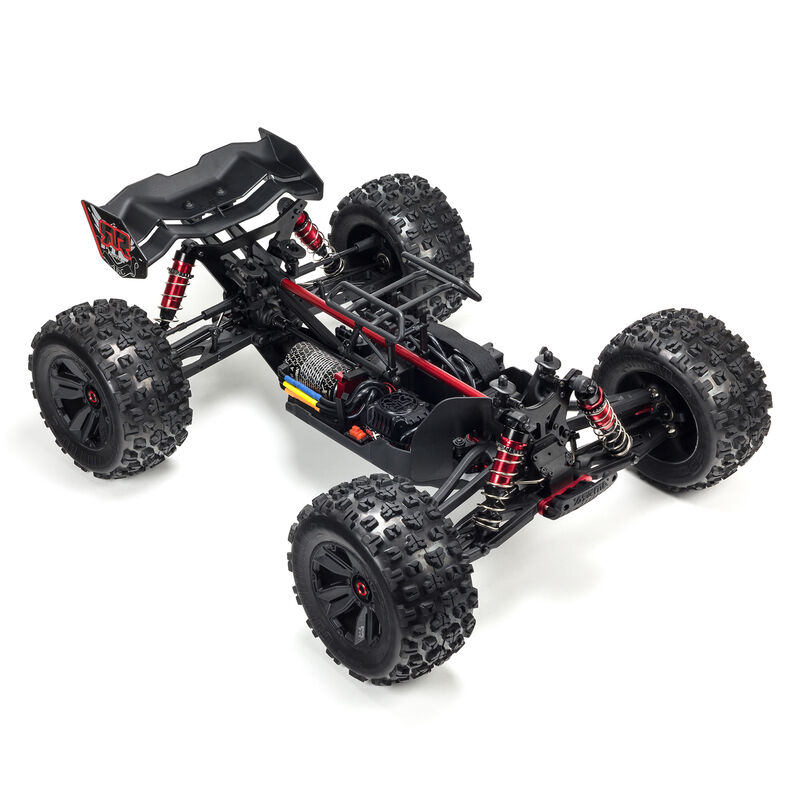

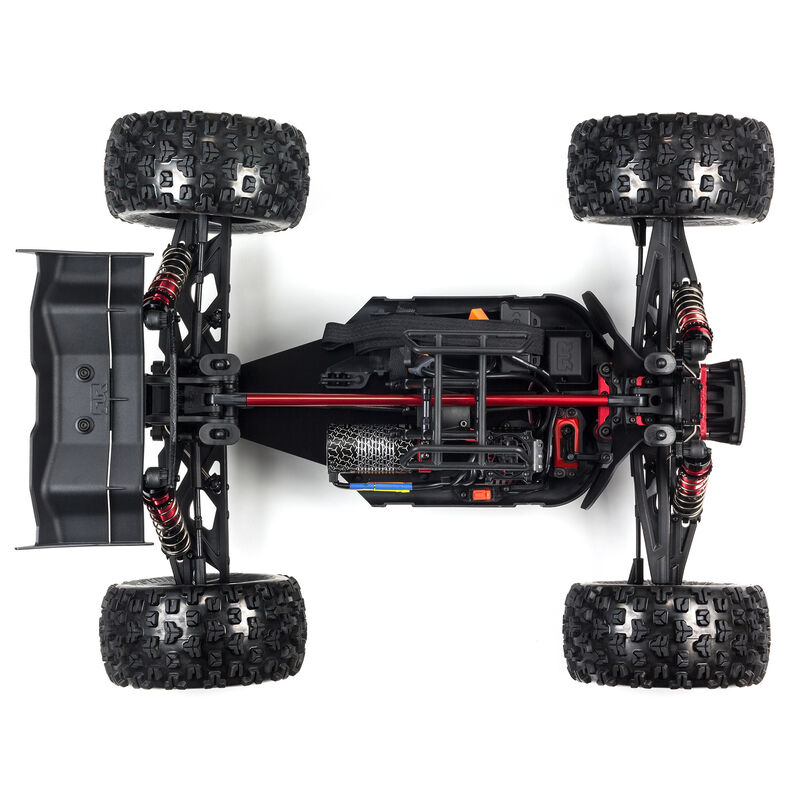

TOWER TO TOWER BRACE



The aluminum center brace maximizes chassis durability

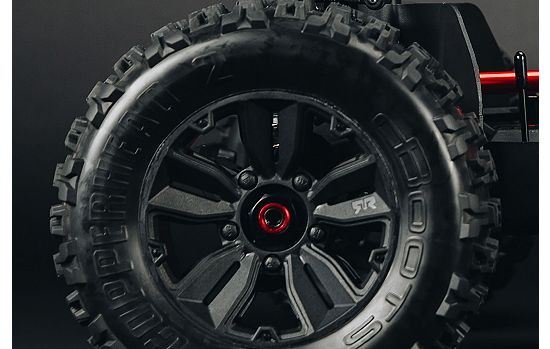

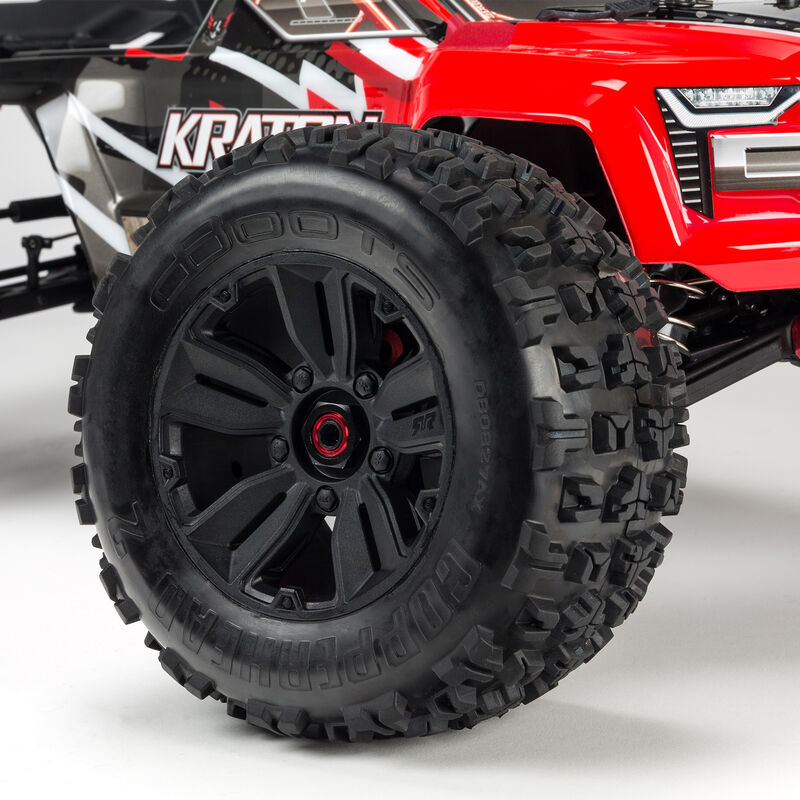

TACKLE TERRAIN



New DBoots® Copperhead 2 tires with more durable multi-split spoke wheels

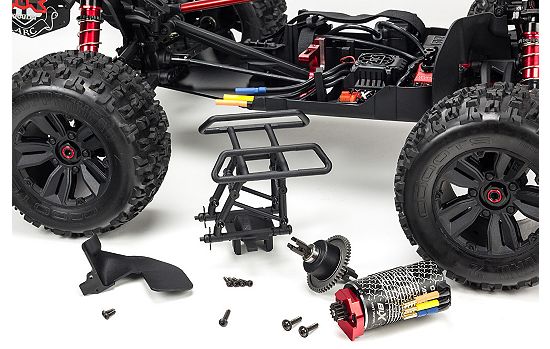

SLIP AND SLIDE



Sliding motor mount for easy meshing and removal, and easy-access 7-bolt center diff

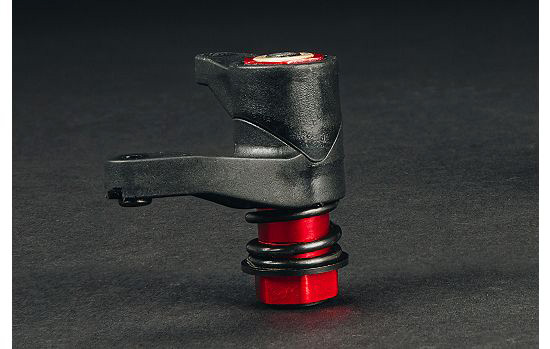

TIGHT & TRUE



New servo saver design that will never loosen, for maximum servo protection.

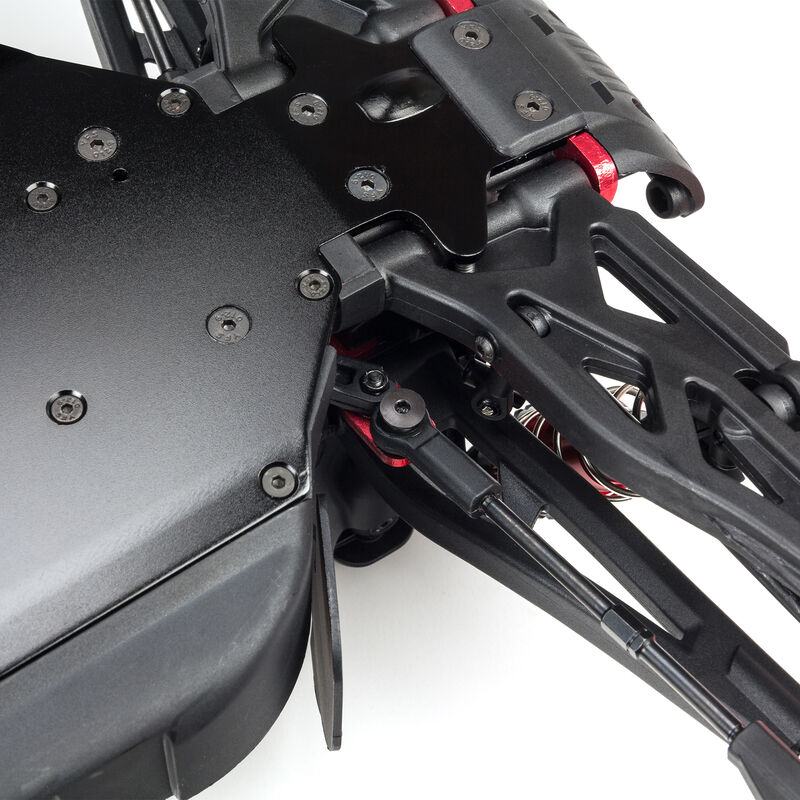

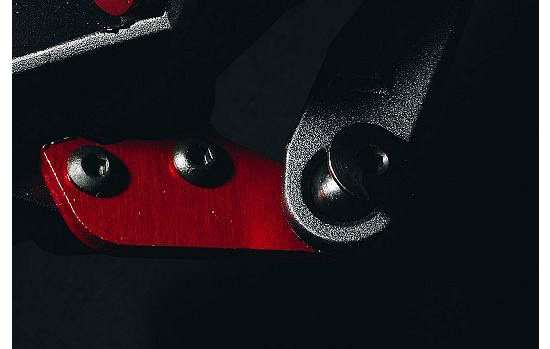

CAPTIVATING



Captured steering ball ends that will never pop off

SIGNED, SEALED, & DELIVERED



New, updated hubs and hub nut o-rings that will never come loose

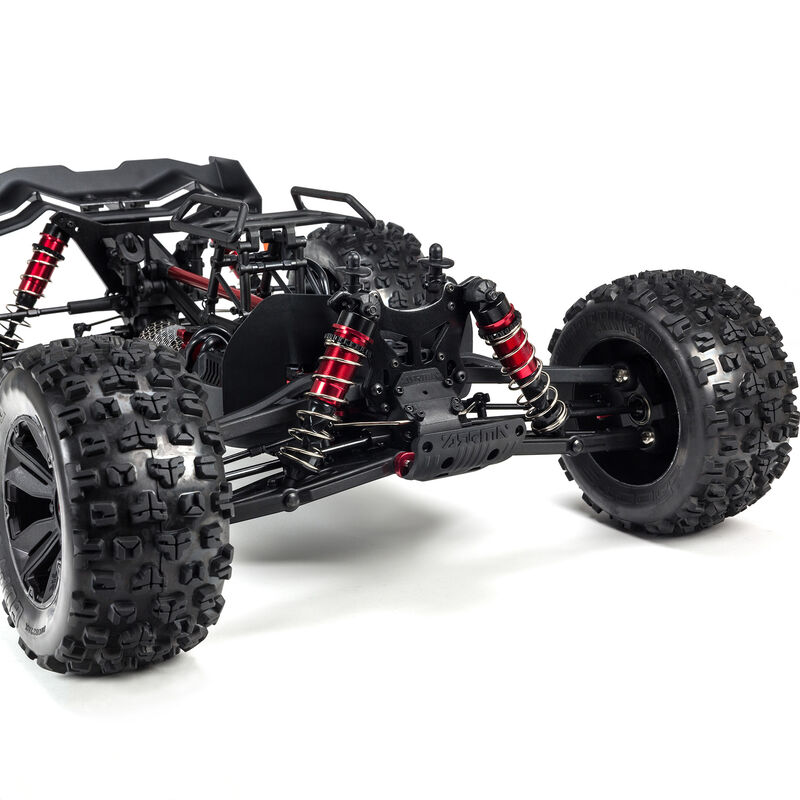

ANODIZED ALUMINUM SHOCKS



Anodized aluminum shock absorbers feature adjustable collars and shock cap protectors

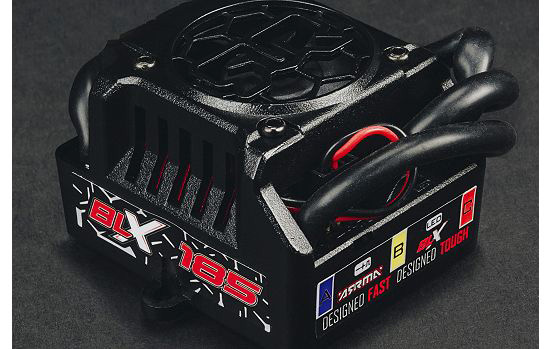

BLX185 ESC



• Waterproof and dustproof design *
• 150A, 6S LiPo ready (3S, 4S and 6S LiPo compatible)
• Fitted with reliable IC5™ connectors (EC5™ compatible)
• Integrated fan for reduced heat during extreme running
• High quality 10awg wires
• Low voltage cut off and thermal overload protection
• User programmable punch and brake settings
• Capable of 60+ mph (97+ km/h) speeds **
* For details on waterproof standards, please refer to the product instruction manuals.
** Speed achievable in optimum conditions on 6S LiPo with optional pinion gear.

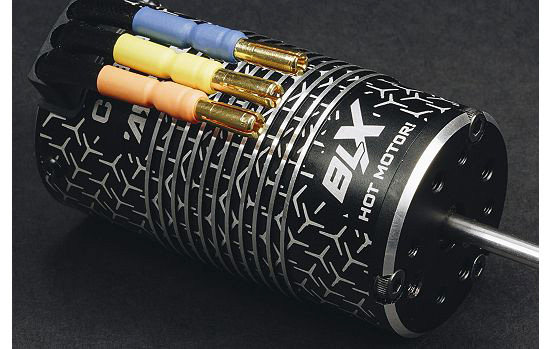

BLX4074 2050Kv BRUSHLESS MOTOR



• Beautifully etched aluminum can
• 4-pole construction for smooth and consistent power
• Gold bullet connectors for reliable and efficient connection
• Finned motor can for increased heat dissipation
• Super strong 5mm shaft
• Capable of 60+ mph (97+ km/h) speeds *
* Speed achievable in optimum conditions on 6S LiPo with optional pinion gear.

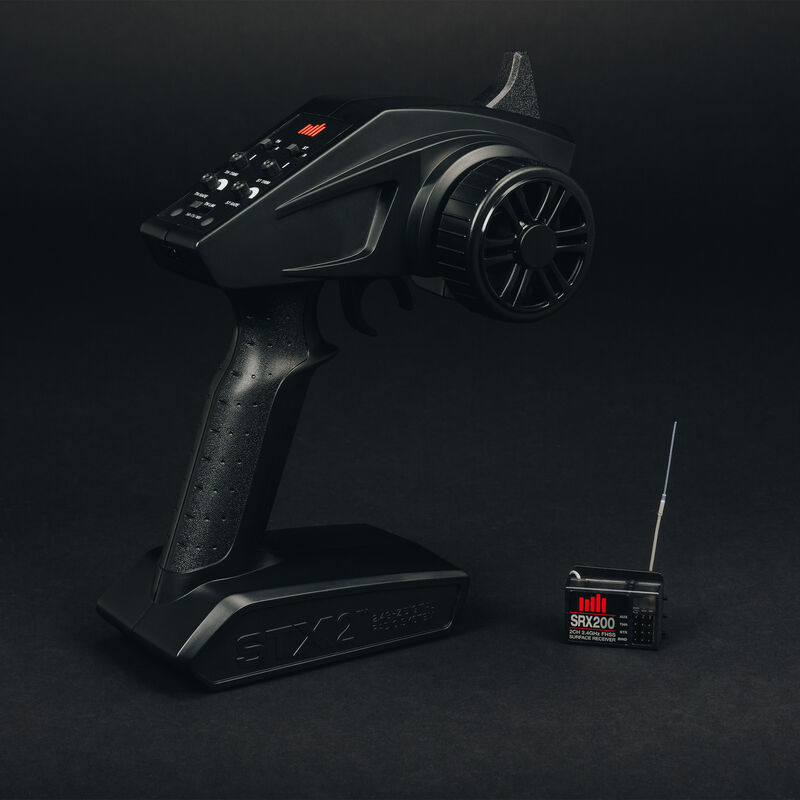

SPEKTRUM STX2 RADIO SYSTEM



• Complete 2.4GHz radio system including a 2Ch waterproof receiver *
• Built-in 3-position throttle limiter
• Steering & throttle rate & trim adjustments with throttle and steering reversing
• FHSS 2.4GHz protocol** offers extended range and interference free performance

* For details on waterproof standards, please refer to the product instruction manuals.
** Not compatible with DSM, DSM2 or DSMR 2.4GHz protocol



ADS-15M SERVO



• Strong metal gears used throughout
• Waterproof and dustproof case *
• 25 tooth output spline
• Torque: 14kg-cm @6V
• Speed: 0.16sec/60degree @6V
• Dimensions: 40x38x20mm (Industry standard size)
* For details on waterproof standards, please refer to the product instruction manuals.



Specs
Approximate Assembly Time	No assembly required
Ball Bearings	Full ball bearing drivetrain
Body	Trimmed and painted molded polycarbonate, new body mounts for better adjustability and durability
Charger	Sold Separately
Chassis	0.12" (3mm) thick 6061-T6 aluminum
Completion Level	Ready-To-Run
Differential	Three, metal gear, front & rear filled with 10,000cst silicone diff oil, center filled with 100,000cst silicone diff oil
Drivetrain	4WD
Final Drive Ratio	17.92:1
Front Shock Spring Rate	1.09N/mm
Power Type	Electric
Gear Pitch	1.0 Module
Ground Clearance	1.85" (47mm)
Internal Gear Ratio	4.3:1
Max Battery Dimensions	6.22 x 2.76 x 1.89" (158 x 70 x 49mm)
Outer Diameter	6.65 in (169mm)
Pinion	12T
Product Height	7.68" (195mm)
Product Length	23.39" (594mm)
Product Weight	10.67lbs (4.85kg)
Product Width	18.15" (461mm)
Radio	Included
Rear Shock Spring Rate	0.87N/mm
Receiver	Included
Scale	1/8
Servos	Waterproof high torque
Shock Type	Oil-filled, coil-over springs, filled with 1000cst silicone shock oil
Speed Control	Included
Spur Gear	50T
Suspension	Independent
Tire Tread	Copperhead2
Water-Resistant	Yes
Wheel Type	Molded plastic, black in color
Wheel Width	Rear, 1.6" (41mm)
