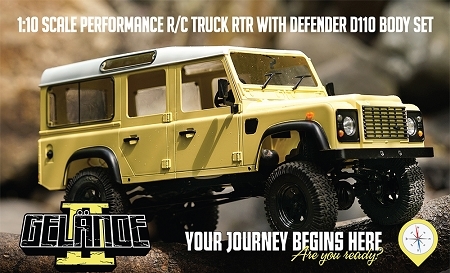

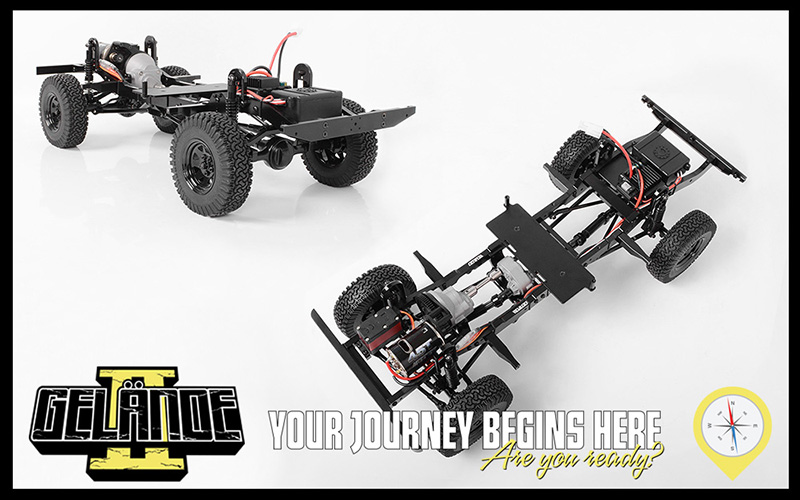

Experience the versatility and advanced design of the Gelande 2 for yourself. Packed full of capability, the Gelande 2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 can easily maneuver extreme descents and climb with ease.
The G2 is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the Yota II axles.
The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.
The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let's you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast!
The G2 now includes everything you need down to the battery and charger to start hitting the trails right out of the box!
Are you ready for your off-road experience?
Cast Metal Axles with Locked differentials
Custom Designed for True to Scale Looks
Twister High Torque Metal Gear Digital Servo
Chassis Mounted Steering servo
540 Crawler Brushed Motor 45T
3 Link Front and 4 Link Rear Suspension
Super Grip Dirt Grabber Tires
R3 Single Speed Transmission
Realistic Aluminum Ladder Frame Chassis
Center Mounted Realistic 4x4 Transfer Case
Outcry II Waterproof ESC
Plastic Fuel Cell Receiver Box
Dual Spring Oil Filled Shock Absorbers
1.9" Stamped Steel Beadlocks W/Lug Nuts
6-Cell 3000MAH NiMH Battery Pack
NiMH Peak Battery Charger

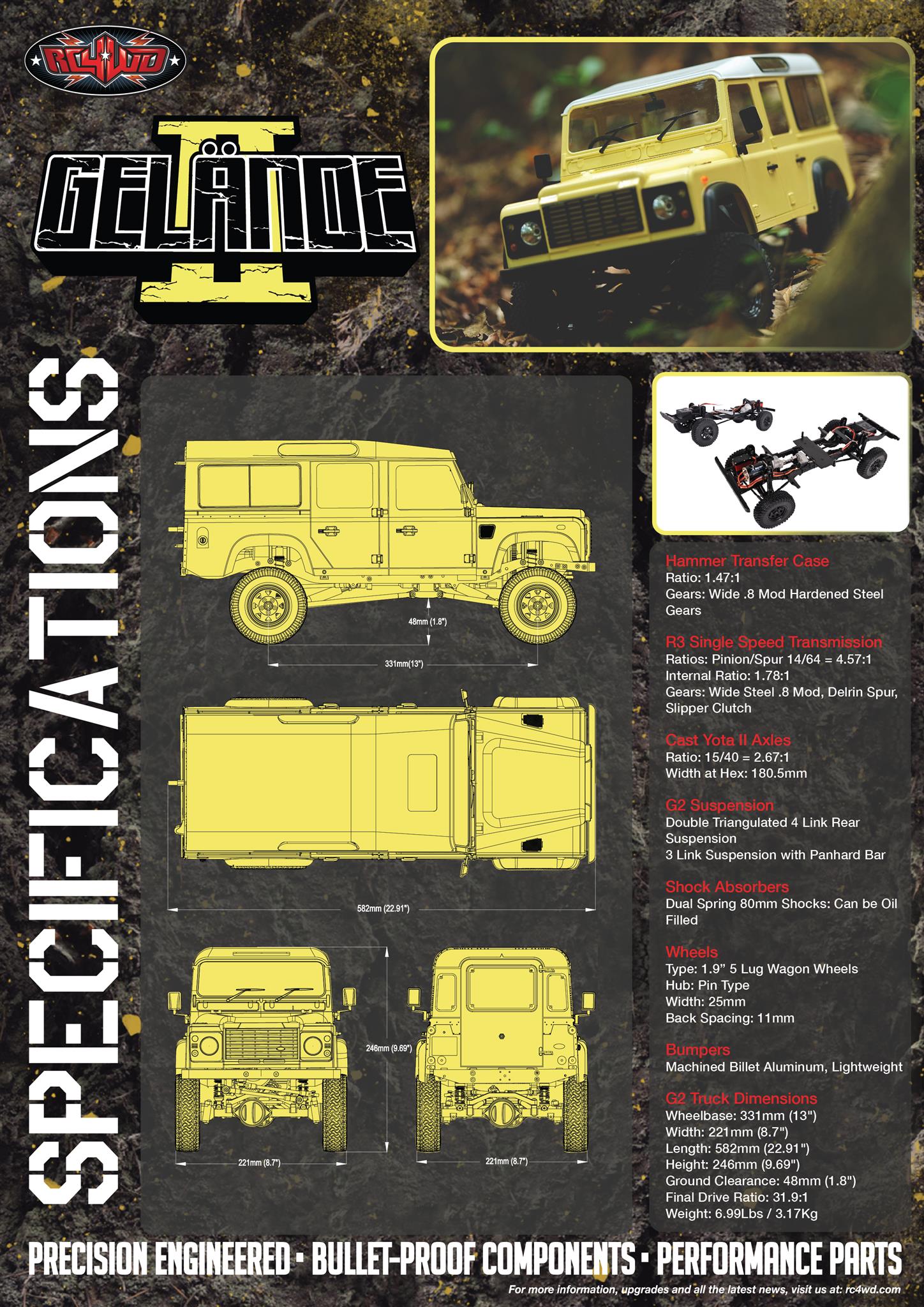

Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1 Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
Cast Yota II Axles
Ratio: 15/40 = 2.67:1
Width at Hex: 180.5mm
G2 Suspension
Double Triangulated 4 Link Rear Suspension
3 Link Suspension with Panhard Bar
Shock Absorbers
Dual Spring 80mm Shocks: Can be Oil Filled
Wheels
Type: 1.9'' 5 Lug Wagon Wheels
Hub: Pin Type
Width: 25mm
Back Spacing: 11mm
Bumpers
Machined Billet Aluminum, Lightweight
G2 Truck Dimensions
Wheelbase: 331mm (13")
Width: 221mm (8.7")
Height: 246mm (9.89")
Ground Clearance: 48mm (1.8")
Final Drive Ratio: 31.9:1
Weight: 6.99Lbs / 3.17Kg

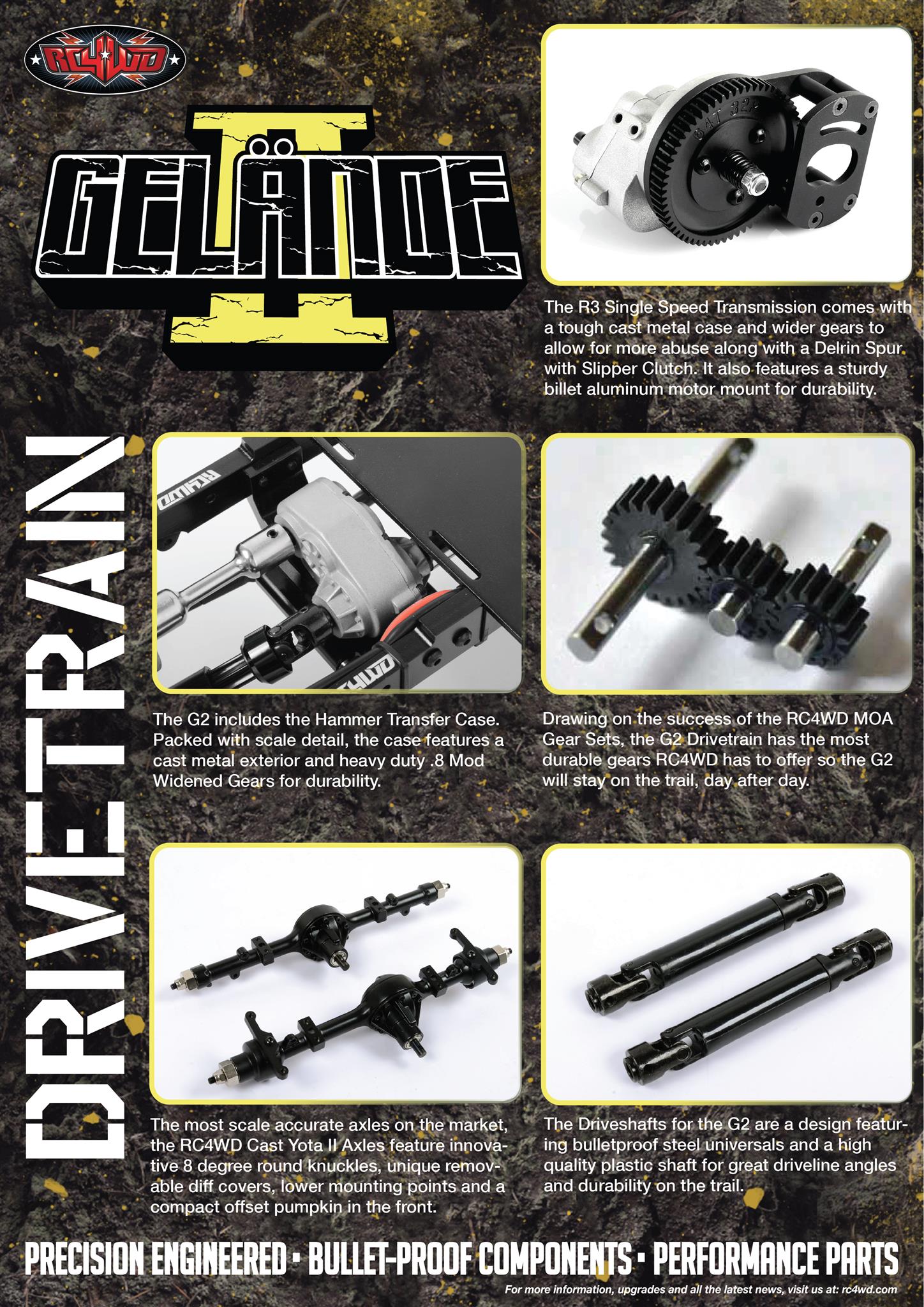

DRIVETRAIN

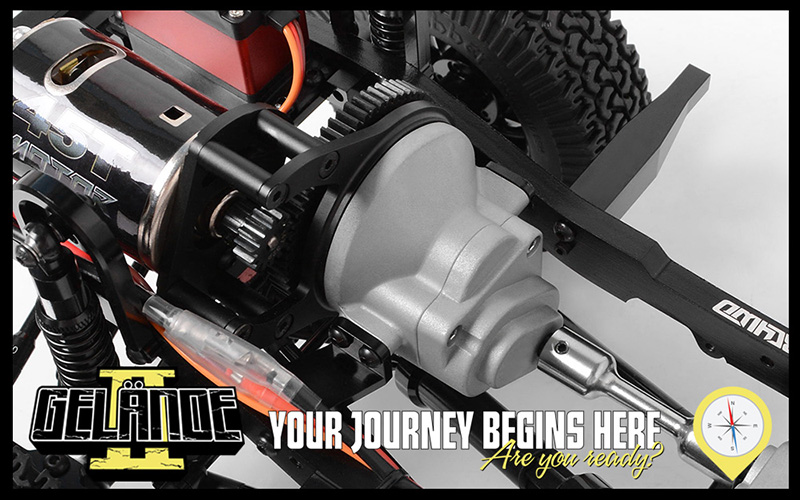

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.
The G2 includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and heavy duty .8 Mod Widened Gears for durability.
Drawing on the success of the RC4WD MOA Gear Sets, the G2 Drivetrain has the most durable gears RC4WD has to offer so the G2 will stay on the trail, day after day.

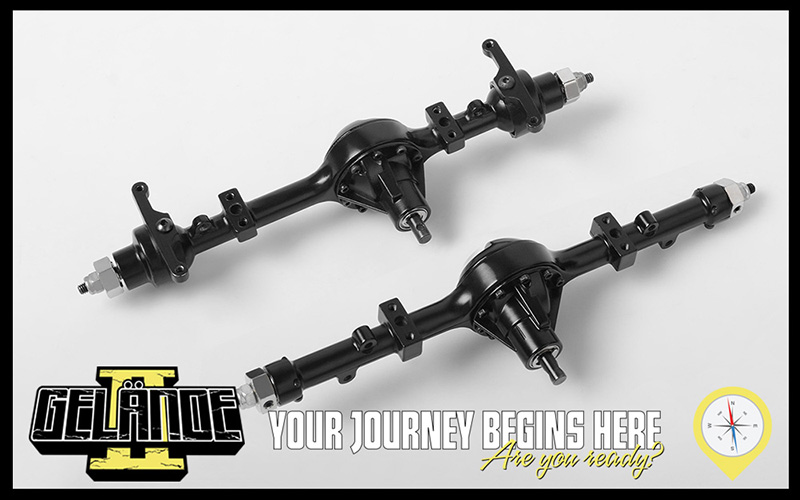

The most scale accurate axles on the market, the RC4WD Cast Yota II Axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.
The Driveshafts for the G2 are a design featuring bulletproof steel universals and a high quality plastic shaft for great driveline angles and durability on the trail.

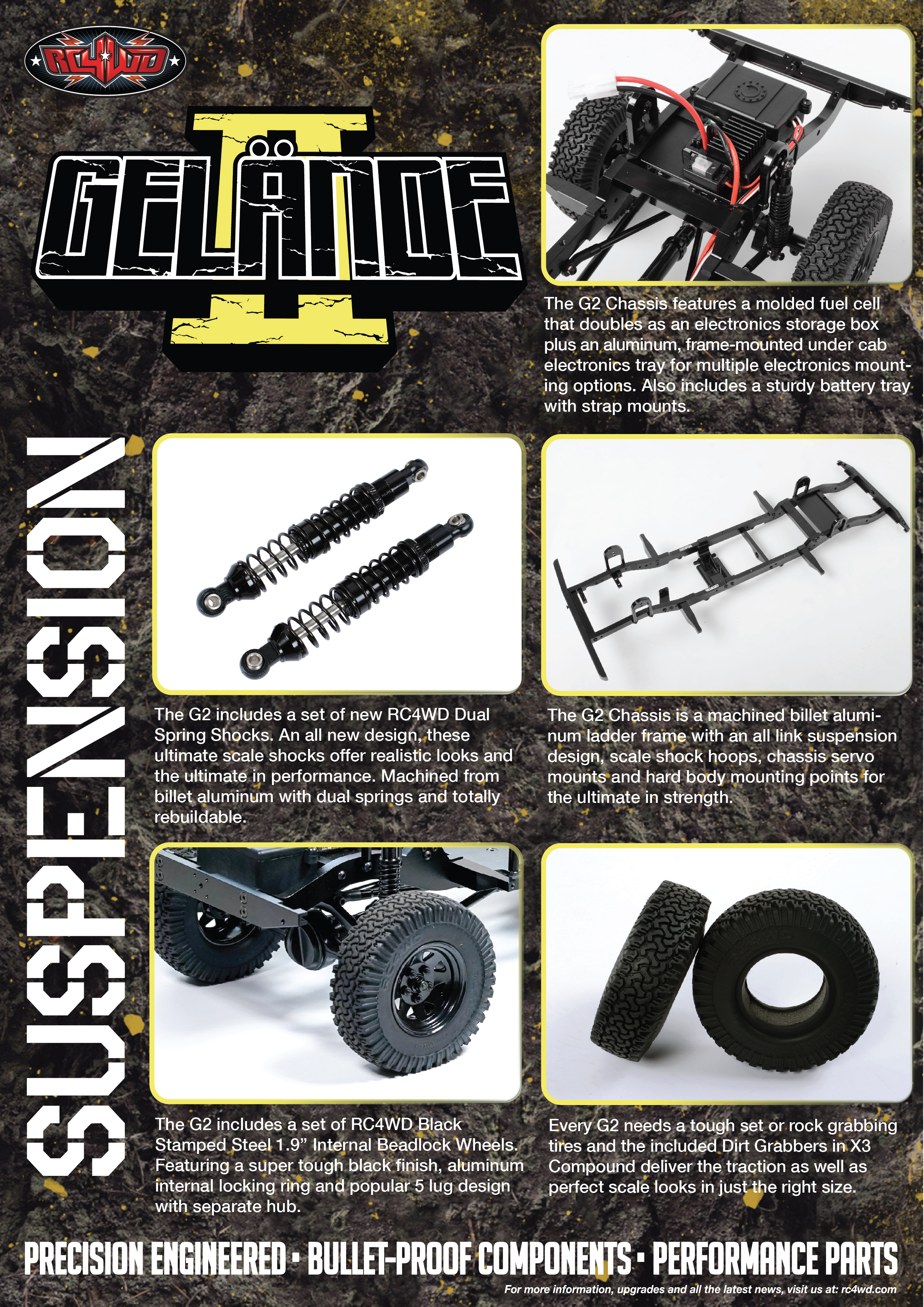

SUSPENSION

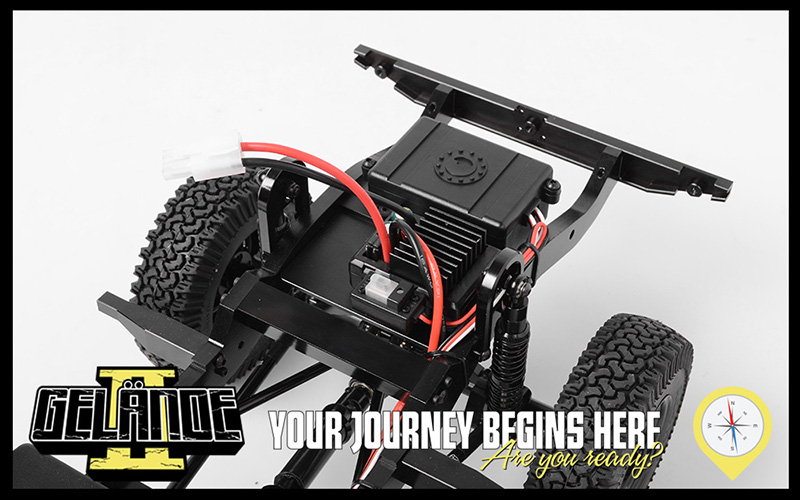

The G2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.
The G2 includes a set of new RC4WD Dual Spring Shocks. An all new design, these ultimate scale shocks offer realistic looks and the ultimate in performance. Machined from billet aluminum with dual springs and totally rebuildable.

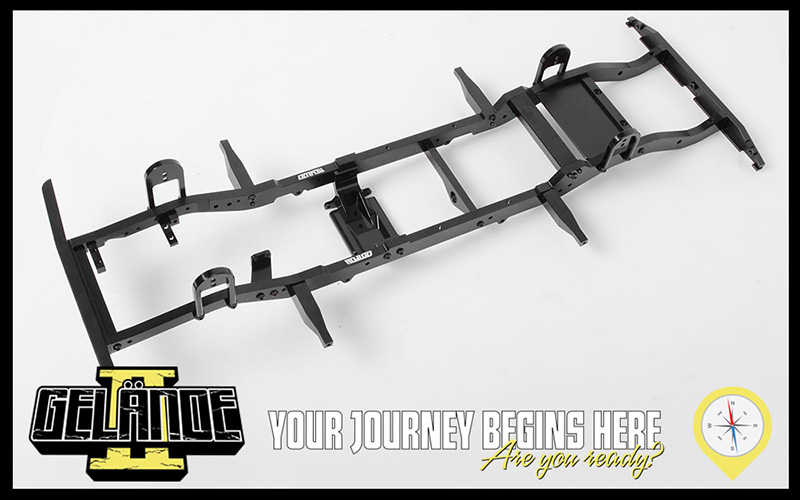

The G2 Chassis is a machined billet aluminum ladder frame with an all link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for the ultimate in strength..

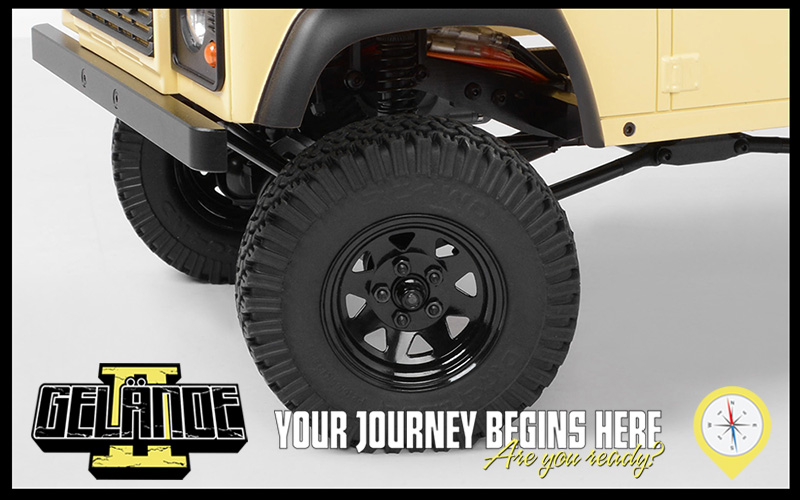

The G2 includes a set of RC4WD Black Stamped Steel 1.9 Internal Beadlock Wheels. Featuring a super tough black finish, aluminum internal locking ring and popular 5 lug design with separate hub.
Every G2 needs a tough set or rock grabbing tires and the included Dirt Grabbers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

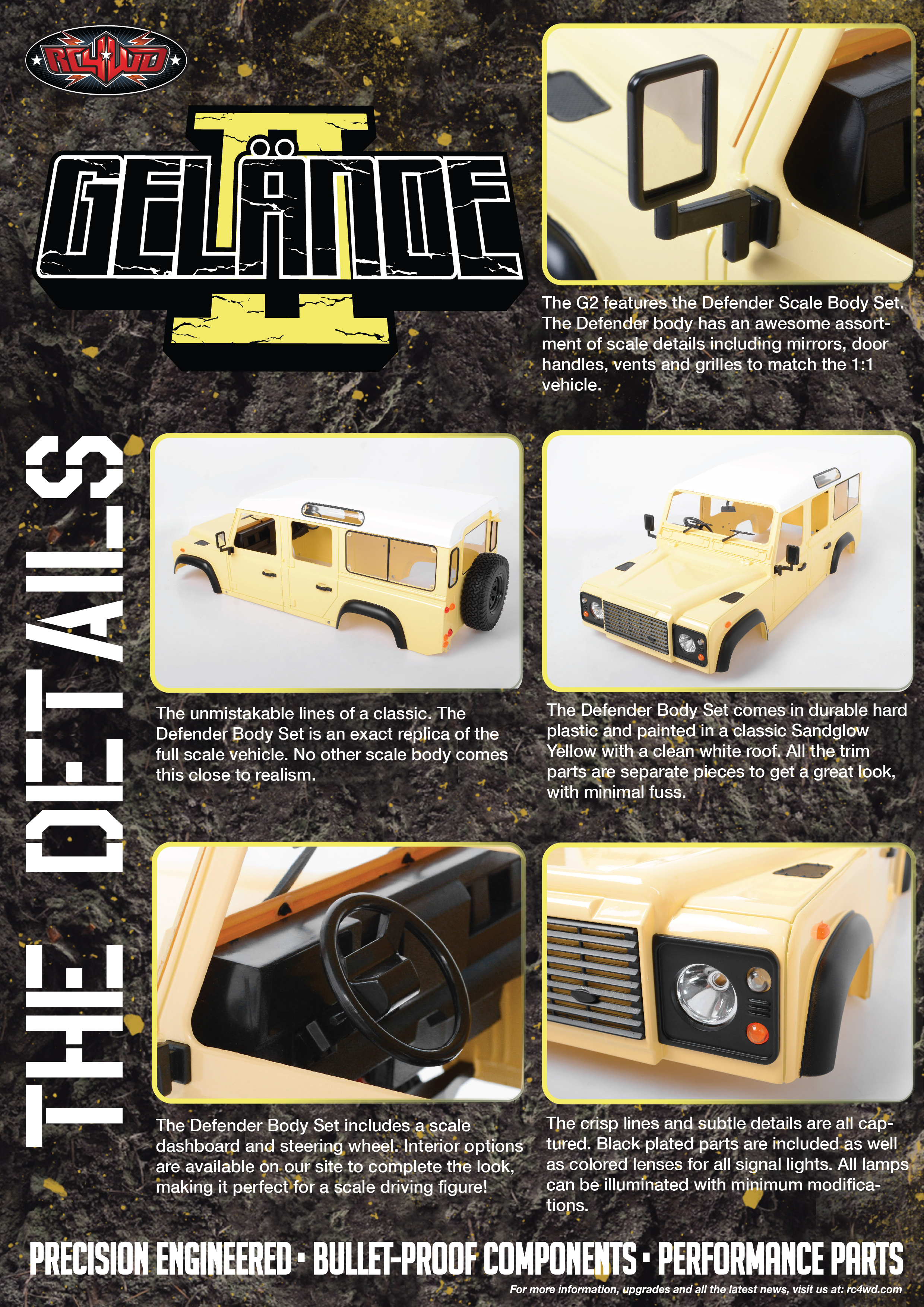

DETAILS

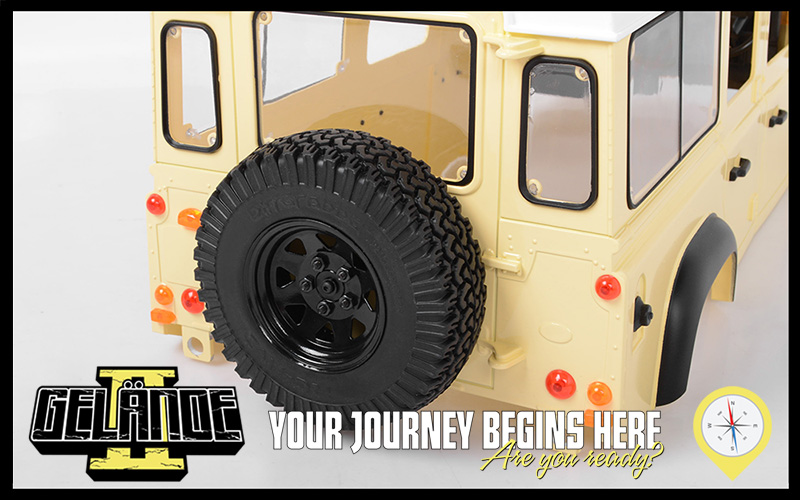

The G2 features the Defender Scale Body Set. The Defender body has an awesome assortment of scale details including mirrors, door handles, vents and grilles to match the 1:1 vehicle.
The unmistakable lines of a classic. The Defender Body Set is an exact replica of the full scale vehicle. No other scale body comes this close to realism.
The Defender Body Set comes in durable hard plastic and painted in a classic Sandglow Yellow with a clean white roof. All the trim parts are separate pieces to get a great look, with minimal fuss.
The Defender Body Set includes a scale dashboard and steering wheel. Interior options are available on our site to complete the look, making it perfect for a scale driving figure!
The crisp lines and subtle details are all captured. Black plated parts are included as well as colored lenses for all signal lights. All lamps can be illuminated with minimum modifications.

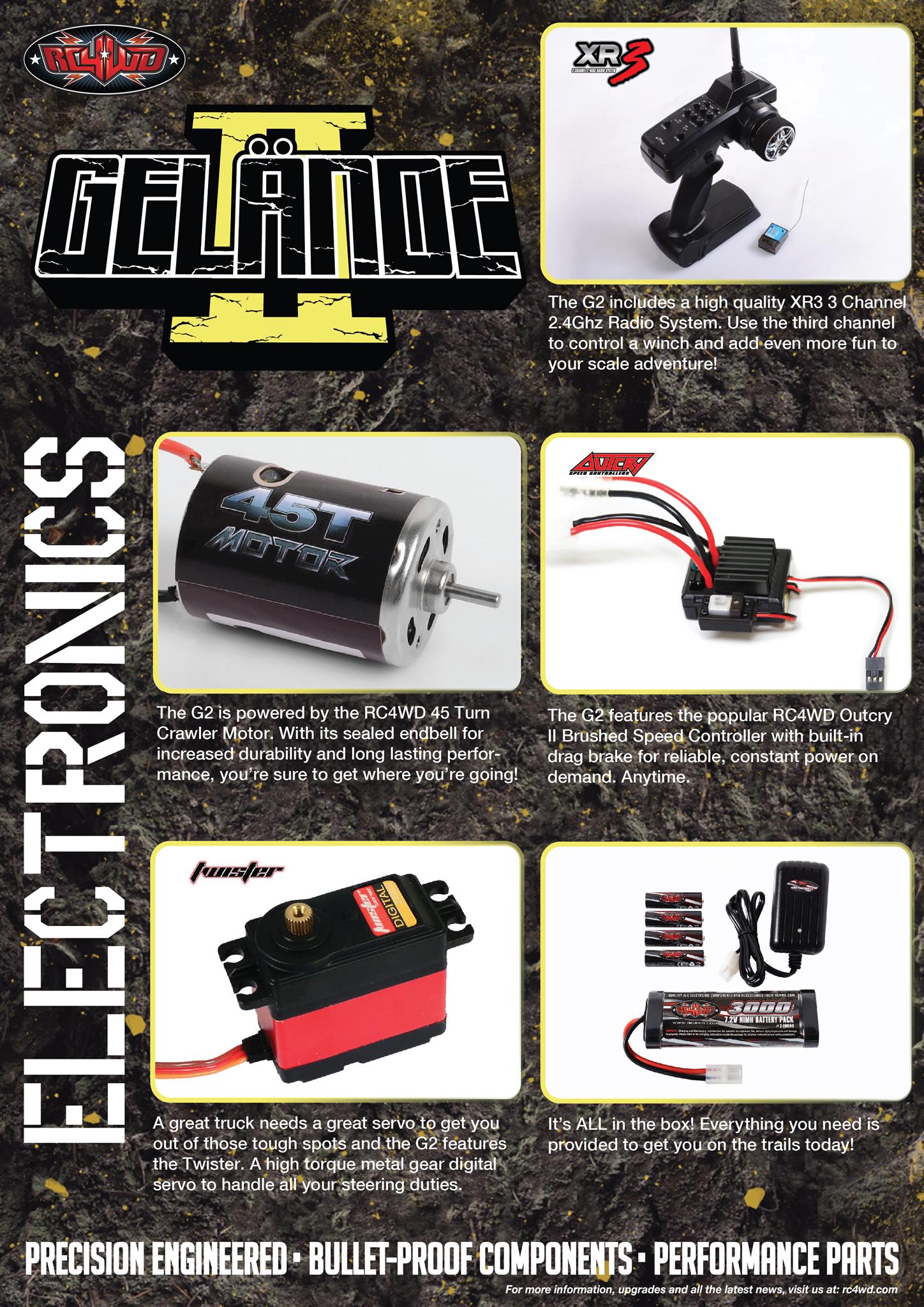

ELECTRONICS
The G2 includes a high quality XR3 3 Channel 2.4Ghz Radio System. Use the third channel to control the winch and add even more fun to your scale adventure!
The G2 is powered by the RC4WD 45 Turn Crawler Motor. With its sealed endbell for increased durability and long lasting performance, you're sure to get where you're going!
The G2 features the popular RC4WD Outcry II Brushed Speed Controller with built-in drag brake for reliable, constant power on demand. Anytime.
A great truck needs a great servo to get you out of those tough spots and the G2 features the Twister. A high torque metal gear digital servo to handle all your steering duties.

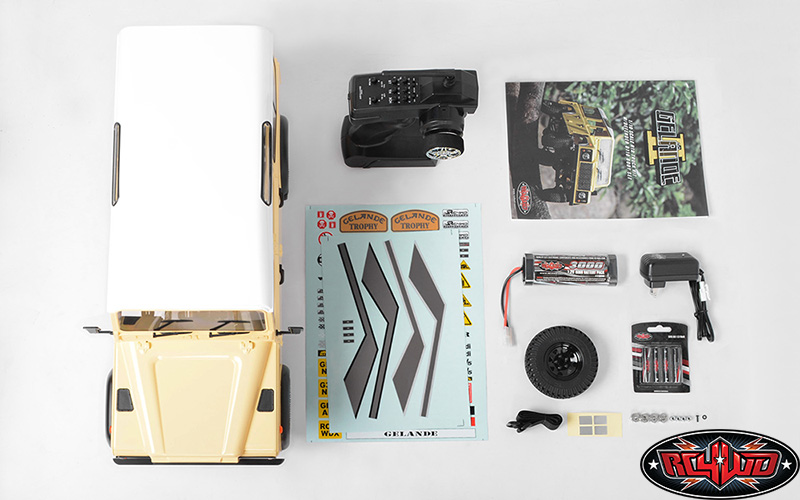

It's ALL in the box. Everything you need is provided to get you on the trails today!
What's Included:
- 1x RC4WD Gelande II "LWB" RTR w/D110 Body Set
Replacements Parts:
- Metal Drive Extended Coupling (Z-S1148)
- 129mm Aluminum Link (Black) (Z-S1146)
- Gelande II Electronics Deck (Z-S0793)
- Gelande 2 Aluminum Body Mounts (Z-S0790)
- Servo Mounts for Gelande 2 Chassis (Z-S0791)
- Battery Plate for Gelande 2 (Z-S0792)
- Front Shock Hoops for Gelande 2 Chassis (Z-S0798)
- Rear Shock Hoops for Gelande 2 Chassis (Z-S0799)
- Gelande 2 Front Replacement Bumper (Z-S0800)
- Gelande 2 Rear Replacement Bumper (Z-S0801)
- R3 Single Speed Transmission Mounts (Z-S0802)
- Metal Drive Coupling for Gelande 2 (Z-S0803)
- Transfer Case and Lower 4 Link Mount for Gelande 2 Chassis (Z-U0027)
- 59mm (2.32") Aluminum Link for Gelande 2 (Z-S0807)
- 73mm (2.87") Aluminum Link for Gelande 2 (Z-S0805)
- 65.3mm (2.57") Aluminum Link for Gelande 2 (Z-S0817)
- 70mm (2.75") Aluminum Link for Gelande 2 (Z-S0819)
- Drag Link for Yota II (104.5mm / 4.11in) (Z-S0810)
- Hammer Transfer Case (1.47/1) (Z-U0024)
- 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black) (Z-W0129)
- Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
- Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
- Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
- R3 Scale Single Speed Transmission (Z-U0028)
- 14t 32p Hardened Steel Pinion Gear (Z-S0430)
- Fuel Cell Radio Box (Z-S0592)
- M3 Mini Plastic Rod End (20x) (Z-S0389)
- M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
- M3 Offset Short Plastic Rod End (20x) (Z-S0401)
- M3 Short Bent Plastic Rod End (20x) (Z-S0402)
- Dirt Grabber 1.9" All Terrain Tires (Z-T0005)
- Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)
- Gelande 2 Front 3 Link & Panhard Mount (Black) (Z-S0794)
- Gelande 2 Front 3 Link & Panhard Mount (Black) (Z-S0795)
- 540 Crawler Brushed Motor 45T (Z-E0004)
- Twister High Torque Metal Gear Digital Servo (Z-E0035)
- XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
- RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0090)
- RC4WD AA Batteries (Z-S1718)
- RC4WD NiMH Peak Battery Charger (Z-E0092)
- Heavy Duty Nylon Strap Lock (5) (Z-S0552)
- Metal Shield Bearing 5x11x4mm (Z-S0683)
Replacement Hardware:
- 1mm Black Spacer with M3 Hole (10) (Z-S0809)
- 2mm Black Spacer with M3 Hole (10) (Z-S0600)
- 5mm Black Spacer with M3 Hole (10) (Z-S0821)
- 3mm Black Spacer with M3 Hole (10) (Z-S0806)
- Steel Button Head Cap Screws M3 x 6mm (10) (Z-S0651)
- Steel Button Head Cap Screws M3 x 8mm (10) (Z-S0652)
- Steel Button Head Cap Screws M3 x 10mm (10) (Z-S0653)
- Steel Button Head Cap Screws M3 x 12mm (10) (Z-S0654)
- Steel Button Head Cap Screws M3 x 14mm (10) (Z-S0655)
- Steel Button Head Cap Screws M3 x 16mm (10) (Z-S0656)
- Steel Flat Head Socket Cap Screw M3 x 8mm (10) (Z-S0649)
- Steel Flat Head Cap Screws M3 x 10mm (10) (Z-S0860)
- Steel Flat Head Socket Cap Screw M3 x 12mm (10) (Z-S0896)
- Steel Flat Head Cap Screws M3 x 14mm (10) (Z-S0746)
- Steel Socket Head Cap Screws M3 x 25mm (10) (Z-S0739)
- M4 Flanged Lock Nut (Black) (Z-S0620)
- Nylock Nuts M3 (Black) (Z-S0629)
- M3 x 15mm Set Screw (10) (Z-S0650)
- M3 X 10mm Set Screw (10) (Z-S0308)
- M3 X 5mm Set Screw (10) (Z-S0125)
- M3 Driveshaft Screw Pin (5) (Z-S0804)
- Steel Socket Head Cap Screws M2 x 10mm (10) (Z-S0849)
- Steel Socket Head Cap Screws M2.5 x 6mm (10) (Z-S0855)
- Button Head Self Tapping Screws M2.5 X 8mm (Black) (Z-S1572)
Optional Parts:
- 1.9" 5 Lug Steel Wheel Hex Hub (Z-S0734)
- 1.9 5 Lug Steel Wheel Hex Hub with Brake Rotor (Z-S0532)
- Scale Aisin/Yota Style Hubs (Z-S0196)
- XVD Axle for Ultimate Scale Yota II G2 Axle (Z-S0823)
- Gelande 2 Steering Guard (Z-S0824)
- Scale Steel Punisher Shaft V3 (90.5mm - 110.5mm / 3.56" - 4.35") 5mm Hole (Z-S0826)
- Ultra Scale Hardened Steel Driveshaft (46mm - 50mm / 1.81" - 1.96") 5mm (VVV-S0006)
- Gelande Side Rock Sliders (Z-S0137)
- RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 (Z-S0596)
- RC4WD Marlin Crawler Side Metal Sliders for Trail Finder 2 (Z-S0753)
- RC4WD King Off-Road Scale Dual Spring Shocks (80mm) (Z-D0035)
- #1 Aluminum Bumper Mount For Trail Finder 2 (Z-S0006)
- Shock Hoops for Trail Finder 2 Chassis (Z-S0597)
- Triton Transfer Case (1:1) (Z-U0029)
- Optional Rear Bumper Mount for Gelande 2 (Z-S0993)
- Yota II Scale Diff Cover (Z-S0907)
- Blade Snow Plow Mounting kit for Gelande 2 (Z-S1504)
- RC4WD Bivouac 1/10 M.O.A.B Camping Trailer w/Tent (Z-H0007)
- BigDog 1/10 Dual Axle Scale Boat Trailer (Z-H0006)
- Roof Rack for Gelande II D110 (VVV-C0242)
- Rear Ladder for Gelande II (D90/D110) (VVV-C0246</
