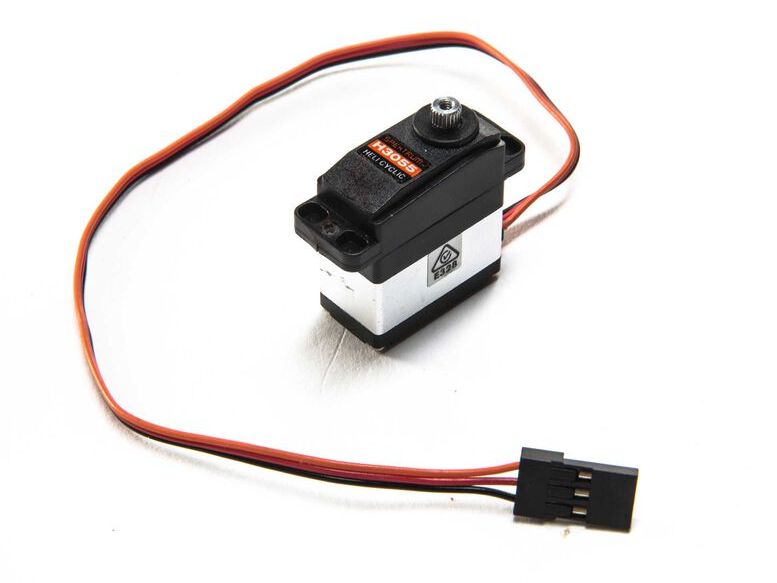

Name: Spektrum SPMSH3055 - H3055 Sub-Micro Digital Mid-Torque Ultra-Speed Metal Gear Heli Cyclic Servo

Price: HK$ 224.00

Buy Item

Temporary out of stock

Overview

Upgrade your 250-450 size heli cyclic servos with the high speed and accurate H3055 Servo. Touting a blazing fast .053 transit speed, impressive 36 oz-in torque and industry leading position accuracy and holding power, these are a great sub-micro size servo to upgrade many Blade Bind and Fly models and a perfect pair for many 250-450 size kit models requiring a sub-micro size servo form factor. Frequency: 333Hz

Product Specifications

Specs
Application	250 - 450 size heli, cyclic
Bearing	Single
Bushing Or Bearing	Bearing
Connector Type	Z-Connector
Connector Wire Length	7.87" (200mm)
Deadband	2
Gear Material	Metal
Maximum Servo Speed	0.050-0.099 sec
Maximum Servo Torque	20-39 oz-in
Product Height	1.17" (29.6mm)
Product Length	0.91" (23mm)
Product Weight	0.46 oz (12.9 g)
Product Width	0.47" (12mm)
Programmable	No
Servo Operating Voltage	4.8 - 6.0V
Servo Size Category	Mini and Micro
Servo Type	Digital
Speed	4.8V 0.067 sec/60 deg, 6V 0.053 sec/60 deg
Torque	4.8V 29 oz-in (2.1kg-cm), 6V 36 oz-in (2.6kg-cm)
Wire Gauge	22 AWG
