Introduction

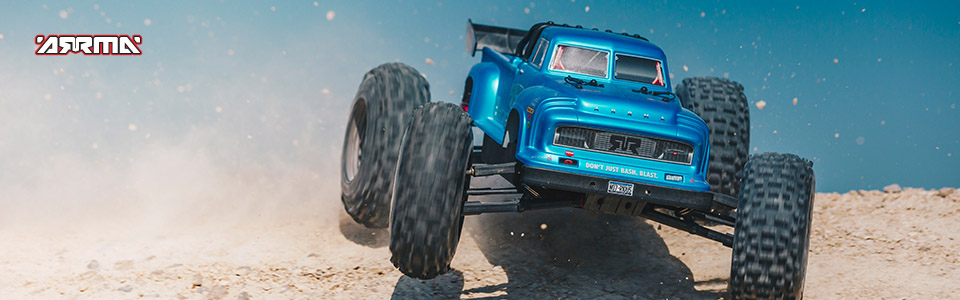

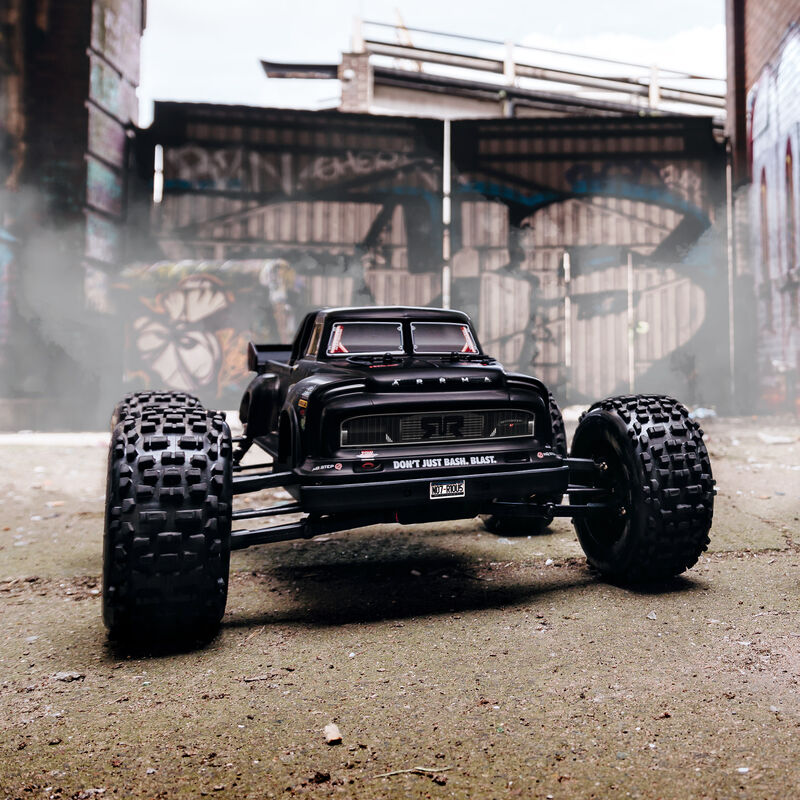

Underneath its custom '50s "Real Steel" body, the NOTORIOUS™ 6S BLX 4WD has an ARRMA®-tough design and brushless power system that's perfect for extreme stunts. Now comes complete with the Spektrum™ STX2® radio system, this 1/8 Stunt Truck comes ready to thrill!

Features

Overview

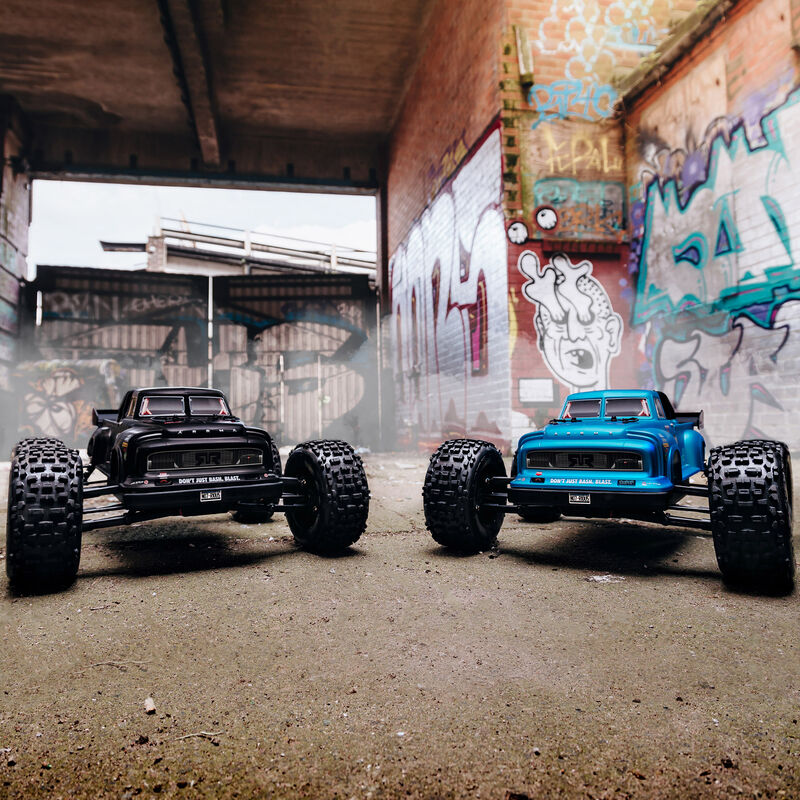

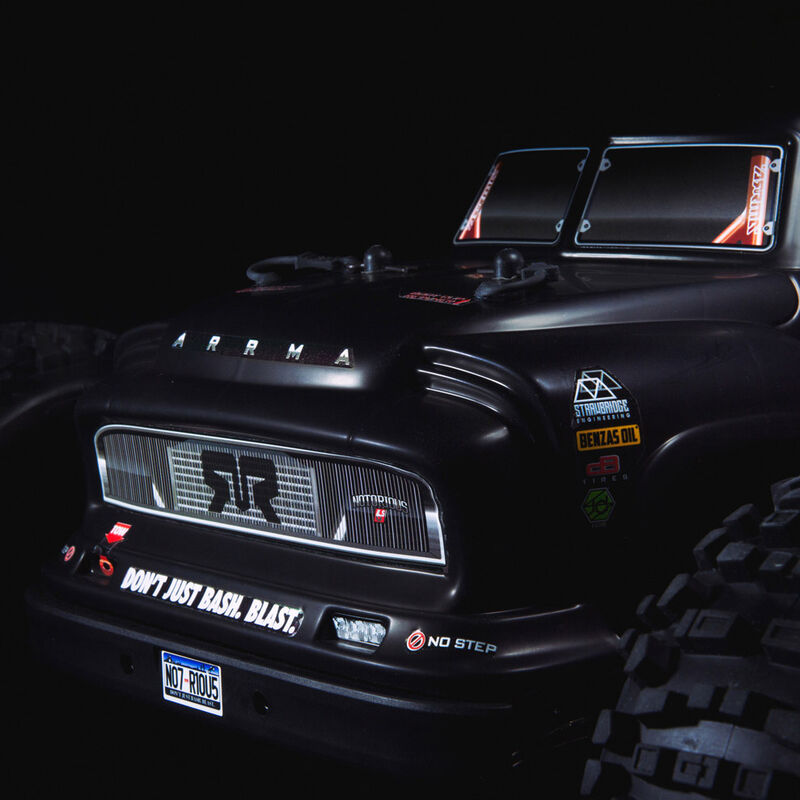

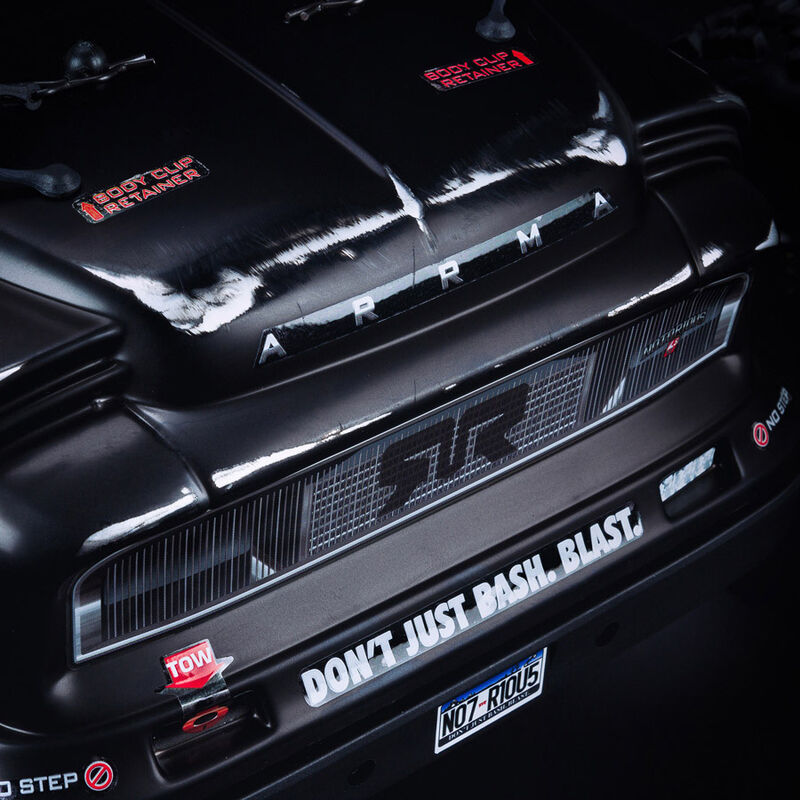

The NOTORIOUS™ 6S BLX is equipped to unleash wheelie-popping, back-flipping, outrageous action with one-of-a-kind style. Its classic body offers more than streamlined good looks and a matte black or matte blue factory finish. The patent-pending ARRMA® Real Steel effect adds fantastic body realism that only improves with abuse. The more scratched and scarred your Stunt Truck becomes, the more authentic and amazing it will look.

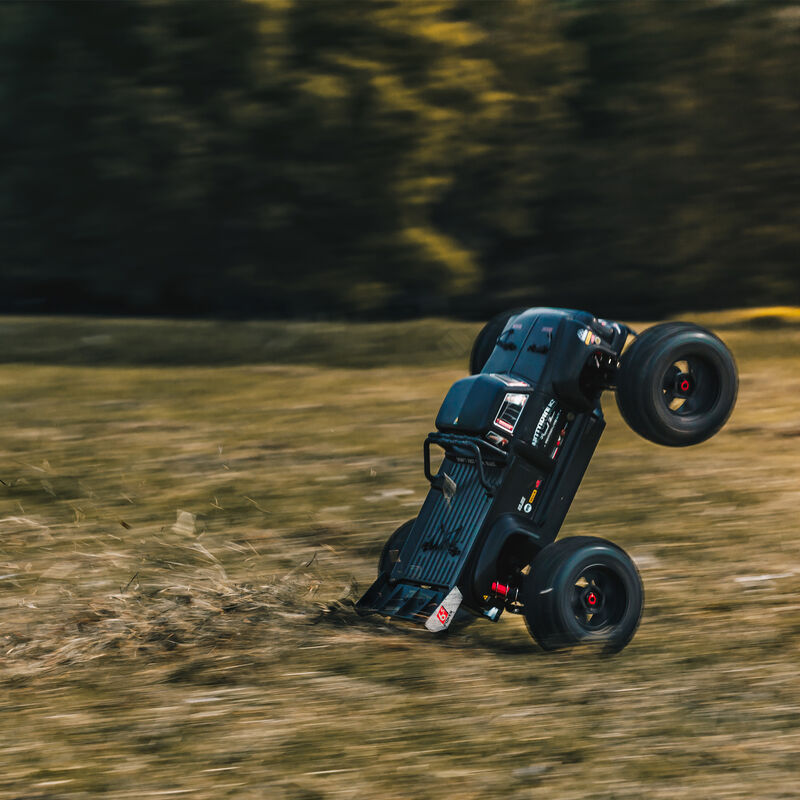

From its heavy-duty front bumper through the short wheelbase chassis to the wheelie bar in back, the NOTORIOUS™ 6S BLX is engineered to make you a stunt superstar. Its stiff roll cage and underbody take all kinds of punishment and come back for more. The NOTORIOUS™ can do it all: long, tall wheelies…tight, fast donuts…standing and aerial backflips…high leaps into the air…and more.

You need plenty of power for that level of stunt action. That's why ARRMA® has outfitted the new NOTORIOUS™ Stunt Truck with a potent, 6S-capable brushless system including a 2050Kv motor paired with the BLX185 ESC (featuring IC5™ connectors compatible with standard EC5™ connectors). Bashing is a "go" even through mud and snow, thanks to waterproof electronics. Just add your favorite 4S or 6S LiPo battery.

With adjustable 4mm oil-filled shocks on aluminum towers soaking up bumps, the NOTORIOUS™ 6S BLX 4WD Stunt Truck blasts over dirt, asphalt, and grass - over all terrain, in all conditions. Its tough stunt truck wheels come outfitted with multi-terrain dBoots® BACK-FLIP tires that provide all the traction you'll need to flip, grip, wheelie, and spin. A high downforce wing helps keep the vehicle grounded. Everything about the NOTORIOUS™ contributes to confident control and responsive handling at thrilling high speeds.

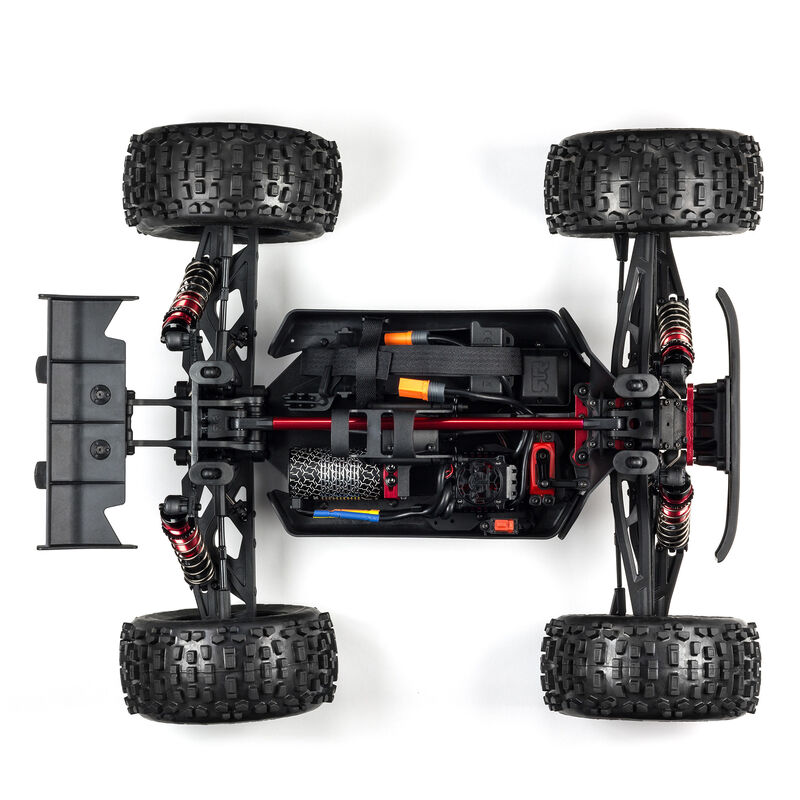

For the durability needed to support extreme stunts, ARRMA® uses a strong anodized aluminum chassis as the foundation. A new center body support and aluminum center brace plus composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals plus durable steel driveshafts provide a reliable, heavy-duty drivetrain that holds up to extreme stunts and high-speed bashing. A new "never loose" aluminum steering servo saver and "never pop" ball ends supply more precision, reliability and confidence.

ARRMA® keeps your maintenance downtime to the minimum with an efficient, driver-friendly design. A new sliding mount allows quick, hassle-free motor access. The center diff is easy to reach and can now be removed by taking out just five bolts.

The ready-to-run NOTORIOUS™ 6S BLX 4WD Stunt Truck includes the new Spektrum™ 2.4GHz STX2® transmitter and comes with its SRX200 receiver and ADS-15M metal-geared servo already factory-installed. The only required items are a 4S or 6S LiPo battery, compatible charger, safe charging bag, and 4 x AA transmitter batteries. ARRMA® recommends the Dynamite® Powerstage™ Stage 6 bundle (DYN1540), which includes a Passport™ Ultra P2 100W AC/DC Multi-Charger and two Reaction HD 5000mAh 3S hardcase LiPo batteries with EC5™ connectors.

NOTORIOUS Video Introduction

Introducing The ARRMA NOTORIOUS 6S BLX

ARRMA NOTORIOUS 6S BLX - Under The Hood

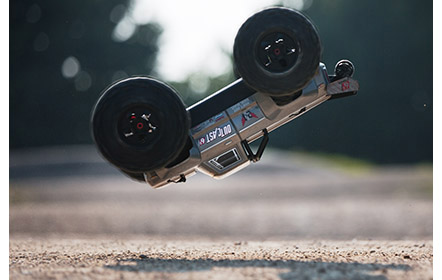

EXTREME STUNTS



Tough stunt truck wheels and multi-terrain DBoots® Back-Flip tires for flipping, spinning and doing wheelies in all conditions

TOWER TO TOWER BRACE



The aluminum center brace maximizes chassis durability

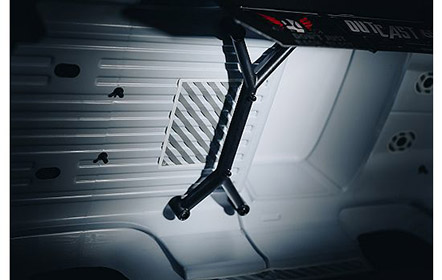

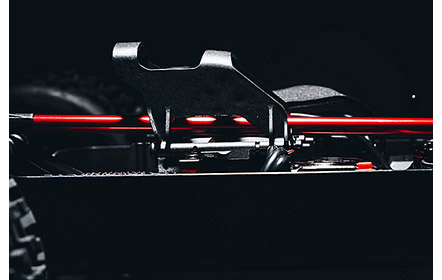

INNER BODY SUPPORT



Ergonomic and stable design for long bashing sessions

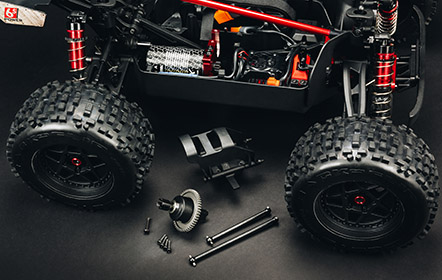

SLIP AND SLIDE



Sliding motor mount for easy meshing and removal, and easy-access 5-bolt center diff

TIGHT & TRUE



New servo saver design that will never loosen, for maximum servo protection.

CAPTIVATING



Captured steering ball ends that will never pop off

SIGNED, SEALED, & DELIVERED



New, updated hubs and hub nut o-rings that will never come loose

ANODIZED ALUMINUM SHOCKS



Anodized aluminum shock absorbers feature adjustable collars and shock cap protectors

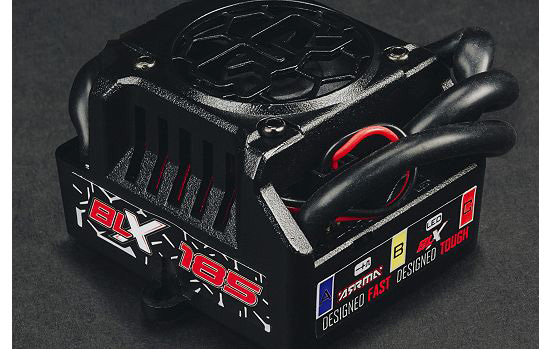

BLX185 ESC



• Waterproof and dustproof design *
• 150A, 6S LiPo ready (3S, 4S and 6S LiPo compatible)
• Fitted with reliable IC5™ connectors (EC5™ compatible)
• Integrated fan for reduced heat during extreme running
• High quality 10awg wires
• Low voltage cut off and thermal overload protection
• User programmable punch and brake settings
• Capable of 60+ mph (97+ km/h) speeds **
* For details on waterproof standards, please refer to the product instruction manuals.
** Speed achievable in optimum conditions on 6S LiPo with optional pinion gear.

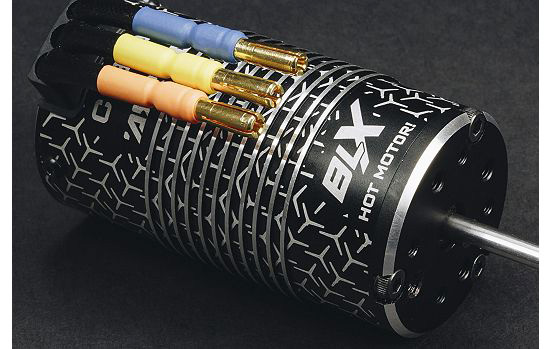

BLX4074 2050Kv BRUSHLESS MOTOR



• Beautifully etched aluminum can
• 4-pole construction for smooth and consistent power
• Gold bullet connectors for reliable and efficient connection
• Finned motor can for increased heat dissipation
• Super strong 5mm shaft
• Capable of 60+ mph (97+ km/h) speeds *
* Speed achievable in optimum conditions on 6S LiPo with optional pinion gear.

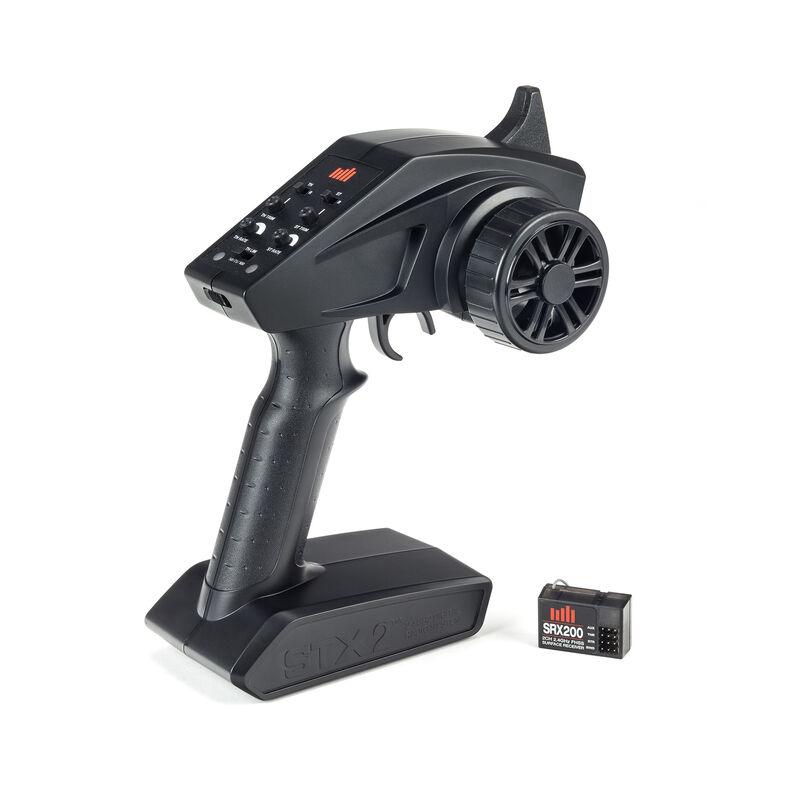

SPEKTRUM STX2 RADIO SYSTEM



• Complete 2.4GHz radio system including a 2Ch waterproof receiver *
• Built-in 3-position throttle limiter
• Steering & throttle rate & trim adjustments with throttle and steering reversing
• FHSS 2.4GHz protocol** offers extended range and interference free performance
* For details on waterproof standards, please refer to the product instruction manuals.
** Not compatible with DSM, DSM2 or DSMR 2.4GHz protocol

ADS-15M SERVO



• Strong metal gears used throughout
• Waterproof and dustproof case *
• 25 tooth output spline
• Torque: 14kg-cm @6V
• Speed: 0.16sec/60degree @6V
• Dimensions: 40x38x20mm (Industry standard size)
* For details on waterproof standards, please refer to the product instruction manuals.

Product Specifications

Specs
Approximate Assembly Time	No assembly required
Ball Bearings	Full ball bearing drivetrain
Body	Trimmed and painted molded polycarbonate with new inner body support for better durability, Length: 17.95" (456mm) Width: 8.82" (224mm) Height: 5.28" (134mm)
Charger	Sold Separately
Chassis	0.12" (3mm) thick 6061-T6 aluminum
Completion Level	Ready-To-Run
Differential	Three, metal gear, front & rear filled with 10,000cst silicone diff oil, center filled with 100,000cst silicone diff oil
Drivetrain	4WD
Final Drive Ratio	17.92:1
Front Shock Spring Rate	1.09N/mm
Power Type	Electric
Gear Pitch	1.0 Module
Ground Clearance	1.85" (47mm)
Internal Gear Ratio	4.3:1
Max Battery Dimensions	6.22 x 2.76 x 1.89" (158 x 70 x 49mm)
Outer Diameter	6.77 in (172mm)
Pinion	12T
Product Height	9.06" (230mm)
Product Length	21.26" (540mm)
Product Weight	11.37lbs (5.17kg)
Product Width	18.15" (461mm)
Radio	Included
Rear Shock Spring Rate	0.87N/mm
Receiver	Included
Scale	1/8
Servos	Waterproof high torque
Shock Type	Oil-filled, coil-over springs, filled with 1000cst silicone shock oil
Speed Control	Included
Spur Gear	50T
Suspension	Independent
Tire Tread	Backflip
Water-Resistant	Yes
Wheelbase	12.91" (328mm)
Wheel Type	MT
Wheel Width	Rear, 1.6" (41mm)
