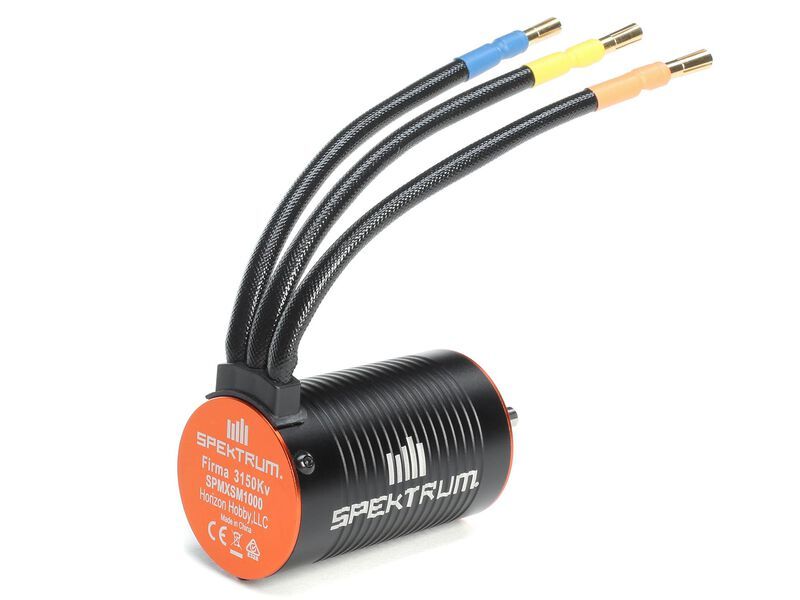

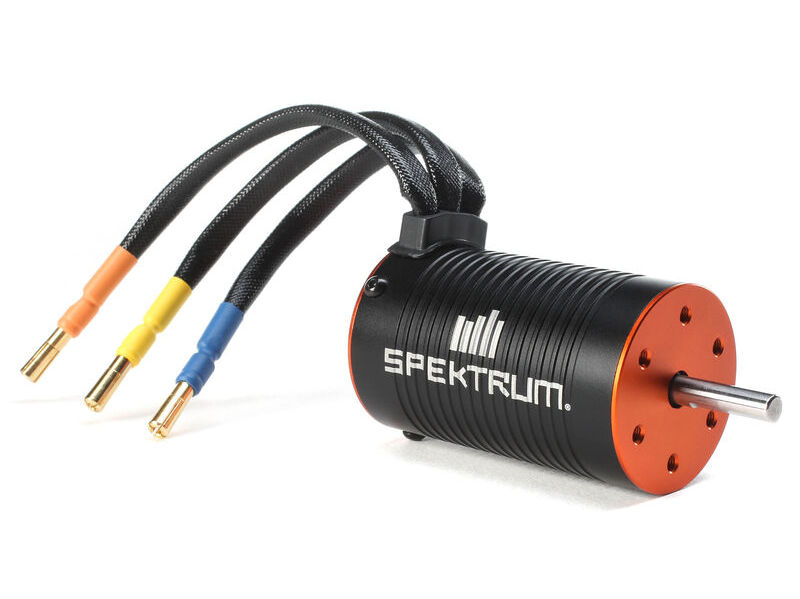

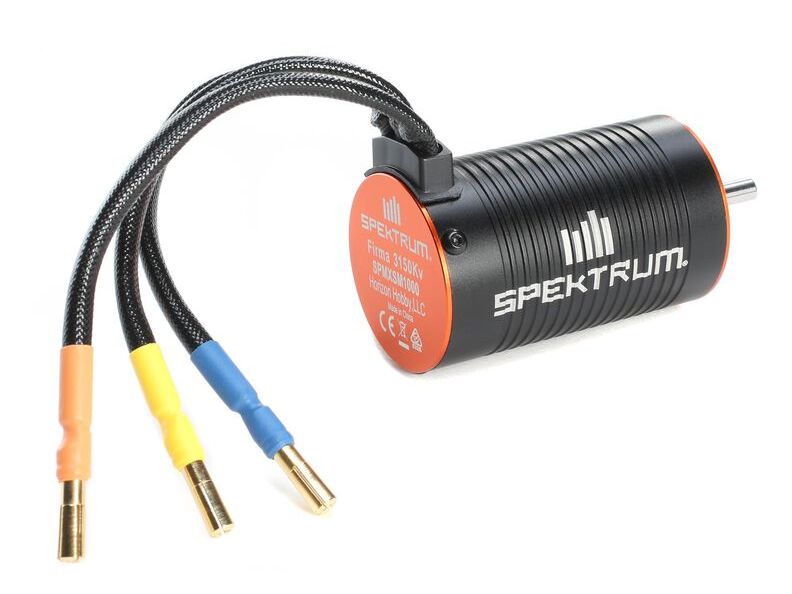

Name: Spektrum SPMXSM1000 - Firma Brushless Motor, 3150Kv, 4mm Bullet

Price: HK$ 448.00

Buy Item

Temporary out of stock

Key Features

Perfect upgrade for brushed 540- and 550-size brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 5mm bore)
High-quality 4-pole sintered rotors
Includes 4mm gold plated bullet connectors
Precision ball bearings and hardened steel 5mm shaft

Overview

Great choice for 1/10 Scale 4WD models. Low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 5mm output shaft, and high-precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation. Perfectly matched for the Firma 130 Smart ESC.

Needed to Complete

Electronic Speed Control such as the Firma 130 Smart ESC

What's in the box?

Spektrum Firma 3660-3150kv Sensorless 1/10 Brushless Motor with 4mm Gold Plated Bullet Connectors

Product Specifications

Specs
Bushing Or Bearing	Bearing
Cells	2-3S LiPo, 4-9 cell NiMH
Connector Type	4mm Bullet
Efficiency	90%
Input Voltage	6-13.2V
Maximum Continuous Current	100A
Motor Design	Inrunner
Motor Type	Brushless
Number of Poles	4
Outer Diameter	1.4 in (36mm)
Output	1300W
Overall Length	2.4" (60mm)
Product Weight	8.7oz (247g)
Recommended Speed Control	Spektrum Firma 130 Smart ESC
RPM/Volt (Kv)	3150Kv
Shaft Diameter	3/16" (5mm)
Wire Gauge	12 AWG
