Features

Overview

The legendary Losi® Mini's are back! Featuring TLR® 2wd buggy engineering and performance in a 1/16th package, the Losi Mini-B Buggy is terrain-tearing and track-ready. The larger 1/16th scale is stable on the track generating quicker speeds and improved handling. With suspension geometry updated and taken from the TLR® 22 platform and the inclusion of waterproof electronics with a 2.4Ghz radio system, you get more from a Mini than ever before. It features a mid-motor configuration for better balance, oil filled shocks, and a full range of option parts all in a total ready-to-run package. Everything about this buggy is designed to deliver a jaw-dropping experience.

Video Overview

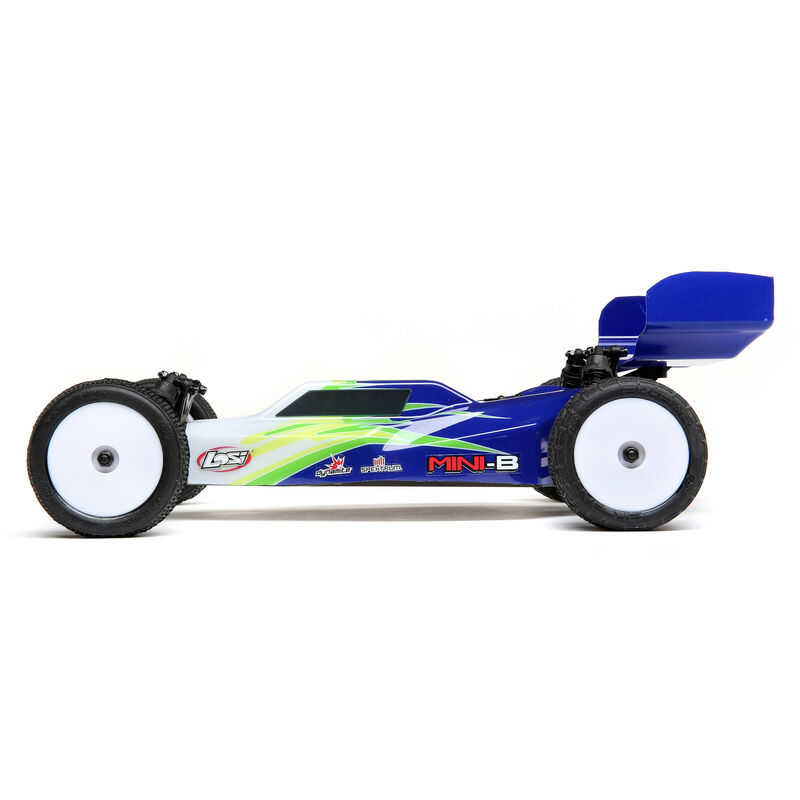

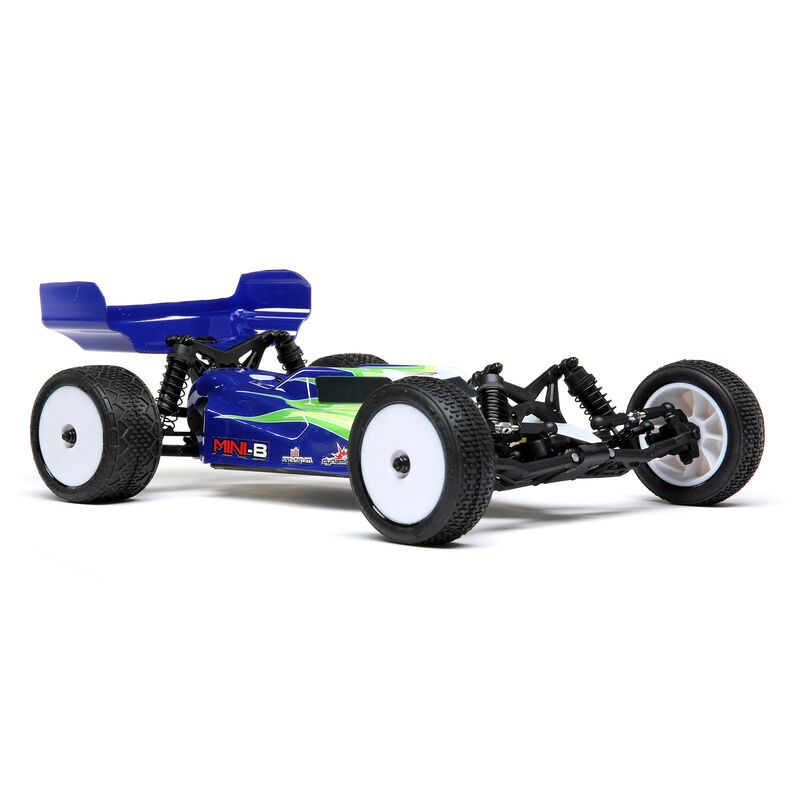

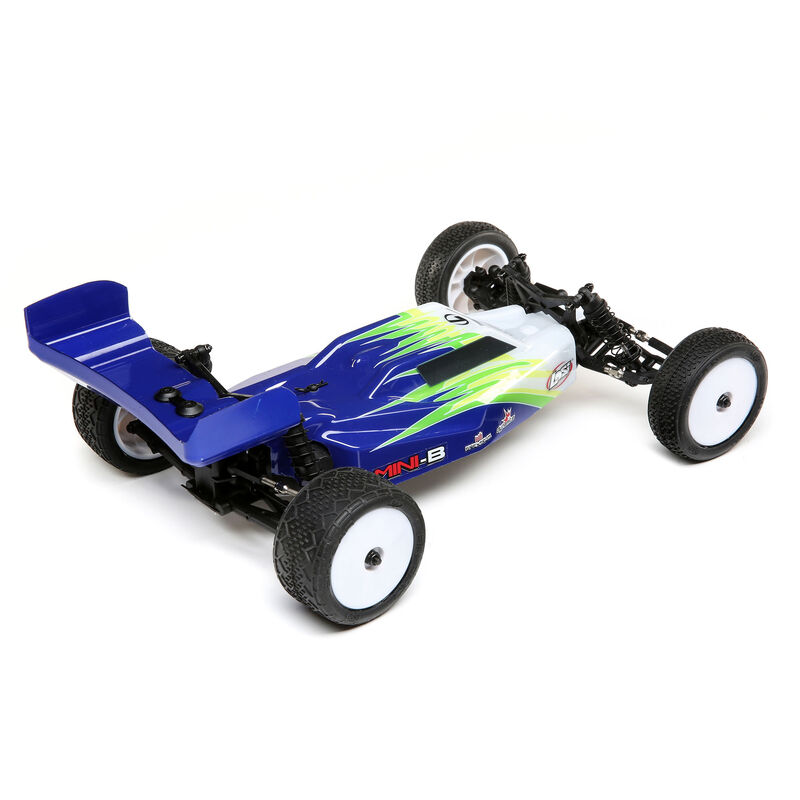

Losi Mini-B 1/16th 2wd RTR Buggy

Scaled-Down Version

Featuring TLR 2WD buggy engineering and performance in a 1/16th package, the Losi Mini-B Buggy is terrain-tearing and track-ready. The larger 1/16th scale is stable on the track generating quicker speeds and improved handling.

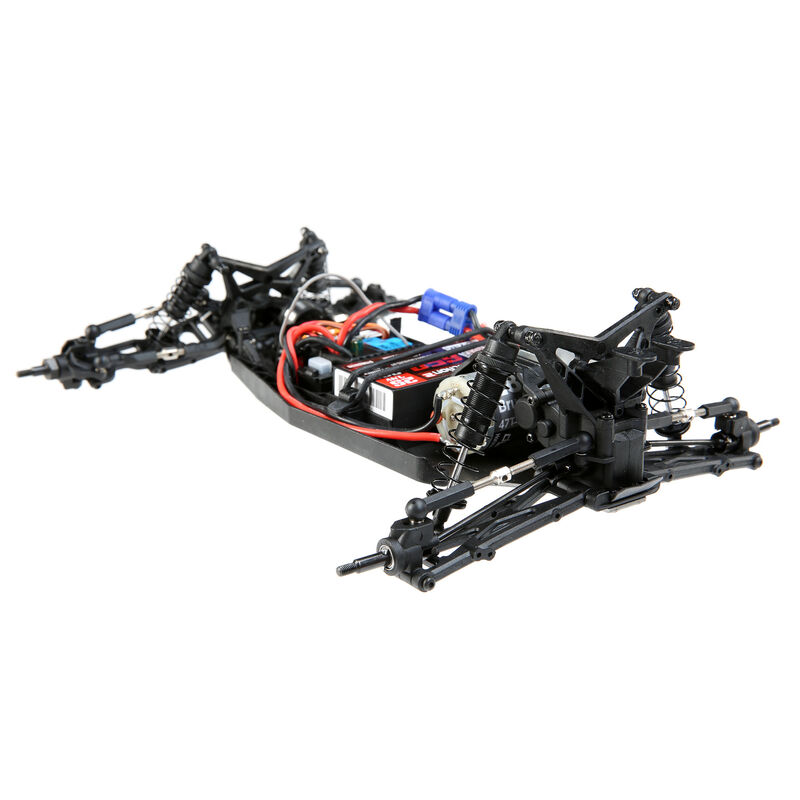

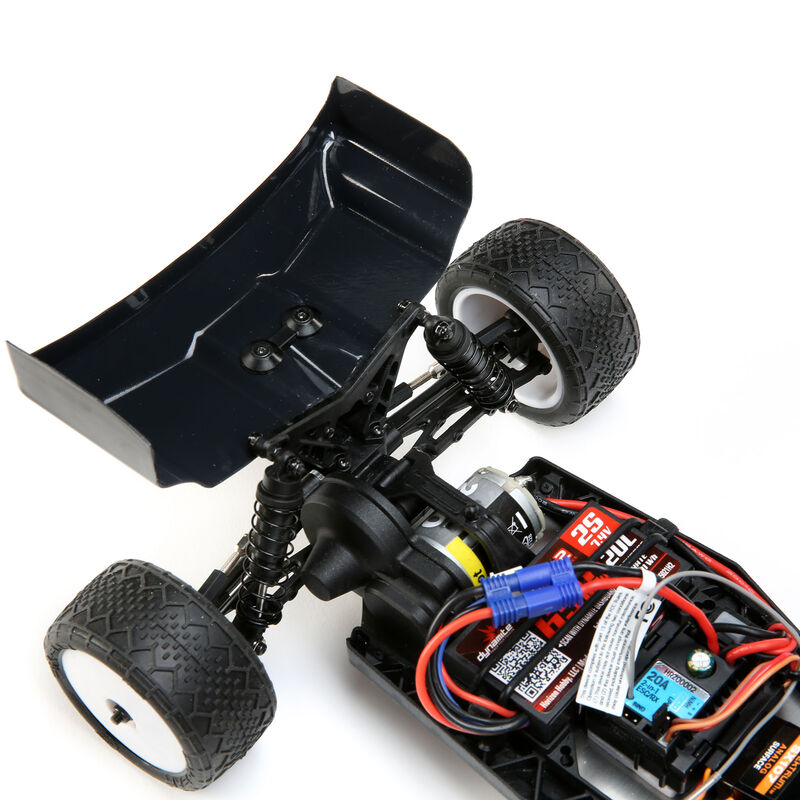

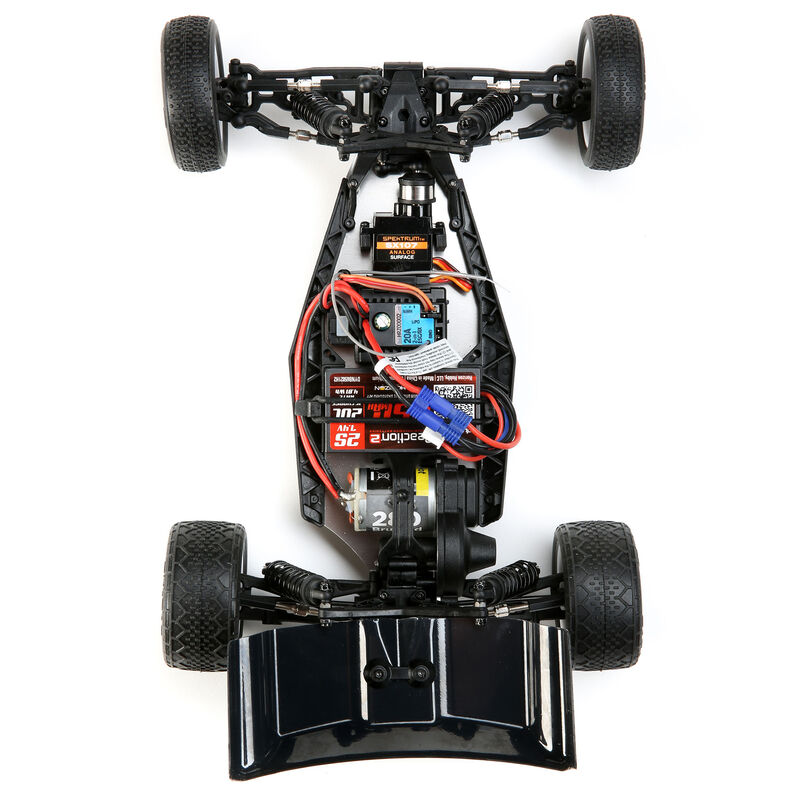

Mid Motor Configuration

The Mini-B comes standard with a mid-motor configuration. This not only replicates the 1/10th version but also provides a better balanced chassis allowing for better performance on multiple surfaces and also balances out steering and traction.

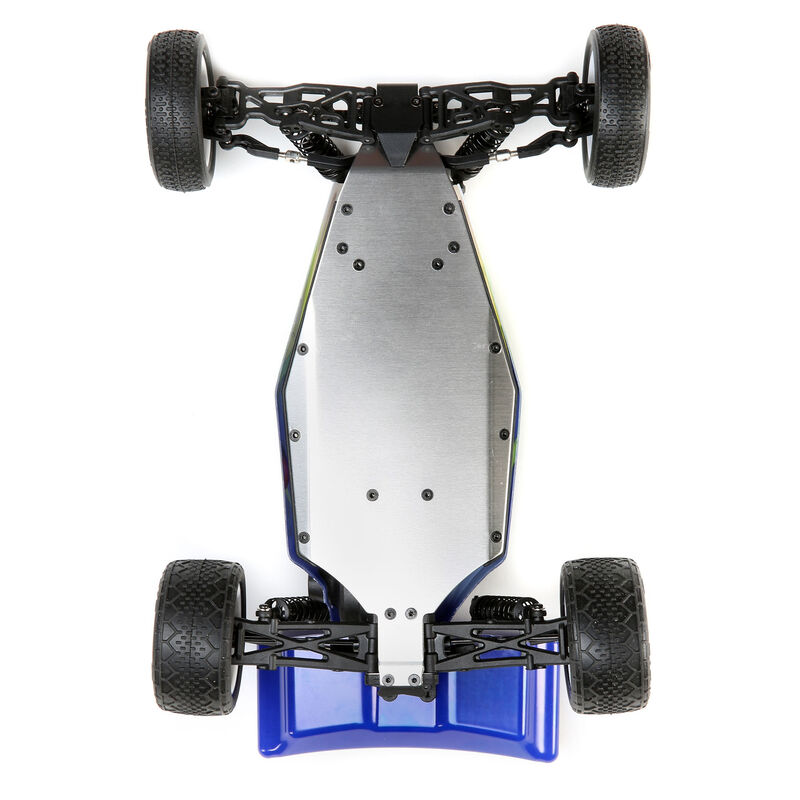

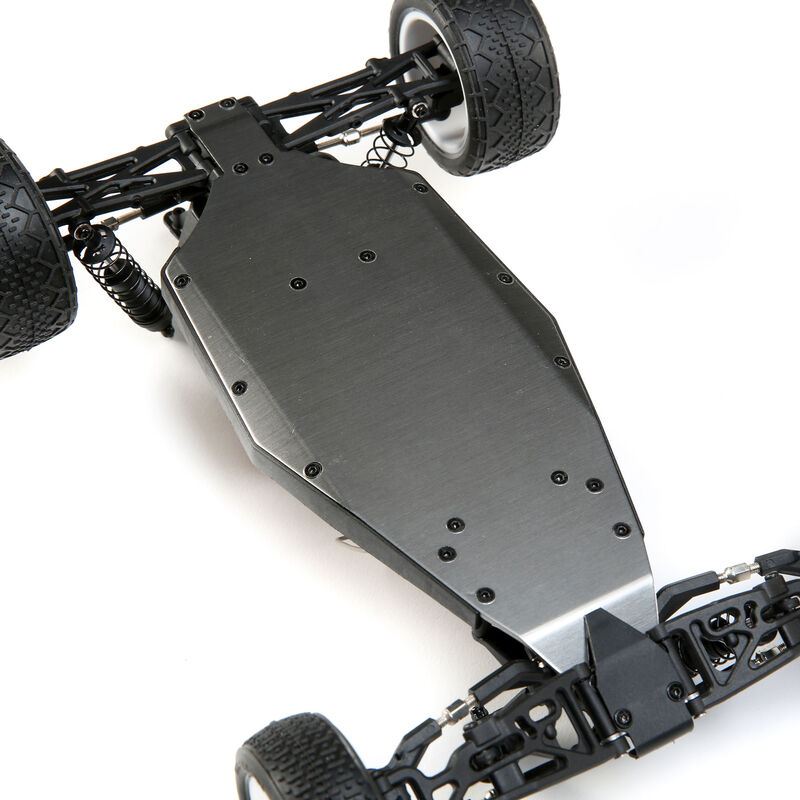

Aluminum Chassis

The Mini-B has been designed with a 1.5mm thick 6061-T6 Aluminum chassis plate. The aluminum chassis provides more strength and durability while vastly improving performance.

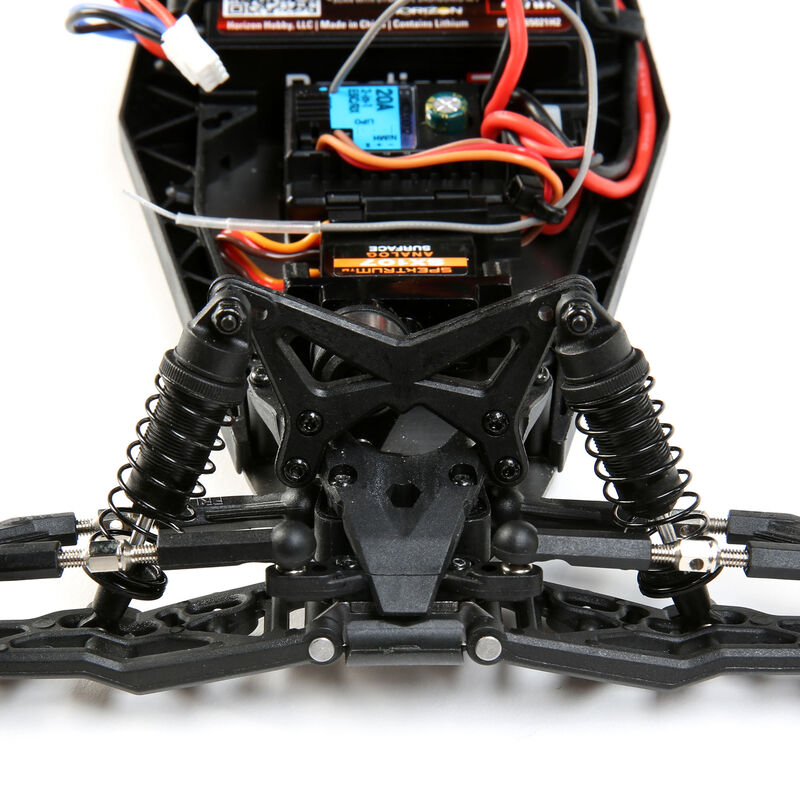

Threaded Oil Filled Shocks

The injection-molded shocks feature threaded shock collars allowing for easy preload/ride height adjustments. Additionally, the shock bodies feature a bottom loading, re-buildable shock cartridge with dual o-rings to help keep the oil in the shocks.

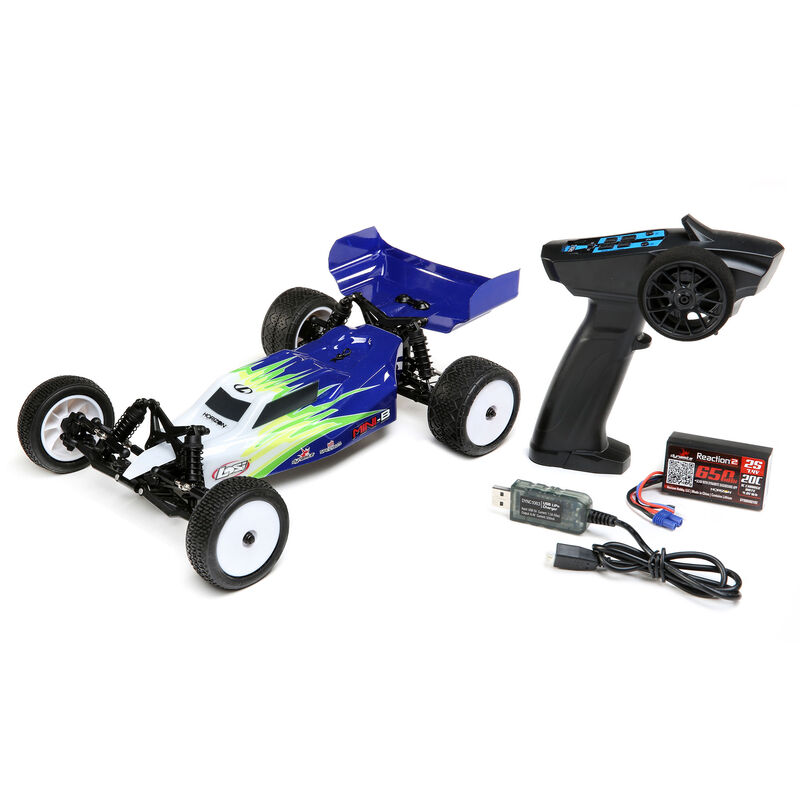

Ready To Run

The Mini-B comes fully assembled and ready to rock. Just install the included AAA batteries in the transmitter, charge the included LiPo battery with the included charger.

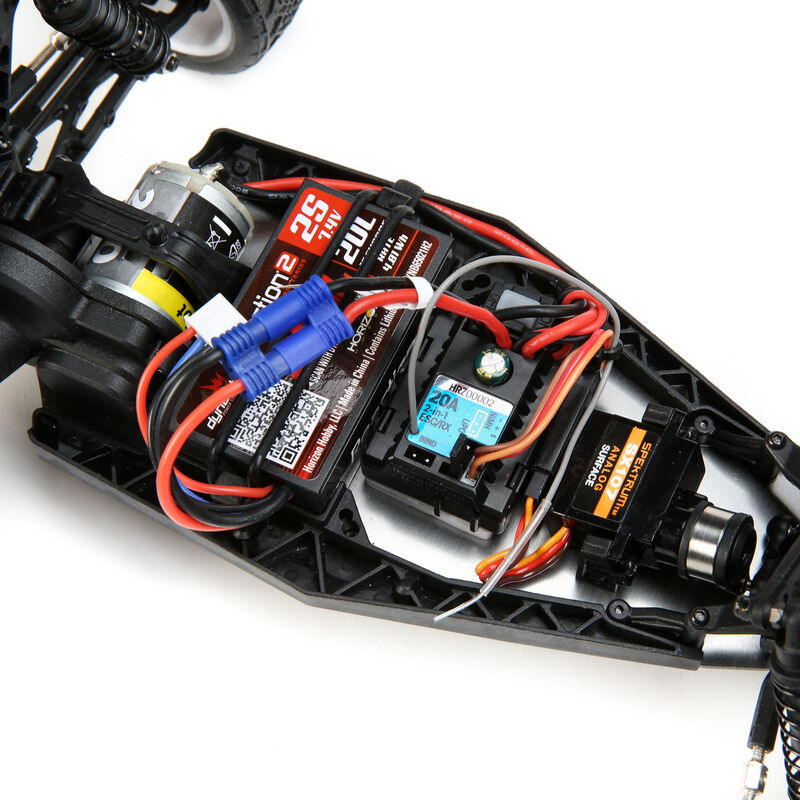

Dynamite Reaction 2.0 LiPo Battery

The Mini-B comes equipped with a Dynamite Reaction 2.0 7.4V 650mAh 2S 20C LiPo Battery for excellent performance and run time.

USB Charger

When we say entirely ready to run, we mean it. The Mini-B comes with a USB charger making charging your battery easy and convenient.

2.4Ghz Transmitter and Receiver

With features like throttle/steering reversing, throttle/steering travel adjust, the included 2.4Ghz transmitter packs a lot of features in a small package with the interference-free connection.

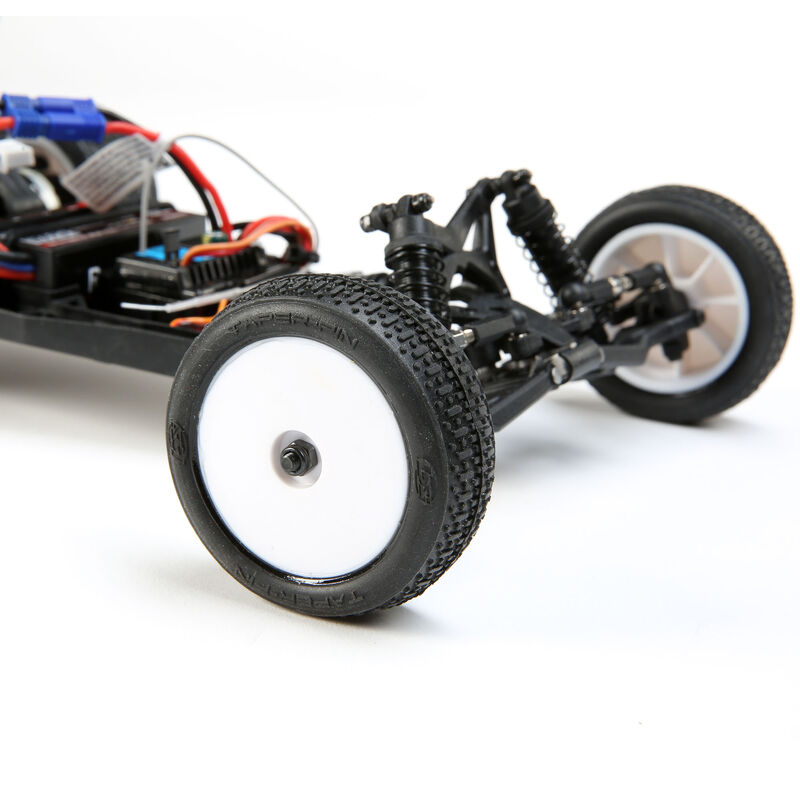

 Taper Pin Front Tires

Mounted on dish wheels, the Taper Pin front tires replicate one of the most popular tires from Losi.

BK Bar Rear Tires

Mounted on dish wheels, the BK Bar rear tires replicate one of the most popular tires from Losi.

Full Ball Bearings*

The Mini-B comes equipped with ball bearings that enhance vehicle performance by reducing drivetrain friction and increased smoother, longer running.

*Less steering bell crank

Servo Saver

The Mini-B comes with an oversized three-wire Spektrum metal gear servo equipped with a servo saver that provides extra protection.

Waterproof Electronics*

All the Mini-B components are waterproof, so you can drive in any conditions with no problems.

*For details on waterproof standards, please refer to the product instruction manual

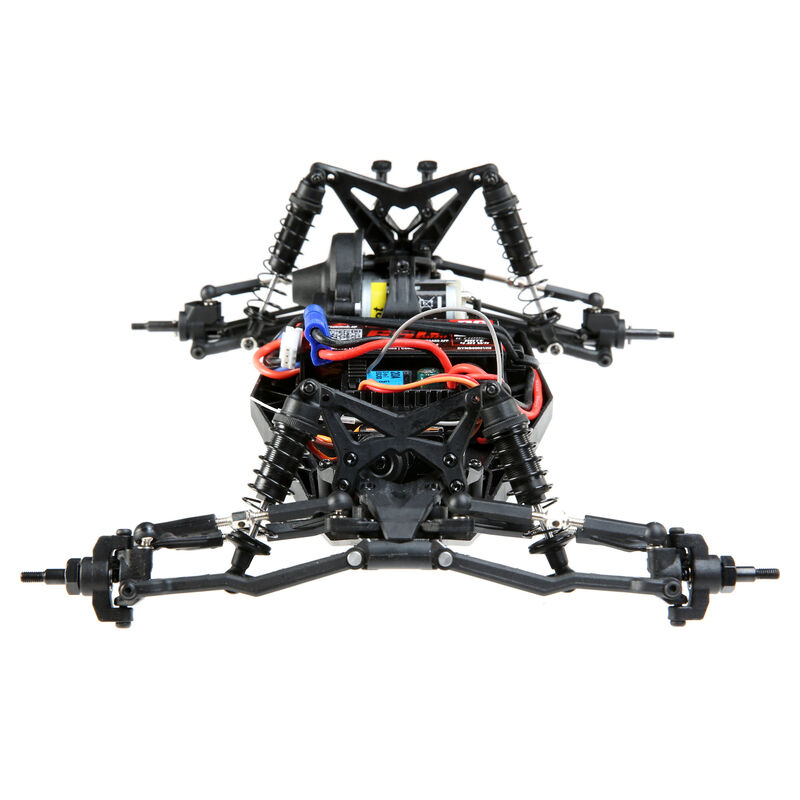

TLR 22 Buggy Suspension Geometry

The Mini-B suspension geometry has been derived from the TLR 22 Buggy platform providing balanced steering and traction from the optimized race design.

Option Parts

The Mini-B has a full line of option parts available from aluminum upgrades, brushless motor, and much more.

Product Specifications

Specs
Approximate Assembly Time	Less than One Hour
Ball Bearings	Complete, Less Steering
Battery	Included
Battery Input Lead	EC2
Body	Mini-T 2.0, Polycarbonate, Screened
Brakes	Integral with ESC
Bushing Material	Plastic
Charger	Included
Chassis	1.5mm Plate, 6061-T6 Aluminum
Completion Level	Ready-To-Run
Differential	Bevel Gear
Drivetrain	2WD
Drive Type	Forward/Brake/Reverse
Power Type	Electric
Gear Pitch	0.5MOD
Motor Size	280
Motor Type	Brushed
Pinion	18T
Product Height	4" (102 mm)
Product Length	10.7" (272 mm)
Product Width	7" (178 mm)
Radio	Included
Receiver	Included
Scale	1/16
Servos	Included
Shock Type	7mm bore, oil filled
Speed Control	Included
Spur Gear	60T
Suspension	Independent
Tire Tread	Tapered Pin Front, BK Bar Rear
Vehicle Type	Buggy
Water-Resistant	Yes
Wheelbase	7.5 in (190.5mm)
Wheel Type	Dish
