Product Show

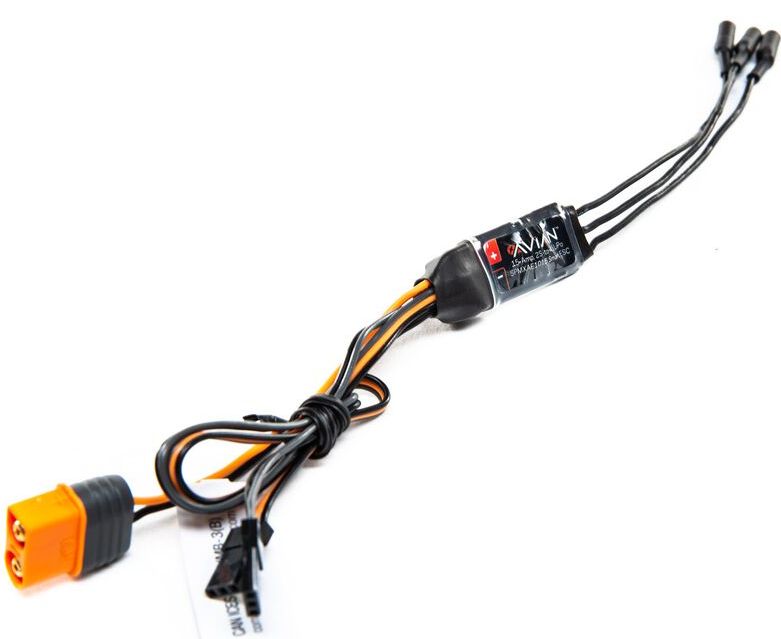

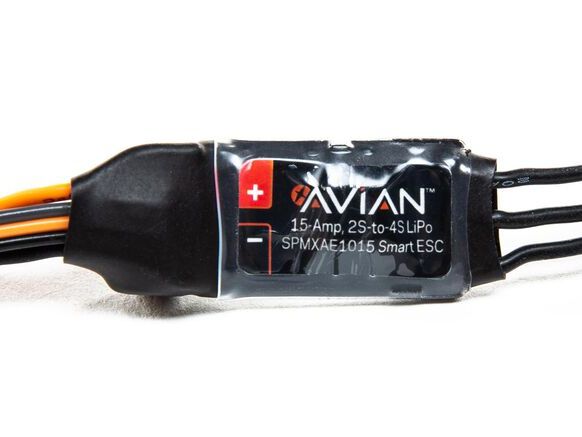

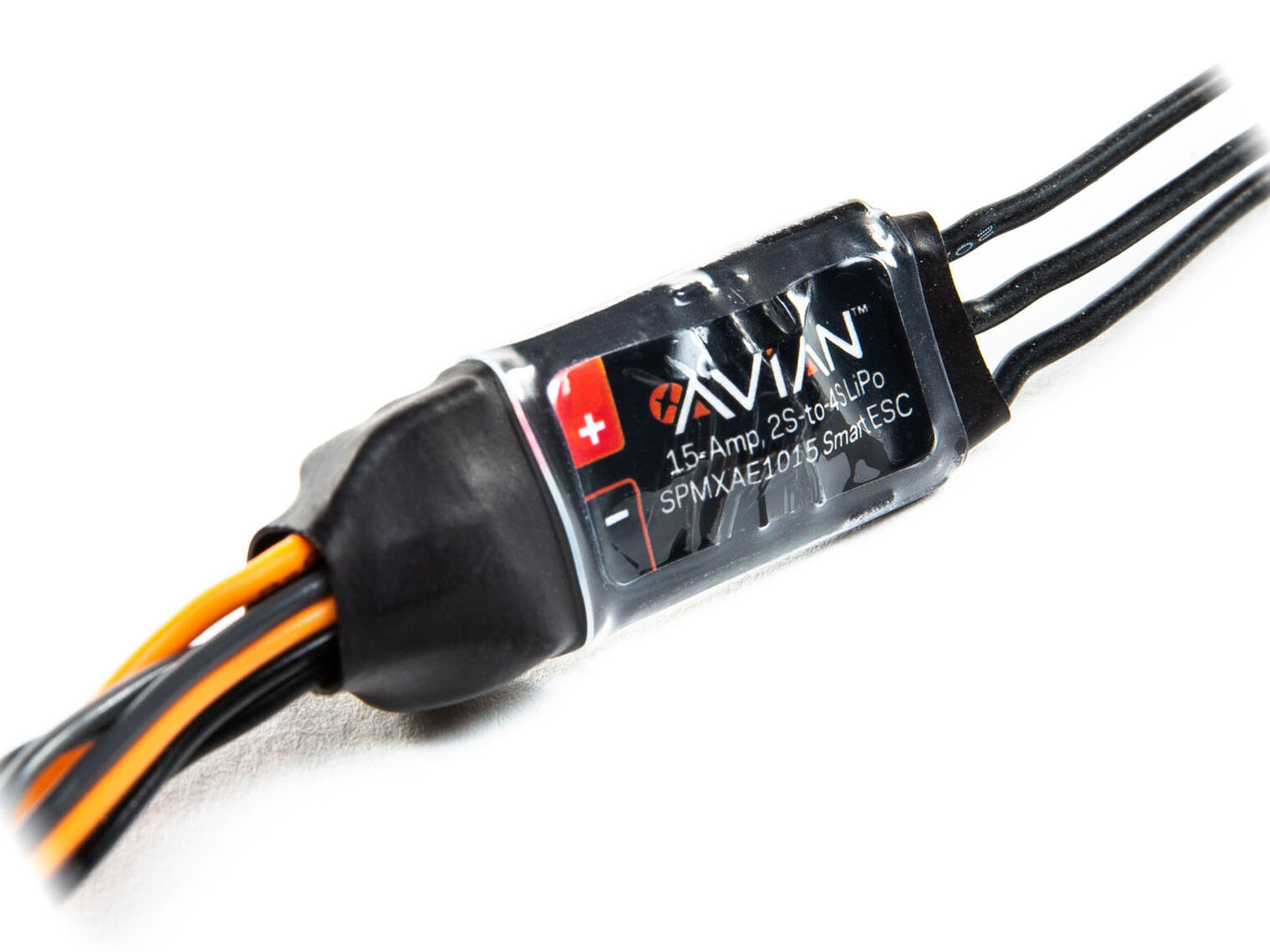

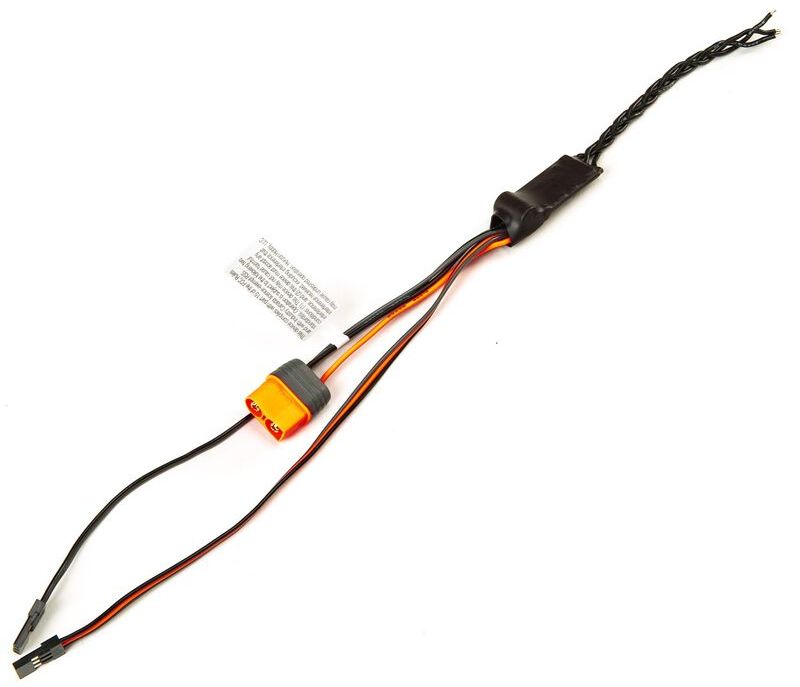

Name: Spektrum SPMXAE1015 - Avian 15 Amp Brushless Smart ESC, 3S-4S

Price: HK$ 240.00

Buy Item

Product Features

Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Multiple options for easy programming:
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Throttle stick programming
Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer

Compact for easy installation in most applications
Ready to install — no soldering required
Heat dissipating design
Dual BEC power connectors
Firmware updatable through the Smart ESC Programming Box and SmartLink PC application
High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
Limited 1-year warranty

Product Overview

Like every component in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your aircraft imaginable.

Avian Smart Air ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Avian Smart Air ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Avian Smart Air ESCs, you'll be better connected to your aircraft than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM.

Avian ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Please note - The Spektrum Avian Smart 15A ESC does not include the Smart Battery Data Wire and does not provide Motor Current. Battery telemetry data will not be transmitted (Battery Temp, Battery Cycles, Battery Cell Balance). Only the following ESC telemetry will be provided; Input Voltage, Throttle Input and Output %, ESC FET Temp and Motor RPM.

Needed to Complete

Spektrum™ Aircraft Receiver
Spektrum Transmitter

What's in the Box?

(1) Spektrum™ Avian™ Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product Manual

Video Overview

Spektrum™ Smart Electronic Speed Controls

Spektrum™ Smart Batteries and Chargers

ONE-WIRE TELEMETRY

One-Wire Telemetry

No need to connect multiple wires, sensors, modules, and links. With Avian™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including current, voltage, cell balance, temperature and RPM.

EC3™/EC5™ BACKWARDS COMPATIBLE

EC3™/EC5™ Backwards Compatible

Avian™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3™ and EC5™ connectors are also compatible with Avian ESCs for basic operation and ESC telemetry.

MULTIPLE PROGRAMMING OPTIONS

Multiple Programming Options

Multiple programming options are available. Throttle stick programming can be used with nothing more needed. Using the Smart ESC Programming Box, you can easily change settings at the field to suit flying conditions. An easy-to-use Smart Link USB Updating and Programmer app is also available.

FAST, POWERFUL M4 PROCESSOR

Fast, Powerful M4 Processor

The Avian ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.

Product Specifications

Specs
Auto Cutoff	Yes
Battery Input Lead	2.9" (75mm) 20AWG
BEC	Yes
BEC Continous Current	3A
BEC Maximum Burst Current	12A
BEC Type	Linear
BEC Voltage	5.2V
Brakes	Yes
Connector Type	EC3
Forward	Yes
Input Voltage	2S - 4S LiPo
Low-Voltage Cutoff Programmable	Yes
Maximum Burst Current	25A
Maximum Continuous Current	15A
Motor Output Lead	3.9" (100mm) 20AWG
Part Type	Electronics
Product Height	0.4" (11mm)
Product Length	1.4 (35mm)
Product Weight	0.6oz (16g)
Product Width	0.6" (16mm)
Programmable	Yes
Reverse	No
Search Keywords	SPMX_ESC_AIR
Technology	Smart
