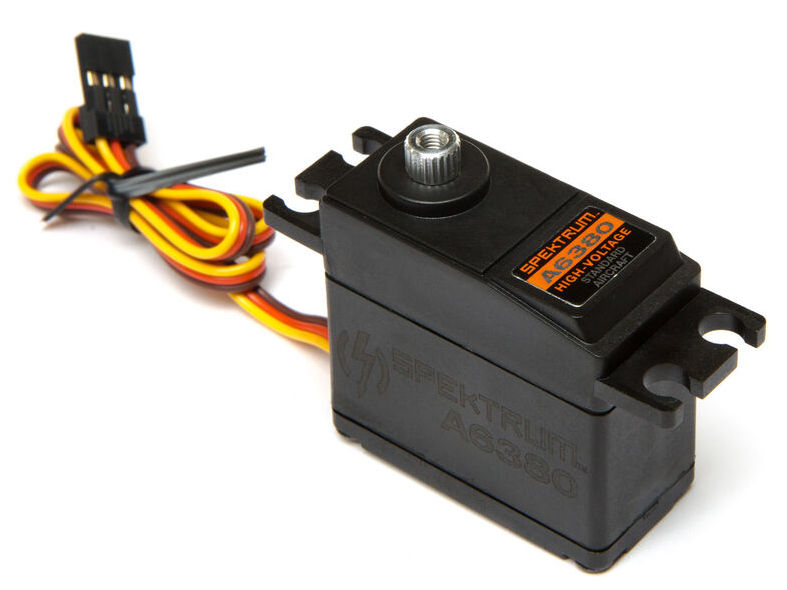

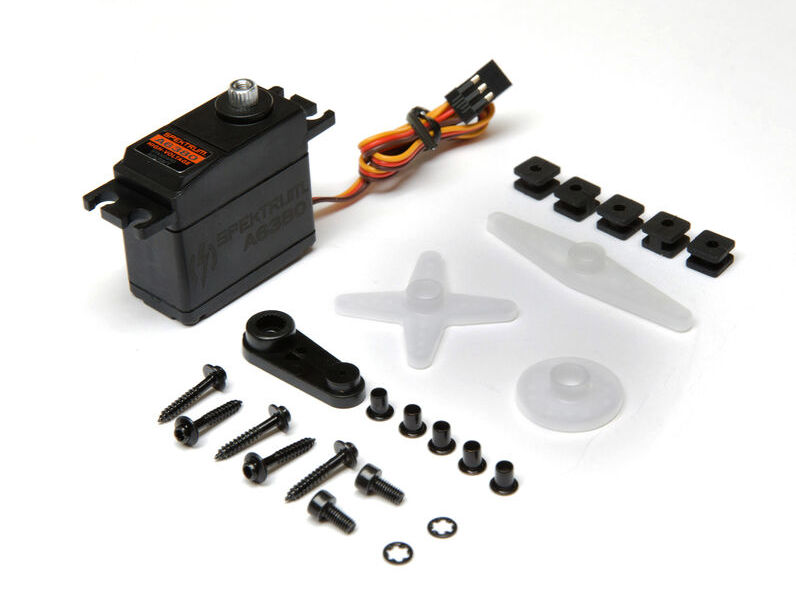

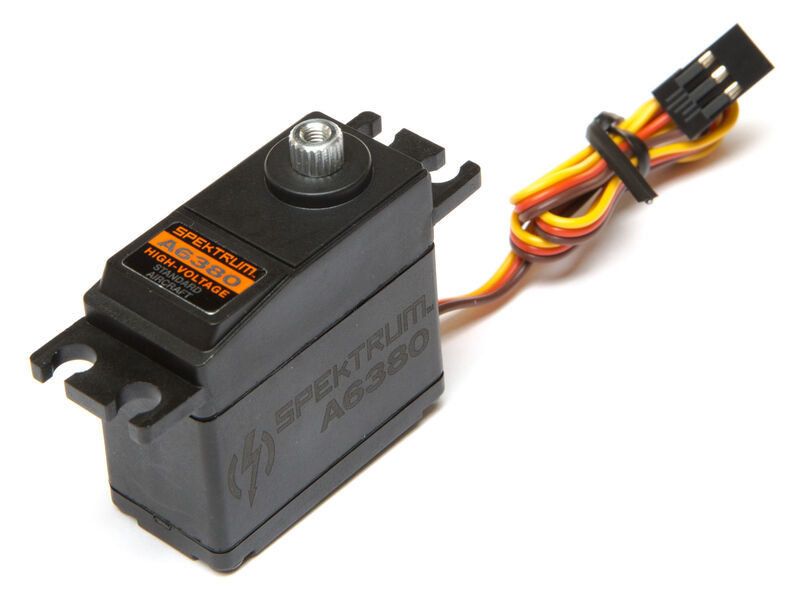

Name: Spektrum SPMSA6380 - A6380 Standard Digital HV High Torque High Speed Metal Gear Aircraft Servo

Price: HK$ 200.00

Buy Item

Temporary out of stock

Overview

The Spektrum™ A6380 high-voltage, digital servo is the perfect budget-solution for your sport plane. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 160 oz-in torque rating at 8.4 volts, the A6380 servo boast specifications that easily beat other standard-size competitors in its class.

Product Specifications

Application	Aircraft
Bearing	Dual
Bushing Or Bearing	Bearing
Connector Type	Universal
Connector Wire Length	11.8 in (299.7mm)
Gear Type	Metal
Maximum Servo Speed	0.100-0.149 sec
Maximum Servo Torque	100-199 oz-in
Motor Type	Coreless
Product Height	1.47 in (37mm)
Product Length	1.52 in (39mm)
Product Weight	1.5 oz (42.5 g)
Product Width	0.74 in (19mm)
Programmable	No
Servo Operating Voltage	6.0 - 8.4V (HV)
Servo Size Category	Standard
Servo Type	Digital
Speed	0.17 sec/60 deg @ 6.0V, 0.13 sec/ 60 deg @ 8.4V
Torque	102 oz-in (7.3 kg-cm) @ 6.0V, 160 oz-in (11.5 kg-cm) @ 8.4V
Wire Gauge	22 AWG
