Evolution Of A Legend

Many RC pilots got their first taste of flying a Short Take Off and Landing (STOL) capable airplane with the original E-flite® Timber® 1.5m model. Its friendly handling, nimble sport performance, and takeoff-and-land-almost-anywhere abilities made it one of the most popular RC aircraft of all time — widely acclaimed and highly recommended as a great "next step" after a trainer, as the perfect first STOL-capable aircraft, and as one of the best all-around, fun-to-fly sport models for a wide range of pilots. Its next evolution, the Turbo Timber® 1.5m, proved even more popular than the original with the addition of metal-geared servos, a 3S and 4S compatible power system, plus a turboprop-styled nose and 3-blade propeller. Now comes the Turbo Timber® Evolution 1.5m, ready to continue the Timber legend with new upgrades that deliver more durability, convenience, and capabilities than ever before — plus a fresh and modern look!

Features

Smarter, Stronger, and More Capable

The E-flite® Turbo Timber® Evolution 1.5m has been evolved into the Smartest, most convenient, capable, and durable Timber yet! Popular features from the original Timber are all there: the shock-absorbing landing gear with oversized, tundra-style wheels; optional-use float set and leading edge slats; functional slotted flaps; and an LED lighting system with landing, navigation and strobe lights. So are the enhancements that gave the Turbo Timber® more performance and capabilities, including a turboprop-styled nose, 3-blade prop and spinner, a more powerful 3S and 4S compatible power system, and a stiffer wing with durable, reliable metal-geared servos. Now the Turbo Timber Evolution 1.5m adds a new top hatch for faster, easier battery changes, plus combined connectors for simpler wing installation and removal. Strengthened landing gear mounts improve the model's durability and STOL capability when flying from rough terrain. The proven Turbo Timber power system is upgraded with an exclusive Spektrum™ Avian™ 60-amp Smart ESC, and the BNF® Basic version is equipped with an AR637TA receiver to provide full-range, real-time telemetry data including battery voltage, current, motor RPM and more — plus motor reversing for special ground handling and other capabilities — along with the benefits of AS3X® and optional-use SAFE® Select technologies. There's even a fresh, modern trim scheme for the durable, composite-reinforced airframe! The Turbo Timber Evolution 1.5m remains the best "next step", everyday sport and STOL-capable model for a wide range of pilots — only it's now better than ever!

Video Overview

E-flite® Turbo Timber® Evolution 1.5m BNF® Basic and PNP

Exclusive Technologies



The Turbo Timber® Evolution 1.5m is equipped with exclusive Spektrum™ AS3X® and SAFE® Select technologies. AS3X works behind the scenes to smooth out the effects of wind and turbulence to deliver a locked-in feel that makes it seem like you're flying a much larger airplane. Optional-use SAFE Select offers pitch and bank angle limits along with automatic self-leveling that can be turned on and off at the flip of a switch! And if you don't want to enable the SAFE Select features, simply bind the receiver normally and only AS3X will be active.

Smart Technology



Both the PNP and BNF® Basic versions of the Turbo Timber® Evolution 1.5m are equipped with an exclusive Spektrum™ Avian™ 60-Amp Smart ESC that can provide a variety of real-time power system related telemetry data including motor RPM, current, battery voltage and more via compatible Smart receivers (such as the AR637TA installed in the BNF Basic version) and Spektrum AirWare™ equipped transmitters (including the DX6e and 8e, DX6 G2/G3 and 8 G2, the DX9, NX6, 8 and 10, the iX12, iX20 and others) while you fly. It also features optional-use motor reversing to offer special ground handling and other capabilities.

Versatile Gear Options

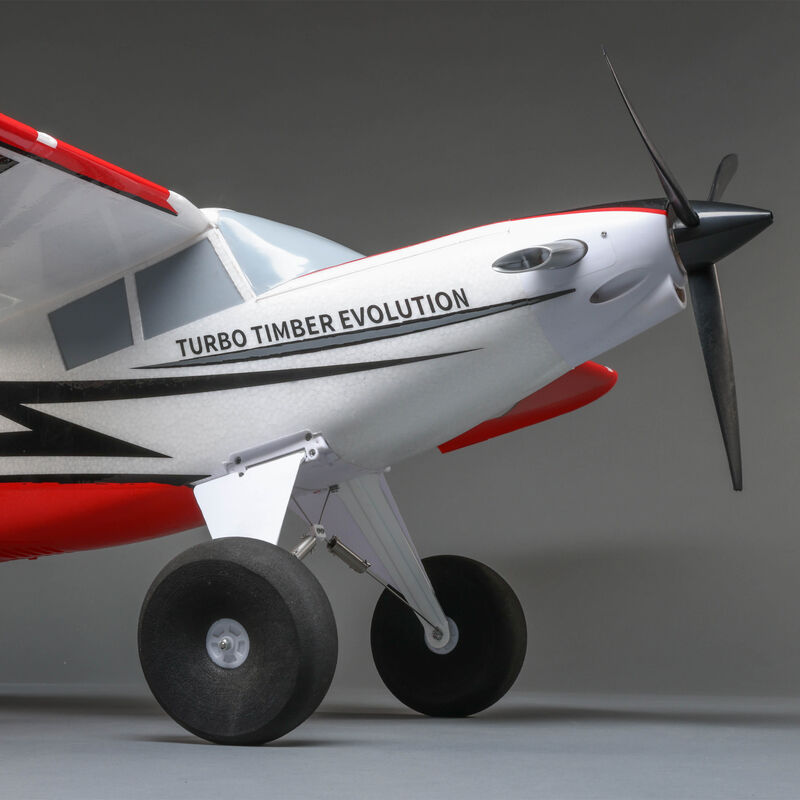

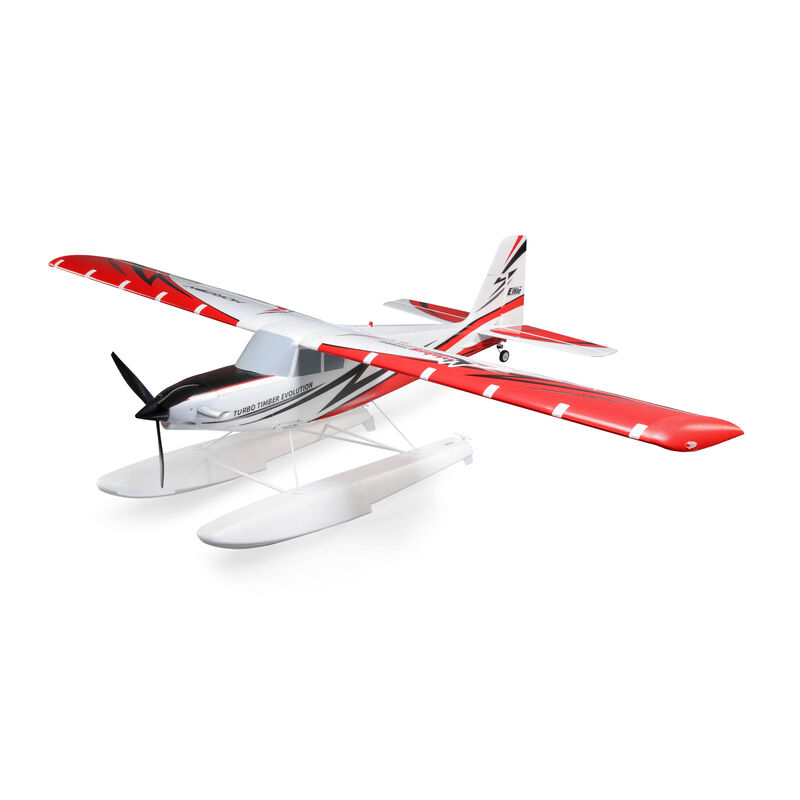

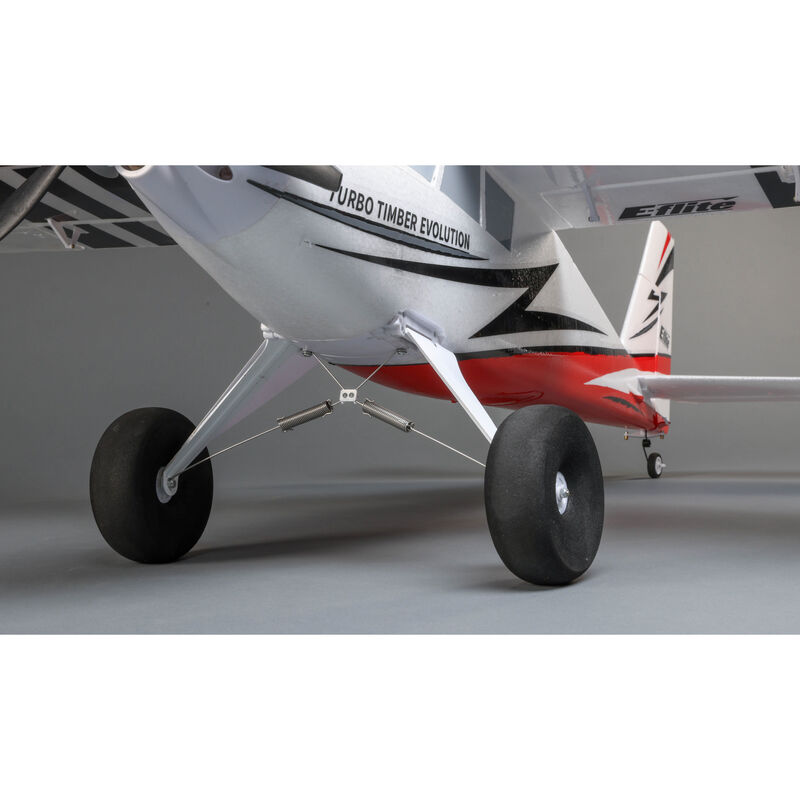

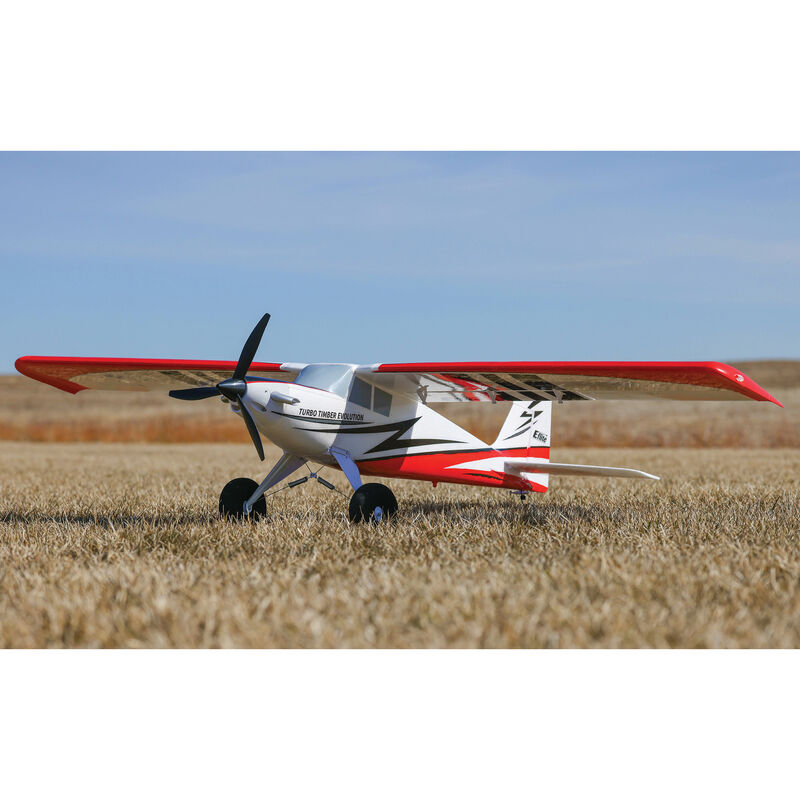

Thick grass, gravel paths, dirt trails — even local lakes and ponds — you can fly from these and many other surfaces that are impossible for most models of this size to handle. The stronger, reinforced mounts in the fuselage, plus shock-absorbing landing gear equipped with oversized, tundra-style wheels and tires, soaks up the bumps of rough surfaces and provides excellent prop clearance. The included float set features dual water rudders for superb steering control. Whichever gear option you choose to fly with, both are easy to install and can be swapped out in minutes.

STOL (Short Takeoff and Landing) Capable

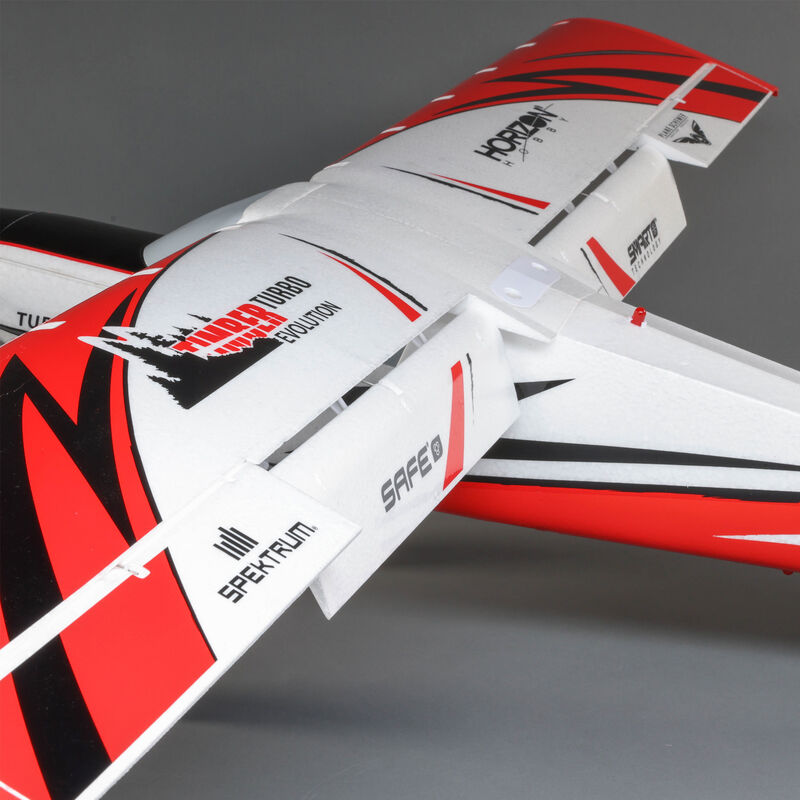

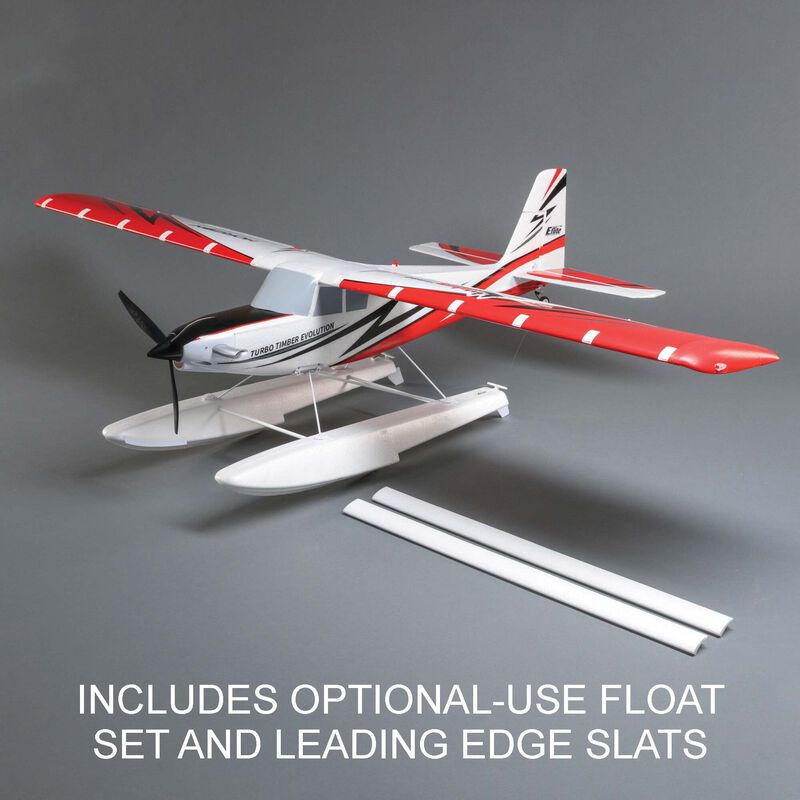

The Turbo Timber® Evolution's wing is designed with features like drooped wingtips and functional slotted flaps, and accepts optional-use leading edge slats (included) for improved slow flight and STOL performance. These features, along with the lightweight design and high-power brushless motor, make it possible to spring into the air or float down to land in as little as two feet or less.

Versatile Power

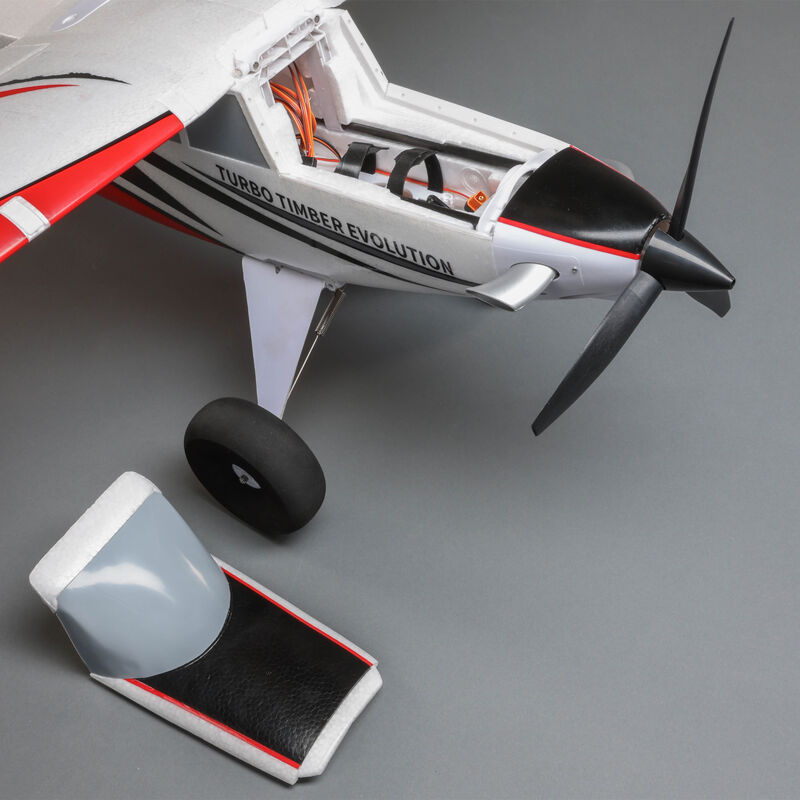

The factory-installed brushless power system features a Spektrum™ Avian™ 60-amp Smart ESC along with a specially-tuned motor and 3-blade prop that deliver an abundance of thrust with a 3S LiPo battery, or more power and unlimited vertical performance with a 4S battery without the need for any modifications or upgrades. Plus, the more convenient top hatch and larger battery compartment makes it easier to fit batteries from 3S 2200mAh to 4S 5000mAh to achieve a wide variety of performance and flight times.

Versatile Durability



Composite-reinforced, hollow-core construction with EPO material delivers a lightweight yet durable airframe. The Turbo Timber® Evolution 1.5m also features a stiffened wing that improves aileron authority and roll rates, plus it's equipped with durable and reliable metal-geared servos all around.

LED Lights



Like the original, the Turbo Timber® Evolution 1.5m comes with realistic-looking LED landing, navigation and strobe lights that are factory-installed and powered from the flight battery.

Easy Assembly



No glue is required for assembly, and because the few parts that need to be assembled easily bolt into place, the Turbo Timber® Evolution 1.5m can be ready to fly in less time than it takes to charge the flight battery. The two-piece wing, now featuring combined servo and LED connectors, also makes transport and storage more convenient than ever before.

Product Specifications

Airfoil Shape	Semi-symmetrical
Approximate Assembly Time	Less than 1 hour
Battery	Sold Separately
CG (Center of Gravity)	2.4" (60mm) +/- 0.20" (5mm) from leading edge of wing measured at fuselage
Charger	Sold Separately
Completion Level	Bind-N-Fly Basic
Flaps	Yes
Under 250g FAA Weight Limit	No
Power Type	Electric

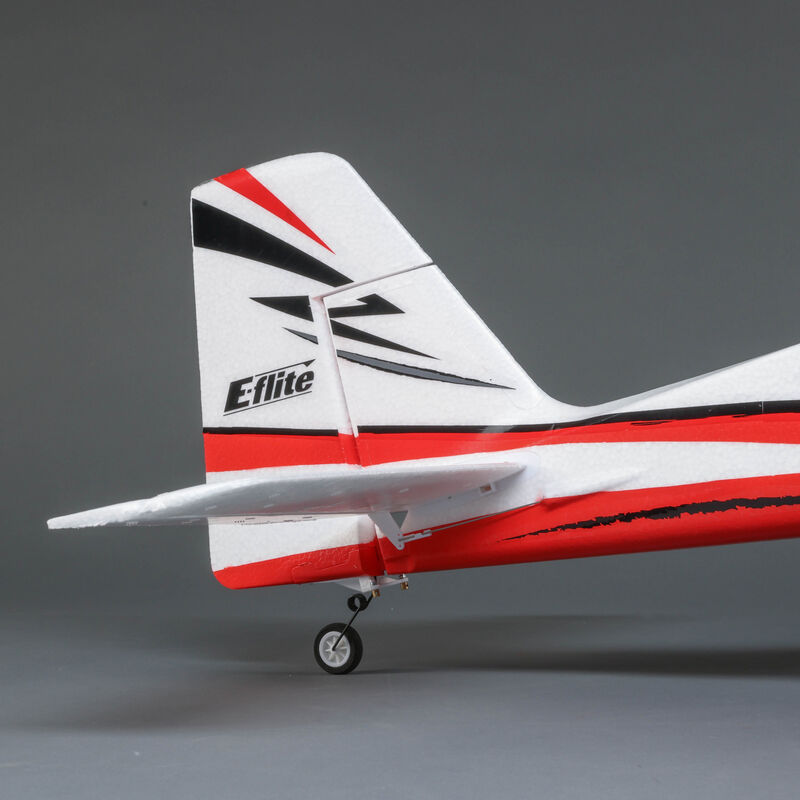

Landing Gear	2pc sprung main landing gear with steerable tailwheel
Material	EPO
Minimum Required Radio	6-channel
Motor Size	10 size, 800Kv
Product Length	40.9" (1039 mm)
Product Weight	54 - 60oz (1.53 - 1.7kg)
Propeller Size	11x7.5 3-blade
Radio	Sold Separately
Receiver	Included
Servos	Included
Skill Level	Level 2
Speed Control	Included
Technology	AS3X and SAFE
Wing Area	559.5 sq in (36.1 sq dm)
Wingspan	61" (1549 mm)
