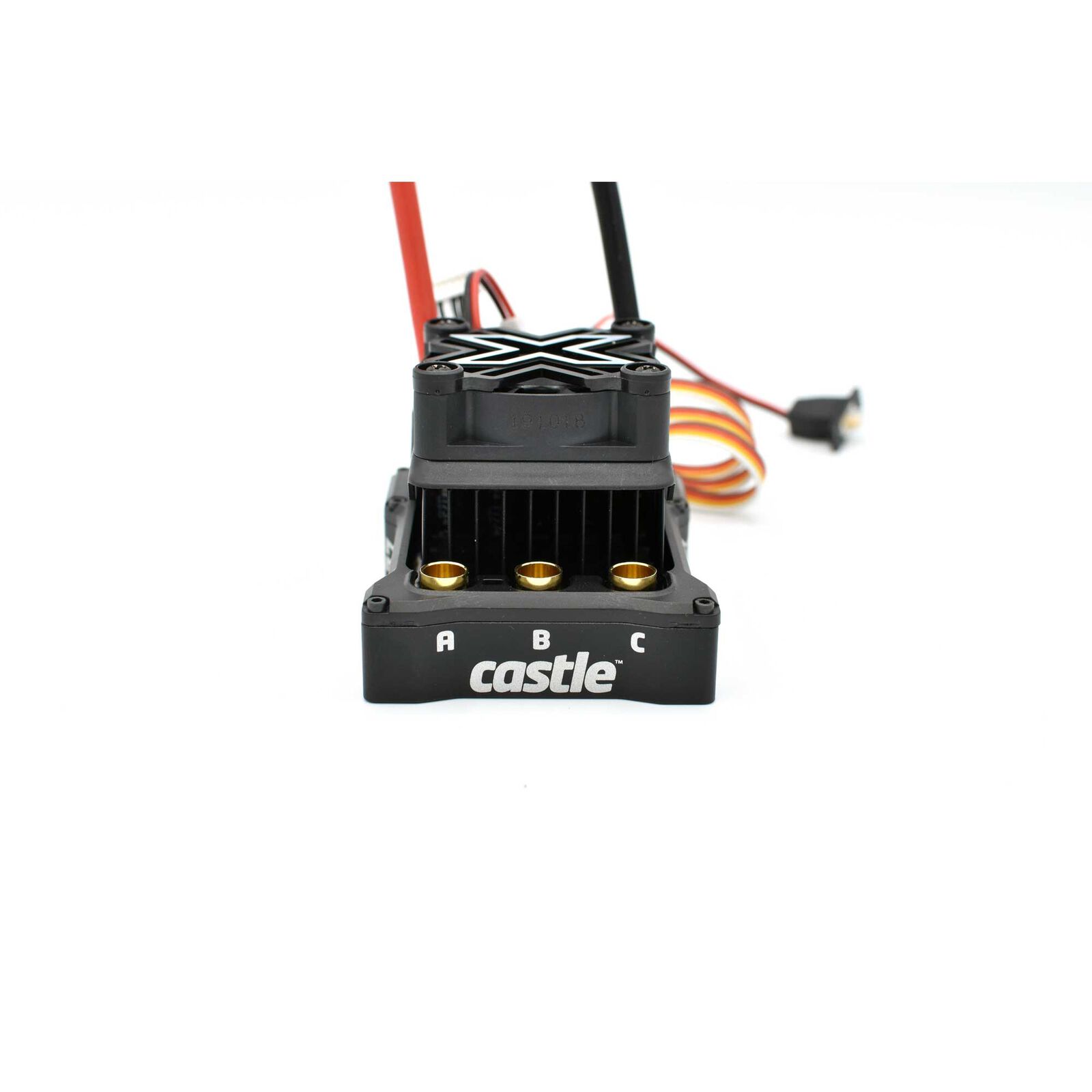

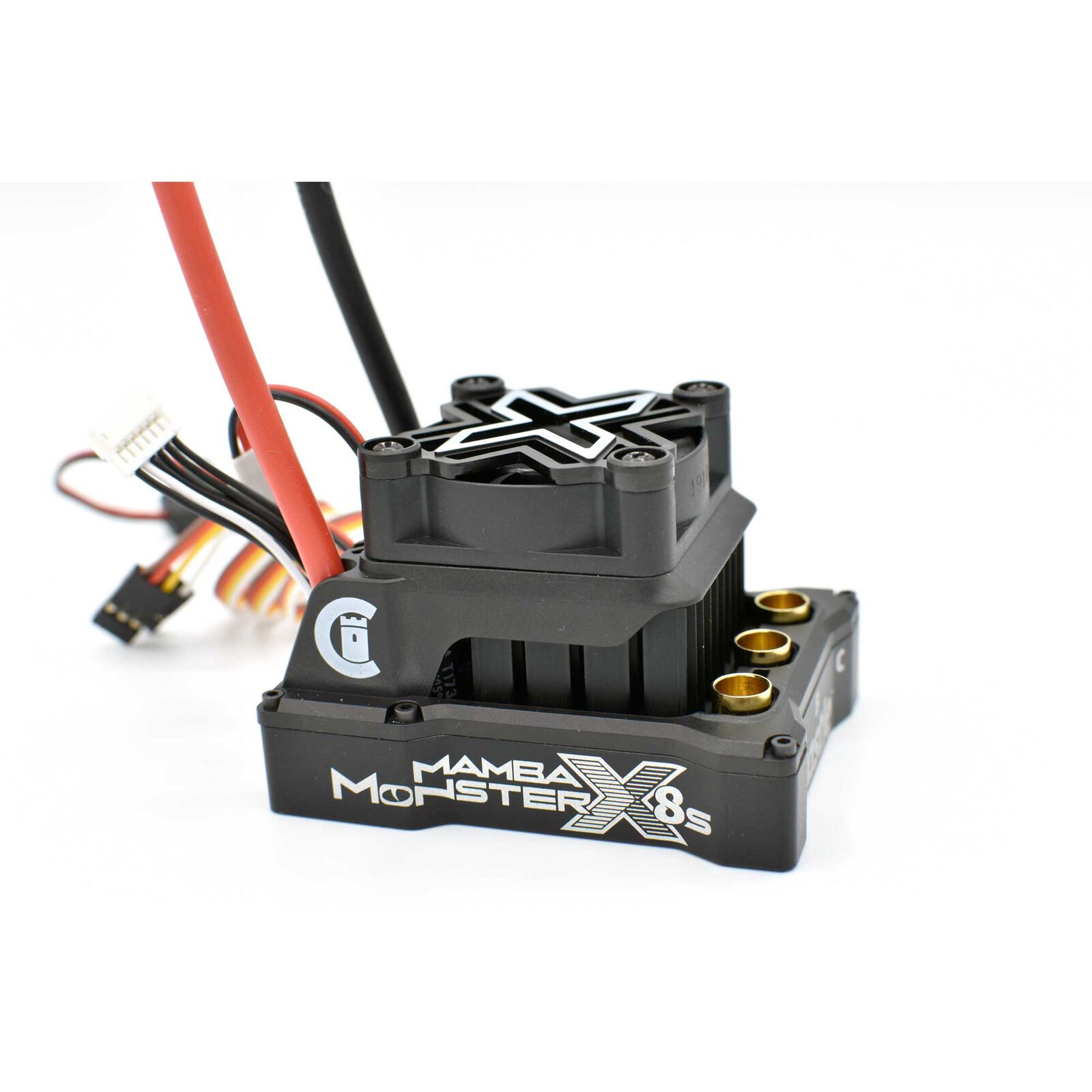

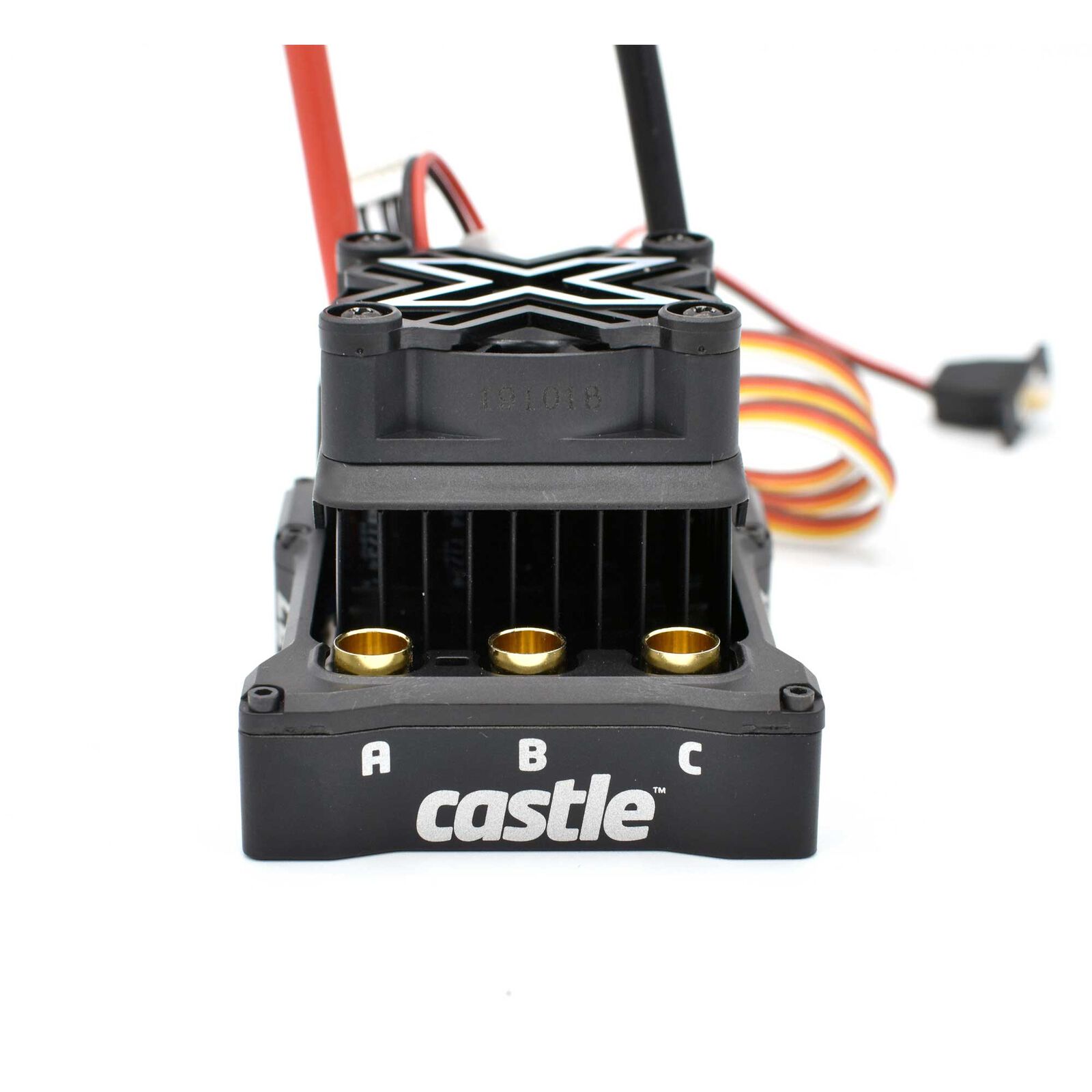

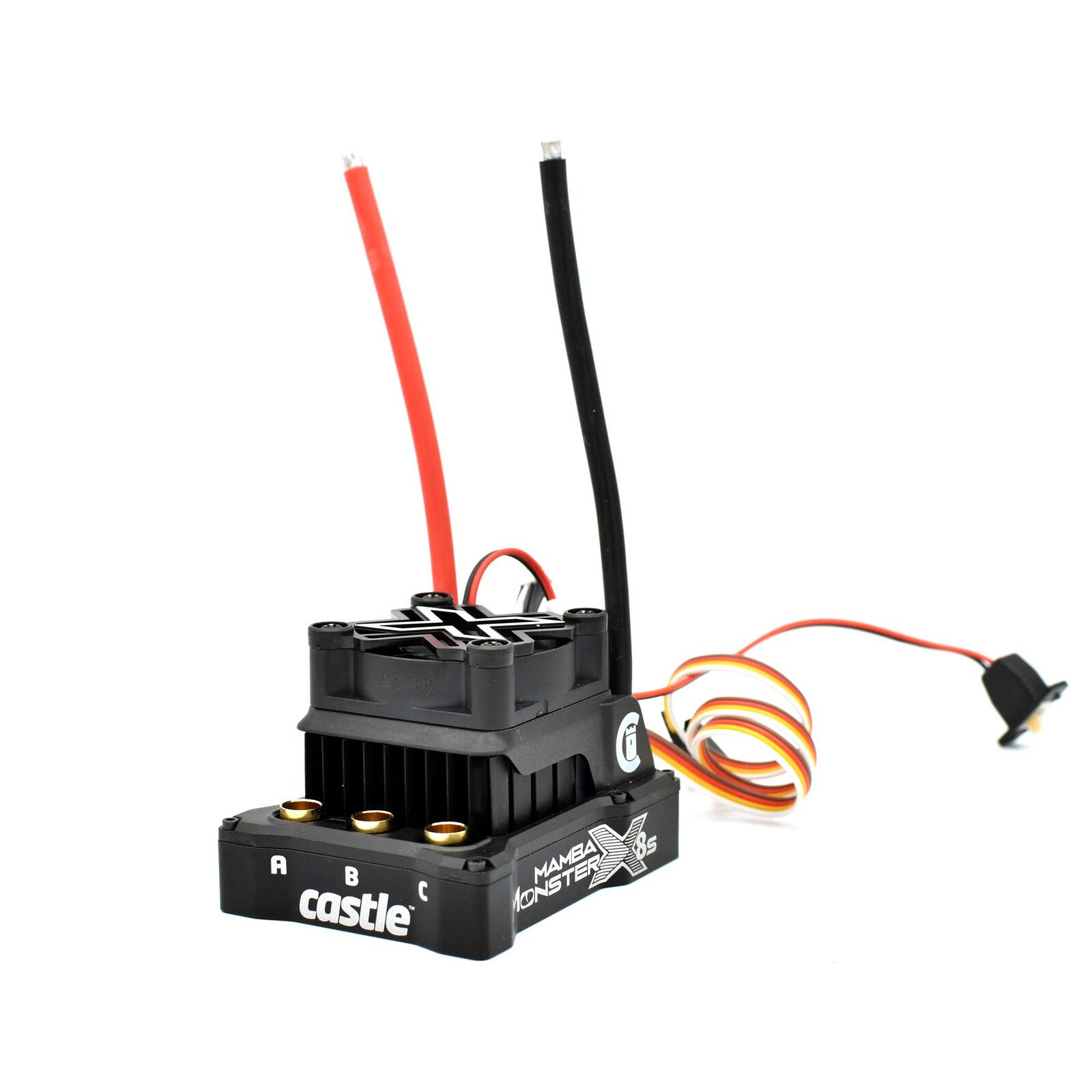

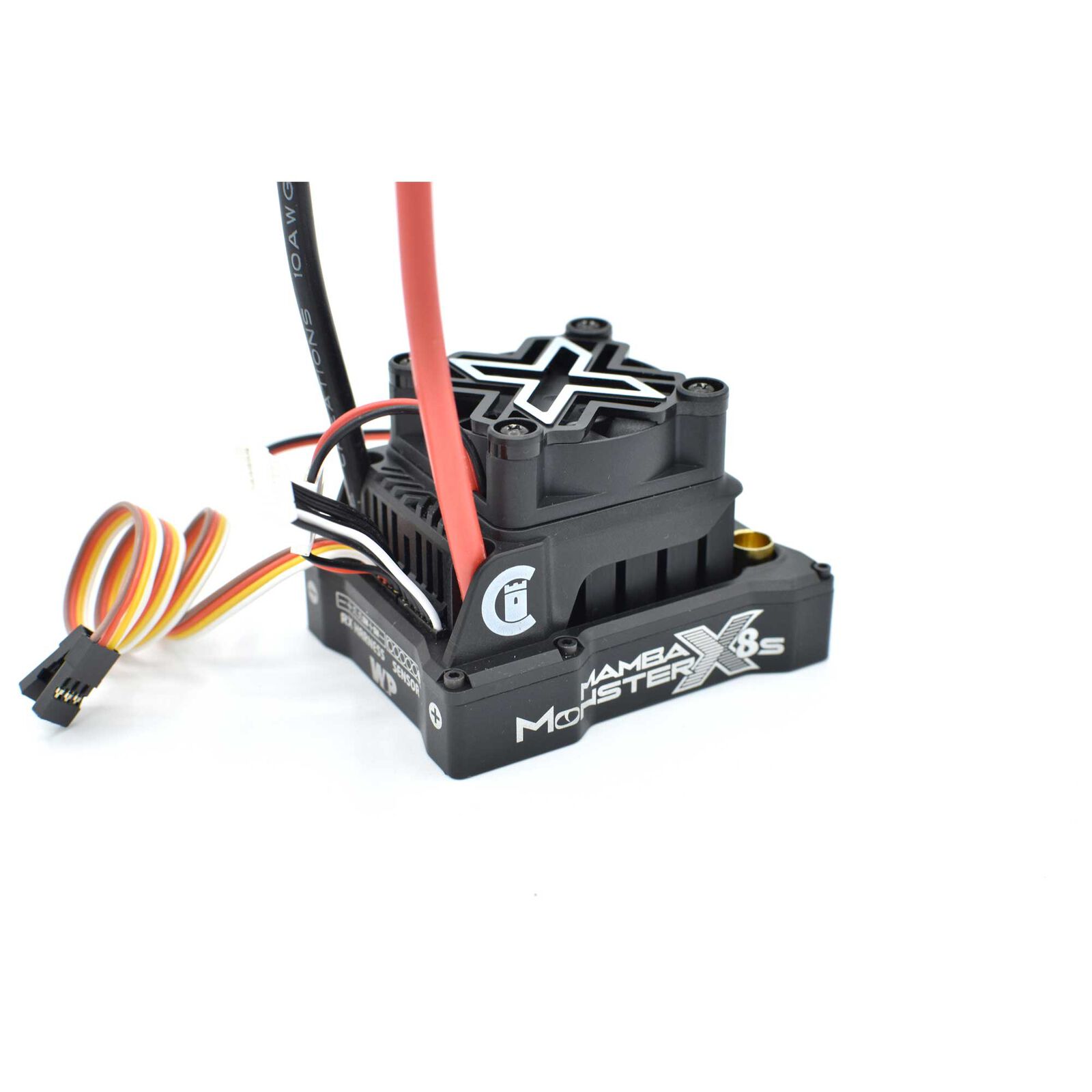

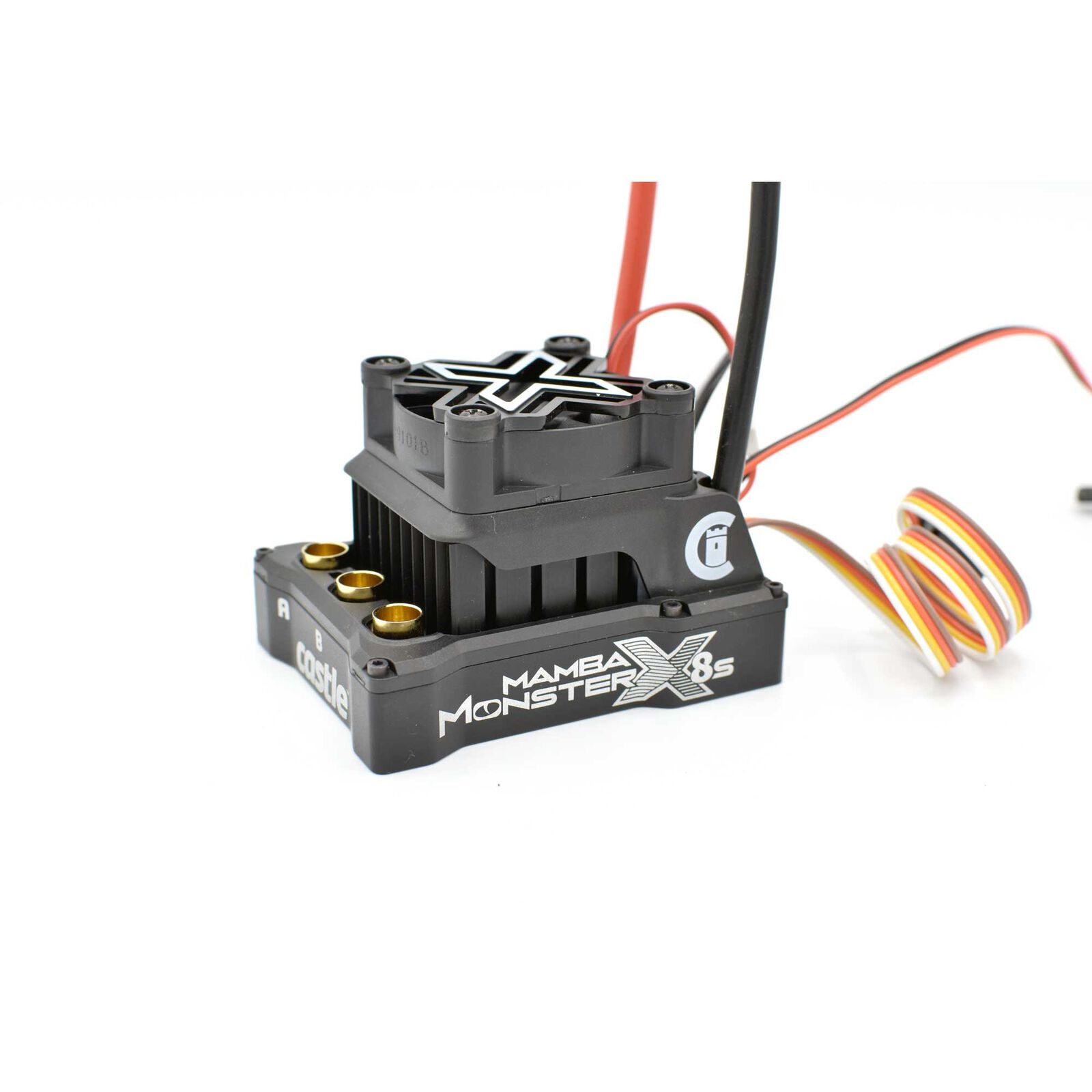

Name: Castle 010016500 - 1/6 Mamba Monster X 8S 33.6V Waterproof ESC 8A Peak BEC

Price: HK$ 1560.00

Buy Item

Temporary out of stock

Product Details

Features

Input voltage range 2S-8S LiPo
Sensored, Sensorless and SmartSense™ running modes
Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
Premium forged heatsink with elliptical fins for superior airflow and increased heat dissipation
Oversized factory equipped thermally controlled 40mm fan
Waterproof design for all weather conditions
ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the components and promote efficient heat transfer
Data-logging capability to capture and record performance data from your vehicle

Auxiliary wire functionality for “on the-fly” adjustments using your transmitter
Audible alerts for easy diagnosis of possible issues such as motor over-temperature and low voltage cutoff.
Convenient transmitter programming for six adjustable settings such as cutoff voltage and drag brake.
Easily tune and update ESC with USB and Bluetooth™ programming options.
- Castle Link USB programming kit (coupon included with purchase)
- Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store.
Proudly designed and manufactured in Olathe, Kansas USA and backed by Castle Creations’ 1-year warranty

Overview

CRYO-DRIVE™, Castle’s latest break-through technology, minimizes the amount of time the ESC’s electrical components spend generating heat. These software advancements work in parallel with a unique open housing design to allow increased directional airflow to cool critical components. With the integration of a 40mm fan and a forged elliptical fin heatsink, the new design maximizes airflow through the system, taking thermal performance to a whole new level. The results are cooler ESC temperatures, increased runtime and more power handling.

Needed to Complete

A high current connector designed for high-powered electric systems, rated for 100+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.

What's in the Box?

(1) 1/6 Mamba Monster X 8S 33.6V Waterproof ESC 8A Peak BEC
(1) Product Manual

Product Specifications

Battery Input Lead	None
BEC	Yes
BEC Maximum Burst Current	8A Peak
BEC Type	Adjustable
BEC Voltage	Adjustable, 5.5V default
Brakes	Proportional
Connector Type	6.5mm Bullet
Input Voltage	7.4 - 33.6V (2S - 8S)
Low-Voltage Cutoff Programmable	Yes
Overload Protection	Yes
Product Height	1.8" (47mm)
Product Length	2.7" (69.5mm)
Product Weight	5.75oz (163g)
Product Width	2.1" (54.1mm)
Programmable	Yes

Instruction Manual

Castle Creations Mamba X Driving Guide

Mamba Monster X 8S Quick Start Guide - English
