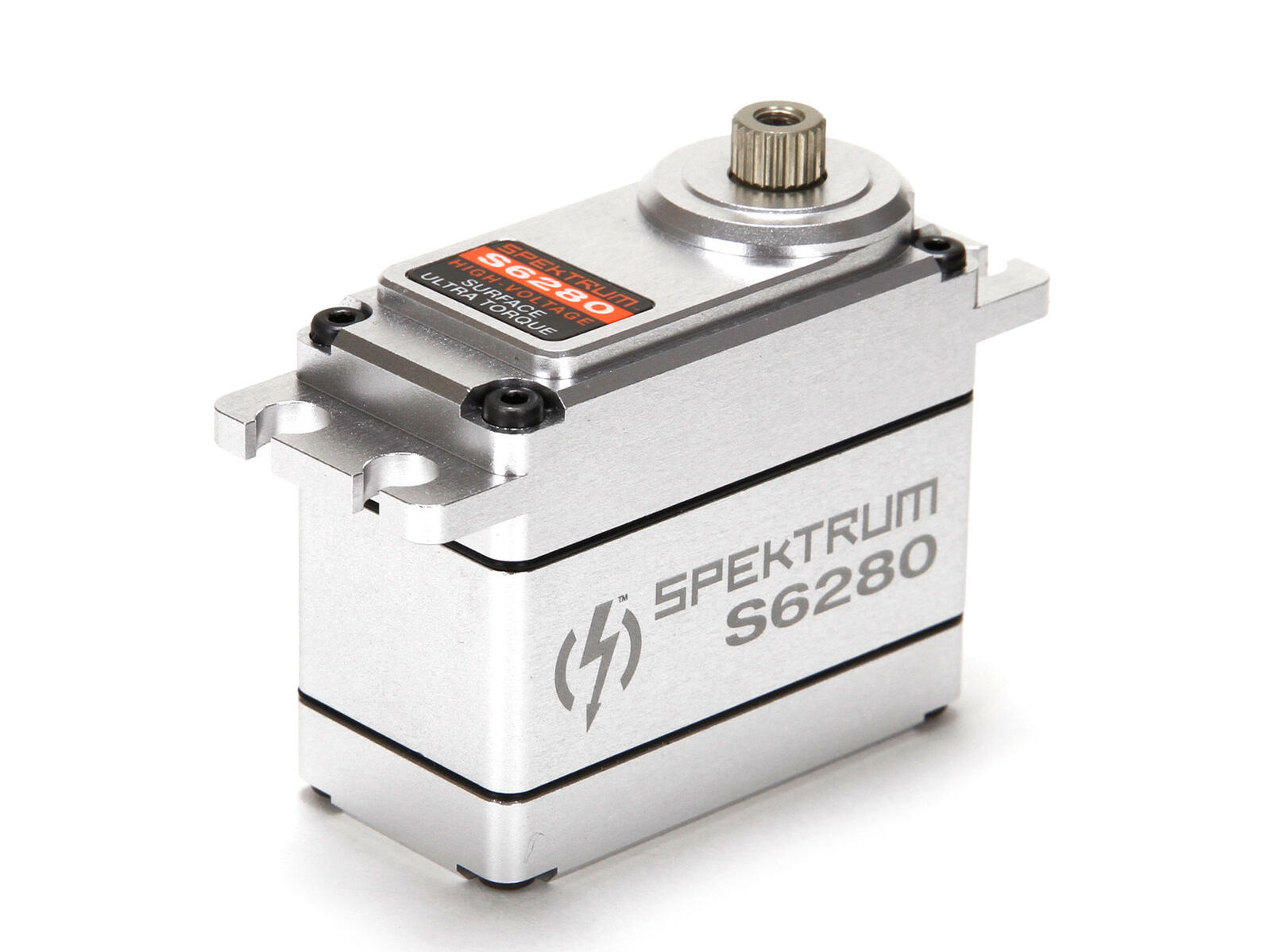

Name: Spektrum SPMSS6280 - S6280 Standard Digital HV Ultra Torque High Speed Waterproof Metal Gear Surface Servo

Price: HK$ 1160.00

Buy Item

Key Features

Removable wire harness with different lengths available
7075 Aluminum hard anodized output shaft/main gear with steel internal gears
Aluminum case for good heat dissipation
Aluminum mounting tabs
NMB dual main bearings
23T output shaft
Waterproof
1-Year Limited Warranty

Overview

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

Product Specifications

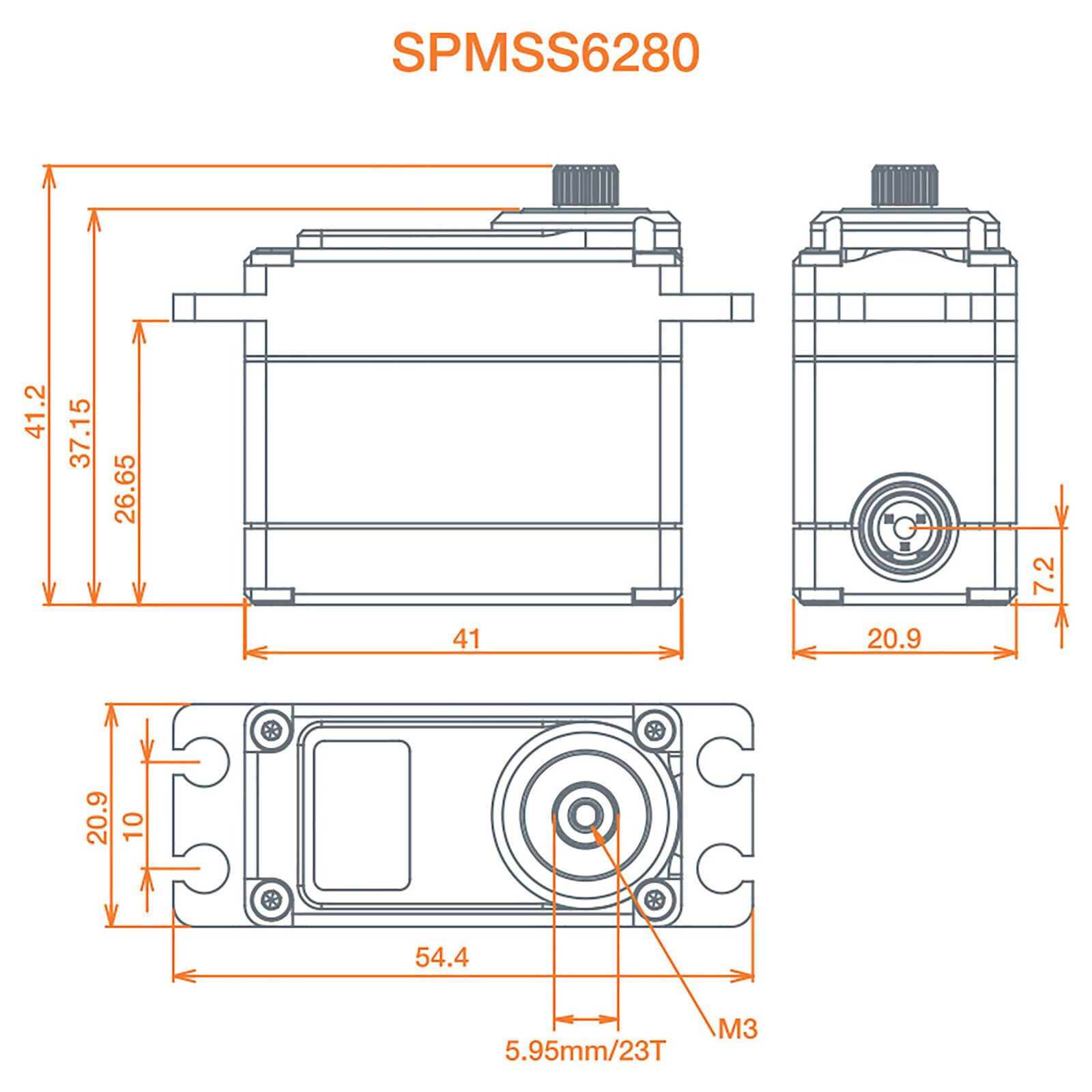

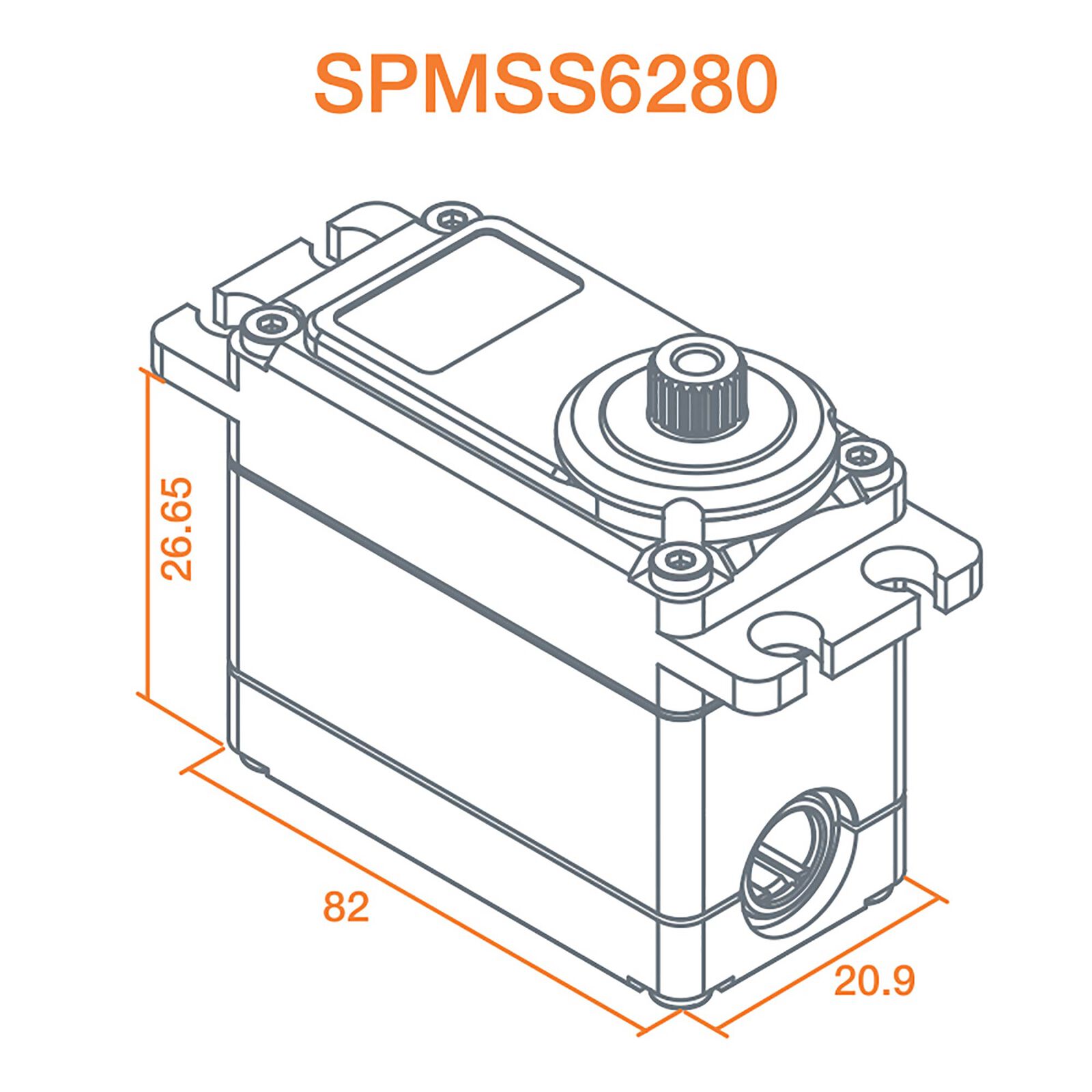

Product Height	1.38 in (35.1mm)
Servo Type	Digital
Bearing	Dual
Bushing Or Bearing	Bearing
Gear Type	Metal
Maximum Servo Speed	0.100-0.149 sec
Maximum Servo Torque	364 oz-in (26.2kg-cm) @ 6V; 440 oz-in (31.7kg-cm) @ 7.4V; 496 oz-in (35.7kg-cm) @ 8.4V
Product Length	1.61 in (41mm)
Programmable	No
Servo Size Category	Standard
Current Draw Stall	4900mA @ 6.0V
Servo Operating Voltage	6.0 - 8.4V (HV)
Current Draw Idle	10.2mA @ 6.0V
Product Width	0.82 in (20.8mm)
Application	1/8 Off-Road
Max Servo Torque	350-499 oz-in
Product Weight	2.8 oz (79.4g)
Spline Count	23 Teeth
