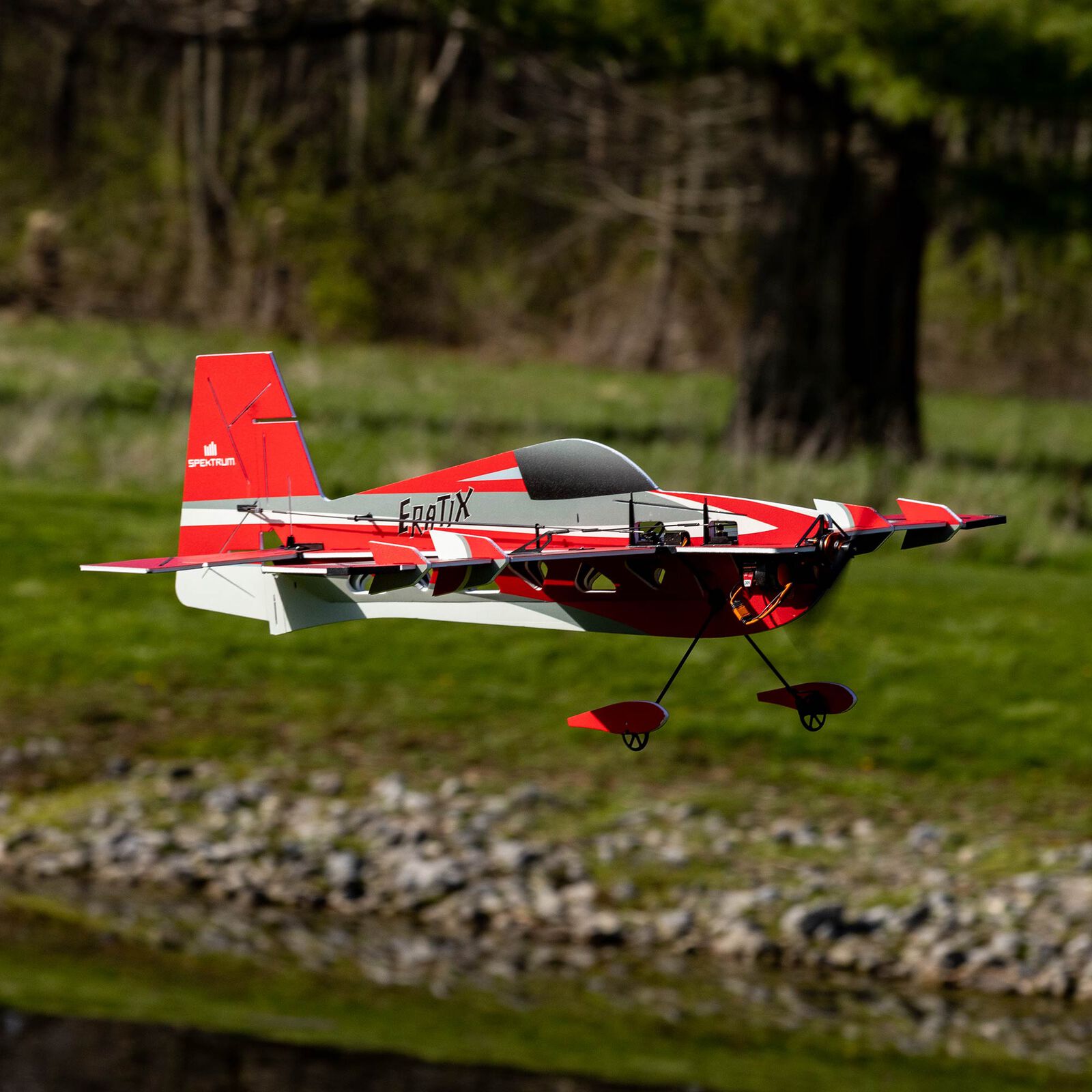

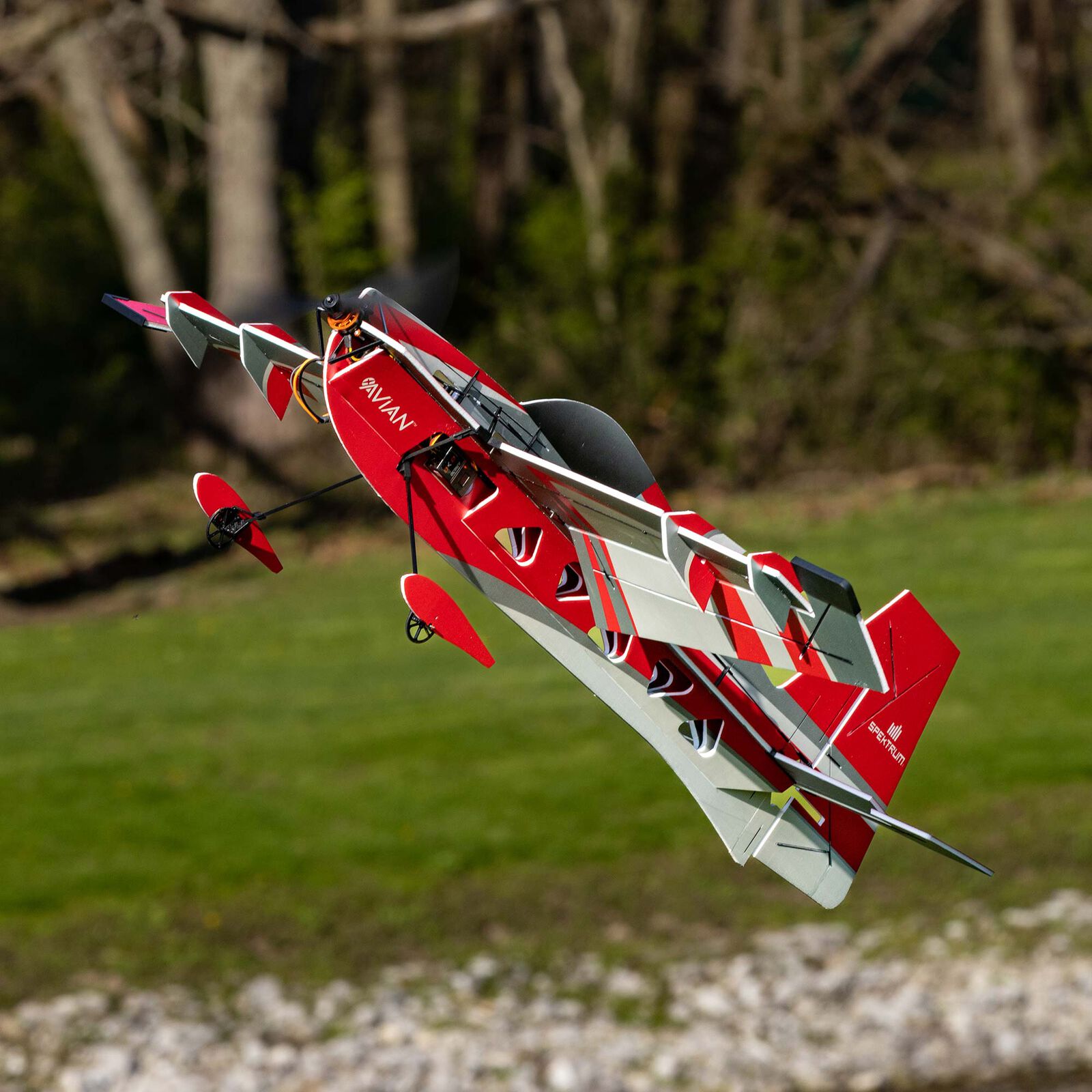

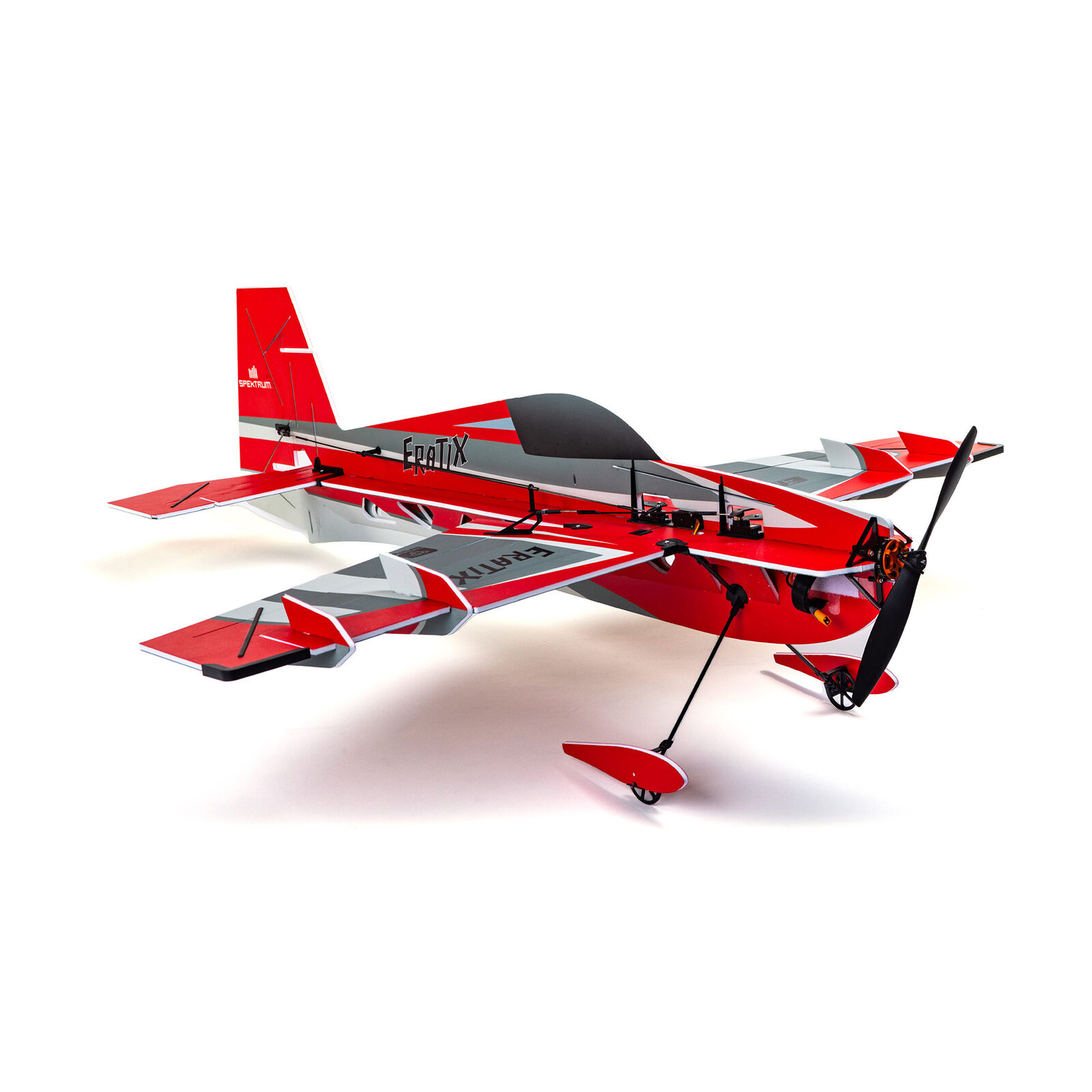

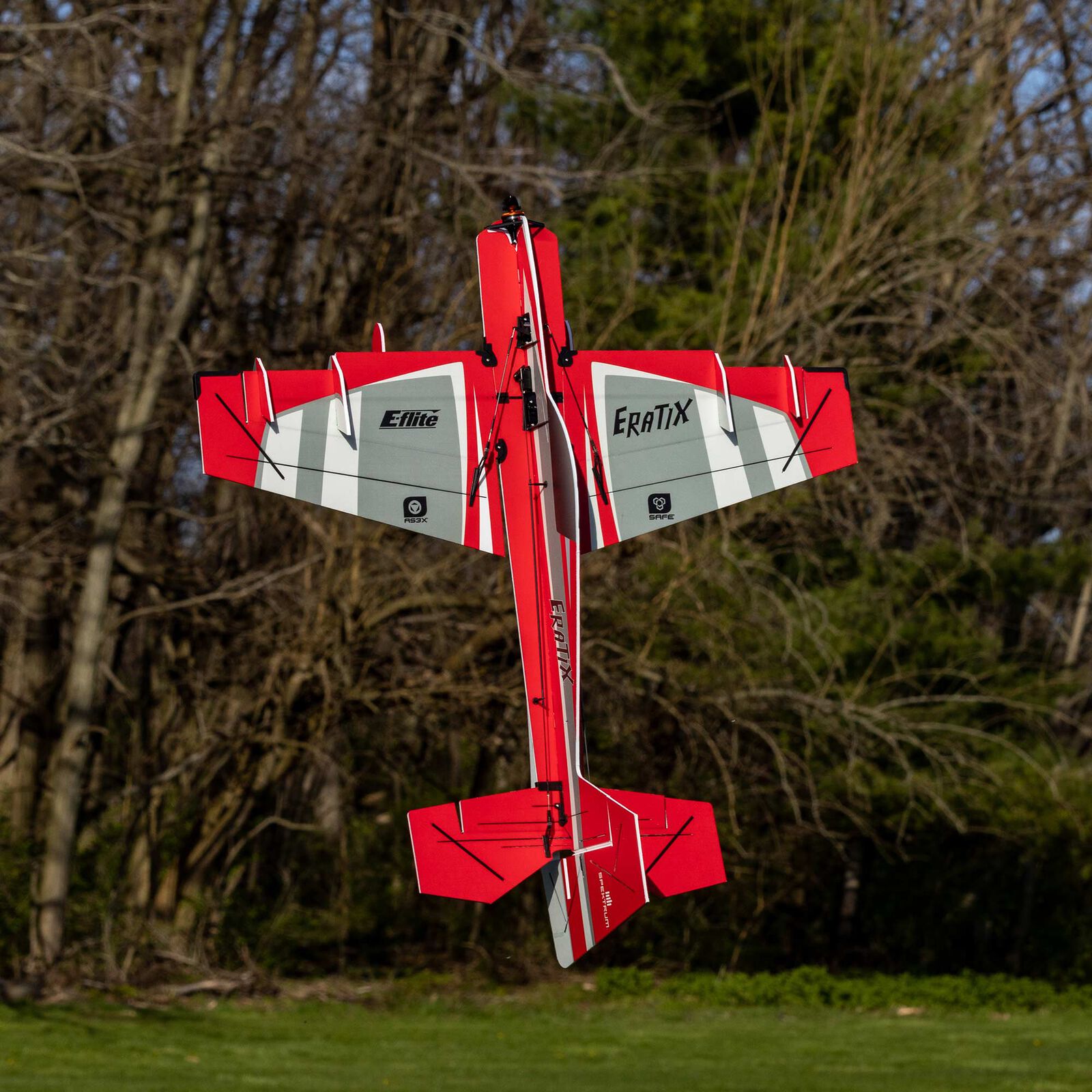

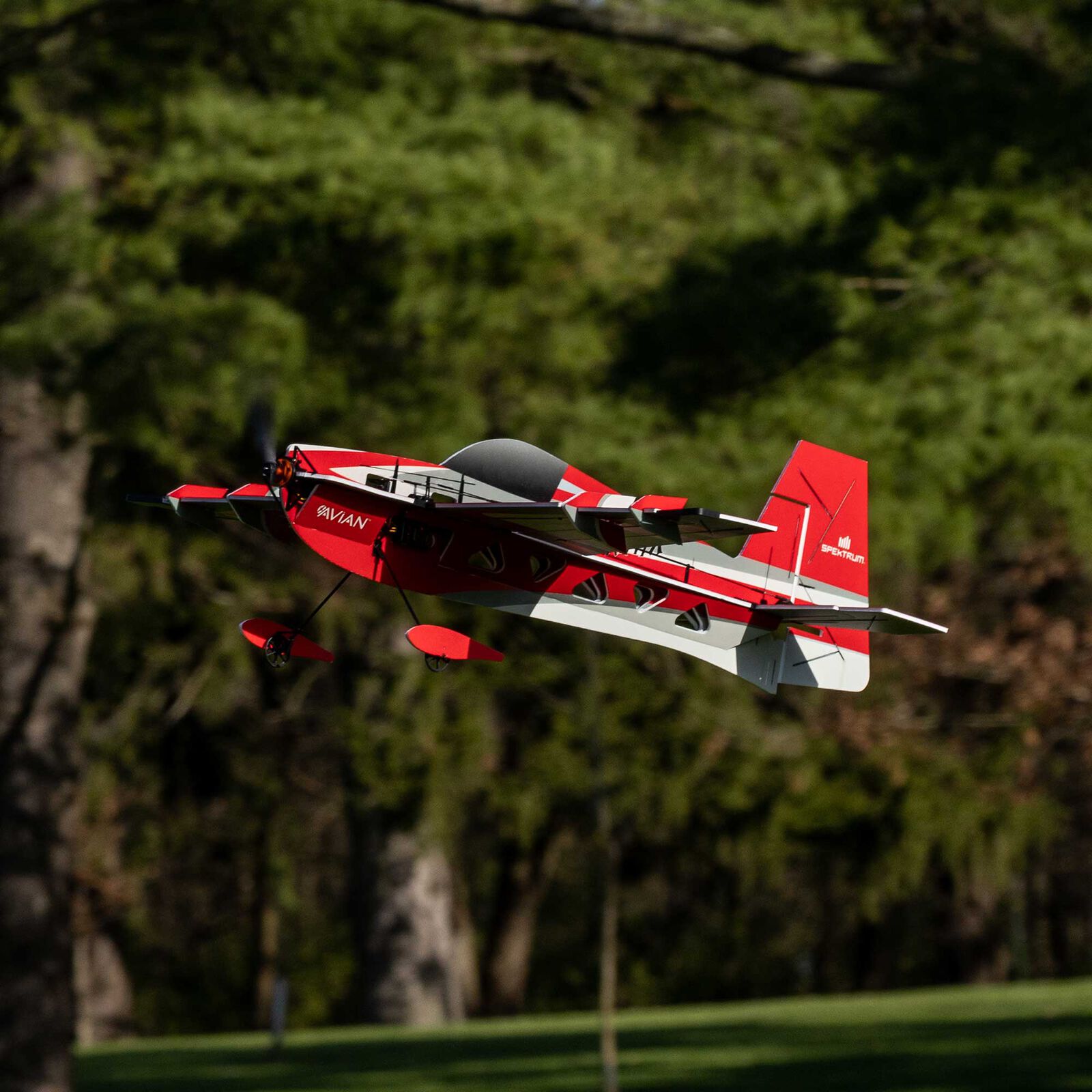

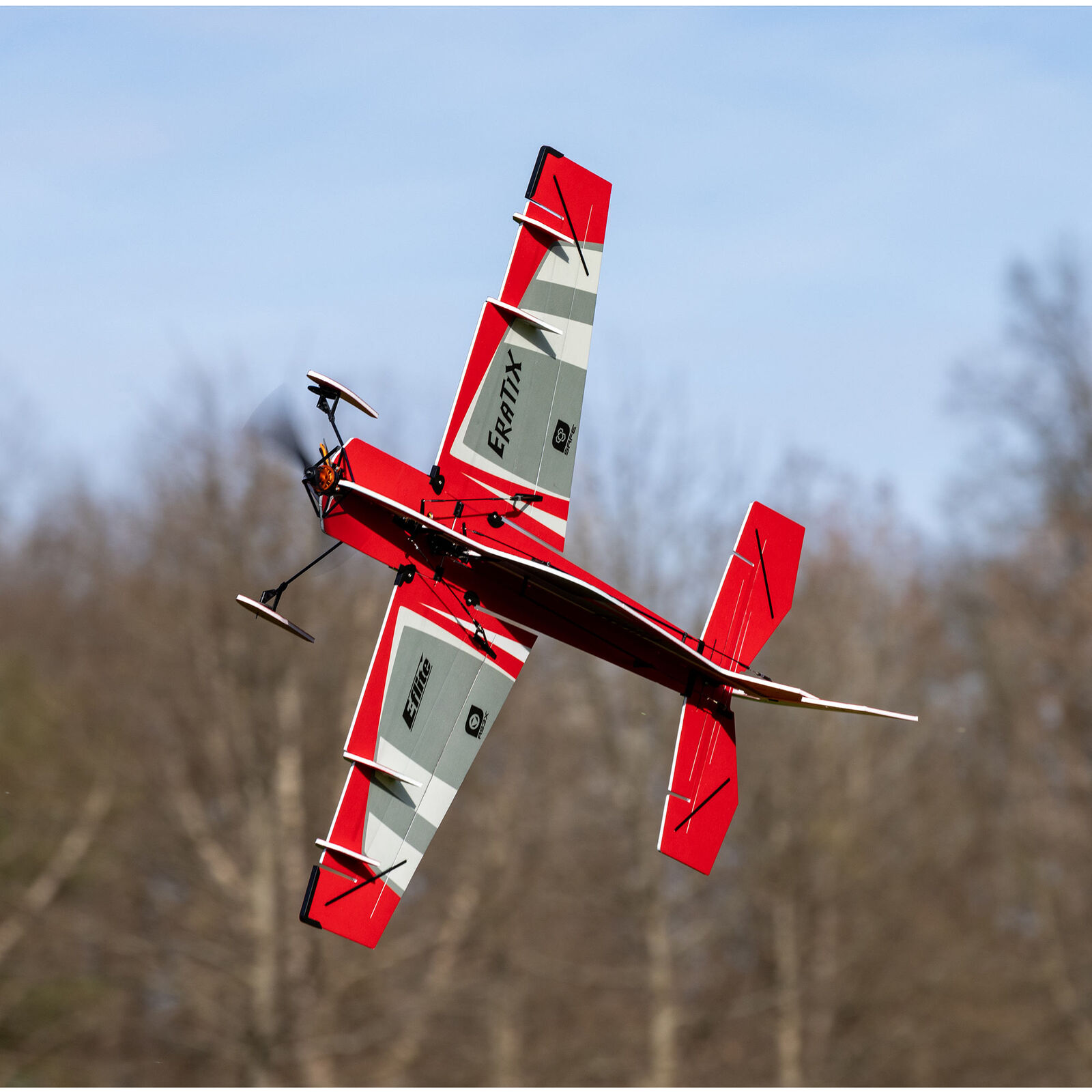

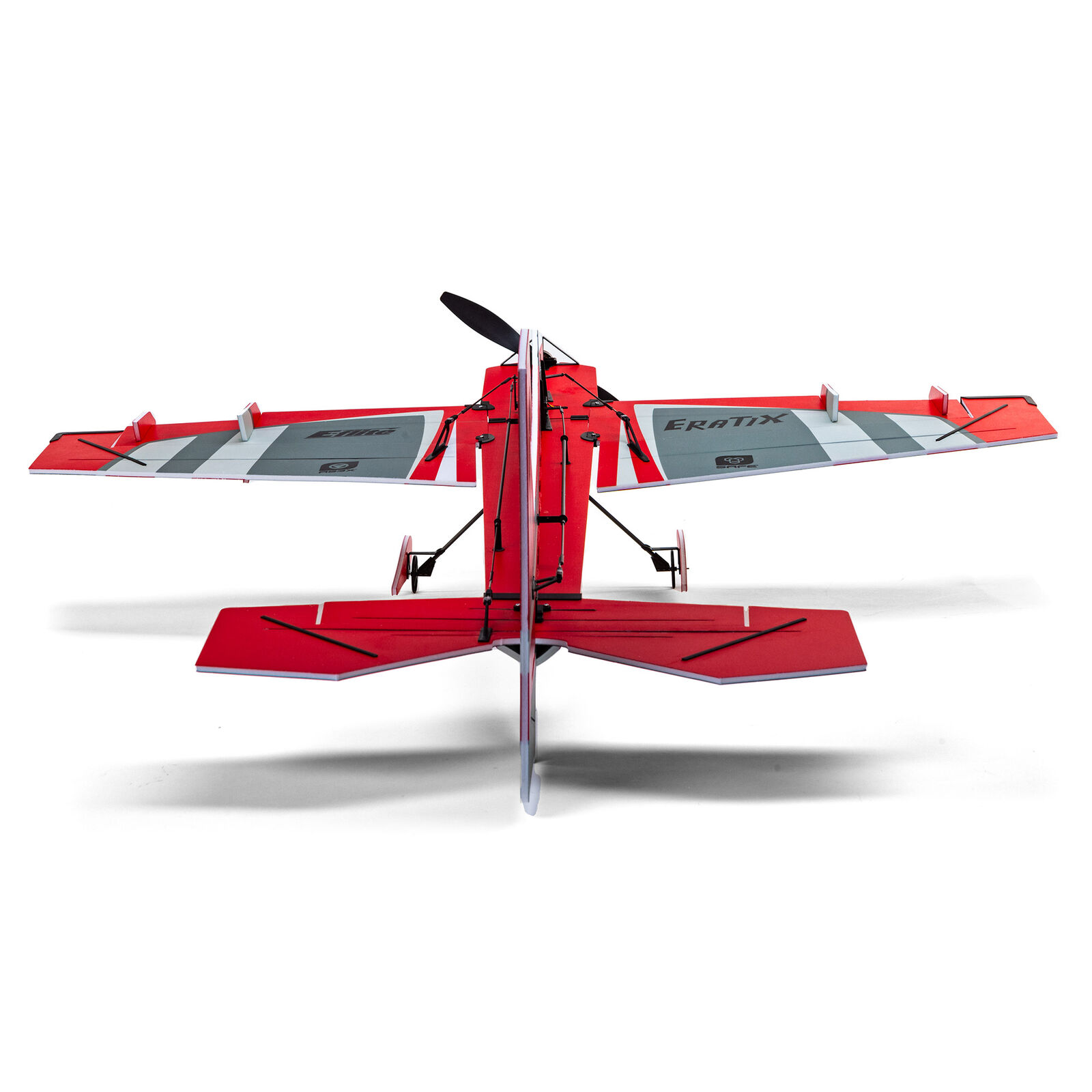

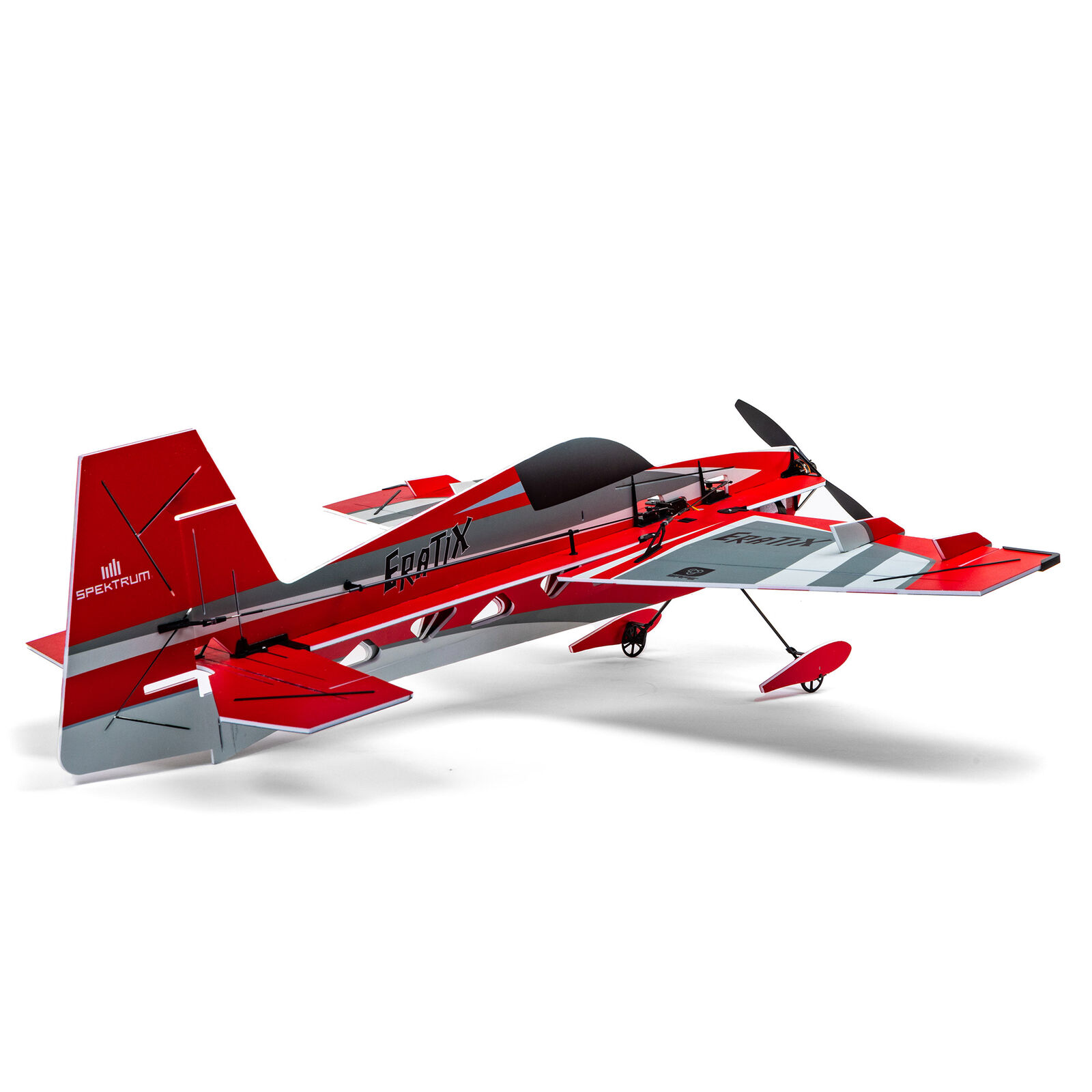

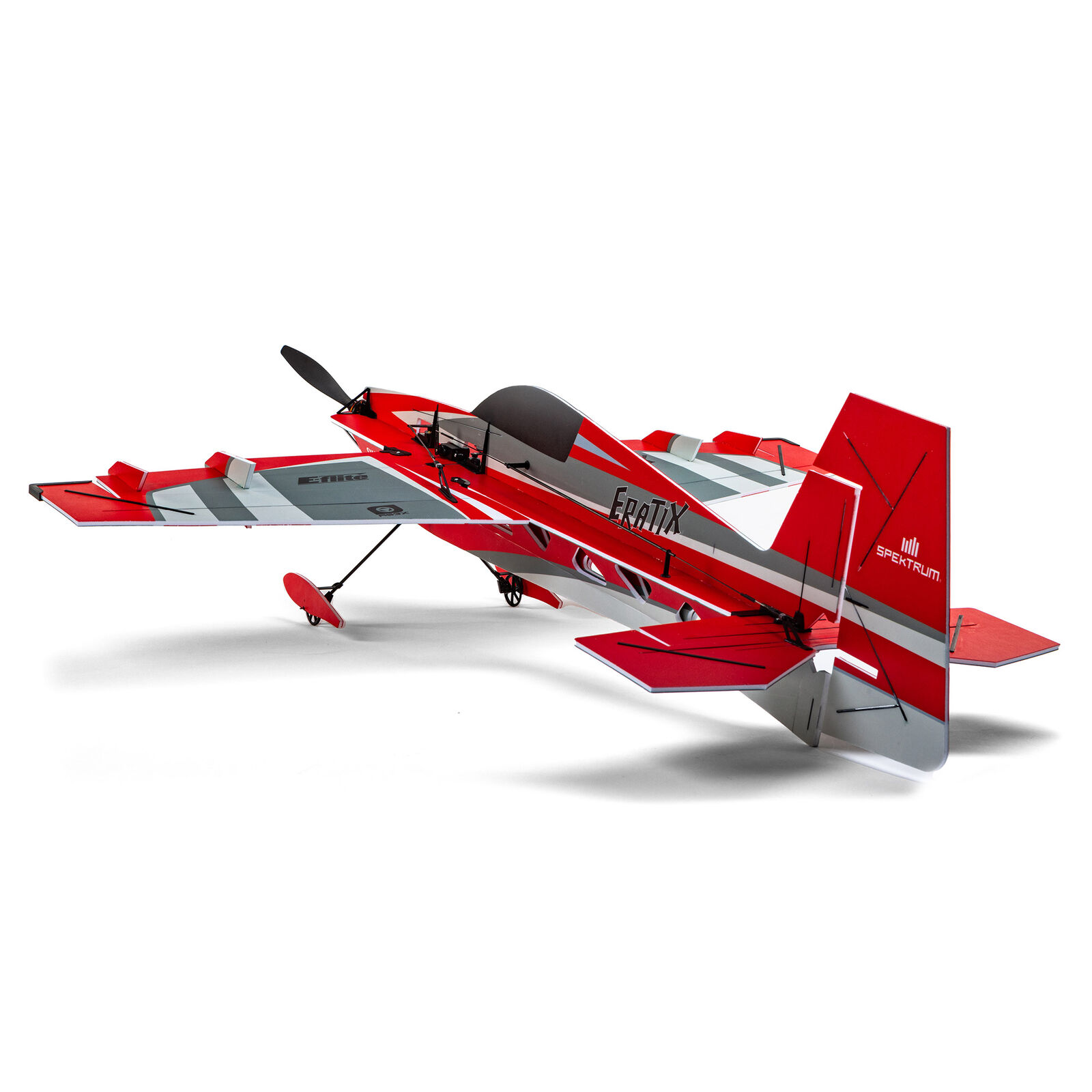

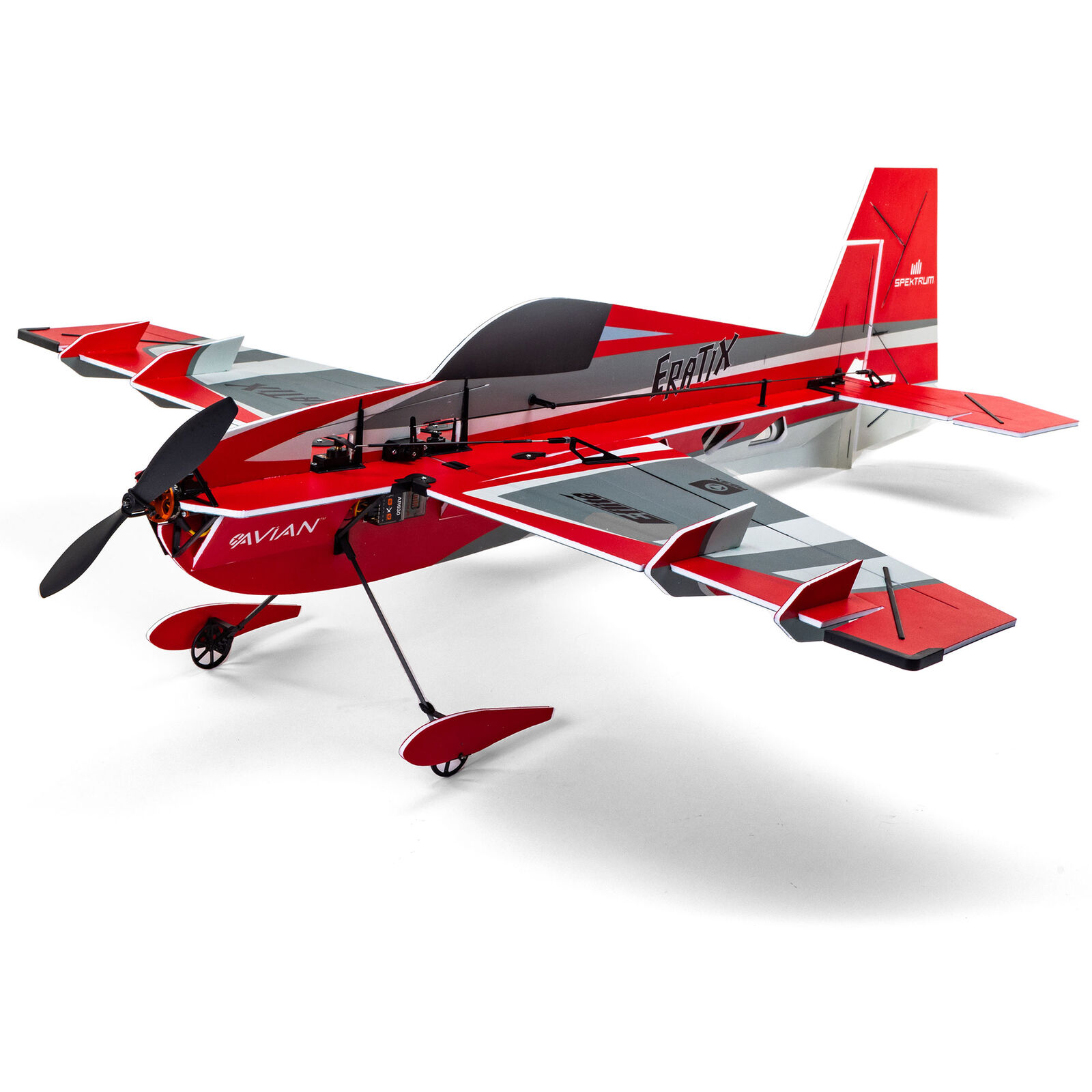

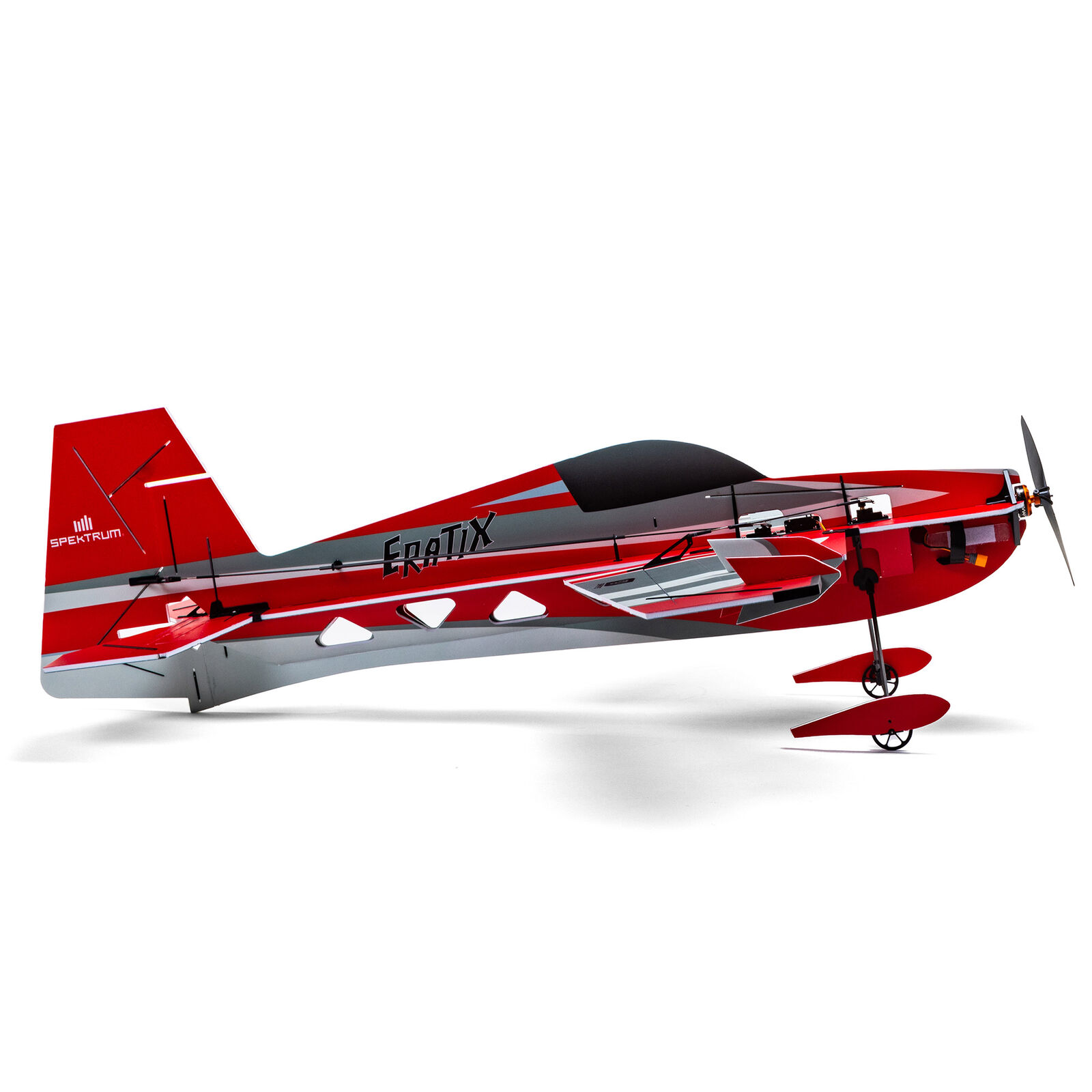

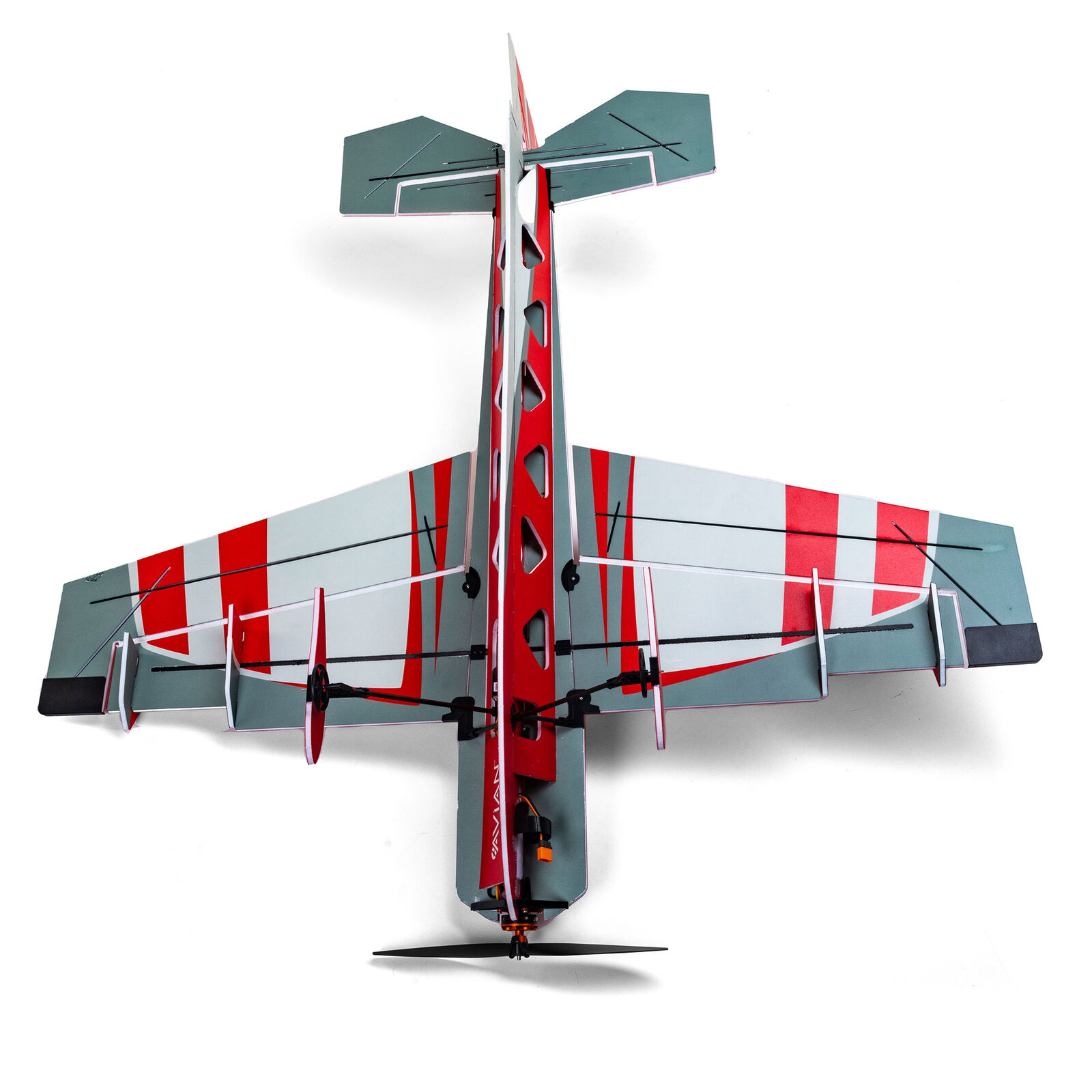

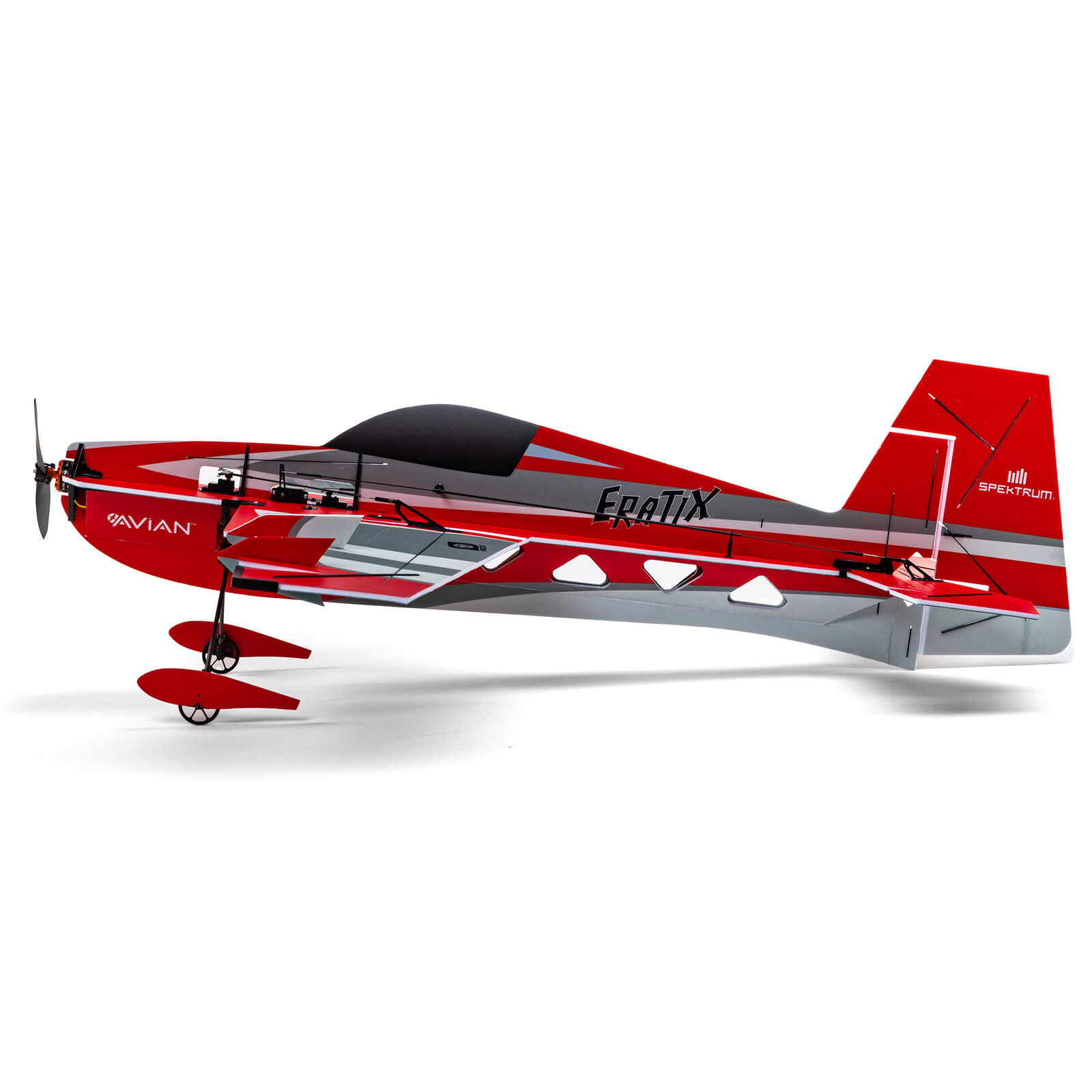

Name: E-flite EFL01950 - Eratix 3D FF (Flat Foamy) 860mm BNF Basic with AS3X and SAFE Select
Price: HK$ 1980.00
Buy Item
  Temporary out of stock

The E-flite® Eratix 3D FF offers the aggressive aerobatic plus smooth sport and slow-flying performance of similar class models – without all the hassles of buying components for and building one because it bolts/snaps together in no time!



Product Details

In The Box



  • (1) E-flite® Eratix 3D FF 860mm
  • (1) Spektrum™ Avian™ 15A Brushless Smart ESC (installed)
  • (1) Spektrum™ Avian™ Brushless Outrunner Motor (installed)
  • (3) Spektrum Sub-Micro Digital Servos (installed)
  • (1) Spektrum AR630 Receiver (installed)
  • (1) Product Manual

Needed to Complete



  • (1) Full-range 5+ channel Spektrum™ DSMX®/DSM2® compatible transmitter
  • (1) 3S 11.1V 600–850mAh LiPo with IC2 Connector (or JST-RCY connector plus a suitable IC2 to JST-RCY adapter)
  • (1) Compatible LiPo charger

Video Overview



Programming Guide

  • The easiest to buy, assemble and fly flat foamy model yet – capable of slow cruising, sport flying, basic and all-out 3D aerobatics
  • Specially tuned brushless motor that’s factory-installed and ready for use with popular 3S 600–850mAh batteries
  • 15-amp Spektrum Avian™ Smart ESC provides real-time battery voltage, current, RPM, and other data via compatible receivers and transmitters
  • Spektrum™ AR630 receiver with fly-by range telemetry and industry-leading DSMX® technology
  • Fast and easy assembly, unlike similar class models – no glue or tape required
  •
  • Features

  • The easiest to buy, assemble and fly flat foamy model yet – capable of slow cruising, sport flying, basic and all-out 3D aerobatics
  • Specially tuned brushless motor that's factory-installed and ready for use with popular 3S 600–850mAh batteries
  • 15-amp Spektrum Avian Smart ESC provides real-time battery voltage, current, RPM, and other data via compatible receivers and transmitters
  • Spektrum AR630 receiver with fly-by range telemetry and industry-leading DSMX® technology
  • Easier to fly with innovative and optional-use SAFE® Select flight envelope protection
  • The unmatched stability and locked-in feel of exclusive AS3X® technology
  • Compatible with the Spektrum DXS transmitter included with many of the most popular E-flite® and HobbyZone® trainer airplane models
  • Extremely durable yet lightweight, high-density EPP airframe with carbon fiber and composite reinforcements
  • Three factory-installed digital servos and linkages, including a metal-geared aileron servo
  • Factory-finished in a high-contrast, high-visibility trim scheme for excellent orientation
  • Fast and easy assembly, unlike similar class models – no glue or tape required
  • Landing gear snaps into place for easy installation, removal, and replacement
Exclusive Technologies

The Bind-N-Fly® (BNF®) Basic version Eratix 3D FF 860mm features exclusive Spektrum AS3X® and SAFE® Select technologies. AS3X works behind the scenes to smooth out the effects of wind and turbulence to deliver a locked-in feel that makes it seem like you're flying a much larger airplane. Optional-use SAFE Select offers pitch and bank angle limits and automatic self-leveling that can be turned on and off at the flip of a switch to make this the easiest to fly flat foamy yet

Bind-N-Fly<sup>®</sup> Completion Level Advantage

Bind-N-Fly® Completion Level Advantage

Already own a Spektrum transmitter? Bind-N-Fly® (BNF®) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos, and a Spektrum 2.4GHz receiver installed, so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly!

Smart Technology

Smart Technology

The Eratix 3D FF is equipped with an exclusive Spektrum Avian Smart ESC that can provide a variety of real-time power system-related telemetry data, including motor RPM, current, battery voltage, and more – with Smart and non-Smart batteries – via compatible receivers (including the AR630) and Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6, 8 and 10, iX12, iX14, iX20, and others) while you fly.

High Performance

High Performance

The factory-installed brushless power system features a specially-tuned outrunner motor. This power system delivers plenty of thrust for unlimited vertical and 3D performance with 3S batteries! Use 600mAh batteries to keep the weight down, or up to 850mAh batteries for longer flight times.

Uniquely Capable

Uniquely Capable

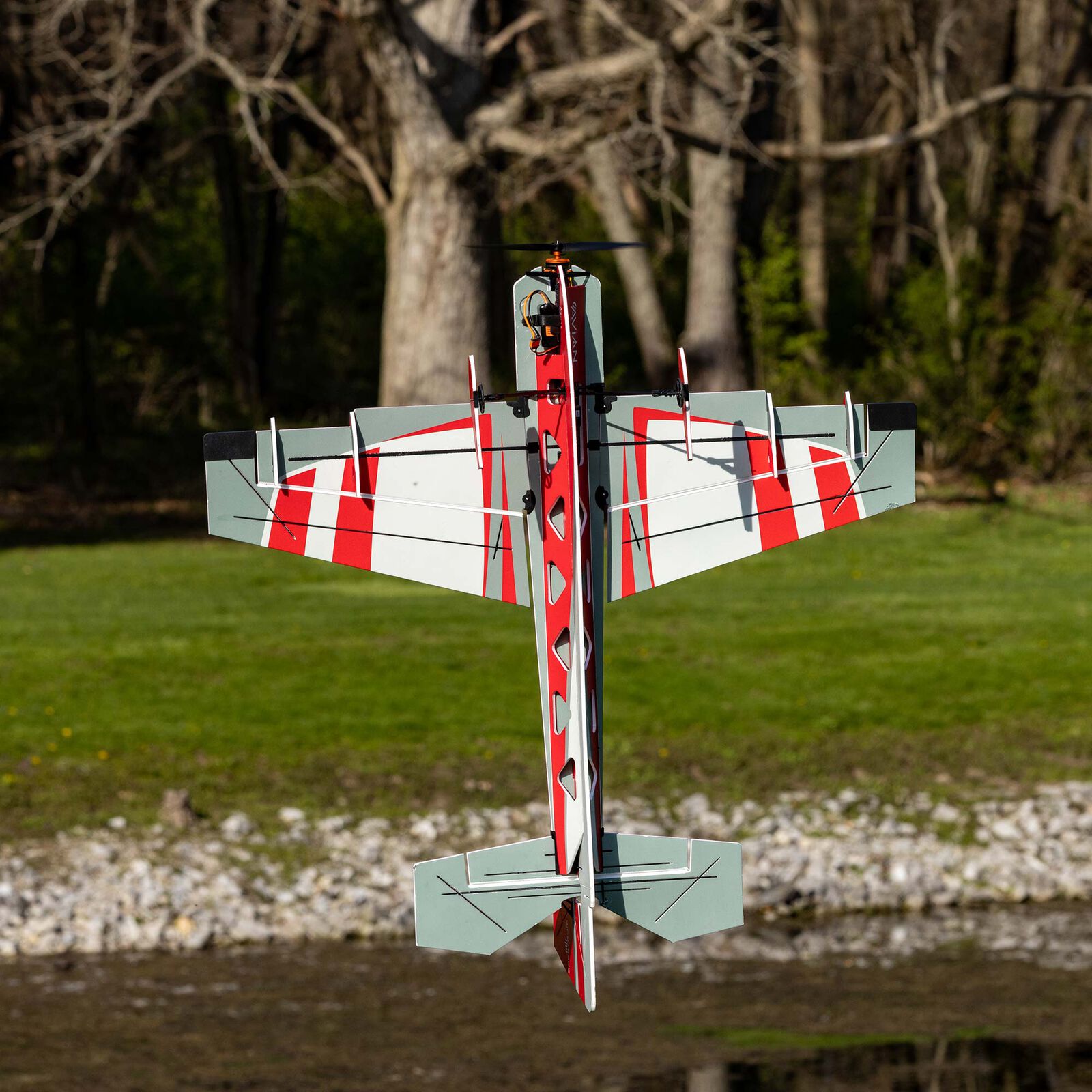

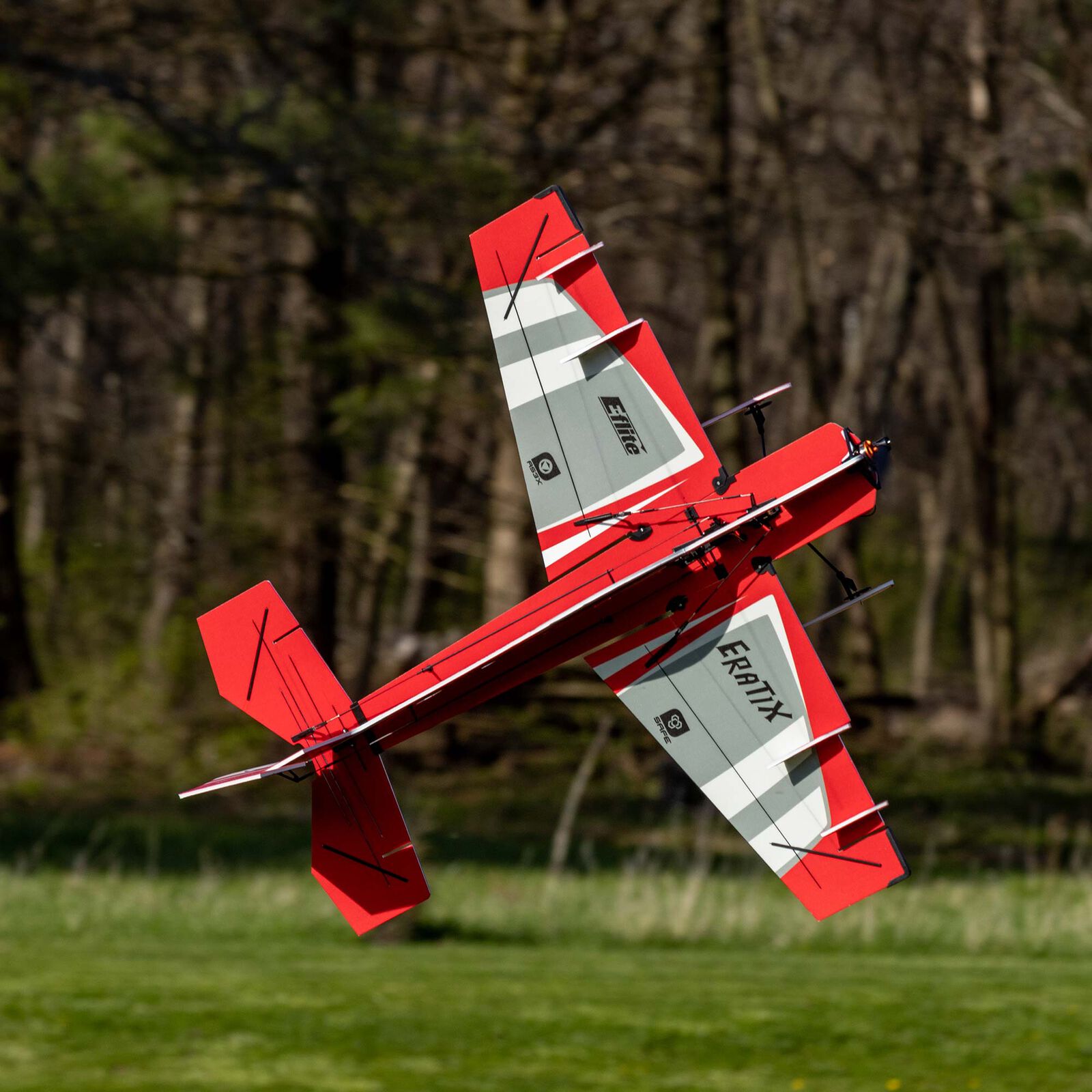

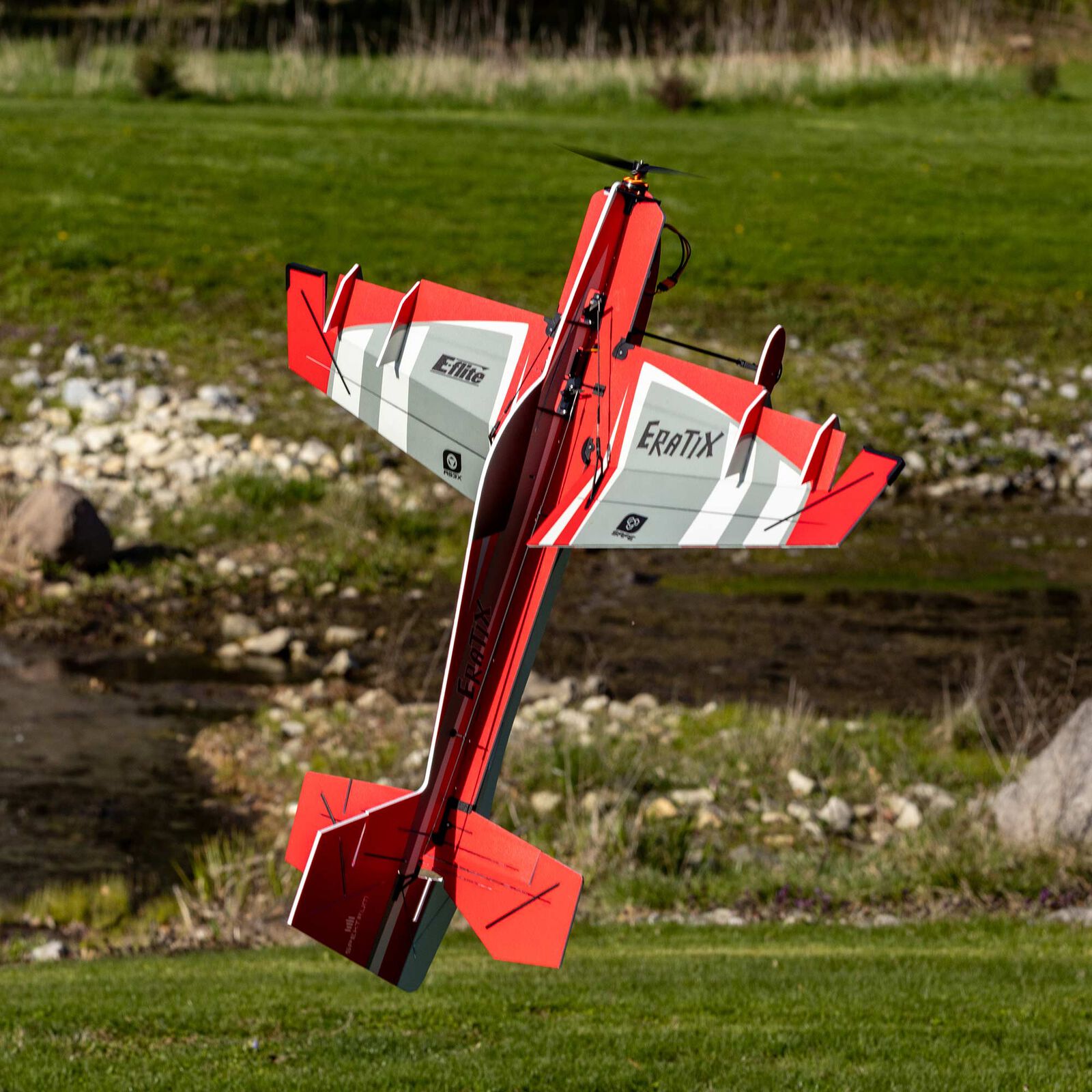

Like other flat foamy models, the Eratix 3D FF is capable of slow cruising, smooth sport flying, basic aerobatics, and even aggressive 3D flying — all in the same flight! It offers a truly "mild to wild" flight experience intermediate to experienced pilots will appreciate whether flying indoors in gymnasiums or outdoors in yards, parks, sports fields, and beyond.

Easy Assembly

Easy Assembly

Unlike other similar flat foamy models only available as kits without power and control components, the Eratix 3D FF arrives factory-assembled with the power system, servos, and the receiver (BNF Basic version only) installed. All you need to do is finish some quick and easy final bolt/snap-together assembly – without glue, tape, or special tools – and you'll be ready to fly in less time than it takes to charge a battery!

Durable Design

Durable Design

Construction with carbon fiber and composite-reinforced, high-density EPP delivers a lightweight yet stiff and durable airframe. In the unfortunate event you damage any airframe parts or components and can't repair them, a full line of replacement/spare parts is readily available.

Product Specs

Approximate Assembly Time Less than 1 Hour
Battery Sold Separately
Charger Sold Separately
Completion Level Bind-N-Fly Basic
Connector Type IC2
Flaps No
LiPo Compatibility 3S
Material Foam
Minimum Required Radio 4 Channels
Motor Size 2405-1200KV
Motor Type Brushless
Power Type Electric
Product Length 35.69" (907 mm)
Product Weight 13.3oz (376g)
Propeller Size 9x4.6 Electric Slow Fly
Radio Sold Separately
Receiver Included
Recommended Motor Battery 850mAh 3S 11.1V LiPo Battery with IC2 Connector
Servos Included
Skill Level Level 2
Speed Control Included
Technology Smart
Wingspan 34" (864 mm)
