PROMOTO-MX

PATENT-PENDING SPEKTRUM MS6X TECHNOLOGY

The upgraded Spektrum DX3PM transmitter and SR6300PM receiver combine with patent-pending MS6X technology for unprecedented control. Promoto-MX drivers can maintain balance at high or low speeds and over jumps and whoops, then give simple steering inputs to carve around tight berms and straighten up heading into the next rhythm section. For more aggressive driving, use the MS6X knob to increase the lean angle.

"ON THE FLY" DRIVE MODES

The DX3PM has three preprogrammed drive modes that you can toggle between "on the fly" using your thumb on the A/B rocker switch.

• Dirt Mode — Allows the Promoto-MX to pitch up enough without clipping the throttle for going up jump faces and obstacles, but helps prevent "wheelie-overs" by intuitively clipping the throttle output if the bike begins to pitch up too far.
• Street Mode — Senses when the Promoto-MX starts to pitch up and clips the throttle quickly, getting the front tire back on the ground to accelerate as much as possible.

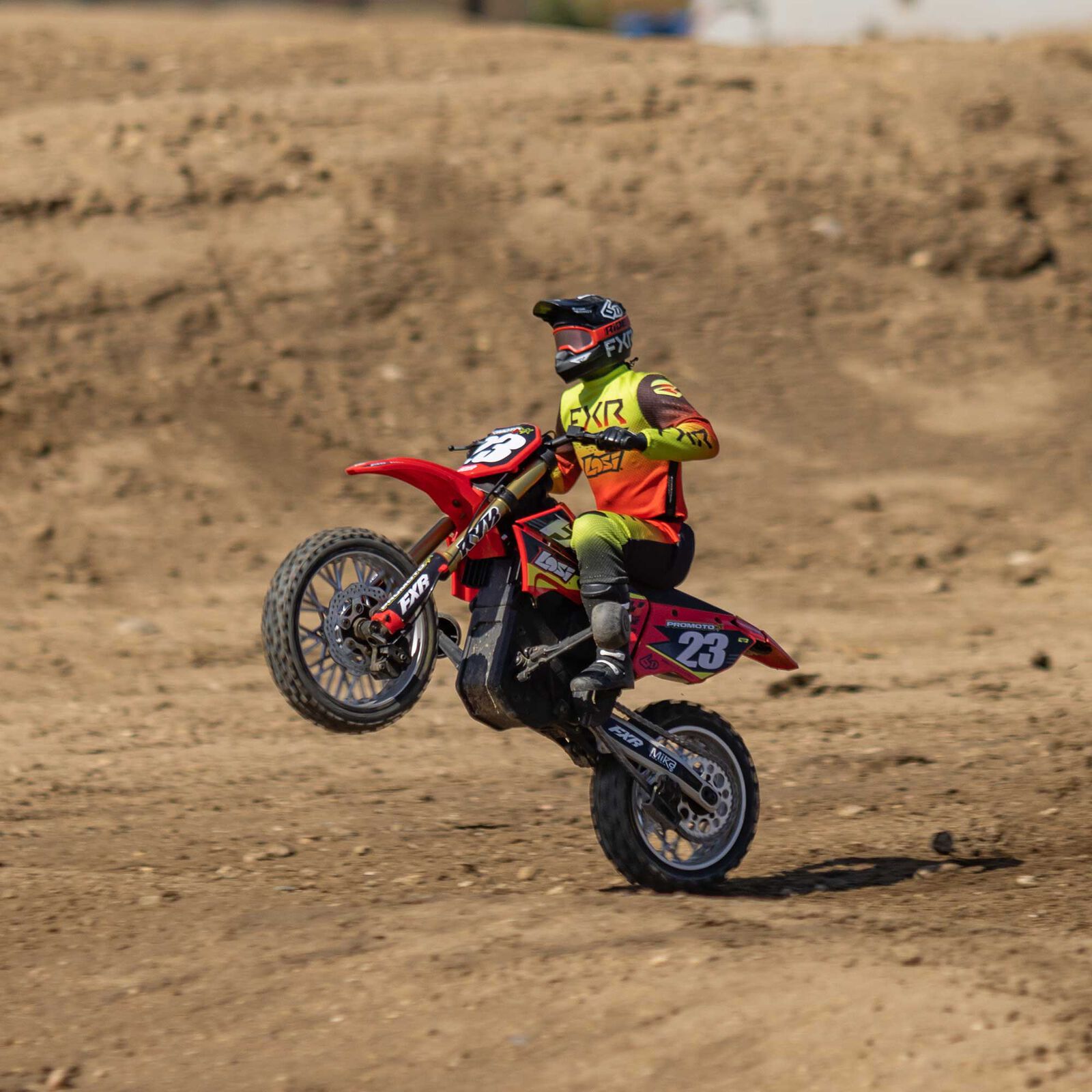

• Wheelie Control — Let 'em rip! Wheelie Control lets you hold wheelies on smooth surfaces all the way to top speed.

SMART TECHNOLOGY

How much battery life is left on your bike? You don't have to guess. LED indicators on the DX3PM transmitter show you the remaining capacity of your Spektrum Smart batteries at glance! Using Spektrum Smart Technology, the Promoto-MX stores and shares critical performance data while you run. Upgrade to the Spektrum DX5C or DX5 Pro to receive additional telemetry information in real-time, such as speed, RPM, amp draw, ESC temperature, and more.

FLYWHEEL UNIT

The gyroscopic stabilization force created by its heavy steel flywheel — spinning at over 22,000 rpm with the 2700Kv motor — does wonders for the motorcycle's stability. Mounted as low and as far forward as possible in the frame, the flywheel unit enables the Promoto-MX to pivot around its center point to improve jumping, changes of direction, and the accuracy of the bike's performance.

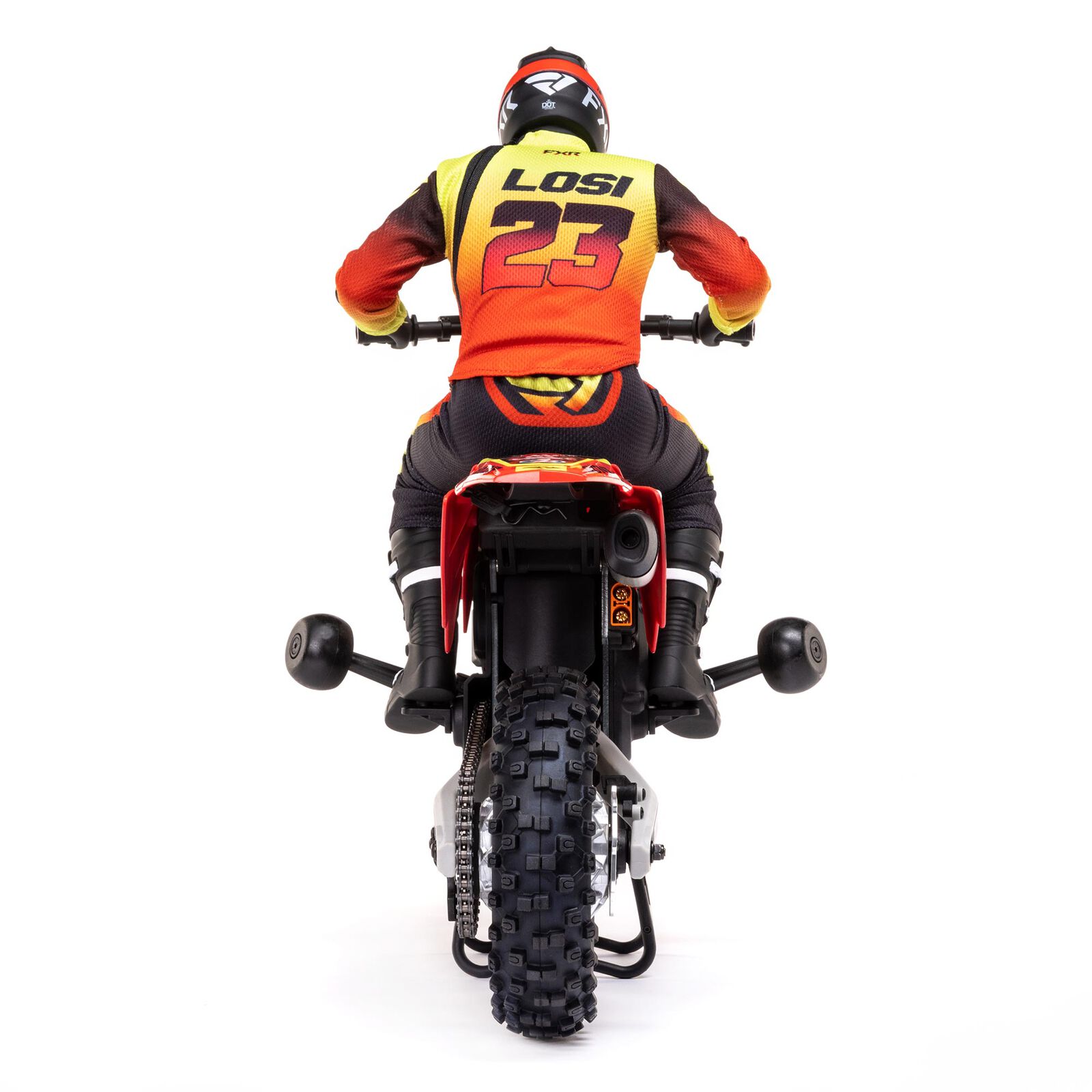

LEAN BARS

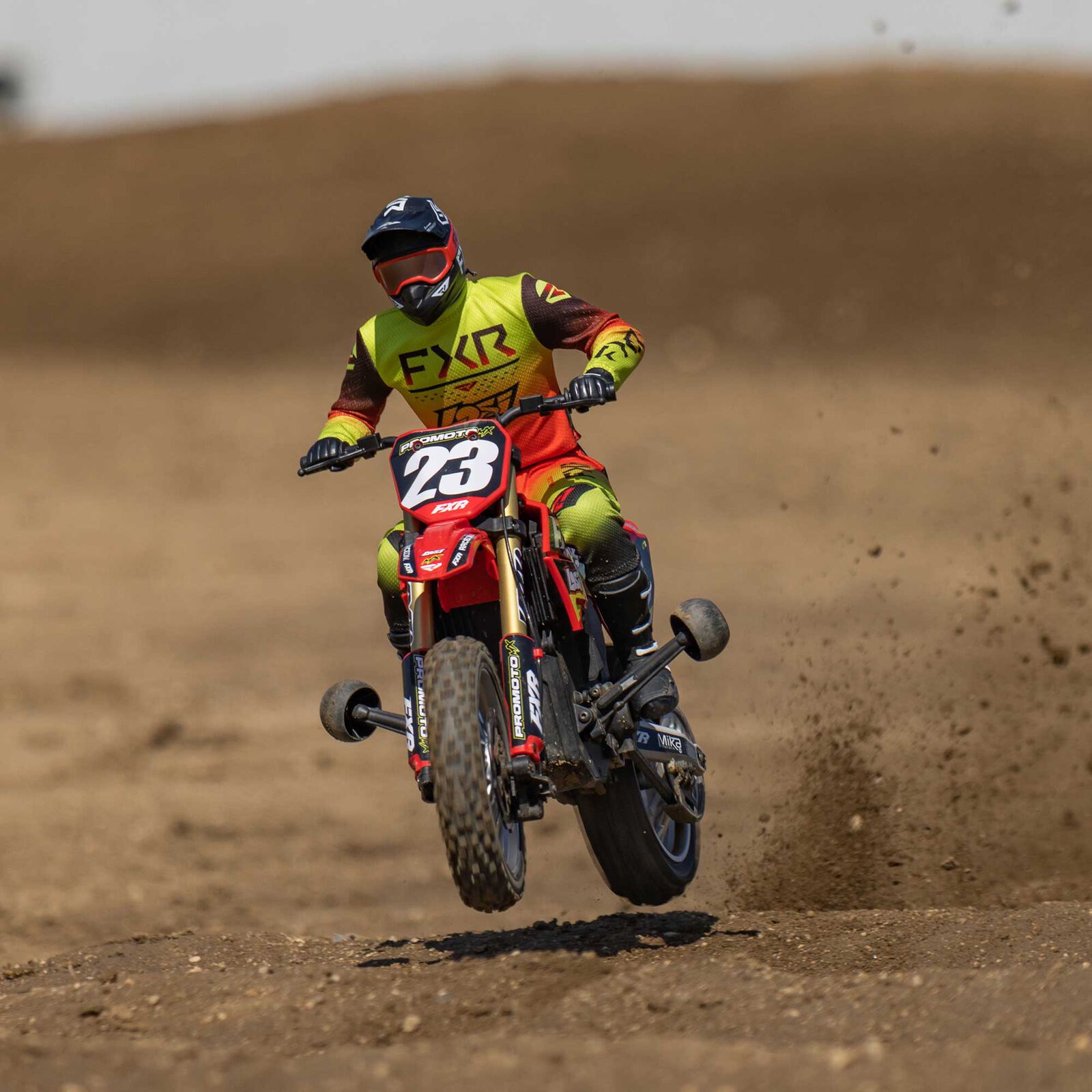

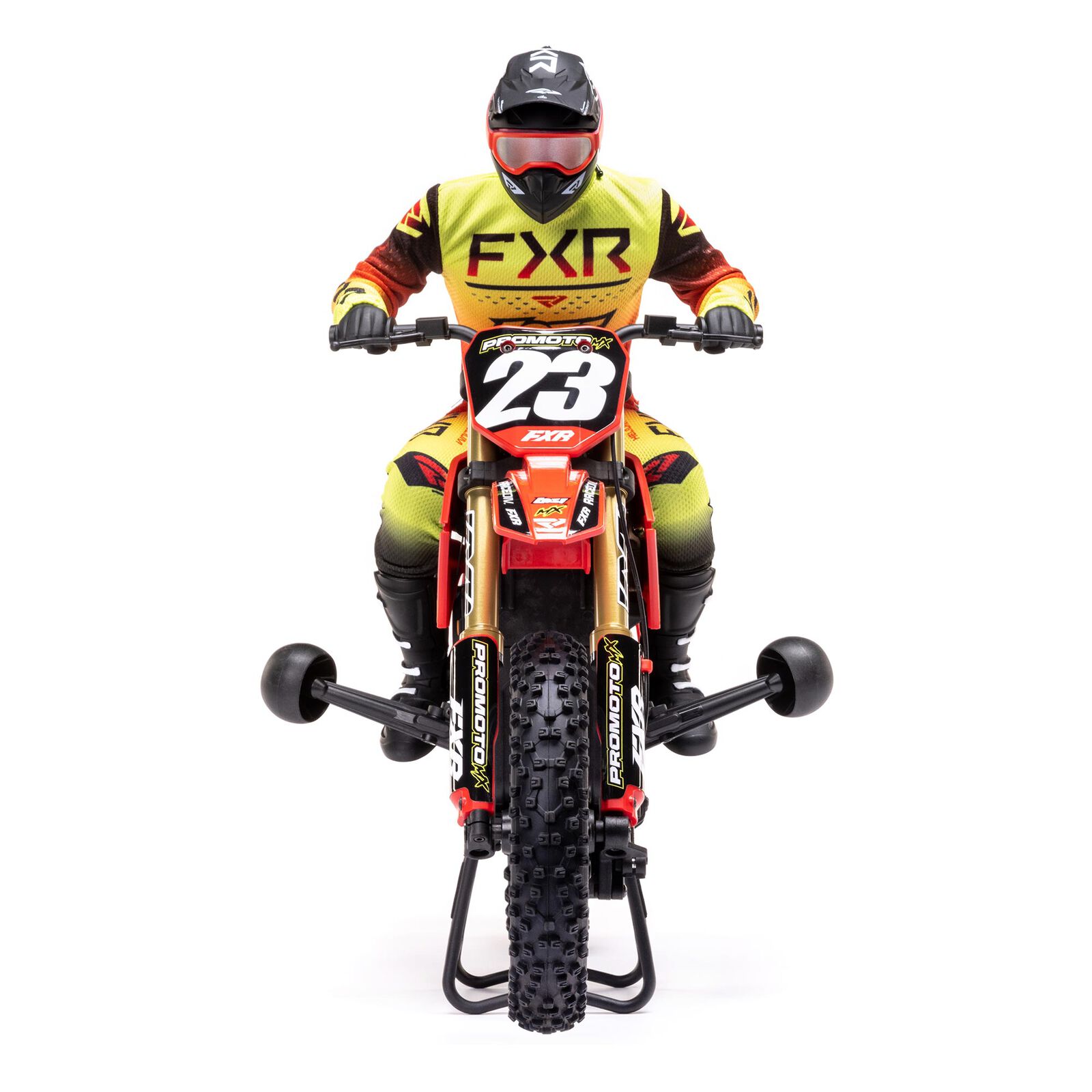

Don't worry if the front tire washes out on loose dirt. The lean bars are ready to catch it. They'll keep the Promoto-MX from going over its maximum lean angle, helping push it back upright to straighten out and exit the turn. The lean bars have adjustable stops for up and down travel, so you can dial in the bike for any surface or grip level. They also often help with crash recovery when the rear tire has traction. If the bike is down on the track, simply hit the throttle to stand it upright and resume driving.

SERVO SAVER

The servo saver's stiff circular springs, captured by bearing-mounted composite plates, provide consistency in steering with enough give to protect the servo. But that's not all. It also drastically improves the bike's performance when setting down from wheelies, landing from jumps, power sliding through a turn, and pushing the front tire over a rut. It gives so the bike stays up.

HEAD DAMPING

With 8-pounds rapidly powering down the track, it takes quite a stiff servo saver spring setup to properly guide the Promoto-MX into the next turn. Like anything heavily sprung, the best way to control the strong springs is to dampen the movement. A key development for the Promoto-MX is a fluid-filled friction chamber between the upper and lower head tube bearings. The chamber is filled with heavy 500,000cSt which dampens the servo saver well and helps to control any possible "head shake."

ELECTRONICS INCLUDED



• Transmitter (Spektrum DX3PM Smart DSMR)
• Receiver (Spektrum 6-Channel DSMR Promoto Receiver)
• Steering Servo (Spektrum S620PM Metal Gear Servo)
• Front Brake Servo (Spektrum SX108PM Micro Servo)
• Motor (Spektrum Firma 3652 3800Kv 4-Pole Brushless Motor)
• Flywheel Assembly (Spektrum Motorcycle Stator & ESC Assembly / Spektrum Motorcycle Flywheel Assembly)
• Electronic Speed Control (Spektrum Firma 85A Brushless Smart Motorcycle ESC)

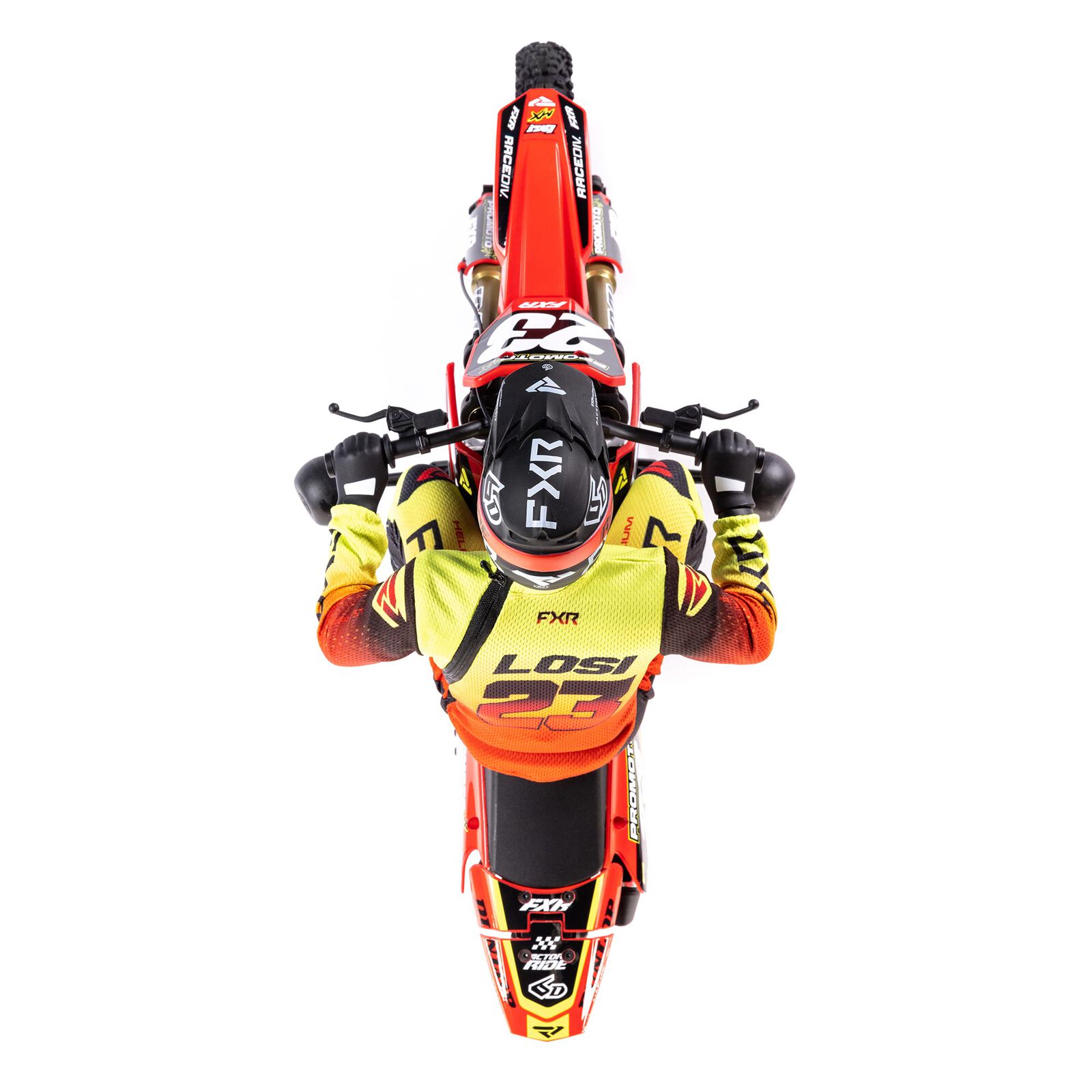

NARROW CHASSIS

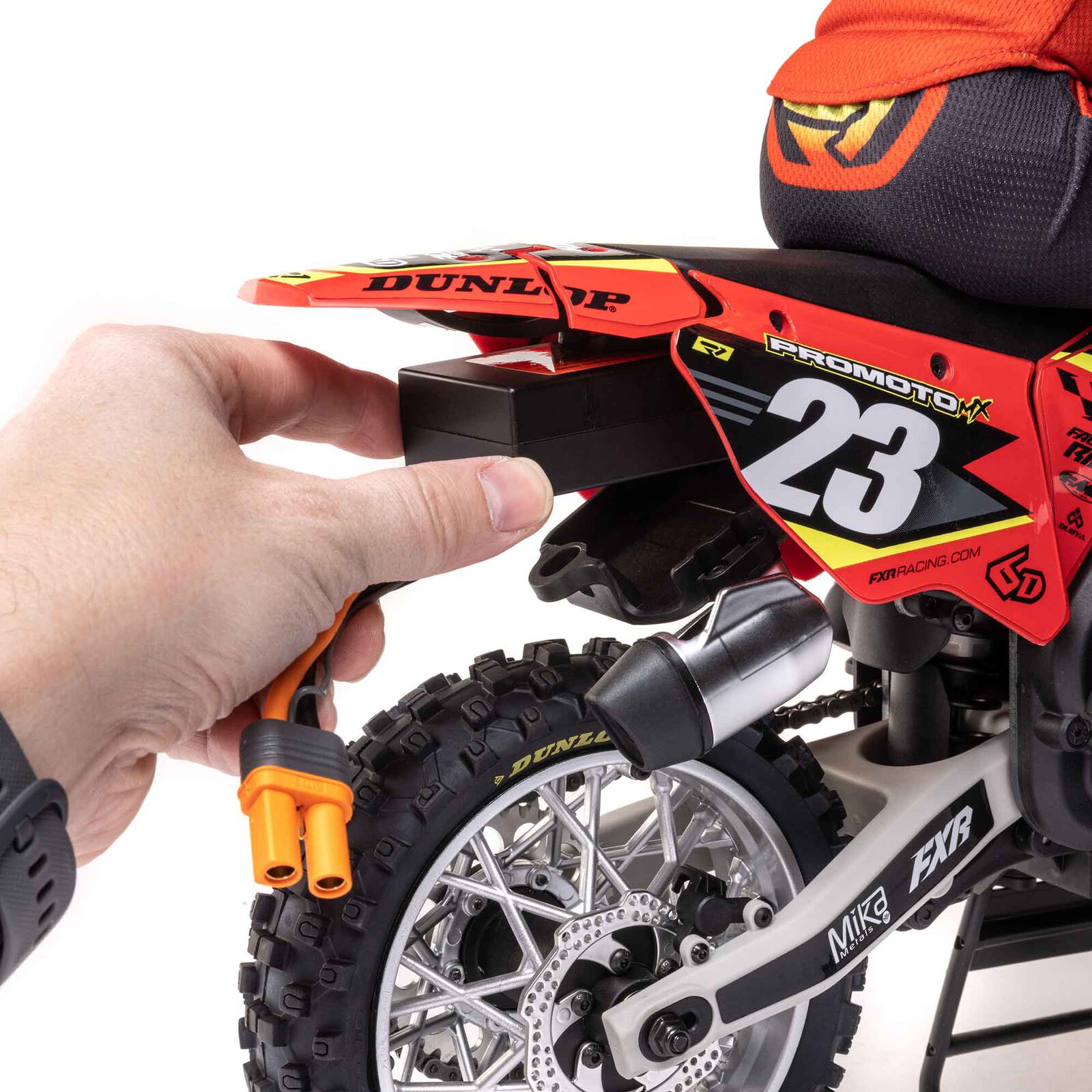

To capture the proper scale looks, the bike's electronics and battery all had to fit within a compact, narrow chassis. Requiring a special "shorty" battery would have made the design task simple, but the Promoto-MX product development team wanted to use a more convenient, standard size battery. Mission accomplished! A full-size 2S hardcase LiPo fits within the rider's seat, easy to access for quick battery changes. Pop in a charged pack and you're back to roosting your competition in seconds.

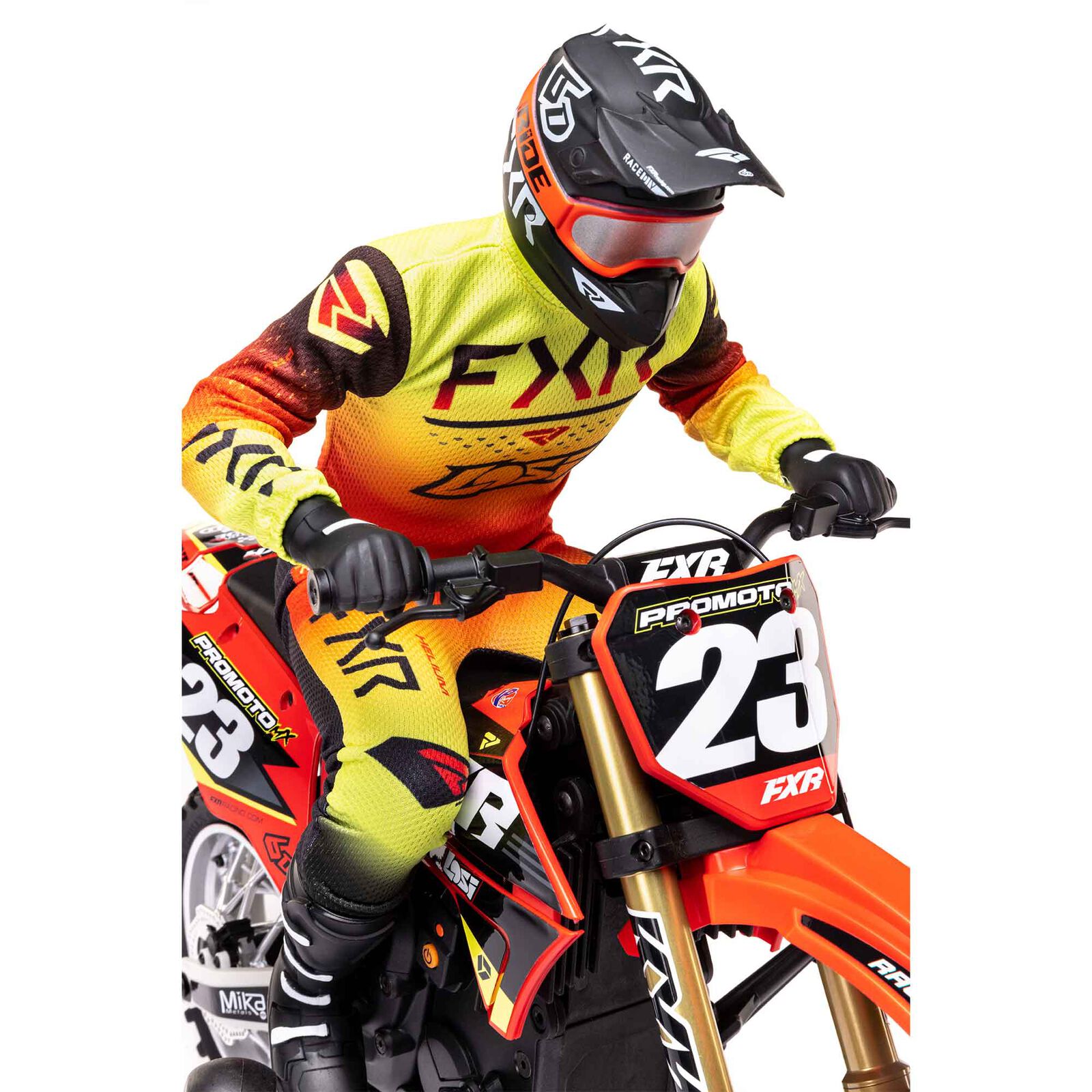

REALISTIC RIDER FIGURE

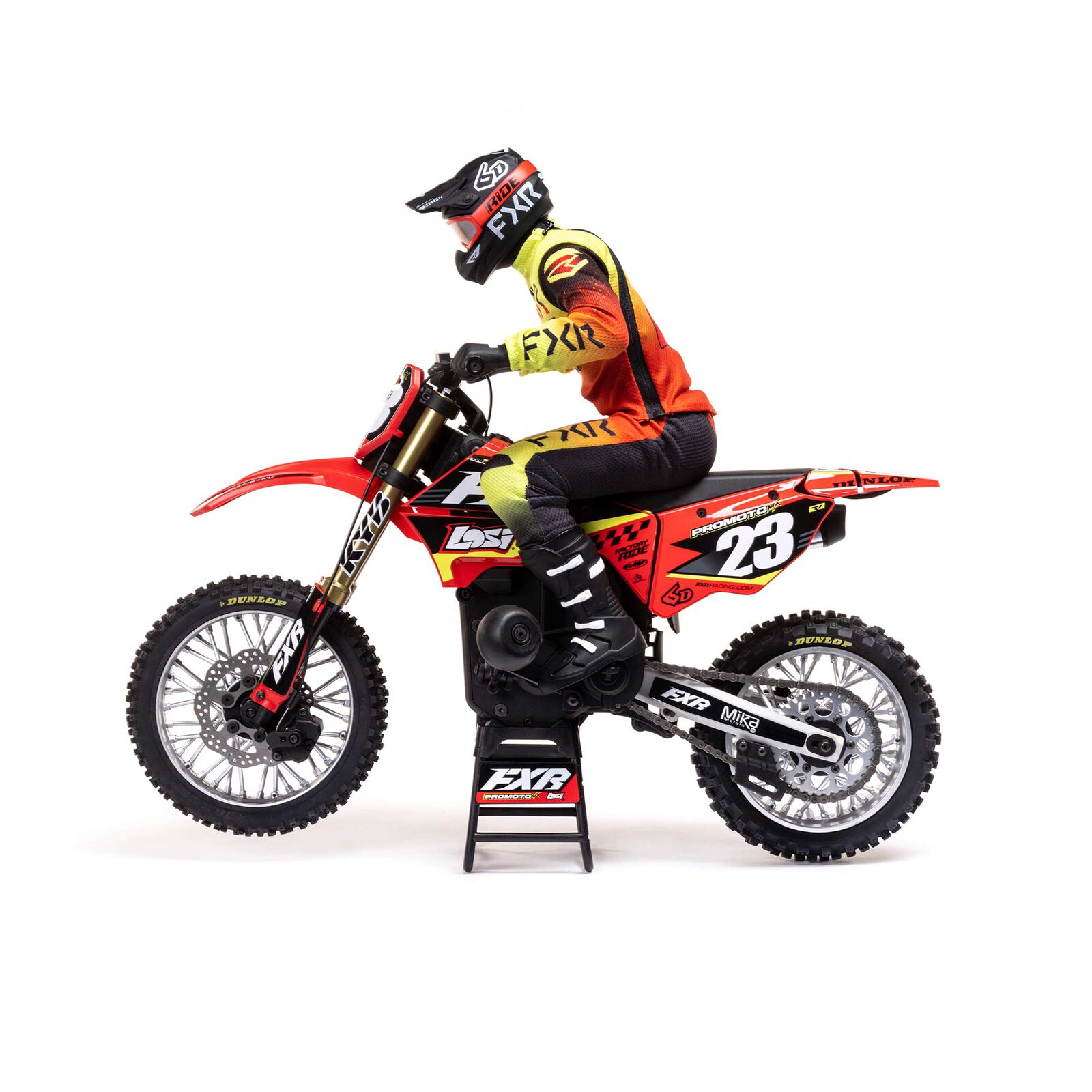

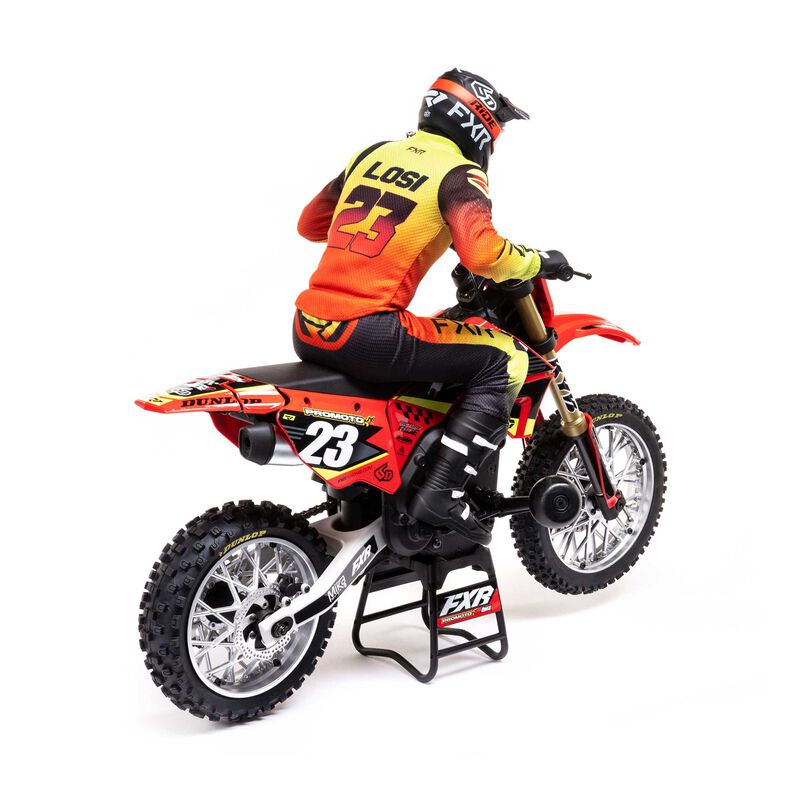

Complete with boots, brain bucket, and riding gear, the rider figure is ready for all of the same dirt bike-style action as you — to jump, wheelie, carve berms, and throw roost. The rider figures of other RC motorcycles are made entirely of foam, which quickly fails. The Promoto-MX rider has a rubberized plastic exterior that can give and flex under impacts and flips. To keep the rider from bobbling around on the bike, the torso has a foam insert. It keeps the body firm during normal operation but still able to give under impact.

OFFICIALLY LICENSED DUNLOP GEOMAX MX53 TIRES

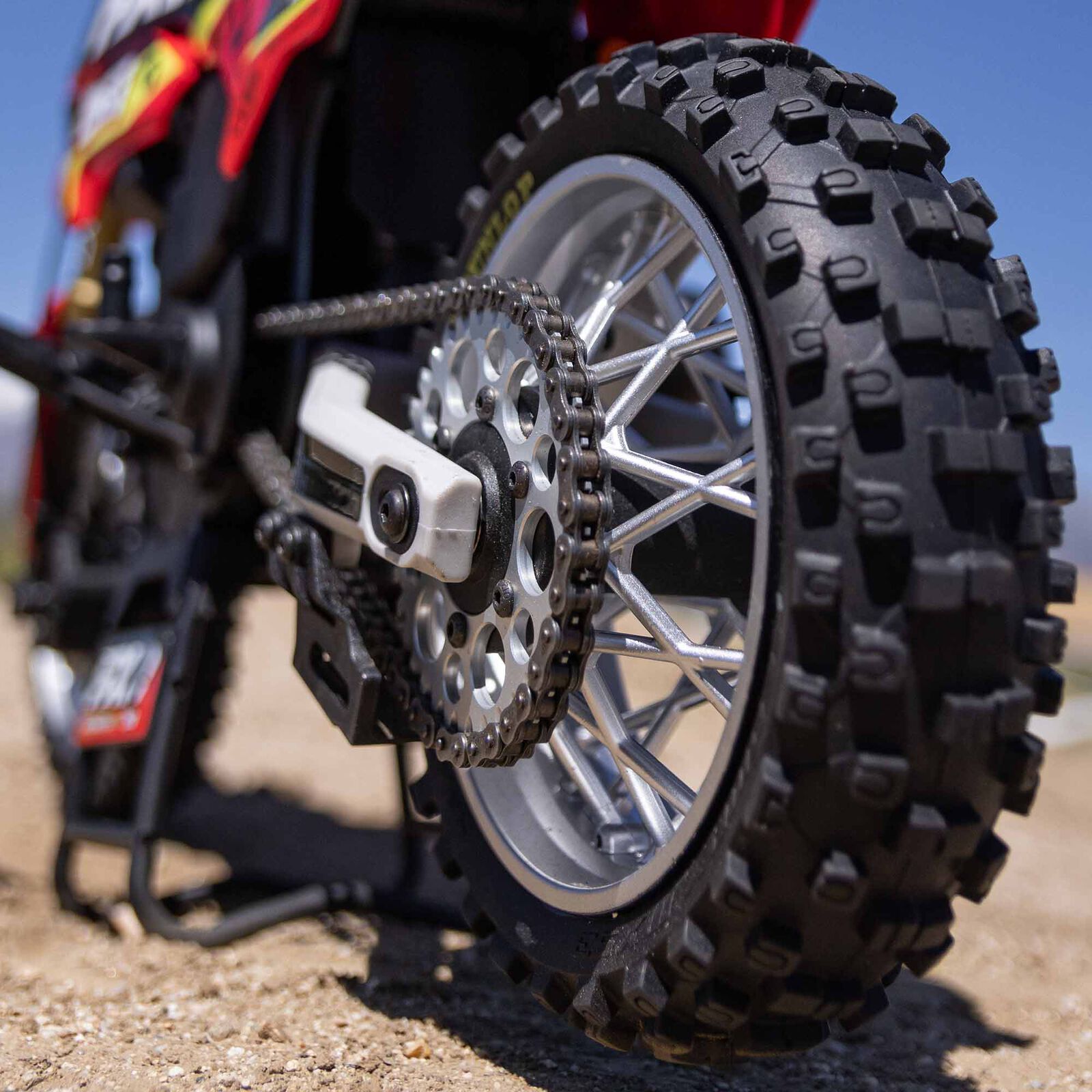

Just as any real dirt bike rider would want, the Promoto-MX comes equipped with the most popular Dunlop dirt bike tire tread, the Geomax MX53. It's officially licensed by Dunlop for scale accuracy and performance. The MX53 delivers on full-scale moto tracks around the world, and it provides high grip and long tire life for the Promoto-MX.

TRUE-SPOKE WHEELS

Its realistic, true-spoke wheels are another first for the Promoto-MX. No other RC manufacturers have been able to create proper-looking spoked wheels with the durability needed for a dirt bike. It took the determination and expertise of the Losi product development team to make it happen.

OFFICIALLY LICENSED FXR RACING GRAPHICS

Losi partnered with FXR Racing — a leading manufacturer of helmets, jerseys, pants, and other accessories for full-scale dirt bike enthusiasts — to create the officially licensed graphics for the Promoto-MX. The Promoto-MX looks perfect. It's ready and waiting for the gate to drop.

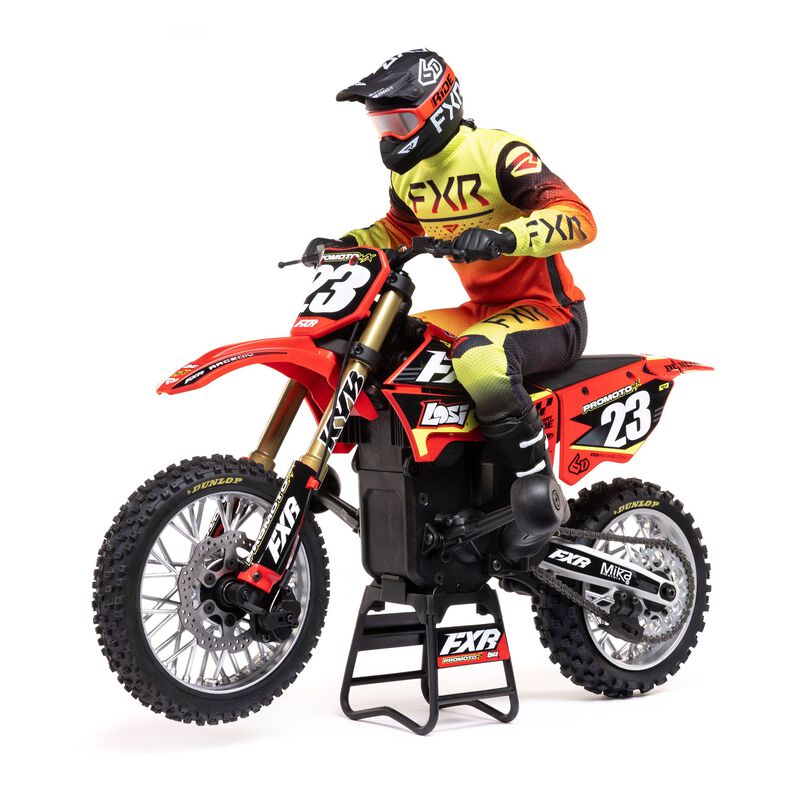

DISPLAY/MAINTENANCE & STARTING STANDS

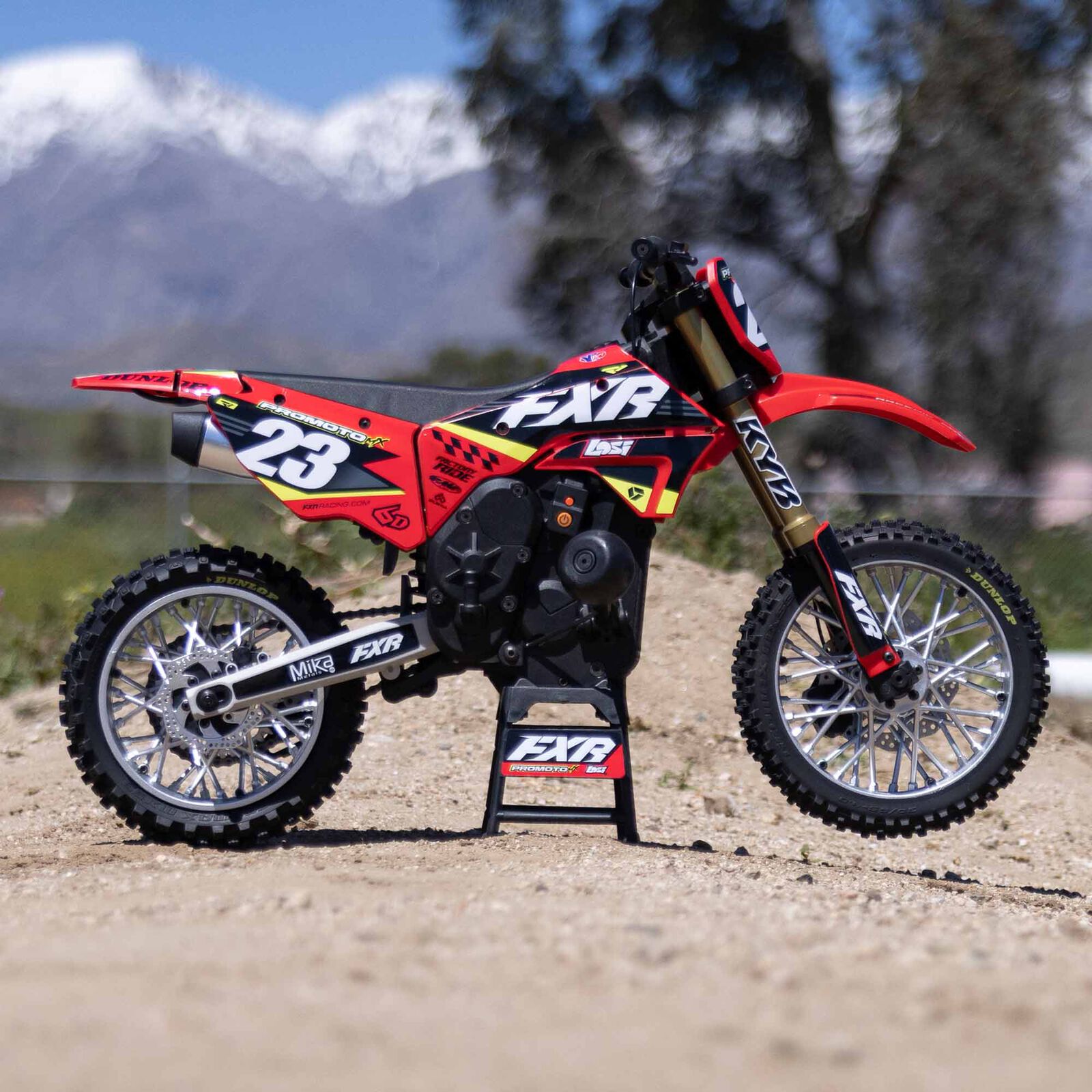

Working on a real dirt bike is easier with a proper bike stand. So the Promoto-MX had to have one, too! The included stand for maintenance and display is modeled after a real bike stand, complete with graphics. To keep the bike balanced on the stand, the Promoto-MX keys into the bike stand. Taking it a step further, a hands-free starting stand is also included. This starting stand cradles the rear tire and holds the bike upright and ready for a gate-style start.

PLASTICS WITH GRAPHICS

Big or small, no dirt bike would look right without a proper body panel kit wrapped in vinyl graphics. The Promoto-MX has all the goods — front fender, number plate, fork guards, front side panel, rear side panel, and rear fender — all looking fresh wrapped in officially licensed vinyl graphics, but highly durable and ready to get dirty.

REALISTIC DETAILS

Even tiny touches matter, and Losi hasn't overlooked a thing. Brake and clutch levers, exhaust, brake line, foot pegs, brake rotors, you name it — everything about the Promoto-MX is finely detailed.

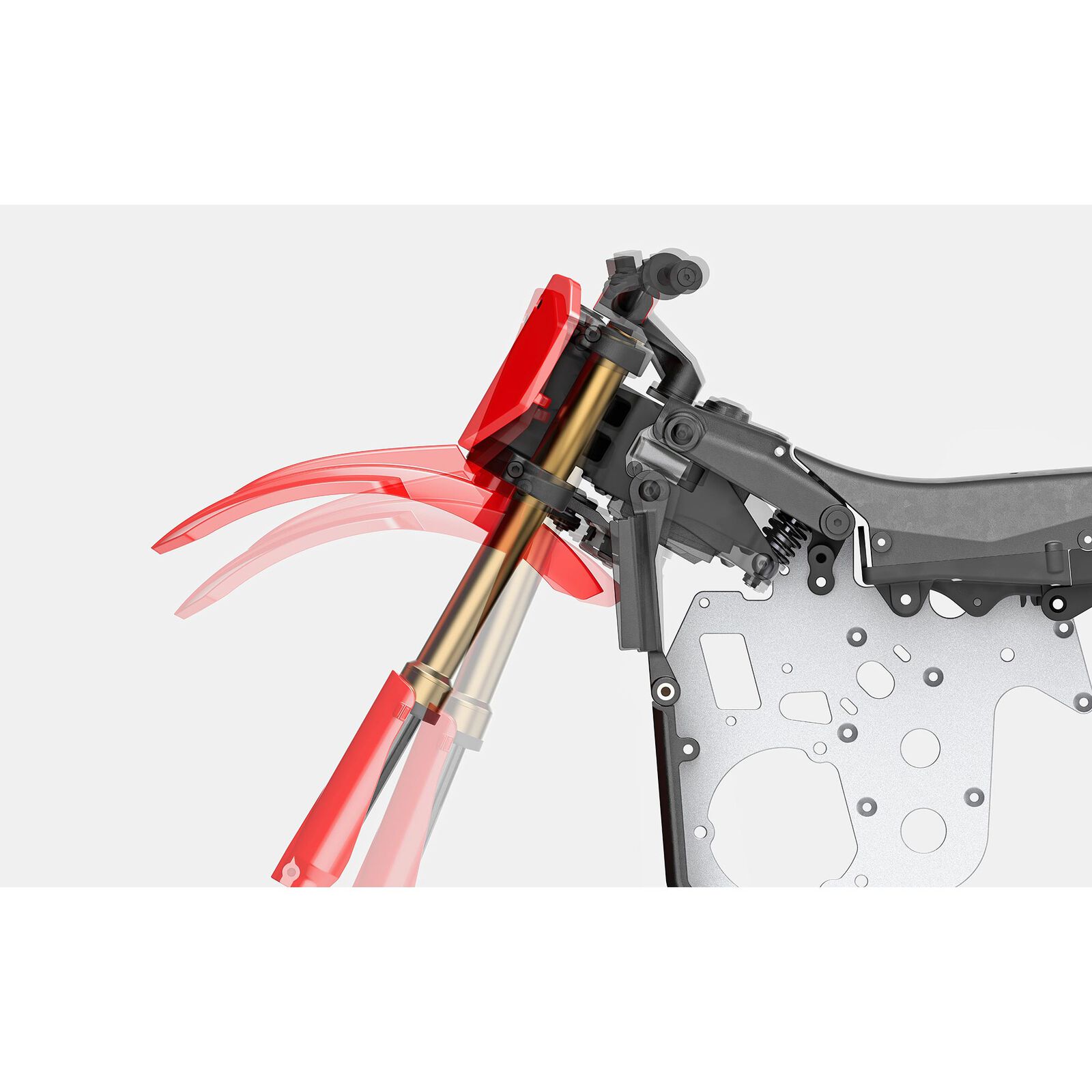

FRONT CRASH STRUCTURE

There's nothing better than sending a huge triple, but what happens if you come up short? Bending a fork leg or tube was not an option, so the Promoto-MX product development team found a solution. The front crash structure is rigid during normal running, but compresses until the front tire bottoms into the chassis frame to absorb those massive front impacts. That protects the front fork tubes from bending, keeping them safe and true.

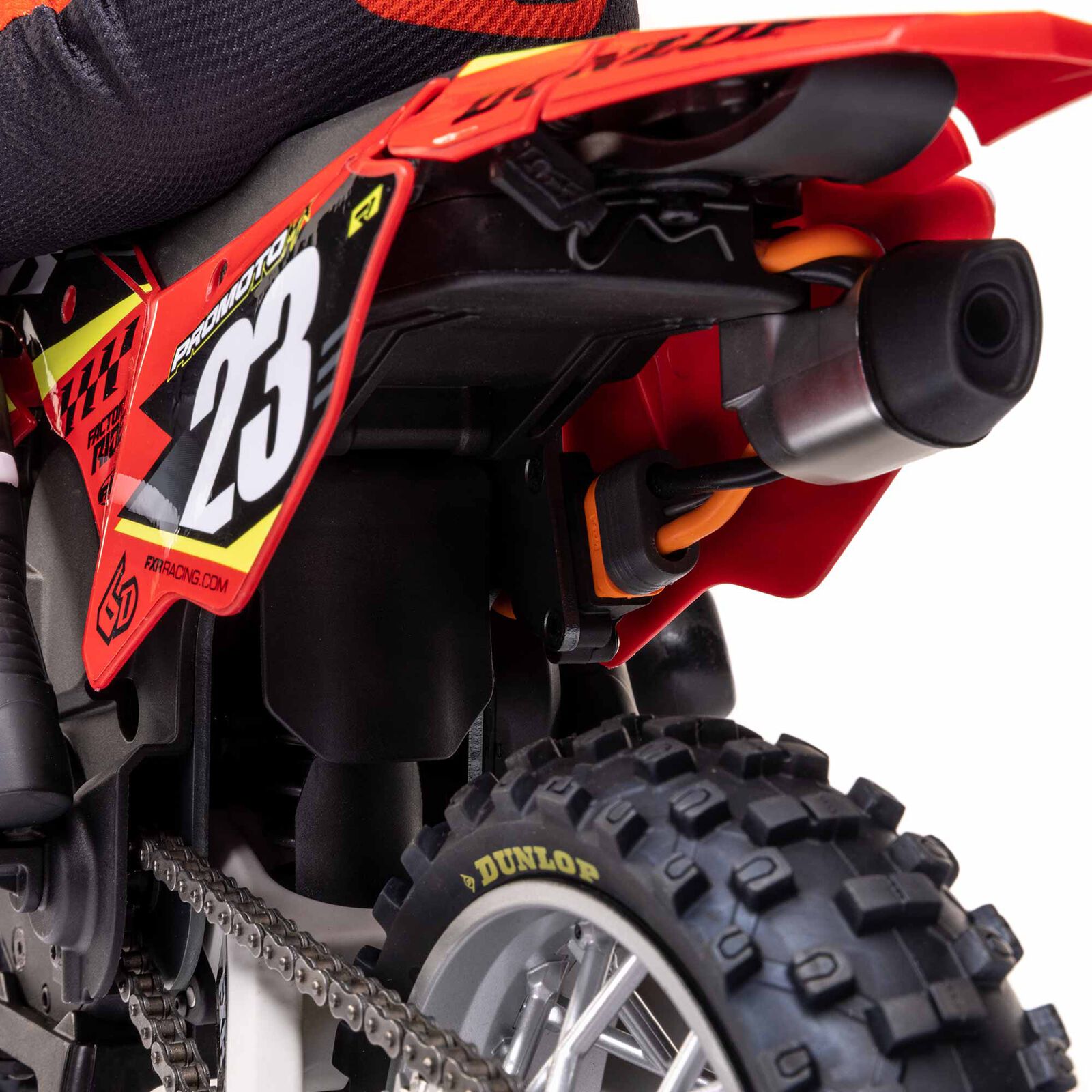

REAR FENDER

Wheelies happen. A normal, rigid-mounted rear fender would really take a beating. But the Promoto-MX has the solution — a hinged elastomer sprung rear fender that can deflect out of the way during wheelies to expose a durable nylon rear bumper. It substantially increases the durability of the rear fender.

SKID PLATES & AIR VENTS

Molded composite skid plates line the front and bottom of the Promoto-MX chassis. They offer protection during crashes and keep roost out of the chassis, helping to protect the electronics mounted inside. The air vents on each side of the bike come closed in the box, but can be opened to provide cooling airflow when ambient temperatures are high.

TWIN ALUMINUM PLATE CHASSIS

Twin aluminum chassis plates house and protect all of the bike's electronics and help to give the Promoto-MX its realistically narrow appearance. They also give the frame the rigidity and durability required for harsh impacts.

RISING RATE REAR SUSPENSION

Just like a real dirt bike, the Promoto-MX has a rising rate rear suspension. The suspension starts soft around ride height, for smooth handling and a superior grip. It becomes firmer as it gets deeper into up travel, to provide proper preload on jumps and prevent bottoming out in landings. Dialed in with a full oil-filled coil-over shock, the Promoto-MX is ready to rip on any surface.

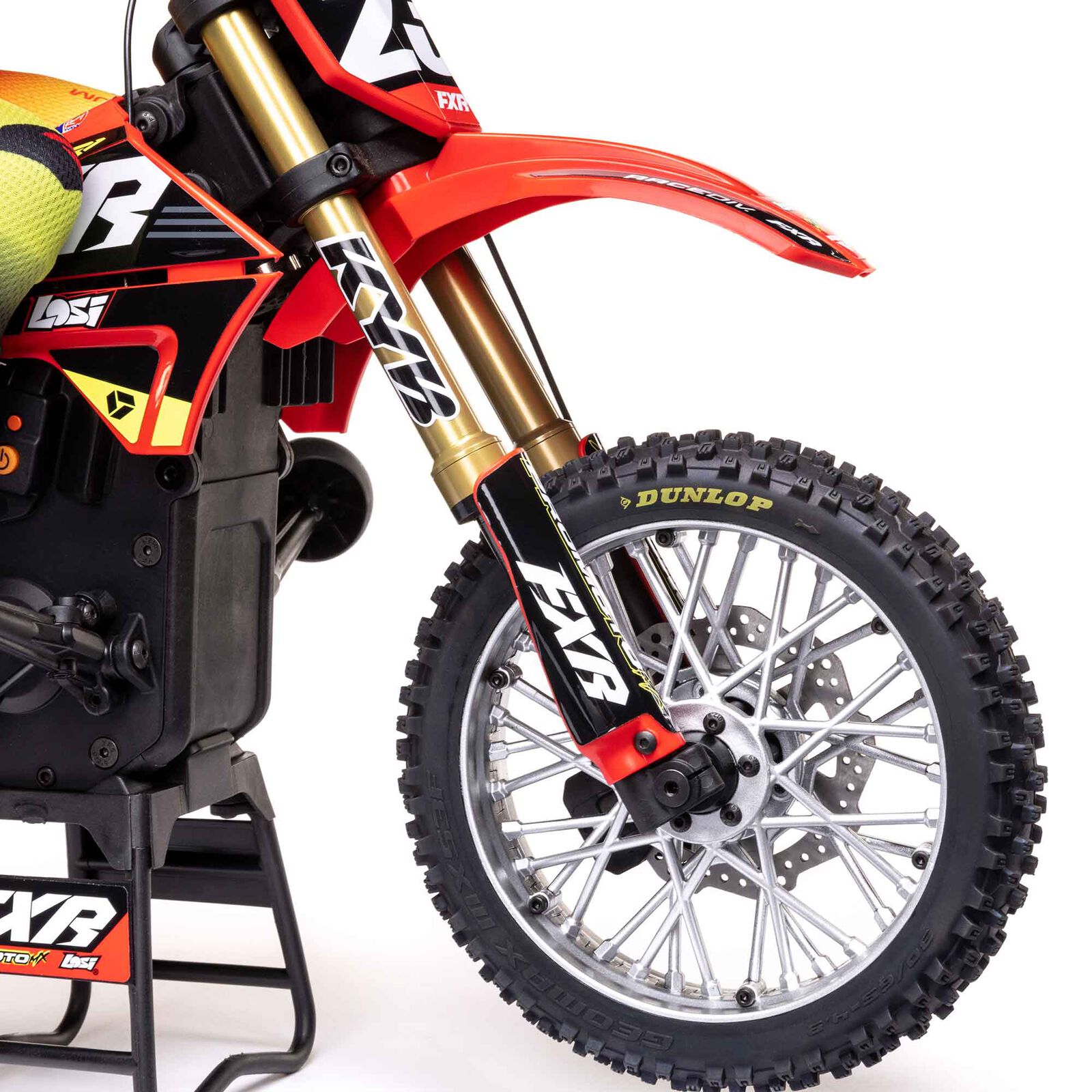

FRONT FORK

The front fork of the Promoto-MX is a completely new and modern design with an internal spring and dampener. Designed to work similar to normal RC shocks, the front fork tubes can be rebuilt and tuned by changing the silicone dampening fluid. Using counter-wound upper and lower springs, spacers can be used to adjust the ride height of the Promoto-MX as well. And maybe most importantly, they look awesome — just like the real deal.
