The new face of future is coming. Revolution comes also to Stock racing.

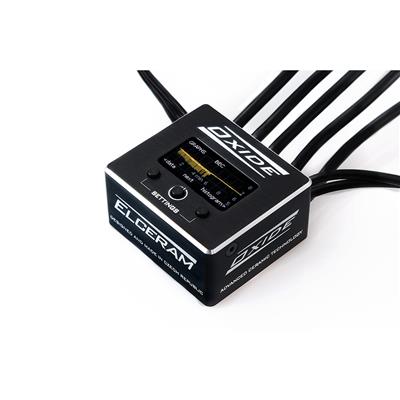

OXIDE 1/10 is a new generation electronic speed controller for BLDC sensored motors optimalized specially for Stock and Open-Stock racing onroad and offroad, but suitable for many other categories including Modified or Drift as well.

Using Advanced Cooling Technology based on Aluminium Oxide Ceramic Flat Cooler, OXIDE 1/10 provides TFT LCD color display allowing very quick and easy adjustment of all parameters, post-race data evaluation and self-diagnostics without need of any other interface.

All these great features packed into Stock low profile design.

Perfect for Stock, convenient for Modified and Drift with motors from 6T up.

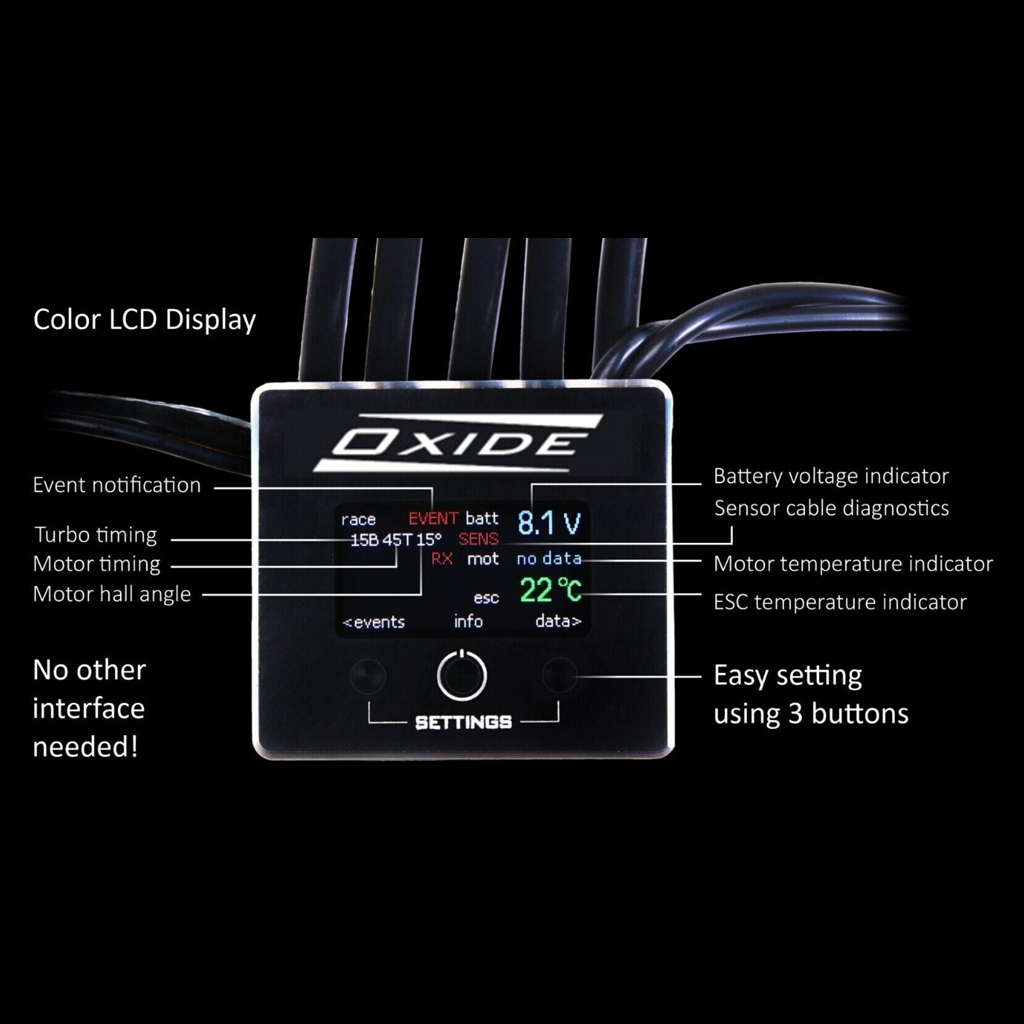

LCD Display
As you got used to by ELCERAM speedos, OXIDE 1/10 is endowed with necessary LCD color display. Thanks to this you can set all the parameters and check all data directly at your ESC, without need of any programming card or a mobile application. All you need is inside your ESC.

The use is really easy - by 3 buttons you can quickly set anything you need and one view is enough to check all parameters necessary for race. Simply. Quickly. Precisely.

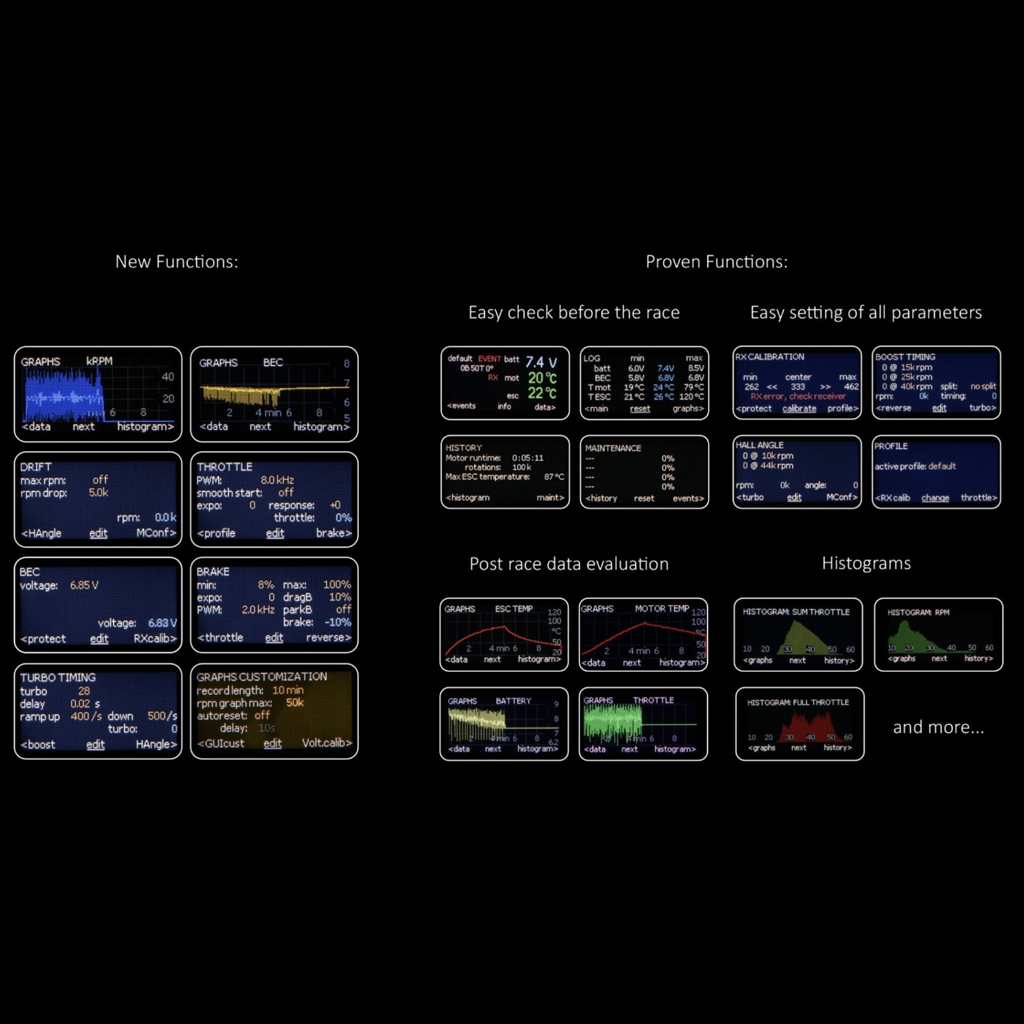

Proven and NEW functions
Thanks to the display, you can have always overview about all the important data and events - before the race, during driving and after race. It is really quick to make a change in your settings and then you have immediate feedback, without any delay caused by connecting a control interface.

In adition to the proven ones, OXIDE 1/10 is endowed by great new and revolutionary functions:

adjustable BEC voltage from 6 - 7,4 V with step 0,05 V
revolutionary continuous BEC voltage monitoring
continuous motor speed monitoring
throttle sensitivity adjustable
minimum brake and drag brake independently adjustable
turbo timing instant function possible
RPM limiter adjustable from 10.000 rpm up to 60.000 rpm with drop function
graphs customazitation, record lenght, autoreset function, etc

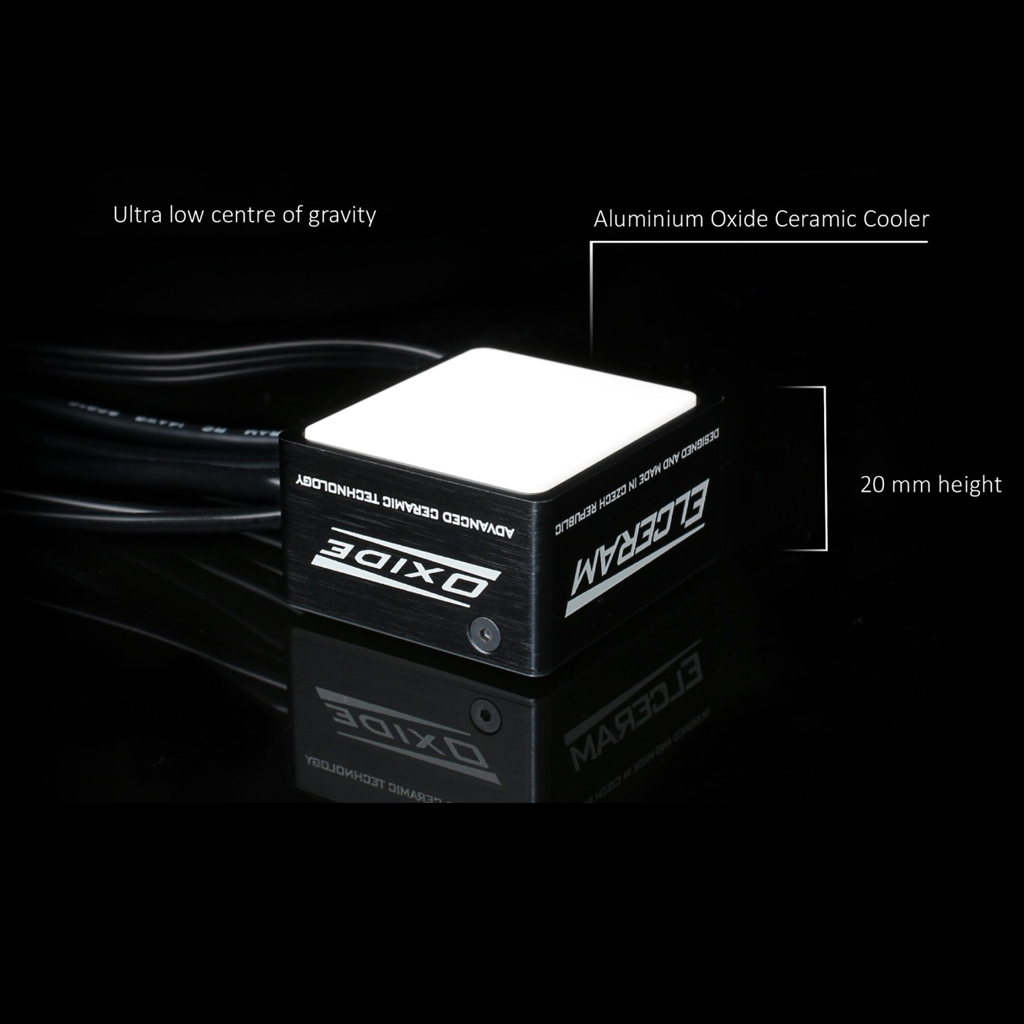

Advanced Cooling Technology based on ceramic and Thick Film Technology
Advanced cooling technology based on compact Aluminium Oxide cooler, developed especially for OXIDE.

OXIDE 1/10 is light and compact version of ESC, exactly the one you need not only for Stock racing. The centre of gravity is ultra low for even better stability of your car.

Power MOSFET´s transistors are attached on very thick silver layer with low resistance and high current capability. The silver layer is fired directly on Aluminium Oxide cooler using temperature above 850 °C for excelent longterm reliability and thermal shock stability. The power stage - the most heavy component - is all way down.

Despite the Stock dimensions and weight, OXIDE provides the TOP features and functions that you appreciate not only in Stock and Open-stock, but also in all other categories, including Modified or Drift with motors 6T and more.

Quick and easy installation

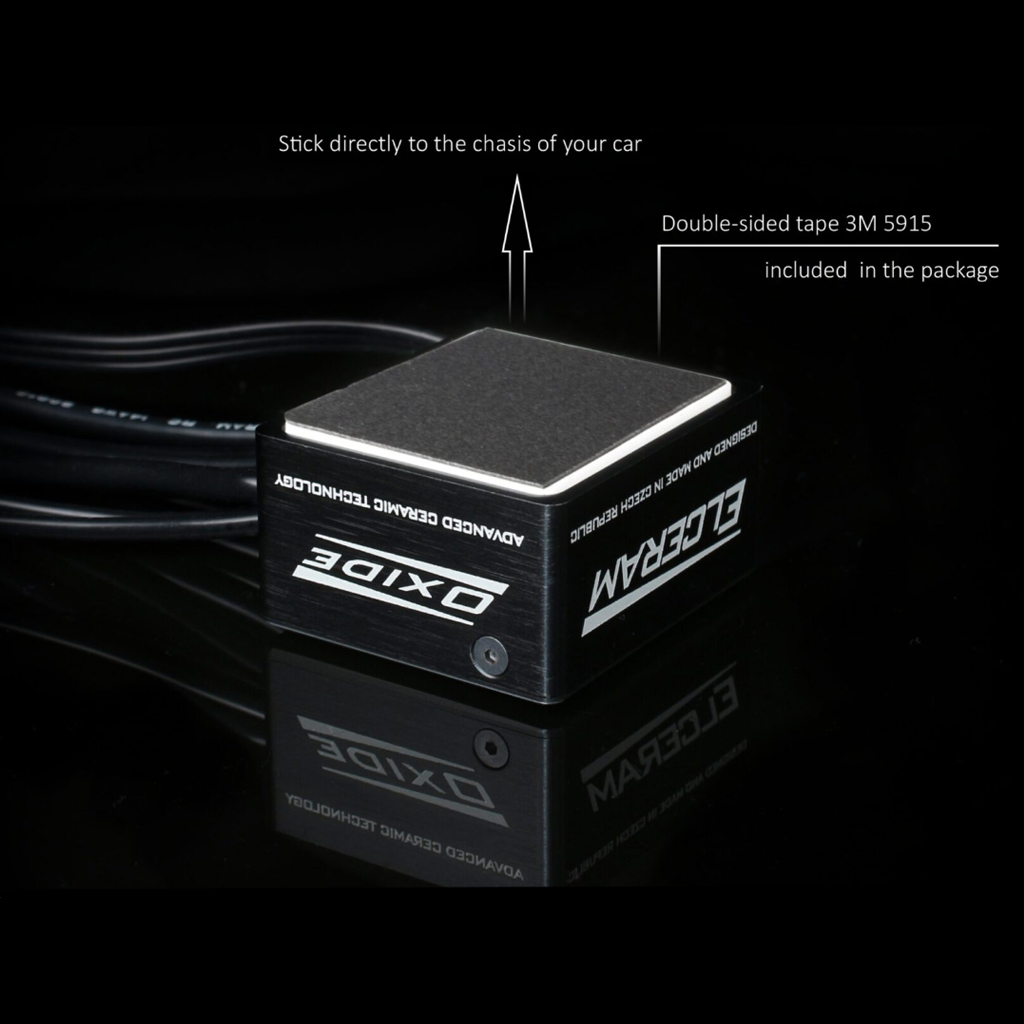

Installation of OXIDE is quick and easy - you can stick it directly to the chasis of your car using a double-sided tape included in the package. For example tape type 3M 5915.

If better cooling effect desired, you can stick the OXIDE on any thermal conductive plate (for example aluminium) in the car.

In addition, the cover of ESC with display and buttons is able to be changed simply in case of any accident.

Features:
Developed especially for 1/10th professional RC cars. Buggy, Touring, Drift, etc.
Ideal solution for high level stock racing (standard, expert, open stock).
Suitable also for modified with motors from 6T up.
TFT LCD color display with resolution 160 x 80 pixels.

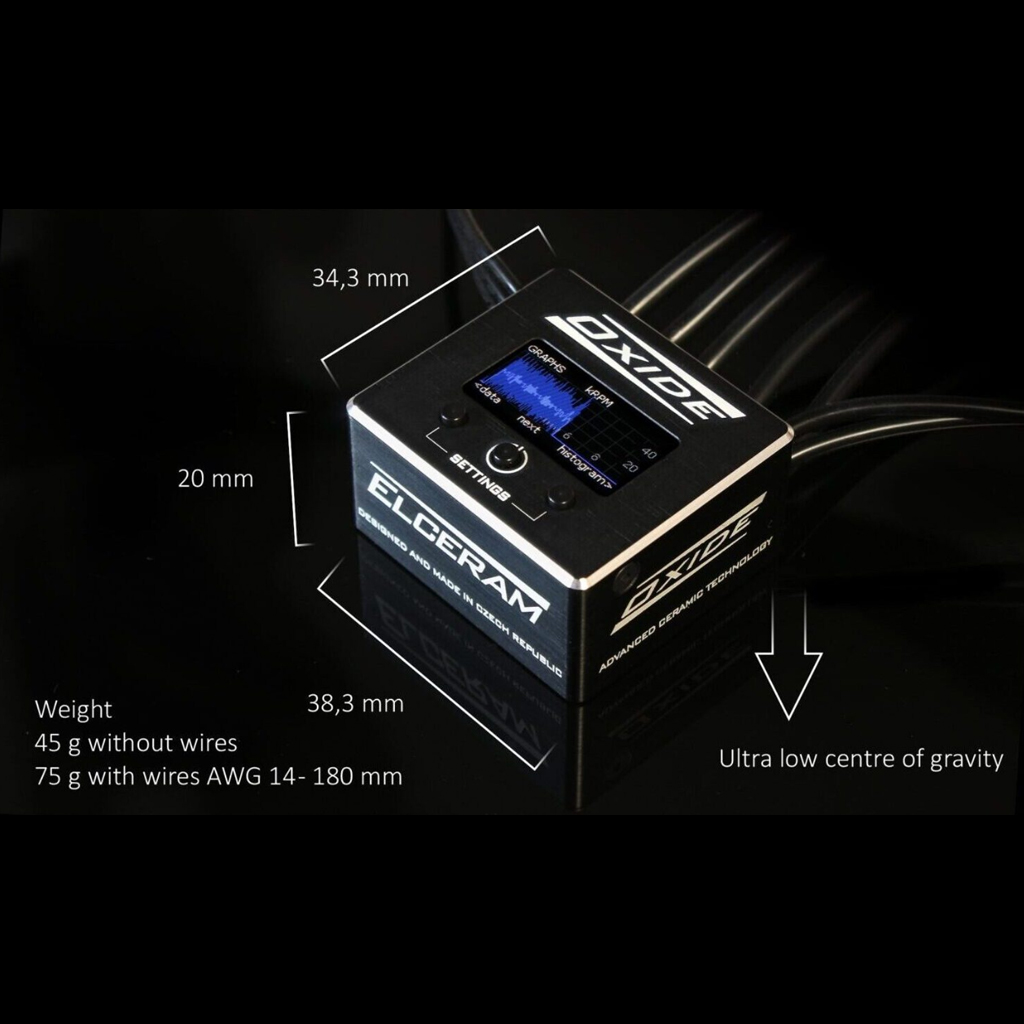

Size: 38,3 (L) x 34,3 (W) x 20 (H) mm.
Weight: 45 g without wires / 75 g with wires AWG14 - 180 mm.
Ultra low centre of gravity.
Power supply: 2S LiPo.
Current cont. / pulsed: 145 A / 1500 A.
BEC: 6 - 7,4 V adjustable, step 0,05 V.
Extreme low internal resistance based on silver conductive layer.
Advanced Cooling Technology based on Aluminium Oxide Ceramic Flat Cooler.
Designed for high level RC racing.
Zero Timing (Blinky Mode) supported.
For sensored BLDC motors from 6T up.

Functions:
Revolutionary easy Rx calibration.
Realtime monitoring: battery voltage, ESC and motor temperatures.
Self-diagnostic before the race: motor temperature, sensor cable, battery.
Post-race data evaluation.
Easy programming: throttle, brake, boost and turbo timing, hall angle, BEC and many other functions.
Continuous BEC volatge monitoring.
Continuous motor speed monitoring.
RPM limiter supported.
Race data logging, temperature and other curves, histograms and more.
Adjustable maintenance reminder for easy check.
No programming interface needed.
Thoroughly tested under race conditions.
