Name: HPI 102701 - Flux HP 3+60Kv Brushless System

Price: HK$ 2480.00

Buy Item

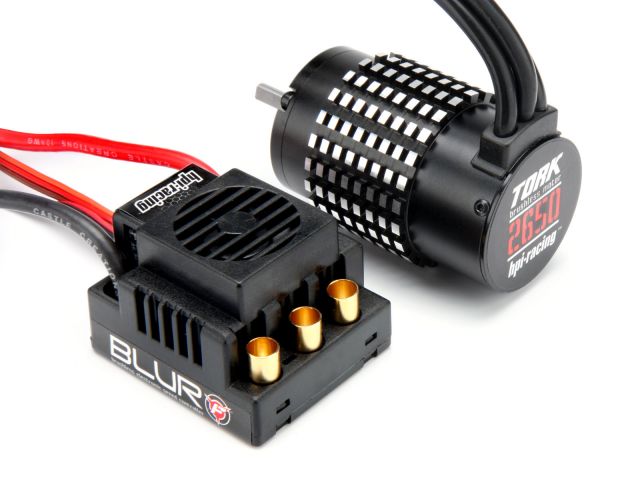

The Flux HP 2650Kv Brushless System comes with our Flux Blur ESC and Flux Tork 2650Kv brushless motor. This convenient system can be used for a wide variety of brushless applications.

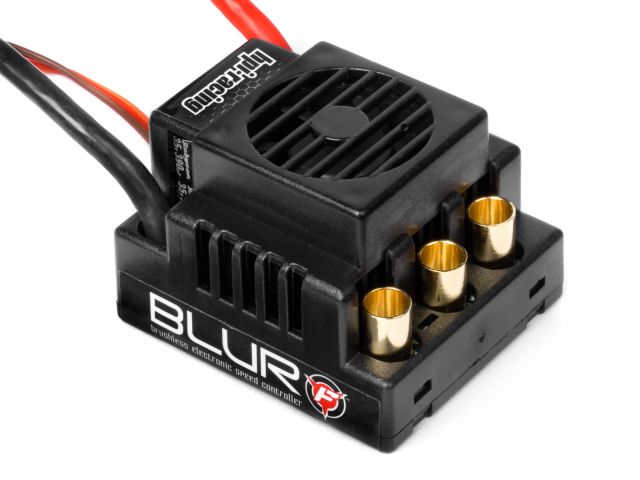

The Flux Blur ESC has the capacity to handle up to 6S LiPo power. Fully programmable with our #100573 USB Programming Kit and fitted with fat 6mm bullet connectors, the Blur delivers power to the motor in massive gulps of voltage while the integrated cooling fan keeps everything at a reasonable operating temperature. This is a replacement part for the ESC that comes in the Savage Flux HP truck, and it can also be used in a variety of other brushless applications.

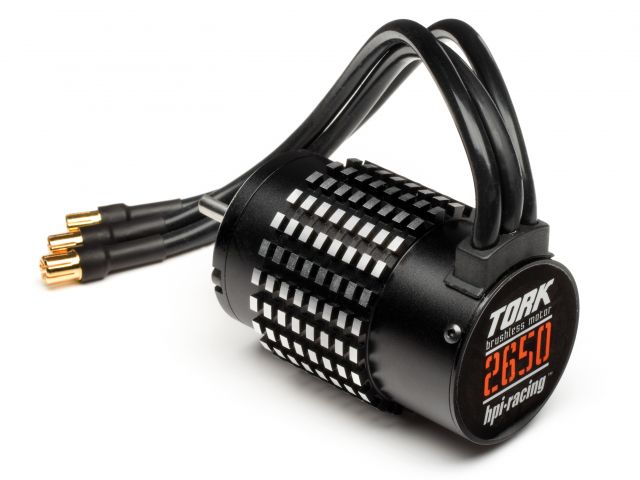

The massively powerful Flux Tork 2650Kv brushless motor features extra large heat sinks to keep it cool, giant silicone wires to transfer the power, bullet connectors for easy installation, and a highly efficient (85+%!) design that makes enough power to do standing back flips. This motor will bolt right in to the Savage Flux HP, and it can also be used in a variety of other brushless applications.

ESC Specs:

25.2V maximum with Flux Tork 2200Kv brushless motor

16.8V maximum with Flux Tork 2650Kv brushless motor

Sensorless technology eliminates additional sensor wiring and complexity

Continuous: 120A*

Resistance: 0.0003 ohms per phase

Brake: Proportional with adjustable curve

Reversible: Yes - with lockout

Low Voltage Cutoff: Programmable

Size: 2.2" x 1.9" x 1.4"

Weight w/wires: 121g (4.26 oz)

Connector: 6.5mm bullet

Motor Specs:0

Max Input Volts: 16.8

Motor Diameter: 39.98mm

41.78mm with fins

Motor Length: 68mm

Shaft: 5mm

Bearings: Oversize ABEC-1 front and rear

Connector: 6.5mm

Note: Motor wires OK to shorten
