Full List of Adjustments:

Front inboard toe angle adjustments: 0 degrees to -2 degrees.
Rear inboard toe angle adjustments: 2 degrees to 4 degrees.
Adjustable front and rear camber using strong steel turnbuckles.
The camber can be fine tuned to suit your track conditions.

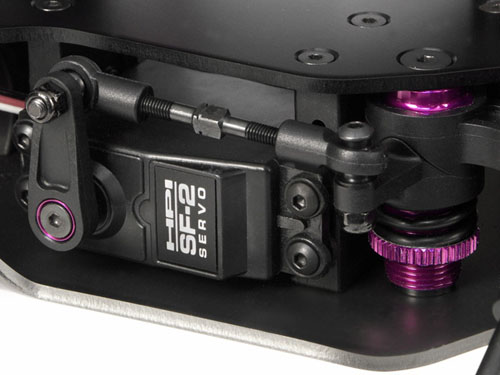

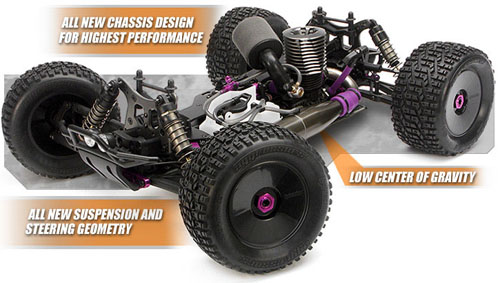

Adjustable steering geometry.
Spring clips are included to fine tune your ride height.
Anti-dive adjustments: 0 degrees to 2 degrees in 0.5 degree increments.
Anti-squat adjustments: 1.5 degrees to 3.5 degrees in 0.5 degree increments.
Front kick-up angle: adjustable from 21 to 25 degrees.
24 possible shock positions available to fine tune your suspension.
Four different shock pistons are included for a wide range of tuning options.
Different compression and rebound can be achieved with tapered shock pistons.
Damping can be fine tuned with different diameter holes.
Adjustable brake bias to control entry steering and jumping.
Adjustable front and rear inboard toe with convenient urethane eccentric bushings.

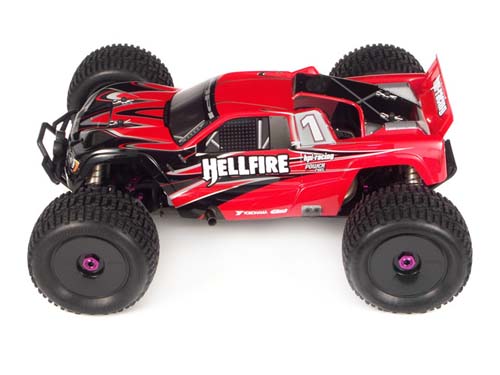

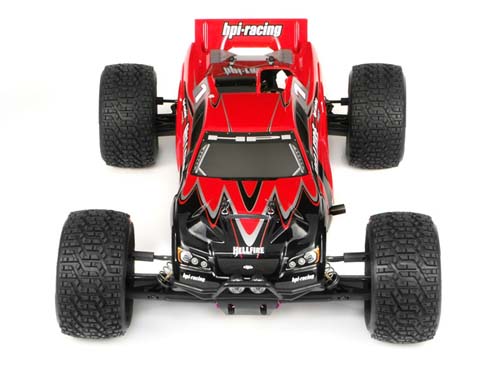

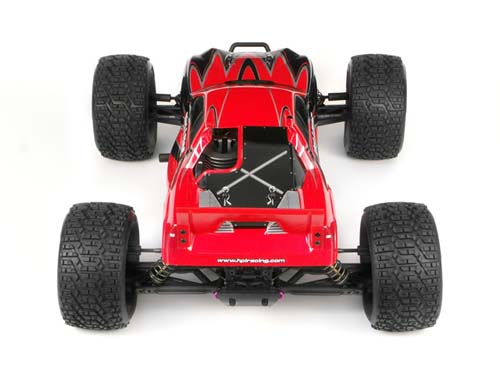

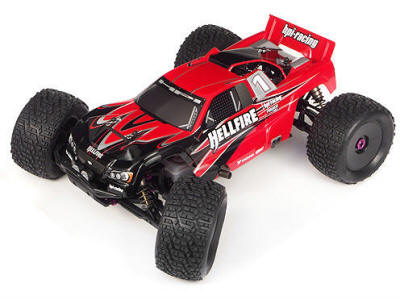

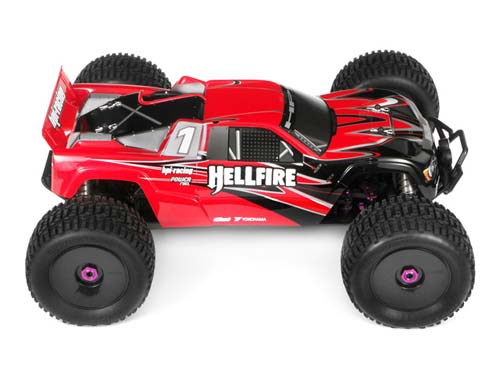

Hellfire Specifications:

Wheelbase = 348mm*
Total Length = 513mm
Total Width = 415mm
Total Height = 173mm
Weight = 9.2 lb (ready to run, less fuel)

Reference Wheelbases: Savage = 335mm, 1/8 scale Buggy = 323mm
*Varies with Inboard Toe Setting
