Key Features

• Increases speed and longer run times over stock mini electronics
• Two way setup: Programming card for multiple profiles and USB PC interface for unlimited profiles
• 25-Amp power rating with a 35A peak (5 seconds)
• Low voltage cutoff to protect your investment
• Pre-wired Losi mini vehicle plug for power connection
• Gold-plated motor connectors for effective power transfer
• Precision ball bearings for smooth operation
• The speed control has reverse, but it can be locked out for racing

Overview

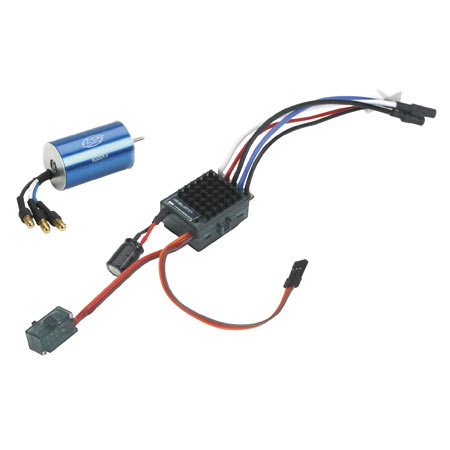

Xcelorin brushless systems from Losi represent the latest development in brushless power and performance. The 1/18 Xcelorin Motors and ESCs offer features and specifications desired by electric RC enthusiasts. The ESC features a pre-wired Losi mini connector, low voltage cutoff protection and multiple programming options. Gold-plated connectors ensure that the power from the battery is efficiently and effectively transferred to the brushless motor via the 25-amp 1/18 Xcelorin ESC. The motor also features pre-wired gold connectors, precision ball bearings for smooth operation, sintered neodymium rotors, and best of all requires no motor maintenance. For higher speeds and longer run times for your mini vehicle, look to Losi and Xcelorin brushless systems.

ESC Specs
Forward: Y
Reverse: Y
Brake: Y
Continuous Maximum Current: 25A
Input Connector Types: Losi mini vehicle power connector
Output Connector Types: 2mm gold-plated bullet connectors
Momentary Peak Current: 35A (5 seconds)
Dimensions (WxLxH): 1.16 x 1.54 x 0.9 in (29.5 x 39 x 23mm)
Weight: 0.9 oz (28 g)
BEC Voltage: 5.0V / 2A
Overload Protection: Y

Motor Specs
Type: Brushless
Size: 280
Bearings or Bushings: Precision ball bearings
RPM/Volt (Kv): 7400Kv
Cells: 2-3 LiPo; 6-12 NiMH
Weight: 1.87 oz (53 g)
Overall Diameter: 1.4 in (36mm)
Shaft Diameter: 0.078 in (2.0mm) with flat
Shaft Length: 0.39 in (10mm)

 **
